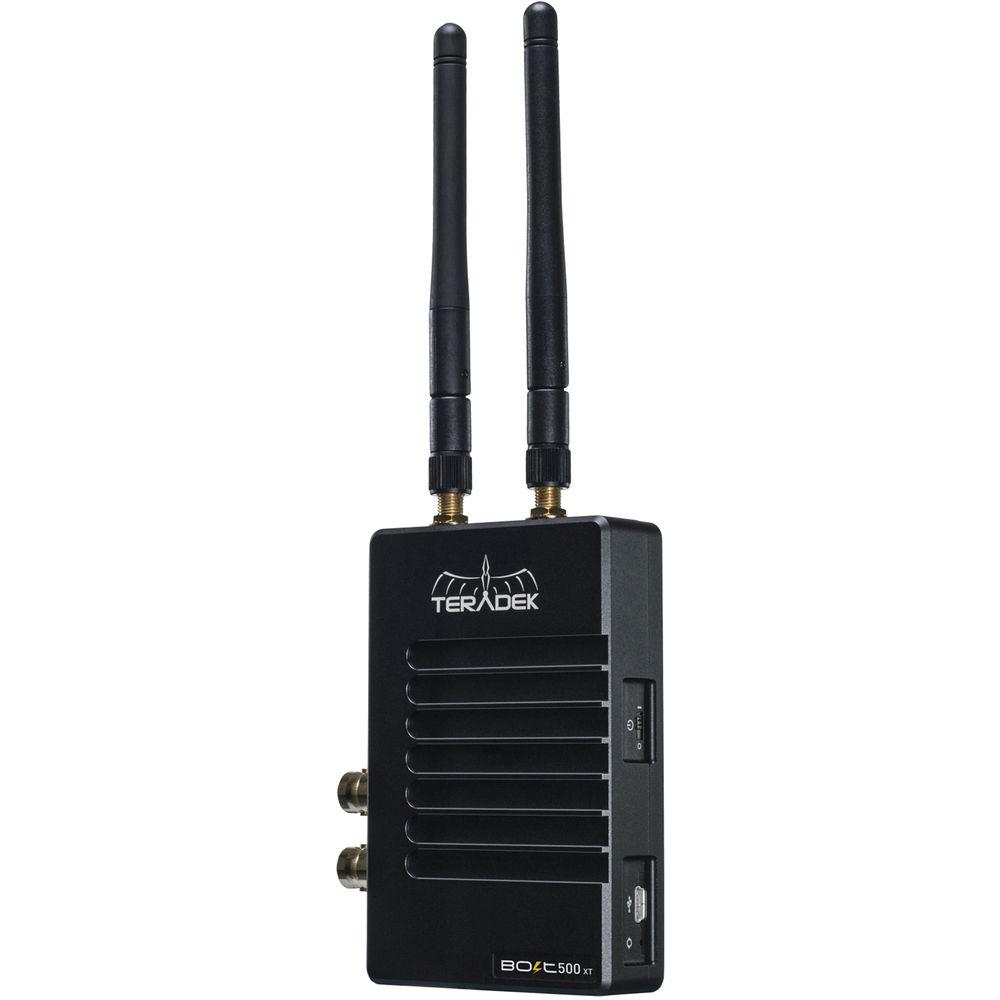

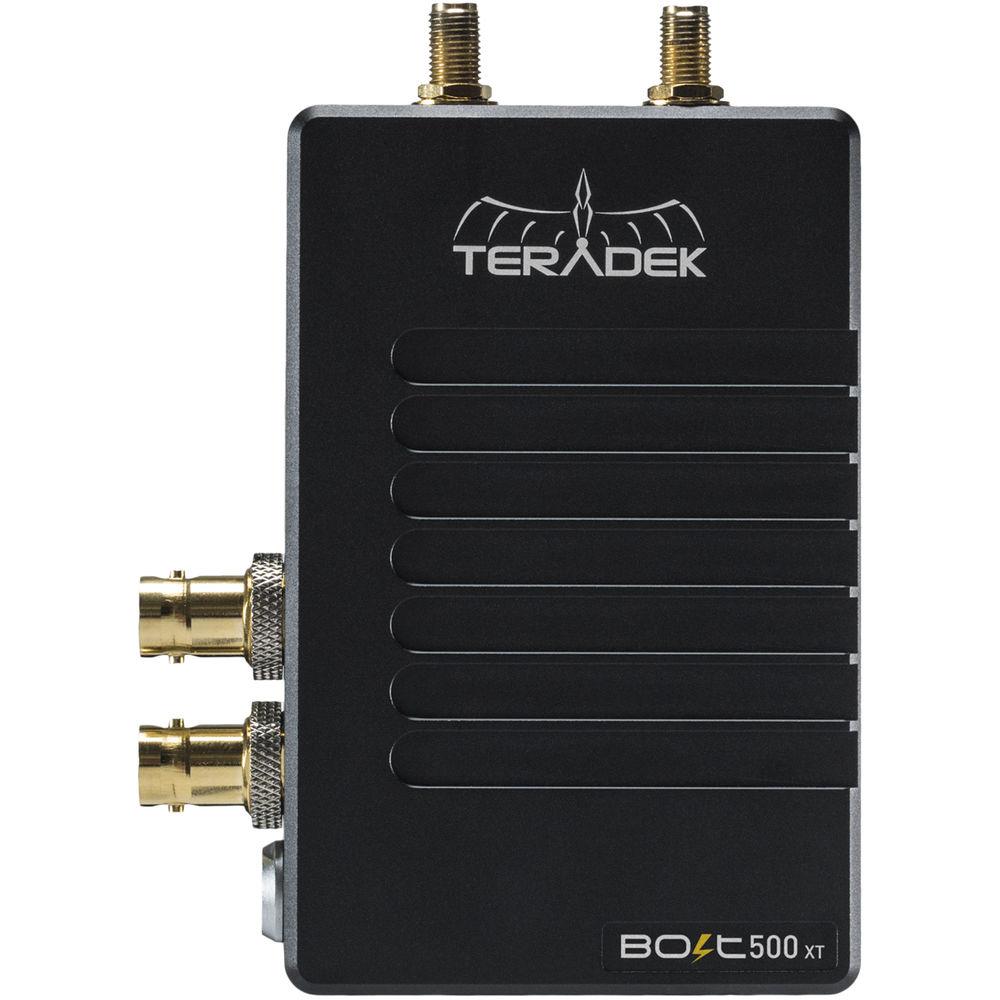

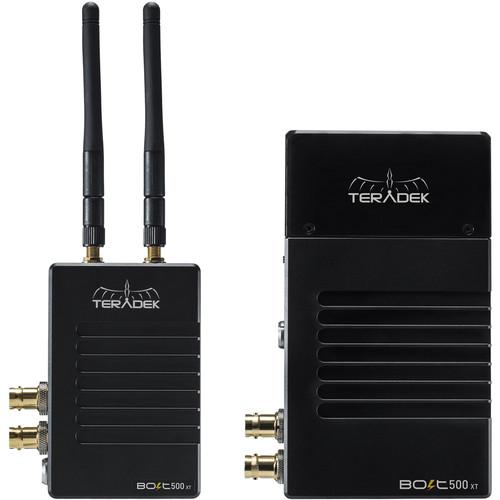

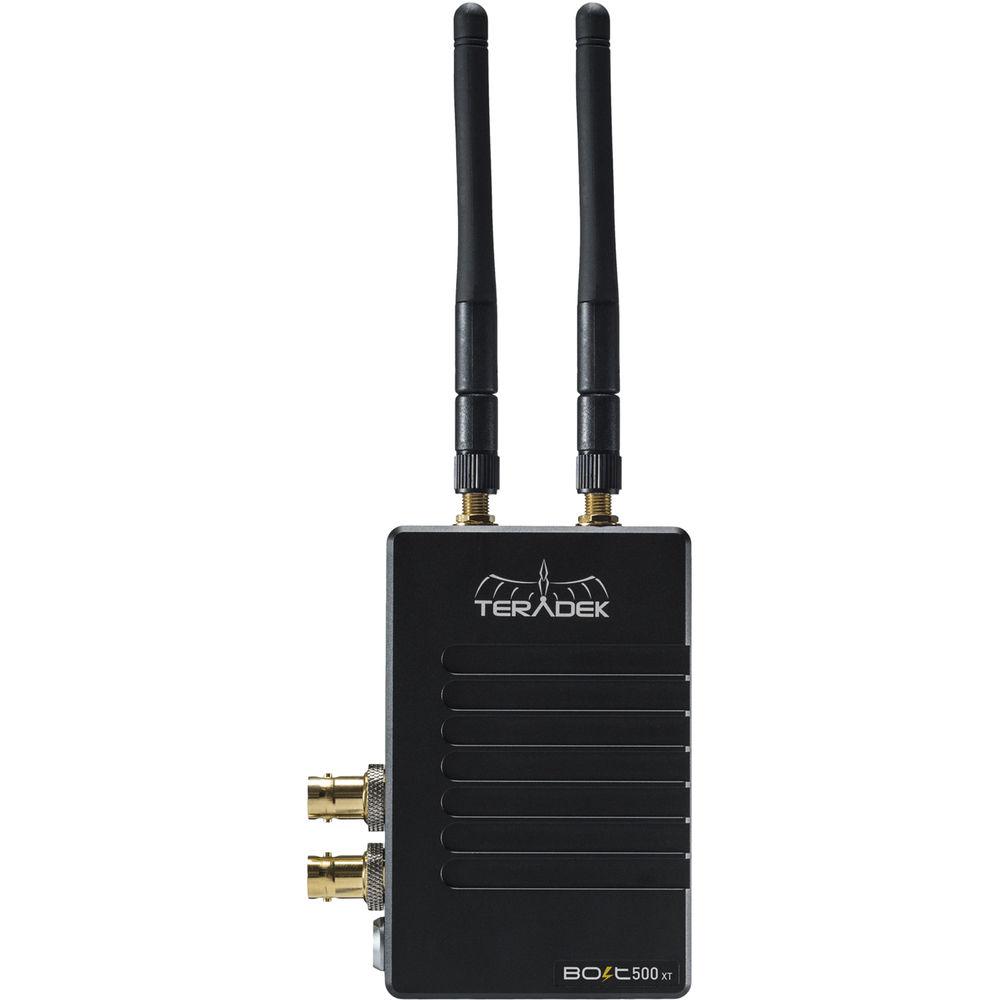

Product description The Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter and Receiver Set includes one transmitter and one receiver. This enables you to immediately start transmitting up to 1080p60 video from either an SDI or HDMI source. The zero-latency transmitter/receiver pair features a 500' line-of-site transmission distance. You can send and receive visually lossless 3G-video signals from a Bolt 500 transmitter with zero latency. The transmitter features cross conversion, so you take an SDI signal in and loop out either an SDI or HDMI signal to your on-camera monitor.
The receiver also features both SDI and HDMI outputs, and the system supports digital SD and HD signals. Although the inputs and outputs support a variety of HD signals in both 50 and 60 Hz standards, as well as 480i and 576i, only HDMI supports 480p and 576p. You can transmit up to three other 3rd-generation Bolt receivers as the transmitter can support up to four receivers. The built-in AES 128-bit encryption helps keep your transmitted video safe from prying eyes. - Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter With the Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 500 receiver with zero latency. The Bolt XT is compatible with existing third-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt LT. The transmitter unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, as well as two M3 threaded holes. The included antennas provide a powerful signal that can travel up to 500' line of sight.
A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers. Built-in AES-128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backward compatible with third-generation Bolt 500, 1000, 300, Sidekick II, and 703 Bolt
- HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
- SDI ancillary data support for metadata, timecode, and start/stop flags from certain camera manufacturers

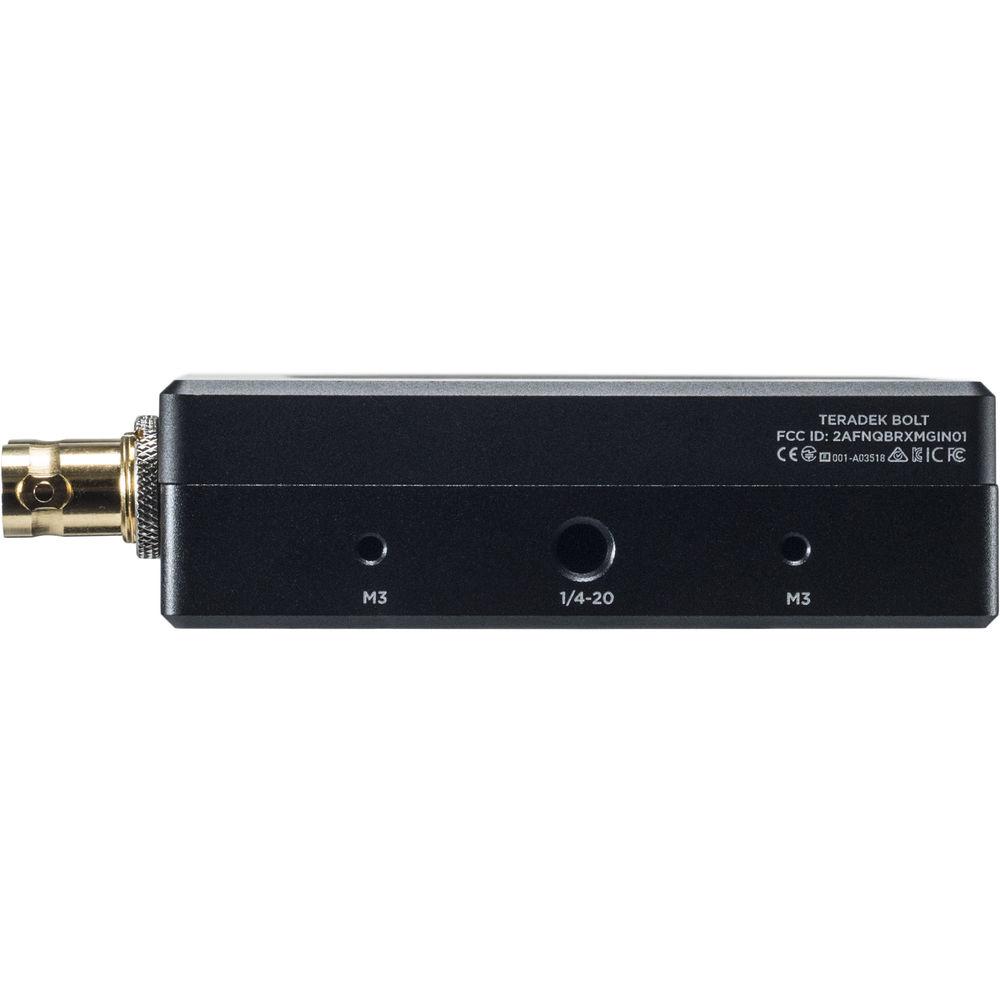

- 1/4"-20, 3/8"-16, and ARRI rosette mounting points

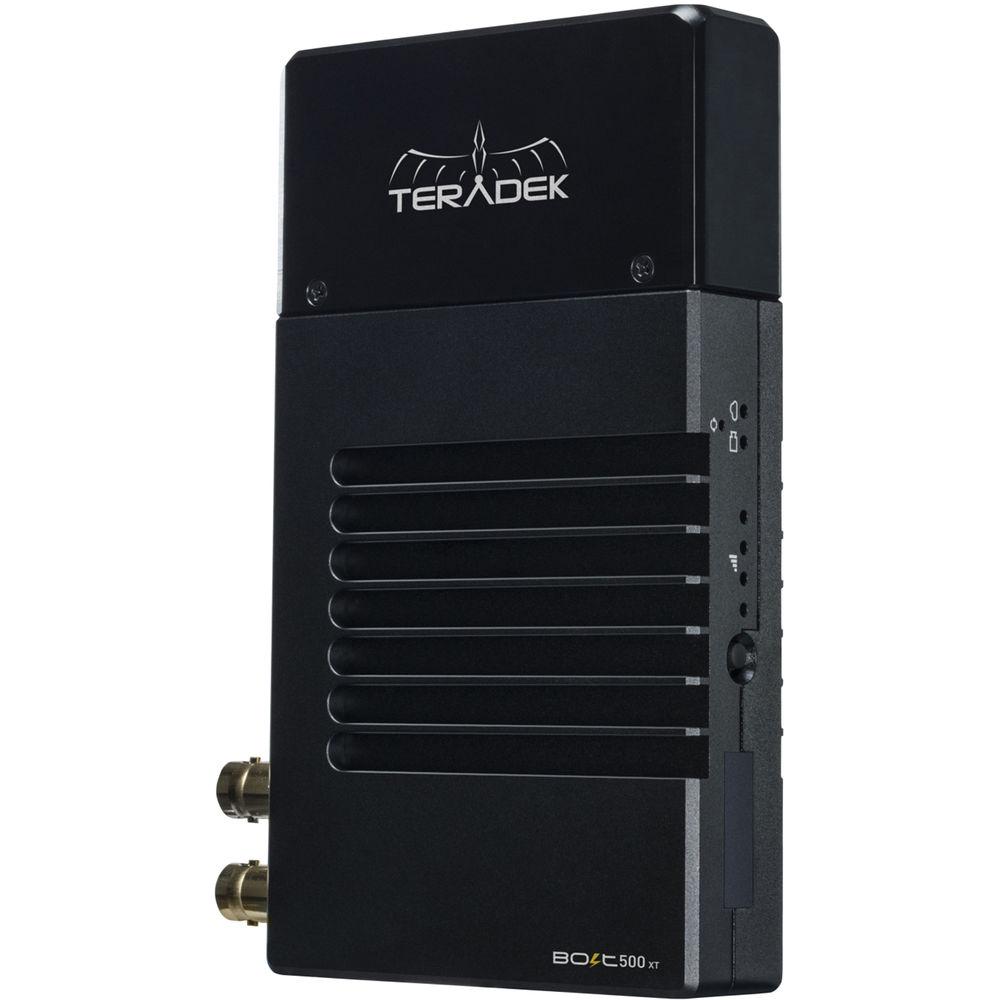

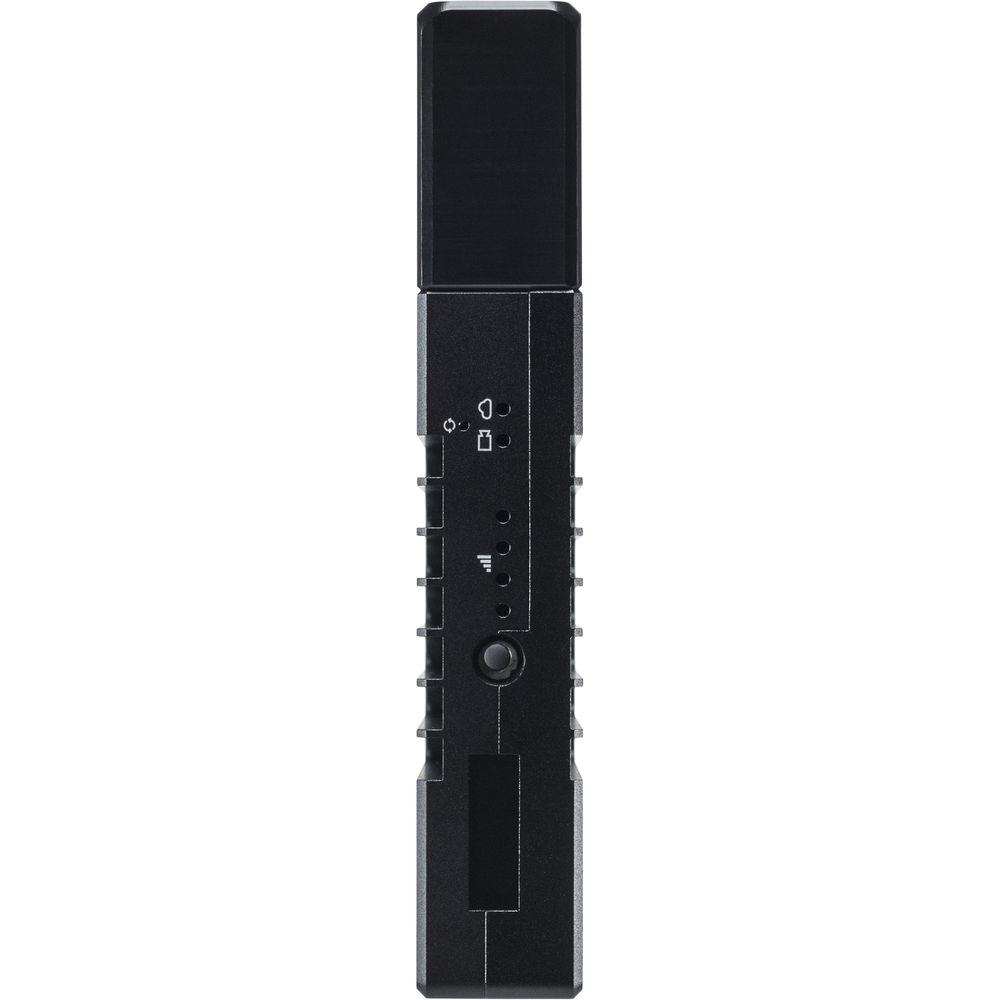

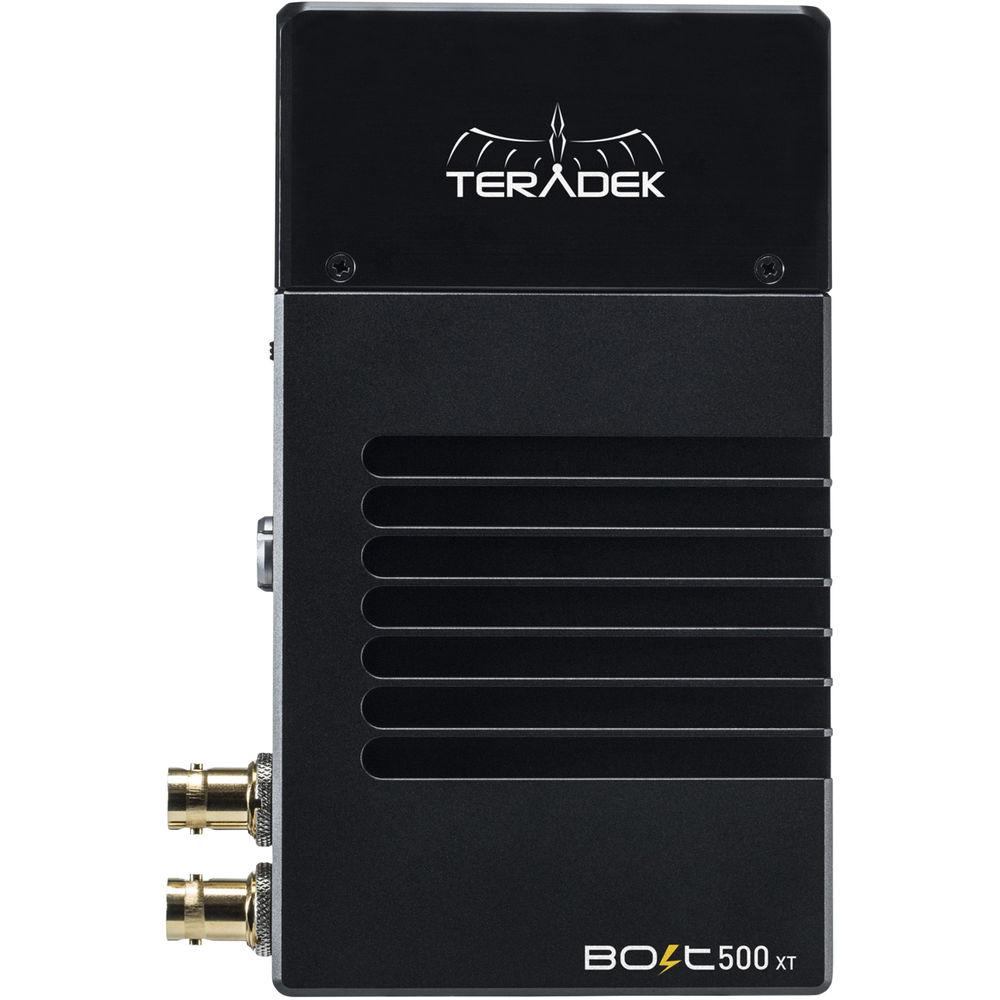

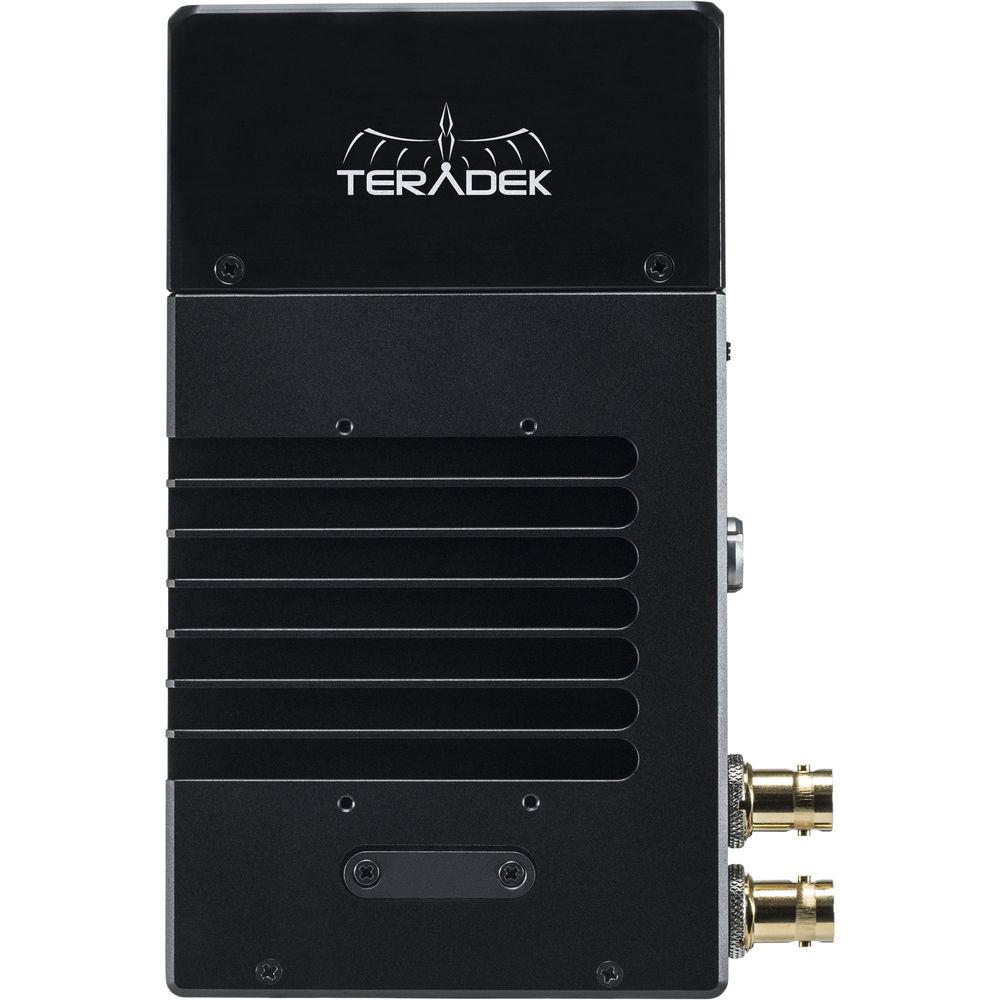

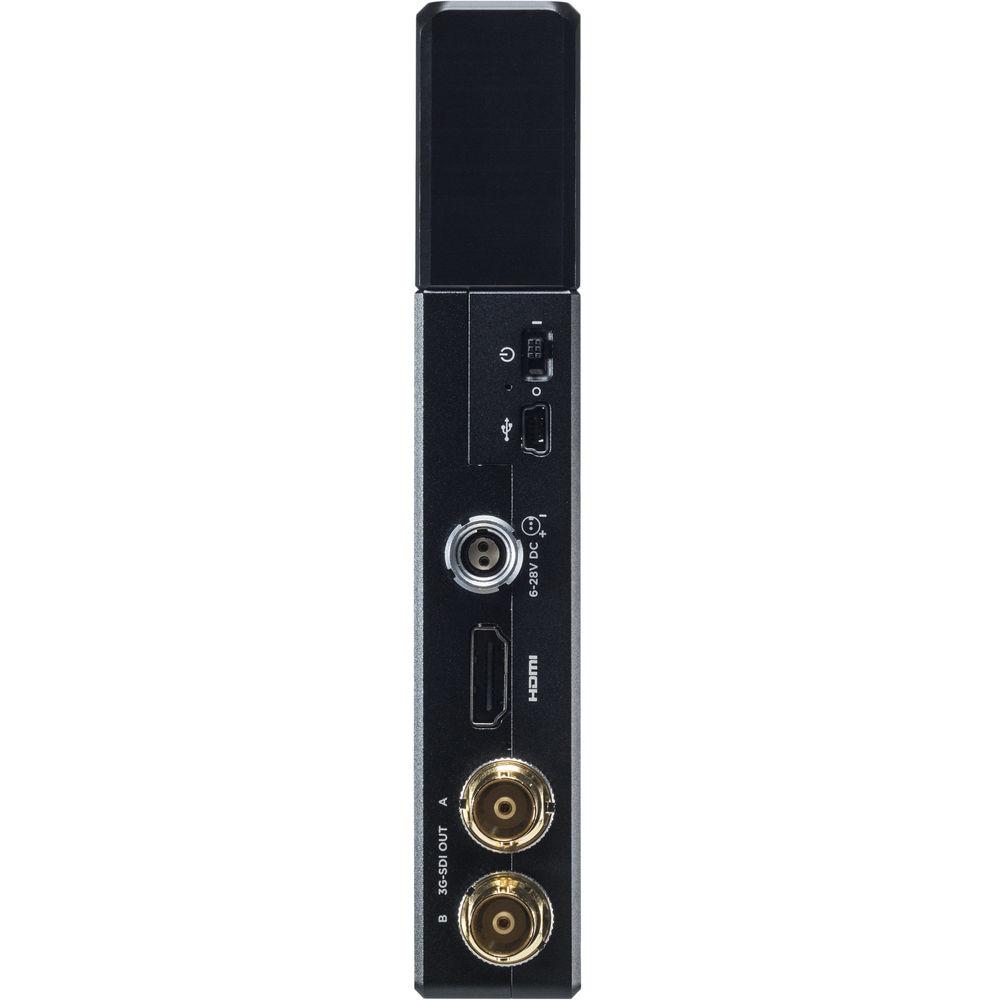

UPC: 818264023150 - Bolt 500 XT 3G-SDI/HDMI Wireless Receiver With the Teradek Bolt 500 XT 3G-SDI/HDMI Wireless Receiver you can receive visually lossless 3G-video or HDMI signals from a Bolt 500 transmitter with zero latency. The Bolt XT is compatible with existing third-generation Bolt systems such as the Bolt 500, 1000, Sidekick II, and 703 Bolt, as well as the Bolt LT. The receiver unit can be secured via built-in 1/4"-20 or M3 threaded holes.
A light stand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The receiver can share the transmitter with up to three other receivers. It features built-in AES-128 encryption that protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals. - Backward compatible with third-generation Bolt 500, 1000, 300, Sidekick II, and 703 Bolt
- The receiver includes built-in cross conversion and Teradek's proprietary software utilities including a manual frequency-selection tool, 3D LUT engine, and a 5 GHz spectrum analyzer to keep an eye on interference in your area
- SDI ancillary data support for metadata, timecode, and start/stop flags from certain camera manufacturers
- OLED Screen with menu joystick navigation
- 1/4"-20 and M3 mounting points
UPC: 818264023167 In the Box Bundle Items Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter drrauyazbbyxycddddaxwystssxuutczfx Bolt 500 XT 3G-SDI/HDMI Wireless Receiver - Light Stand Adapter (1/4"-20)
- USB 3.0 Cable Type-A to Micro-B
- PSU 2-Pin Connector to 18W AC Adapter Cable (6')
Also Includes User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt 500 XT 3G-SDI HDMI Wireless Transmitter and Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bolt 500 XT 3G-SDI/HDMI Wireless Transmitter
| Construction | Milled Aluminum Chassis and Regulation-Compliant PCB | | Video Inputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD
HDMI: 1 x HDMI Type A Receptacle | | Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD, Loop-Through | | Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-Bit when Format Conversion is Enabled)
HDMI: RGB 4:4:4, 8-Bit | | Latency | <0.001 Seconds (TX to RX without Format Conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50 | | Video Processing | Compression
Visually Lossless
Color Correction
CDL/1024 1D LUT (Supports 10-Bit Color)
33x33x33 3D LUT (Supports 10-Bit Color) | | Audio Compression | 48 kHz, 24-bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-Rich Bolt Manager Application for OS X and Windows
USB Interface Functionality: Upgrade via Mini-USB | | Wireless | Non-DFS Frequencies- UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
- EU & JP: 5.19 to 5.23 GHz
DFS Frequencies- US: 5.27 to 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 to 5.67 GHz
| | RF Power | 17 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m Line of Sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can Coexist with Wi-Fi and 5 GHz Cordless Phones | | Power Input | 2-Pin Connector
7 to 17 VDC | | Power Consumption | Nominal 7.3 W (Measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | 1 x 1/4"-20 Threaded Mounting Hole
2 x M3 Threaded Mounting Holes | | Dimensions | 0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm | | Weight | 8 oz / 226 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.8" | - Bolt 500 XT 3G-SDI/HDMI Wireless Receiver
| Construction | Milled aluminum Chassis and Regulation-Compliant PCB | | Video Outputs | SDI: 2 x BNC (75 Ohm), 3G/HD/SD
HDMI: 1 x HDMI Type A Receptacle
USB: 1 x USB Type 3.0 Micro-B Receptacle | | Color Sampling | SDI: YCbCr 4:2:2, 10-Bit (8-Bit when Format Conversion is Enabled)
HDMI: RGB 4:4:4, 8-Bit | | Latency | <0.001 Seconds (TX to RX without Format Conversion) | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50 (via HDMI Only)
480p: 59.94 (via HDMI Only)
576i: 50
480i: 59.94 | | Video Processing | Compression
Visually Lossless
Color Correction
CDL/1024 1D LUT (Supports 10-Bit Color)
33x33x33 3D LUT (Supports 10-Bit Color) | | Audio Compression | 48 kHz, 24-Bit PCM | | Audio Input | Embedded | | Interfaces | Switches: On/Off and Reset
Desktop App: Feature-Rich Bolt Manager Application for OS X and Windows
USB Interface Functionality: Upgrade via Mini-USB | | Wireless | Non-DFS Frequencies- UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz
- EU & JP: 5.19 to 5.23 GHz
DFS Frequencies- US: 5.27 to 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 to 5.67 GHz
| | RF Power | 15 dBm EIRP
| | Encryption | AES-128 | | Range | Up to 500' / 152.4 m Line of Sight | | Unicast Multicast | Unicast / Multicast | | Noise Rejection | Can Coexist with Wi-Fi and 5 GHz Cordless Phones | | Power Input | 2-Pin Connector
7 to 28 VDC | | Power Consumption | Nominal 9 W (Measured at 1080p60) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Mountable | 1 x 1/4"-20 Threaded Mounting Hole
2 x M3 Threaded Mounting Holes | | Dimensions | 6 x 3.4 x 1" / 15.24 x 8.64 x 2.54 cm | | Weight | 10.5 oz / 297.7 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.6 x 5.0" |
