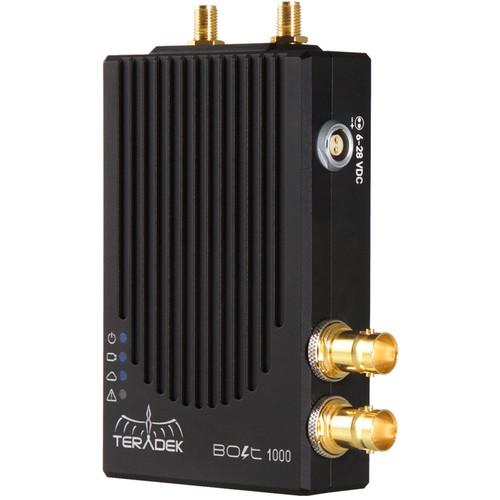

Product description Connect the Teradek Bolt Pro 1000 SDI Transmitter to your camera and wirelessly transmit the uncompressed video signal to up to four separately available Bolt Pro 1000 receivers up to 1000' away. Even though the video is uncompressed, transmissions have no noticeable latency, making the Bolt a great solution for focus pulling. SDI transmissions can be received and output by the receiver as HDMI or SDI signals (SDI receiver can only output SDI), for both consumer and professional equipment compatibility on both the transmitter and receiver end. -
- Transmits visually lossless video up to 1000' with no perceptible delay
- 20 MHz channels
- Two DFS channels operate interference-free
- Small and light chassis allows the transmitter to integrate into any rig unnoticed
- Removable colored top plates easily identify which Bolt receivers work together
- Rapidly reconnects during a dropped link once you move back into range
- Ideal for use with motorized gimbal stabilizers
UPC: 854980006367 In the Box Teradek Bolt Pro 1000 SDI Transmitter 2 x Wireless Antenna (2 dBi 2.4/5.8 GHz) 2-Pin LEMO to D-Tap Cable (18") Hot Shoe 1/4"-20 Adapter SDI/BNC Cable (10") SKB Protective Waterproof Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bolt Pro 1000 SDI Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0956 Specs | Video Input | 1 x BNC, SD/HD/3G-SDI
| | Video Output | 1 x BNC, loop-through output | | Video Delay | Transmitter to Receiver: <0.001 sec (when no video format conversion is enabled) | | Color Sampling | YCbCr = 4:2:2, 8-bit for SDI (10-bit, without format conversion and FPGA v1.1.0 or later)
RGB 4:4:4 (HDMI out, 8-bit color) | | Supported Resolutions | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
576p 50 (via HDMI port only)
480p 59.94 (via HDMI port only)
NTSC
PAL | | Wireless | Up to 1000' / 300 m line of sight
Non-DFS Frequencies:
5.19 to 5.23 GHz and 5.755 to 5.795 GHz
DFS Frequencies:
5.27 to 5.55 GHz and 5.67 GHz | | RF Power | 19 dBm EIRP (with two 2 dBi transmitter antennas) | | Audio | Format Support: 48 kHz, 24-bit PCM | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Power | 2-Pin LEMO 7 to 28 VDC
Consumption: 7.5 W | | Dimensions | 0.9 x 2.6 x 4.5" / 2.3 x 6.6 x 11.4 cm
Case: 12 x 9.0 x 4.5" / 30.5 x 22.9 x 1.4 cm | | Weight | 8 oz / 226 g | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 13.2 x 11.2 x 5.2" |
