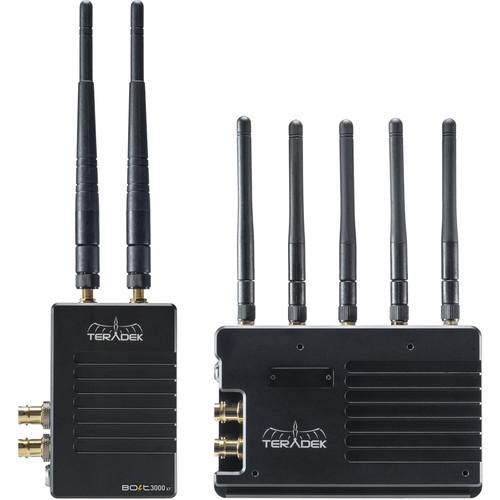

User Manual for Teradek Bolt XT 3000 SDI HDMI Wireless TX RX Deluxe Kit with Panel Array Antenna

• Product category: Wireless Transmission Systems Teradek
• Brand: Teradek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Teradek Wireless Transmission Systems

Product description

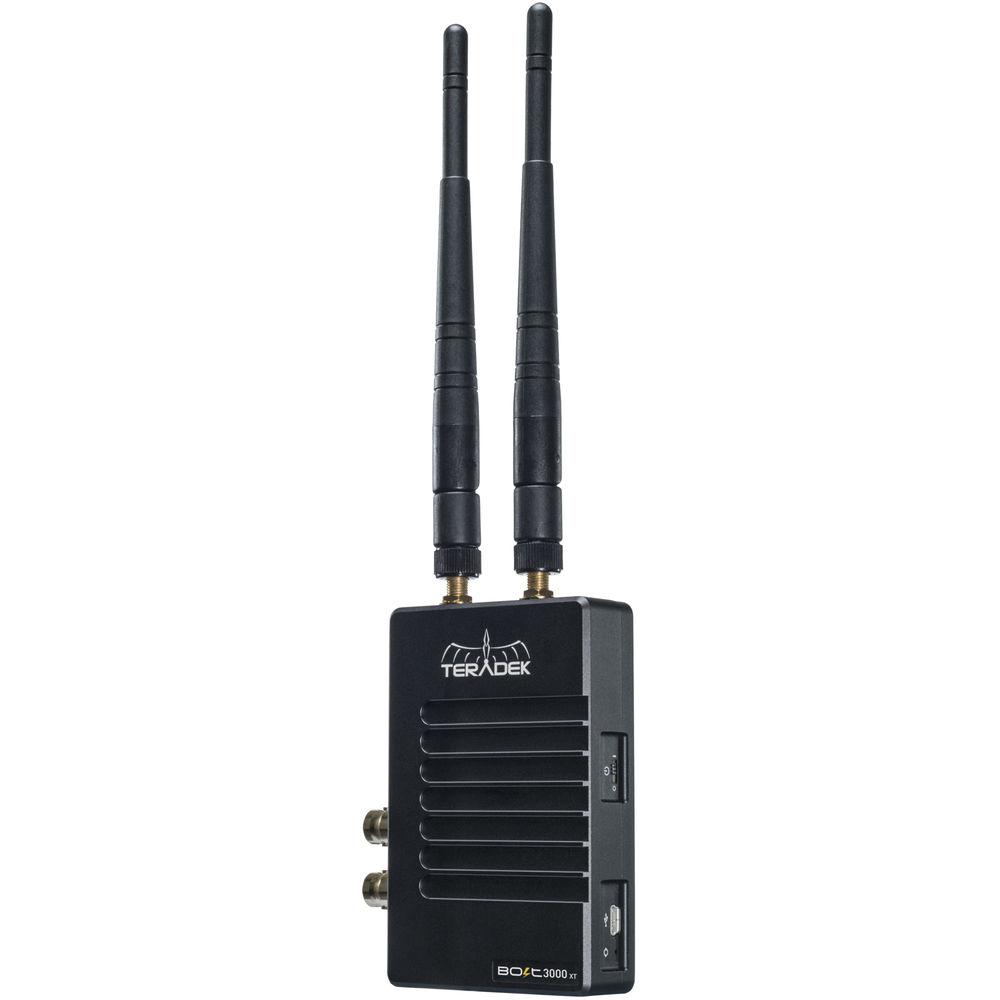

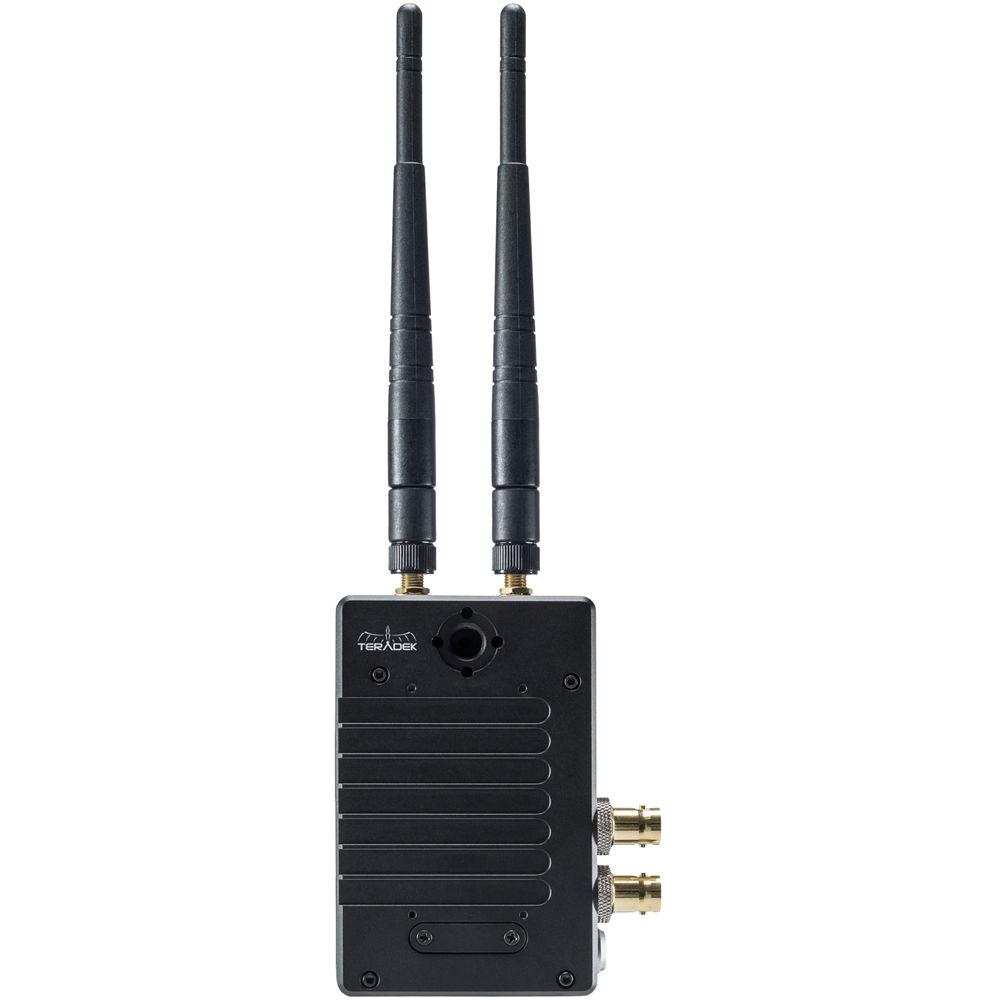

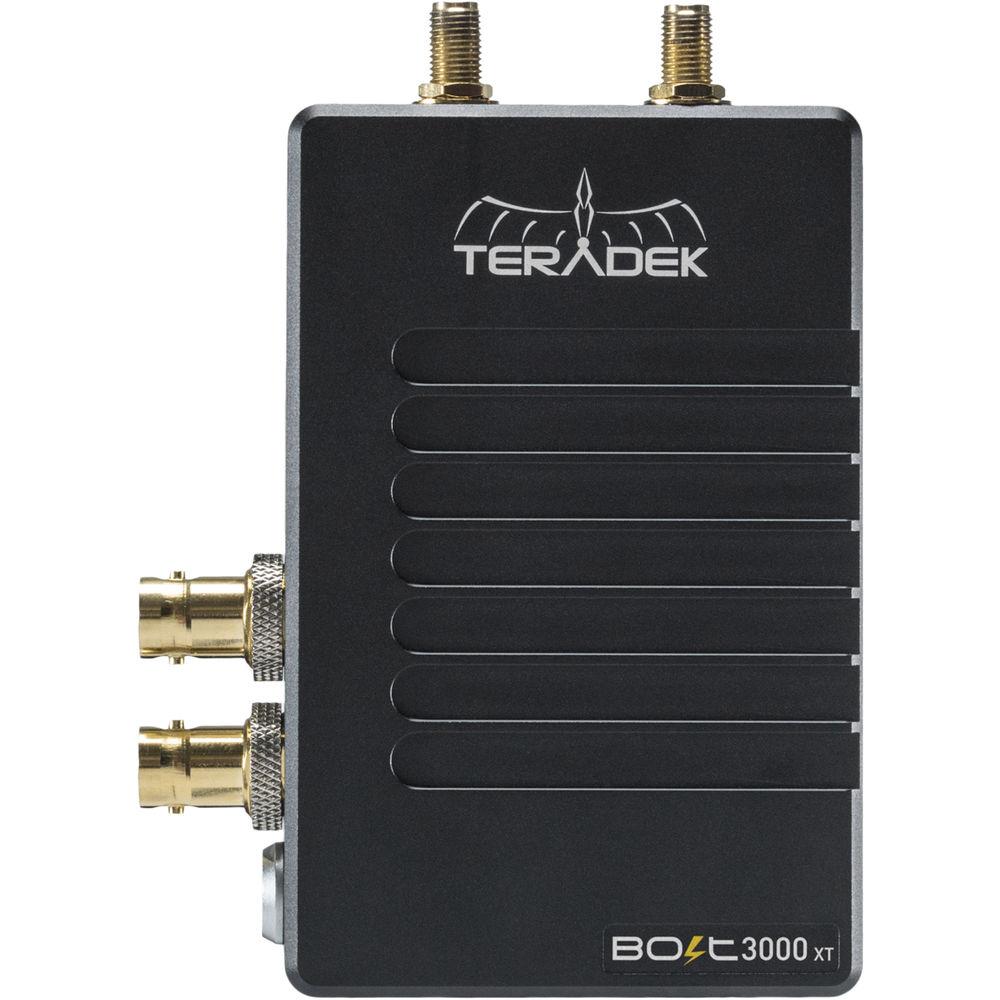

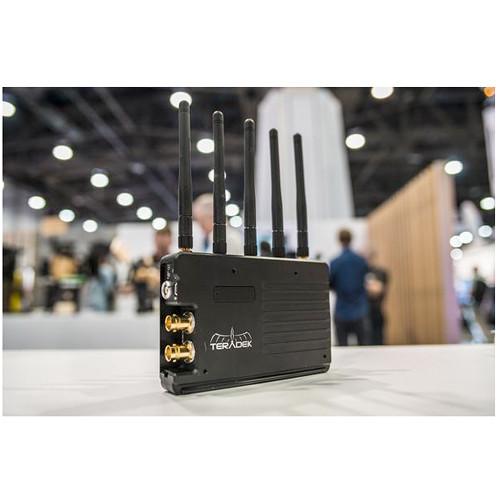

• Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter With the Teradek Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter you can transmit visually lossless 3G video signals to a Bolt 3000 receiver with zero latency. The Bolt XT is also compatible with the Sidekick II and 703 Bolt. The transmitter unit itself can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole, as well as two M3 threaded holes. The included antennas provide a powerful signal that can travel up to 3000' line-of-sight.

  A shoe mount is included for attaching to cameras without 1/4"-20 threads. For convenience, both a standard BNC cable and HDMI cable are included so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector via the included D-Tap power cable. The transmitter supports up to four receivers and built-in AES 128 encryption protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • Backwards compatible with the Teradek universal receivers the Sidekick II and 703 Bolt, which can receive Bolt 3000 XT signals up to 300' away
  • HDMI and 3G-SDI inputs, with 3G-SDI loop-through output on transmitter
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers
  • 1/4"-20 and M3 mounting points

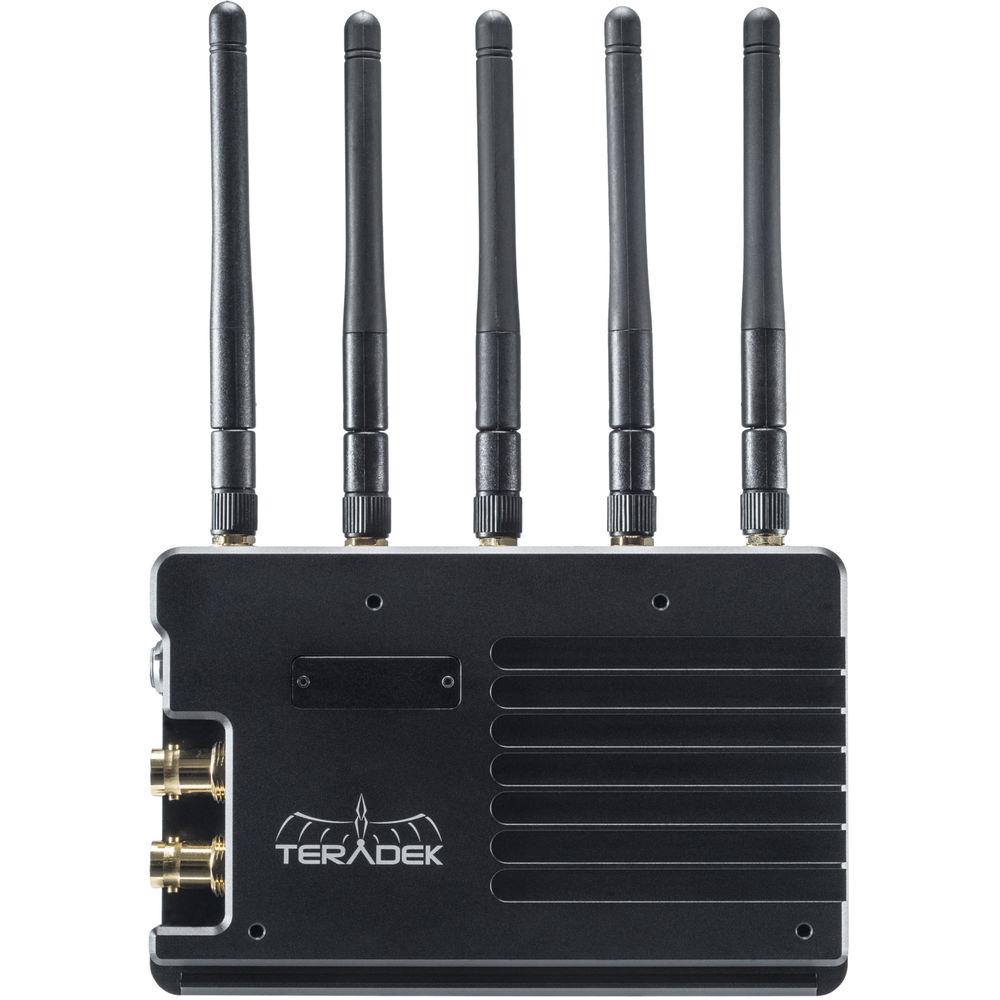

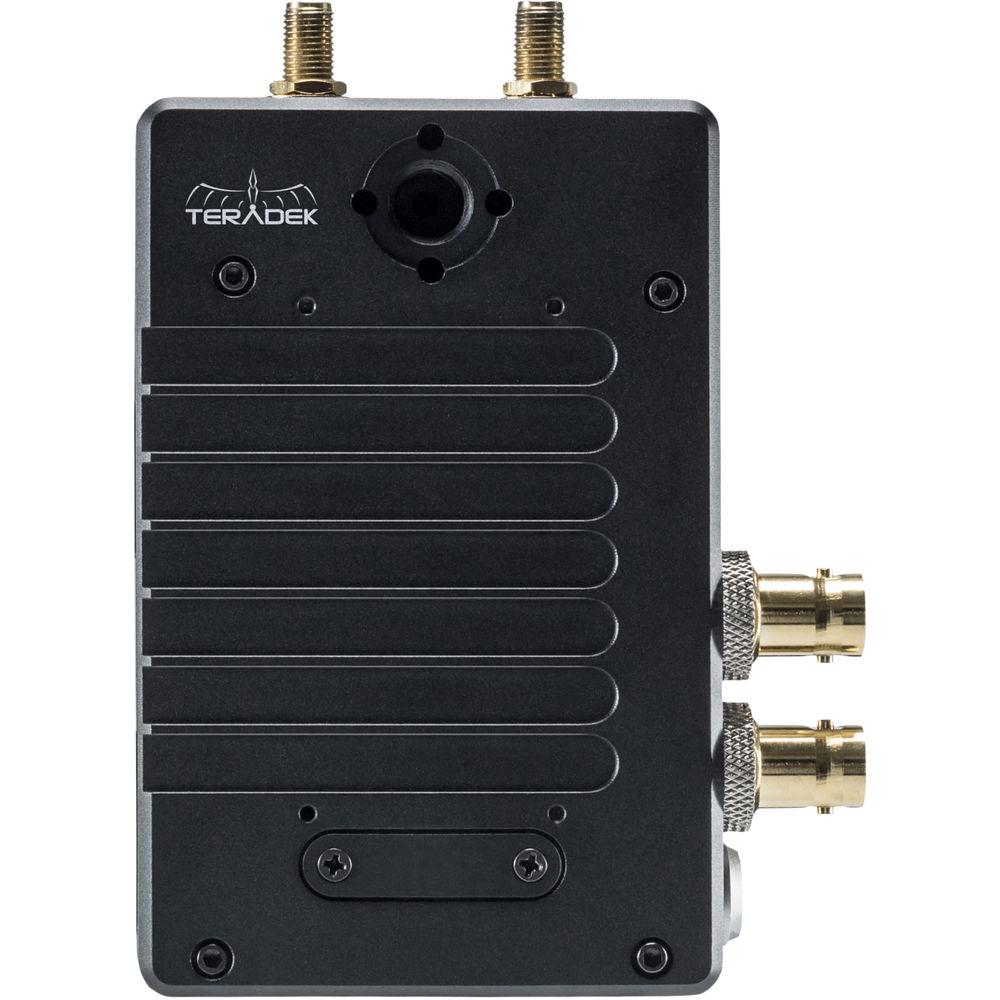

• Bolt 3000 XT 3G-SDI/HDMI Wireless Receiver With the Teradek Bolt 3000 XT 3G-SDI/HDMI Wireless Receiver you can receive visually lossless 3G-video or HDMI signals from a Bolt 3000 transmitter with zero latency. The receiver unit itself can be secured via built-in 3/8"-16 M3 threaded holes or the built-in NATO rail.

  A lightstand adapter is included for mounting on stands. For convenience, a standard HDMI cable is included, so you can plug in right out of the box. Power can be provided using the integrated 2-pin connector. A D-Tap power cable is included for attaching to a battery. The receiver can share the transmitter with up to three other receivers. It features built-in AES 128 encryption that protects your video from prying eyes, while noise rejection helps keep your video clean even when working around 2.4 and 5.8 GHz signals.
  • The receiver includes built-in cross conversion and Teradek's proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5 GHz spectrum analyzer to keep an eye on interference in your area.
  • The receiver features an HDMI output as well as dual 3G-SDI outputs.
  • An integrated NATO rail on the receiver, along with several M3 mounting points, and an ARRI compatible 3/8"-16 threaded hole with locating pin holes provide for multiple mounting options.
  • SDI ancillary data support: supports metadata, timecode, and start/stop flags from certain camera manufacturers.
  • 5 included antennas for the receiver enable it to pick up signals with clarity
  UPC: 818264023440
• Ultra Arm Mini Monitor Mount (1/4"-20 to 1/4"-20) The 1/4"-20 to 1/4"-20 Ultra Arm Mini Monitor Mount from Wooden Camera is a robust and compact articulating arm with 25mm ball joints. Approximately 5" in length from end to end, the Ultra Arm Mini is designed for keeping a monitor or other accessory close to the camera while providing the full range of ball joint articulation. A lever in the center locks both ball joints, and the mounting points on the ends attach to your gear easily at the turn of integrated tightening knobs. Both ends feature rubber pads for more secure support.

  The Ultra Arm system is interchangeable. Wooden Camera offers a variety of optional end points that install into the ball sockets of the arm. These include NATO clamps, NATO rails, shoe mounts, super clamps, and extensions to add between two of these arms. There is even a Preston mounting bracket. Additionally, the system is compatible with many third-party 25mm ball mount systems.
  Key Features
  • • Full-range ball joint articulation
    • Integrated tightening knobs
    • Rubber pads
    • Interchangeable end points support optional NATO clamps, NATO rails, shoe mounts, super clamps, length extensions, and more (see Accessories tab)
    • Also compatible with third-party 25mm ball mount systems
  UPC: 606184852567
• NATO Lock Kit Quickly secure and detach accessories from your camera rig by adding this NATO Lock Kit from Wooden Camera. The rail attaches to your camera or cage system using the included 1/4"-20 or 3/8"-16 screws while the clamp attaches to the accessory itself via an additional set of 1/4"-20 and 3/8"-16 screws. The rail and clamp are compatible with other NATO standard accessories from RED, Zacuto, and other 3rd party manufacturers. UPC: 702534253265
• Antenna Array for Bolt Receiver This Antenna Array from Teradek is a panel antenna designed to enhance wireless video transmission to Bolt receivers. This MIMO (Multiple In/Multiple Out) antenna focuses the RF signal and reduces interference, producing a more resilient transmission. It offers a boost in reception but does not increase the maximum transmission range.The panel array is composed of 3x16 dBi and 2x14 dBi antennas, and operates in the 5.1 to 5.8 GHz frequency range. The antenna comes with a mounting bracket, light stand adapter, and five cables.
  • Boosts wireless video transmission
  • Focuses wireless signal and reduces interference
  • 5.1-5.8 GHz frequency range
  • Array of 3x16 dBi and 2x14 dBi antennas
  UPC: 854980006152

• D-Tap Power Cable (18")

• Shoe Mount

• 2 x Antennas

• SDI Cable (10")

• HDMI Type A to Type Cable (18")

• USB Cable Type-A to Mini-B

• Limited 1-Year Warranty

• Lightstand Adapter (1/4"-20)

• BNC Cable (10")

• HDMI Cable Type A to Type A (18")

• PSU 2-Pin Connector to 18W AC Adapter Cable (6')

• USB Cable Type-A to Micro-B (3')

• 5 x Wireless Antennas

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 1/4"-20 Screws

• 2 x 3/8"-16 Screws

• Short 1/4"-20 Thread

• Limited 1-Year Warranty

• Receiver Mounting Bracket

• 3/8" Light Stand Adapter

• 5 x 12" N-Male to RP-SMA Cable

• Limited 1-Year Warranty

Also Includes

• Teradek Vinyl Zipper Bag
• SKB Case with Custom Foam (13.5 x 9.5 x 6.5")
• 2.5mm Hex Key
• 3/16" Hex Key
• Passthrough Gold Mount Battery Plate, Factory Installed on Receiver

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Bolt 3000 XT 3G-SDI/HDMI Wireless Transmitter

  Construction	Milled aluminum (chassis) and regulation-compliant PCB

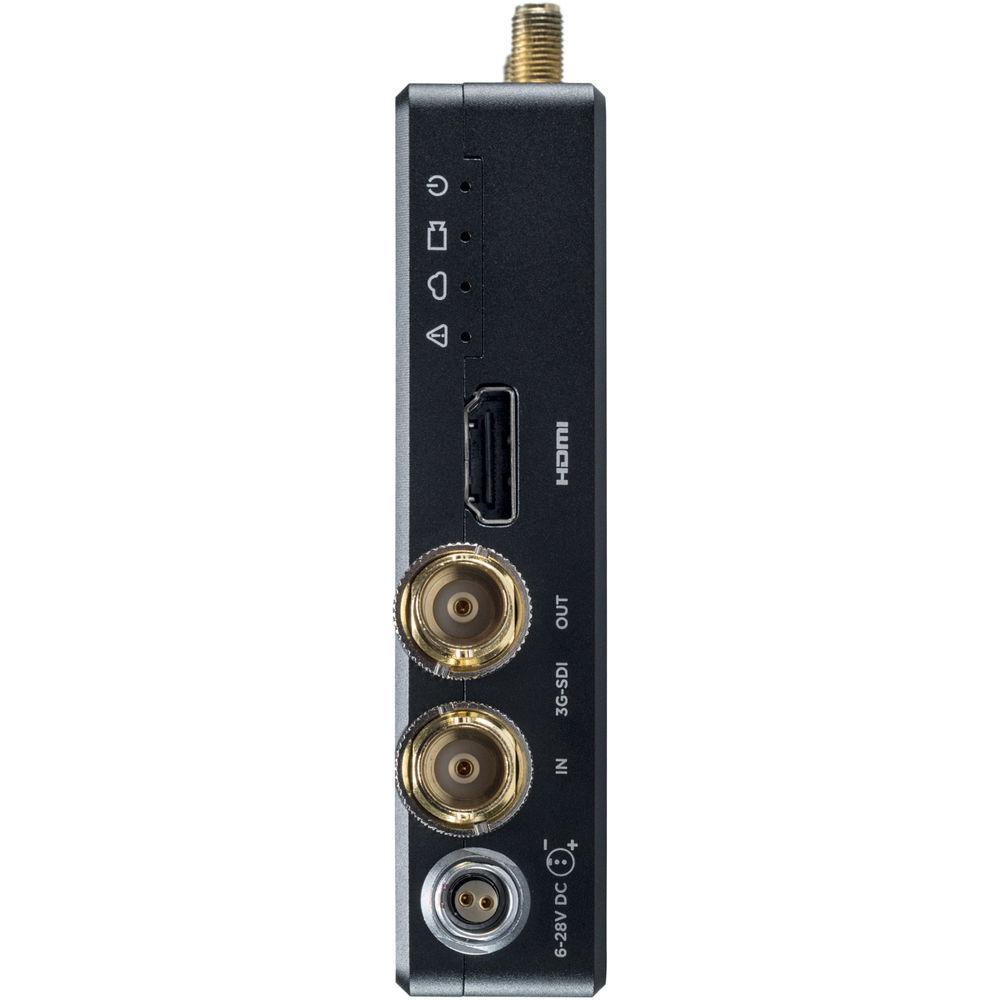

  Video Inputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle
  Video Outputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD, loop through
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded

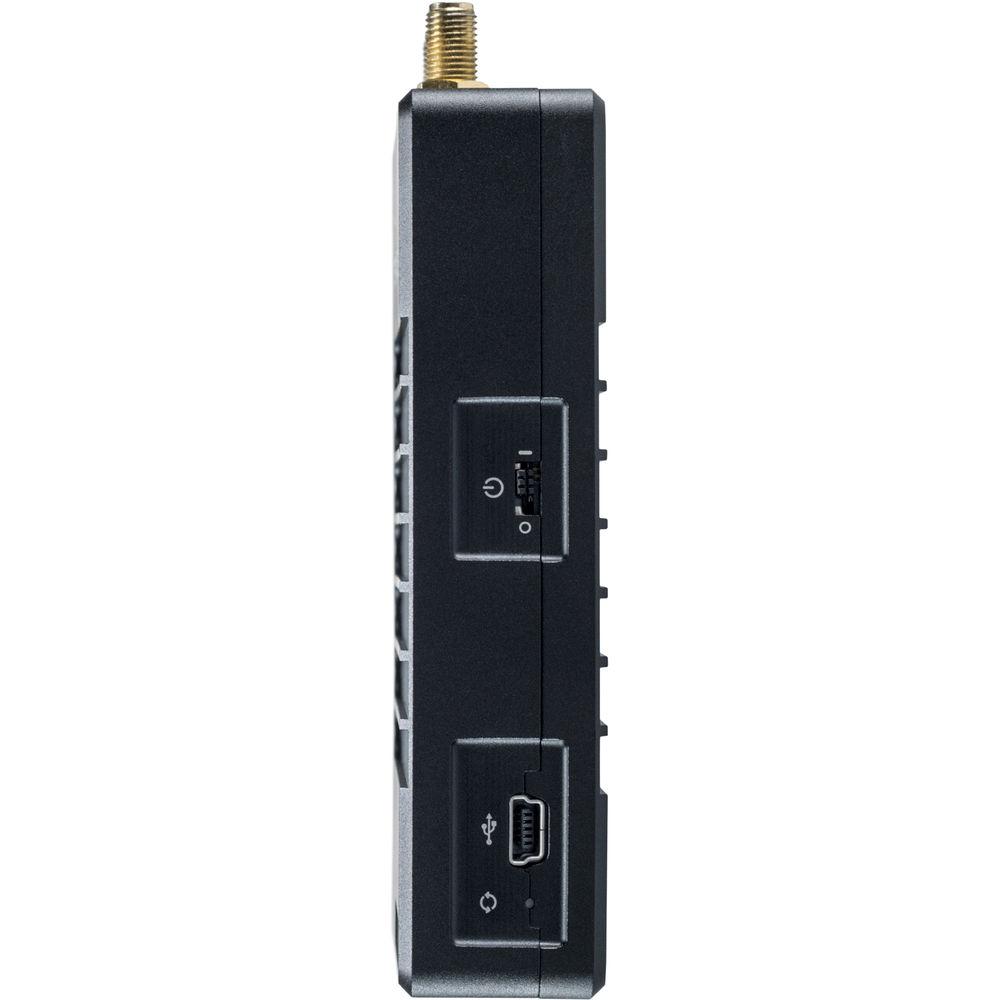

  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	17 dBm EIRP
  Encryption	AES-128
  Range	Up to 500' / 152.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 17 VDC
  Power Consumption	Nominal 7.3 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C

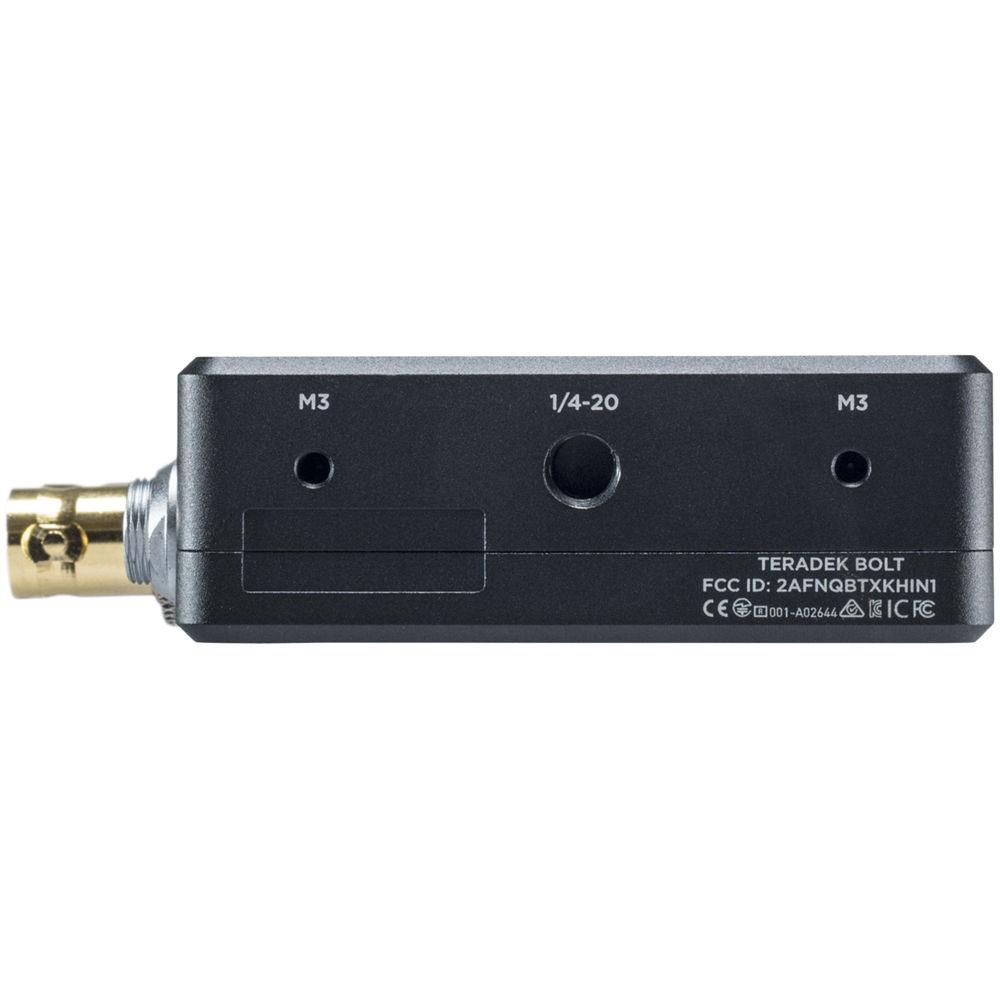

  Mountable	1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes
  Dimensions	0.95 x 2.6 x 4.47" / 2.41 x 6.6 x 11.35 cm
  Weight	8 oz / 226 g

• Bolt 3000 XT 3G-SDI/HDMI Wireless Receiver

  Construction	Milled aluminum (chassis) and regulation-compliant PCB
  Video Outputs	SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle USB: 1 x Micro-USB 3.0 Type-B receptacle
  SDI Ancillary Data Support	Supports metadata, timecode, and start/stop flags from select camera manufacturers.
  Color Sampling	SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit
  Latency	<0.001 seconds (Tx to Rx without format conversion)
  Supported Resolutions	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 (via HDMI only) 480p: 59.94 (via HDMI only) 576i: 50 480i: 59.94
  Video Processing	Compression Visually lossless Color Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Audio Compression	48 kHz, 24-bit PCM
  Audio Input	Embedded
  Interfaces	Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB
  Wireless	Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz
  RF Power	15 dBm EIRP
  Encryption	AES-128
  Range	Up to 3000' / 914.4 m line of sight
  Unicast Multicast	Unicast / Multicast
  Noise Rejection	Can coexist with WiFi and 5 GHz cordless phones
  Power Input	2-pin connector 7 to 28 VDC
  Power Consumption	Nominal 9 W (measured at 1080p60)
  Operating Temperature	32 to 104°F / 0 to 40°C
  Mountable	1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes
  Dimensions	3.5 x 5.4 x 0.95" / 8.89 x 13.72 x 2.41 cm
  Weight	13.3 oz / 377 g

  Box Dimensions (LxWxH)	6.7 x 6.5 x 4.8"

• Ultra Arm Mini Monitor Mount (1/4"-20 to 1/4"-20)

  Top Mount	1/4"-20 Stud
  Bottom Mount	1/4"-20 Stud
  Points of Articulation	2
  Maximum Length	5" / 12.7 cm
  Weight	4.8 oz / 136 g

  Box Dimensions (LxWxH)	3.8 x 3.4 x 2.3"

• NATO Lock Kit

  Compatibility	RED Swat rails Zacuto Z-rails Other 3rd party NATO products
  Dimensions	1.9 x 1.9 x 0.7" (47.2 x 47.2 x 18.3 mm)
  Weight	0.1 lb (50 g)

  Box Dimensions (LxWxH)	3.2 x 2.7 x 0.85"

• Antenna Array for Bolt Receiver

  Connector	RP-SMA plug
  Frequency Range	5.1-5.8 GHz
  Antenna Gain	3x16 dBi 2x14 dBi
  Protocol Support	802.11n (MIMO standard)
  Material of Construction	UV-protected plastic, aluminum alloy
  Dimensions (LxWxD)	Antenna: 13.8 x 13.8 x 1.3" (35.0 x 35.0 x 3.2 cm)
  Weight	Antenna: 2.5 lb (1.1 kg)

  Box Dimensions (LxWxH)	17.5 x 17.2 x 4.7"
