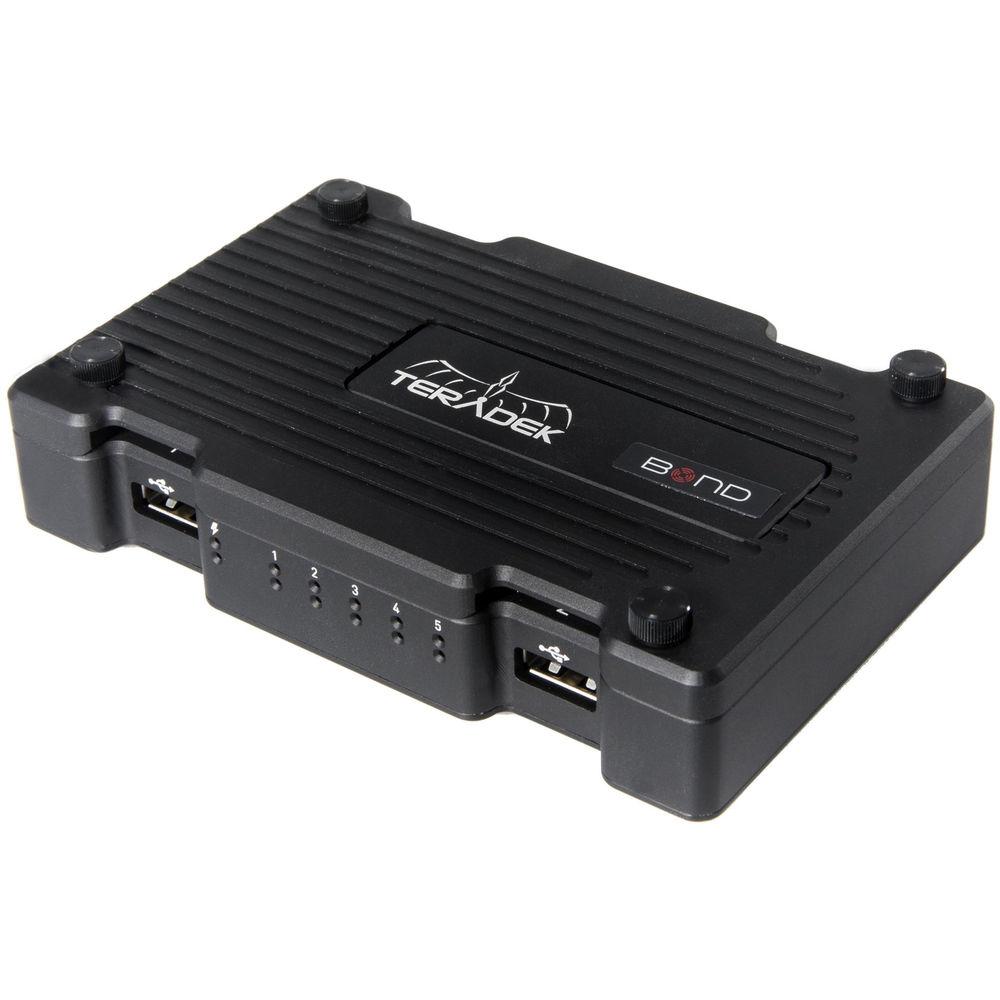

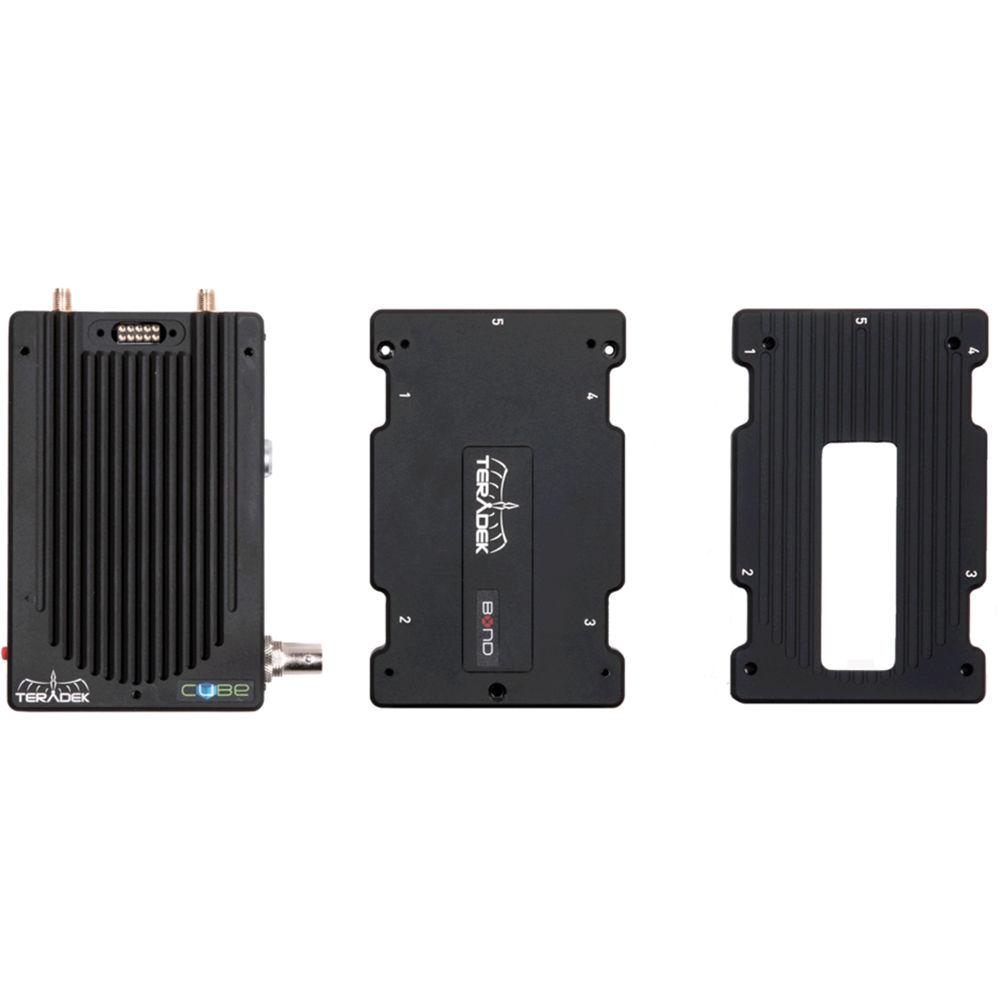

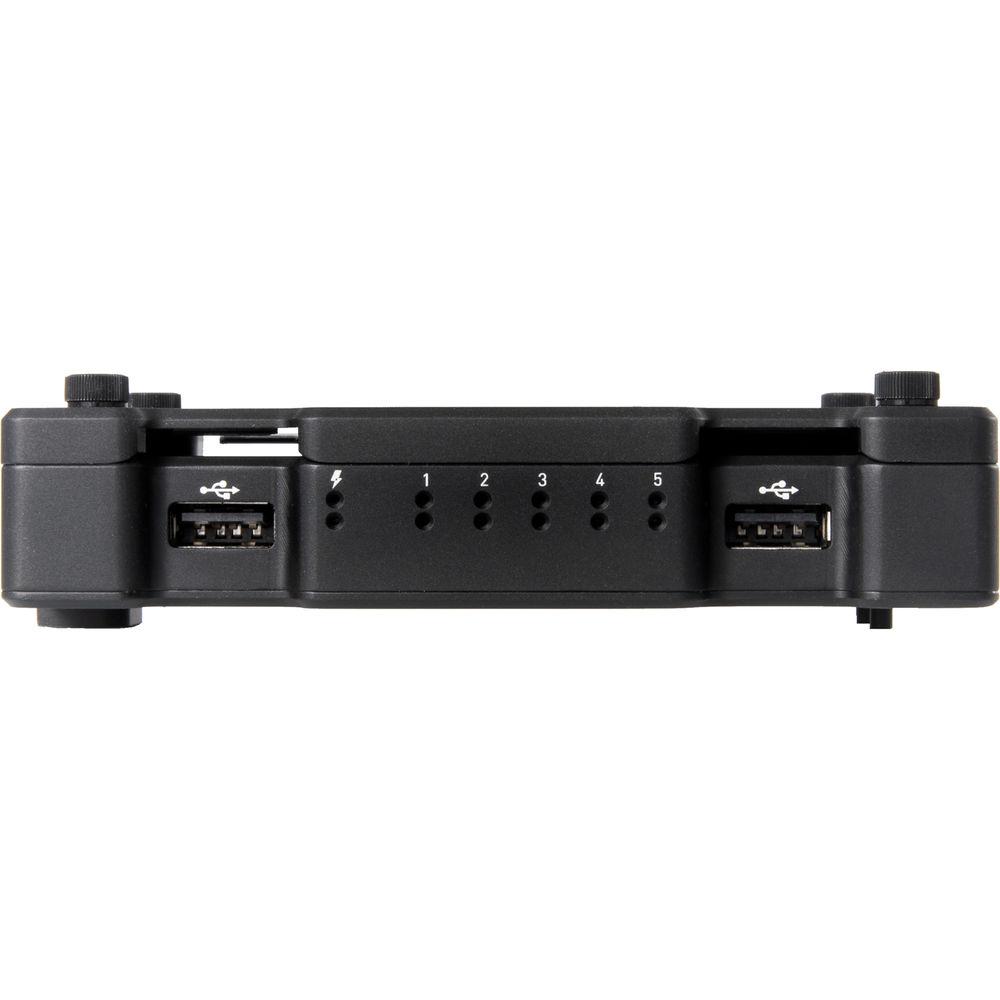

Product description The Bond 318 and Cube 655 Package from Teradek includes a Bond 318 Expansion Module and a Cube 655 Encoder. The bond module supports up to five USB devices, Ethernet, and Wi-Fi. It also supports up to four iOS devices and is compatible with Cube 605/655, 715/755, and 805/855.
The Cube 655 encoder comes with one SD/HD-SDI (75 Ohm BNC) and one HDMI type A receptacle inputs. It can be mounted horizontally or vertically with 1/4"-20 mounting holes. - Real-time H.264 encoder with network bonding

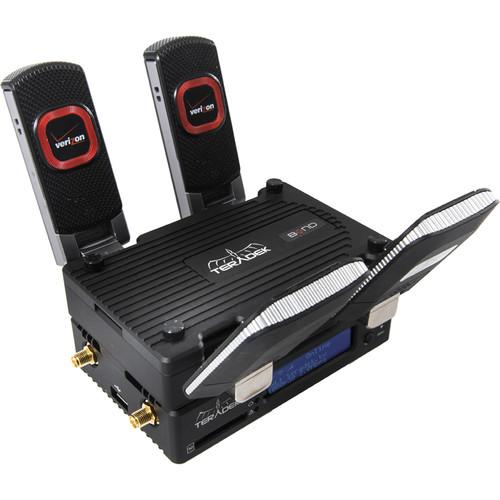

- Network bond six USB modems (1 Cube + 5 Bond)
- Dual-band 2.4/5.8 GHz Wi-Fi, Ethernet
- HDMI and SDI video inputs
- Bond module has built-in Li-ion battery for swapping

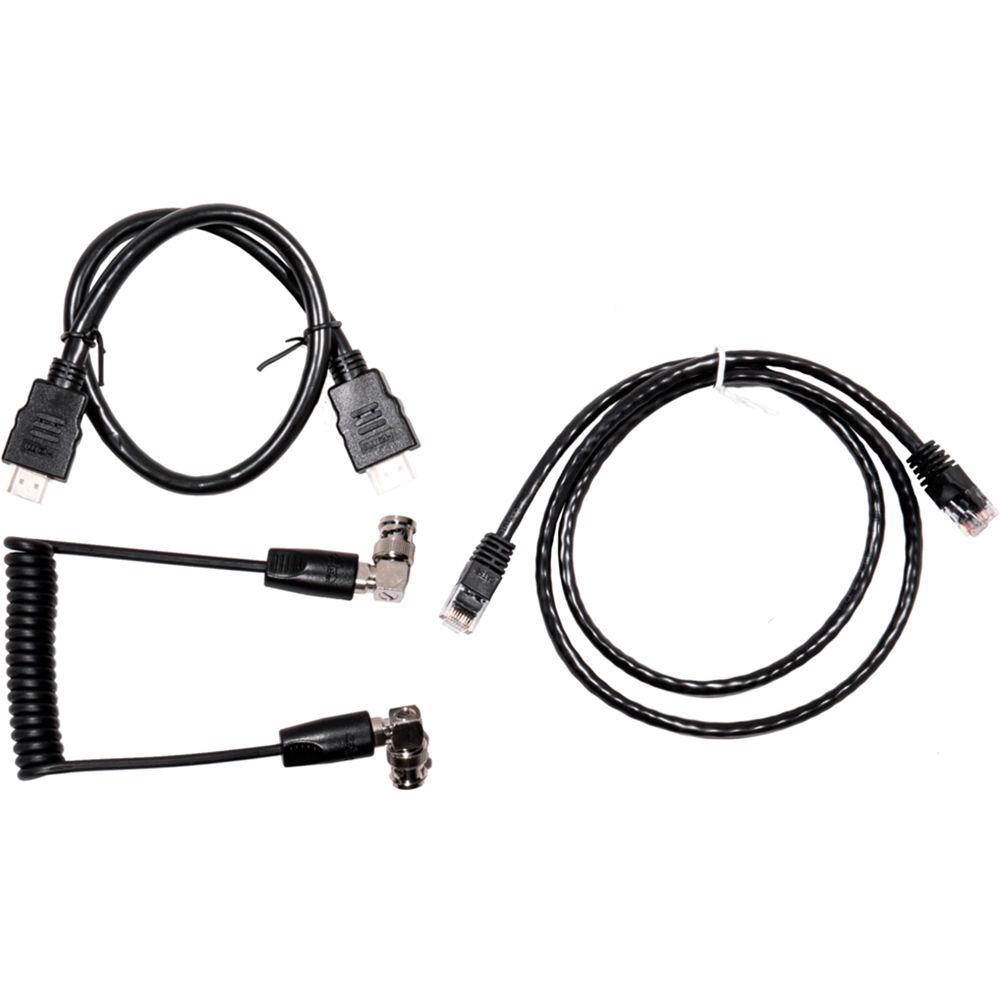

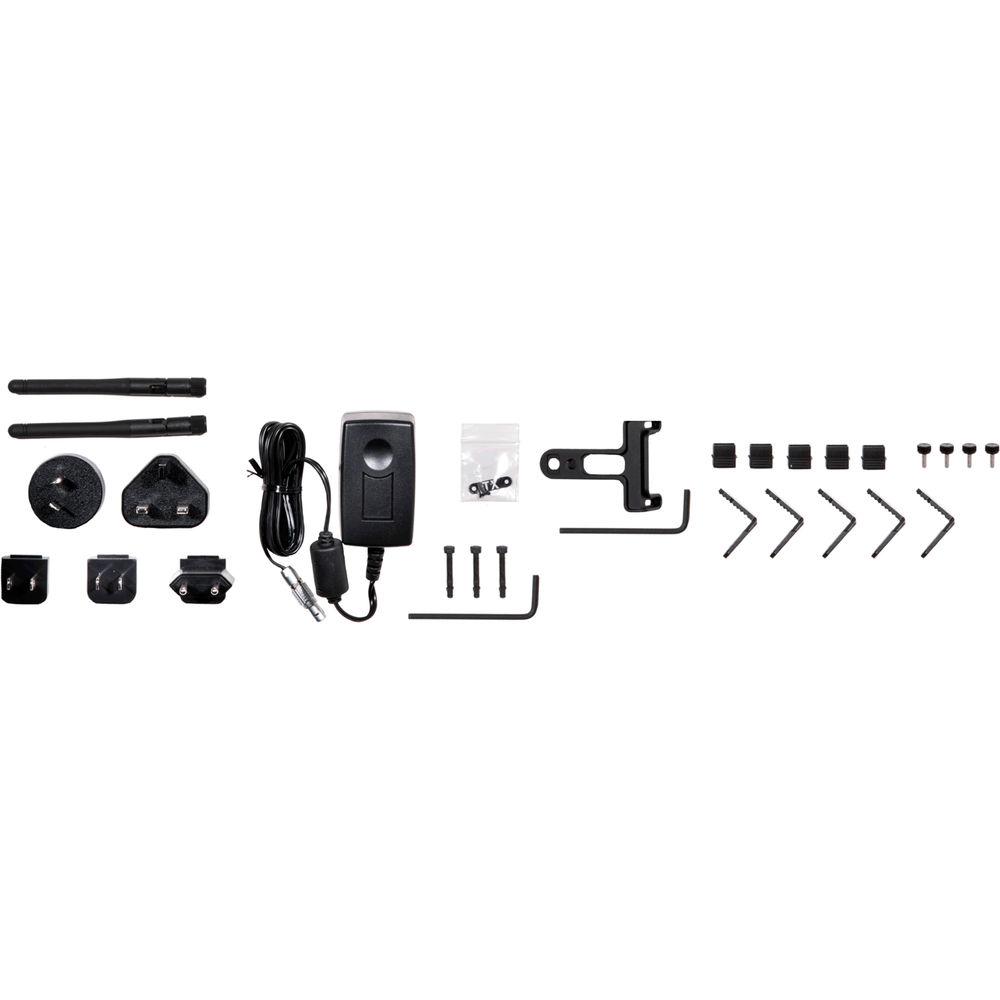

UPC: 818264020852 In the Box Teradek Bond 318 and Cube 655 Package 2-Pin Connector to 30W AC Adapter 6' Cable with International Plugs 5 x USB Modem Clips USB Modem Plate 4 x 4-40 x 3/8" Black Thumb Screw 2-Pin Connector to 18W AC Power Adapter Ethernet Cable SDI 10" Cable (BNC to BNC) HDMI 36" Cable (Full Type A to Full Type A) Hot Shoe Adapter 2 x Wireless Antennas (2 dBi 2.4/5.8 GHz) Limited 1-Year Warranty on Encoder Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bond 318 and Cube 655 Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Bond 318 Specs | | | USB | Up to five USB devices | | Connectivity | Ethernet and Wi-Fi (built into Cube)
Up to four iOS devices | | Compatibility | Cube 605/655, 715/755, 805/855 | | Interfaces | Controlled through Cube
4x powered USB 2.0 host port | | Battery | Internal lithium-ion | | Power Consumption | Nominal: 0.5 W, up to 5 W per USB device
Power supplied by Cube | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5% to 95% (non-condensing)
Storage: Maximum 90% | | Construction | Milled aluminum (Chassis), regulation-compliant PCB | | Dimensions | 1 x 3 x .4.7" (24 x 77 x 120 mm) | | Weight | 7.9 0z (224 g) | | | | Video Inputs | 1 x SD/HD-SDI (75 Ohms BNC)
1 x HDMI type A receptacle | | Channel Bonding | TeraLink | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080psF 23/24/25/29/30
720p 50/59.94/60
576i
480i
480p (for HDMI input only)
576p (for HDMI input only)
Ingests 1080p 50/59/60 | | Video Compression | H.264, Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 kbps to 15 Mbps
15 Mbps (wired), 10 Mbps (Wi-Fi) | | Test Pattern Generator | Supports custom test pattern | | Video Format | Built-in video scaler and deinterlacer | | Color Correction | CDL/1024 1D LUT (supports 10-bit color)
33 x 33 x 33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Video Transport Support | Supported Video Transport Protocols:
RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (MPEG-TS is an optional paid license) | | Remote Control | Teradek Core | | Software Integration | Ustream, YouTube Live, Facebook, and new Livestream | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Interfaces | Http: WebUI for configuration and control
Configuration Interfaces:
OLED display with joystick navigation buttons
Feature-rich WebUI for configuration and control | | Switches | On/Off and reset switch | | Recording storage | SD Card: Full-size | | Mobile App | Vuer, Live:Air | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000 BASE-T gigabit | | Wi-Fi | 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | Channel Selection | Auto with three Modes: 2.4 or 5 GHz, Auto 2.4 GHz only, Auto (5 GHz only)
Configurable to specific channels | | Encryption | 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES | | Power Input | 2-pin connector power input | | Power Consumption | Nominal: 8 W, 7 W (no Wi-Fi) | | Power Input | Auxiliary: 6-28 VDC | | Mount | Can be mounted horizontally or vertically with 1/4"-20 mounting holes | | Construction | Milled aluminum | | Dimensions | 4.75 x 3 x 1.1" [120.7 x 76.2 x 27.9 mm] | | Weight | 11.6 oz (328.9 g) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 13.1 x 11.2 x 5.3" |
