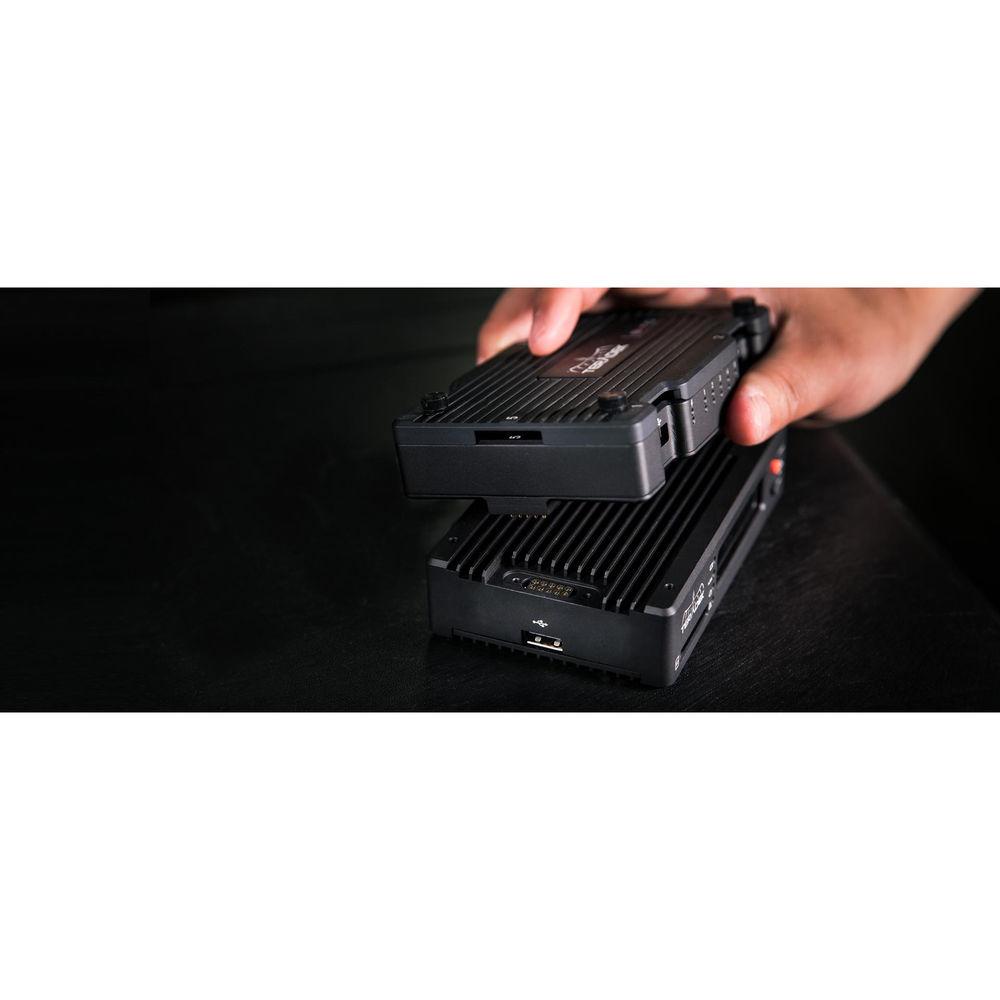

Product description The Bond 318 and Cube 755 Package from Teradek includes a Bond 318 Expansion Module, a Cube 755 Encoder, and an MPEG-TS license. The bond module supports up to five USB devices, Ethernet, and Wi-Fi. It also supports up to four iOS devices and is compatible with Cube 605/655, 715/755, and 805/855.

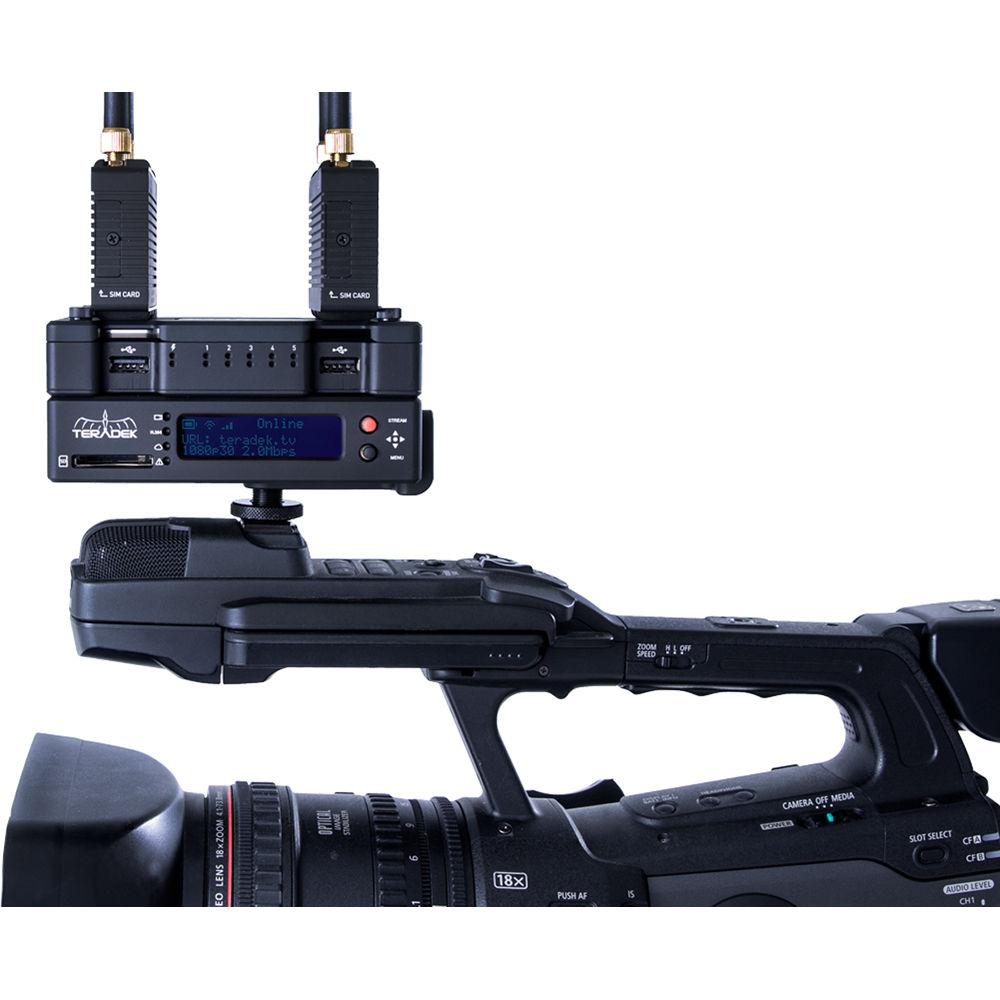

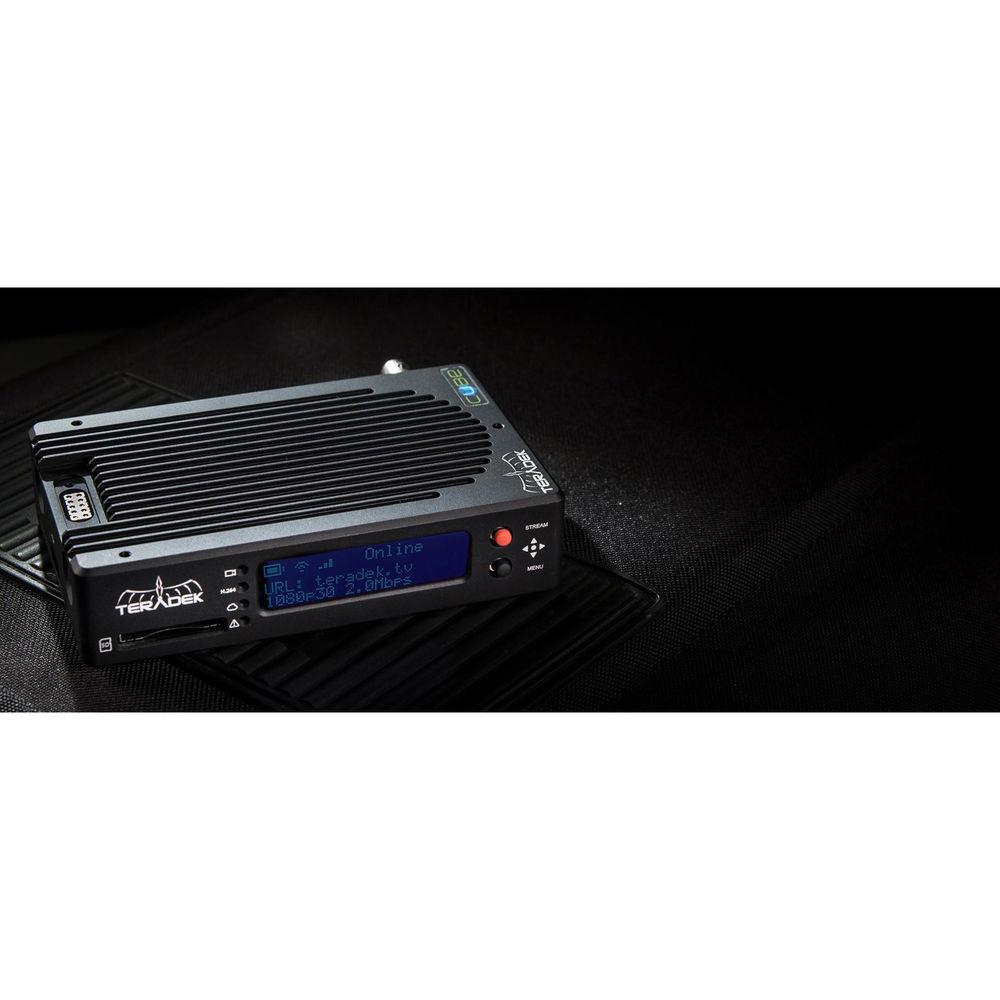

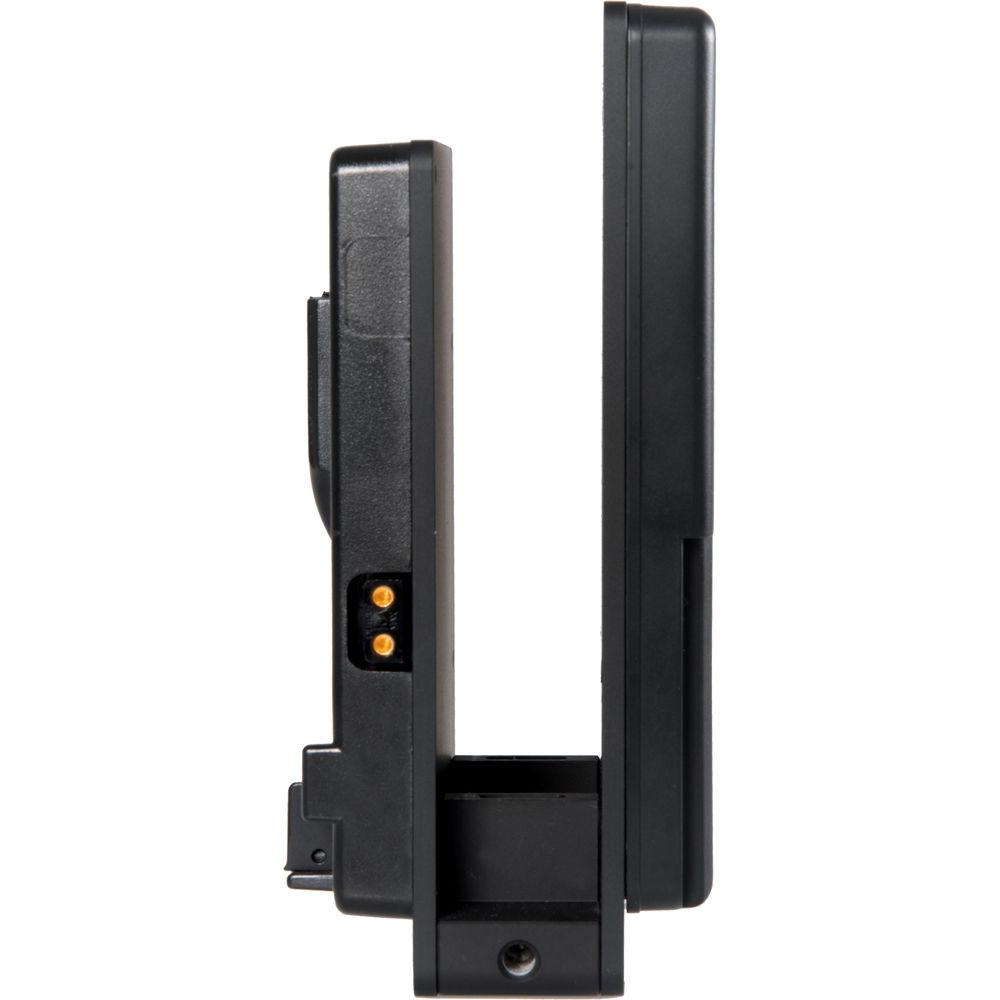

The Cube 755 encoder comes with one 3G/HD/SD-SDI (75 Ohm BNC) input and one HDMI type A receptacle input. It can be mounted horizontally or vertically with 1/4"-20 mounting holes. - Cube 755 HEVC/H.264 HD Encoder Set up a Teradek Cube 755 HEVC/H.264 HD Encoder and output video for live monitoring on a local area network or stream to a remote destination over a cellular network. SDI and HDMI inputs can accept up to 1080p60 resolution video and any resolution that is accepted by either input can be streamed live over hardwired Ethernet, Wi-Fi, or USB (for connecting a cellular modem), and/or recorded to an SD card at a data rate of up to 30 Mbps. The lightweight chassis itself is built from robust aluminum and it can be secured atop most cameras using the included shoe mount. One side features an OLED panel for displaying device status and menus and a joystick for navigation.
- HEVC and H.264 Encoding
- HEVC, or H.265 provides an encoding efficiency improvement over the older H.264 format. All other things being equal an H.265 encoding will be of higher fidelity than H.264. H.264 encoding is still useful, and included to ensure compatibility with legacy hardware.
- Monitoring
- If connected to a local area network via Wi-Fi or Ethernet, the Cube 755 can stream the incoming video signal to up to 6 mobile devices running Android with the VLC app or iOS with the TeraView or VUER apps. Set your crew up with compatible devices and give them real-time wireless camera feeds without breaking the bank.
- LUT Support
- Import a 33-point 1D or 3D LUT to apply to the video being encoded by the Cube 755 to give your encoded video a finished look. Later, you can go back to the camera originals recorded with the log or flat profile and color grade them, but on-set your director, client, and crew will appreciate a more true-to-life image than the one being recorded. Another option is to use the Pomfort LiveGrade integration, using LiveGrade to manually configure a grade to apply to the encoded footage.
- Quick Features
-
- Real-time HEVC H.264, 1080p encoding up to 60 fps
- SDI and HDMI inputs
- Adaptive bit rate encoding at up to 30 Mbps
- Support for 33-point 3D LUTs and Pomfort LiveGrade integration
- Support for USB cellular modems
- SD card slot for recording
- Test pattern generator with custom test pattern loading
- Monitoring on up to six iOS and/or Android devices simultaneously
- Aluminum housing, OLED display, and joystick navigation buttons

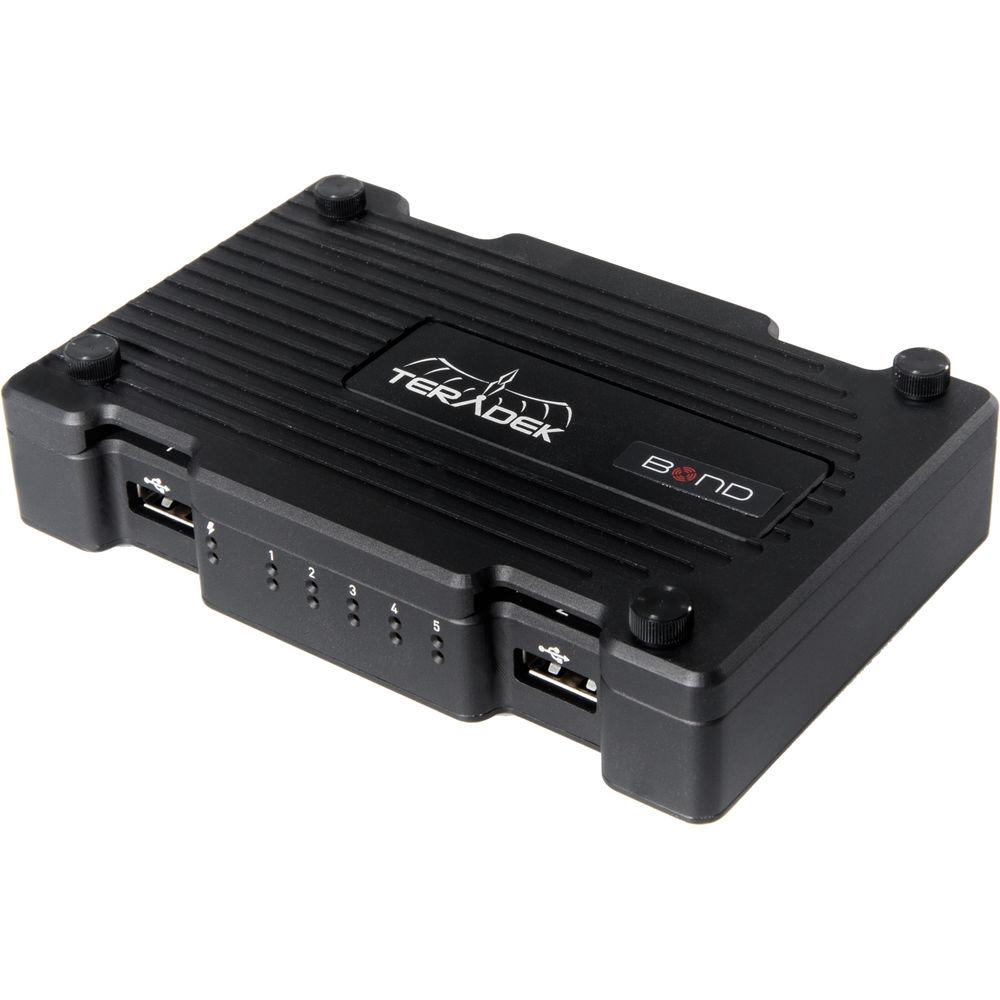

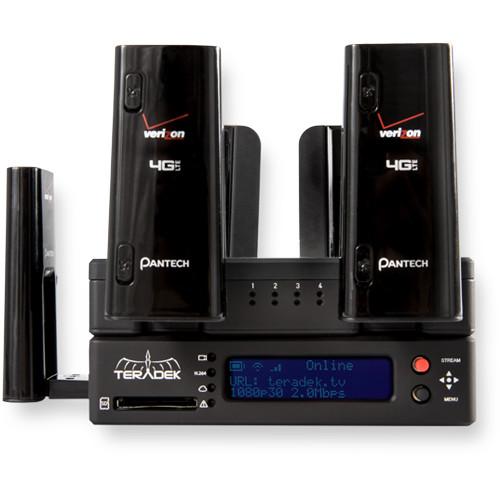

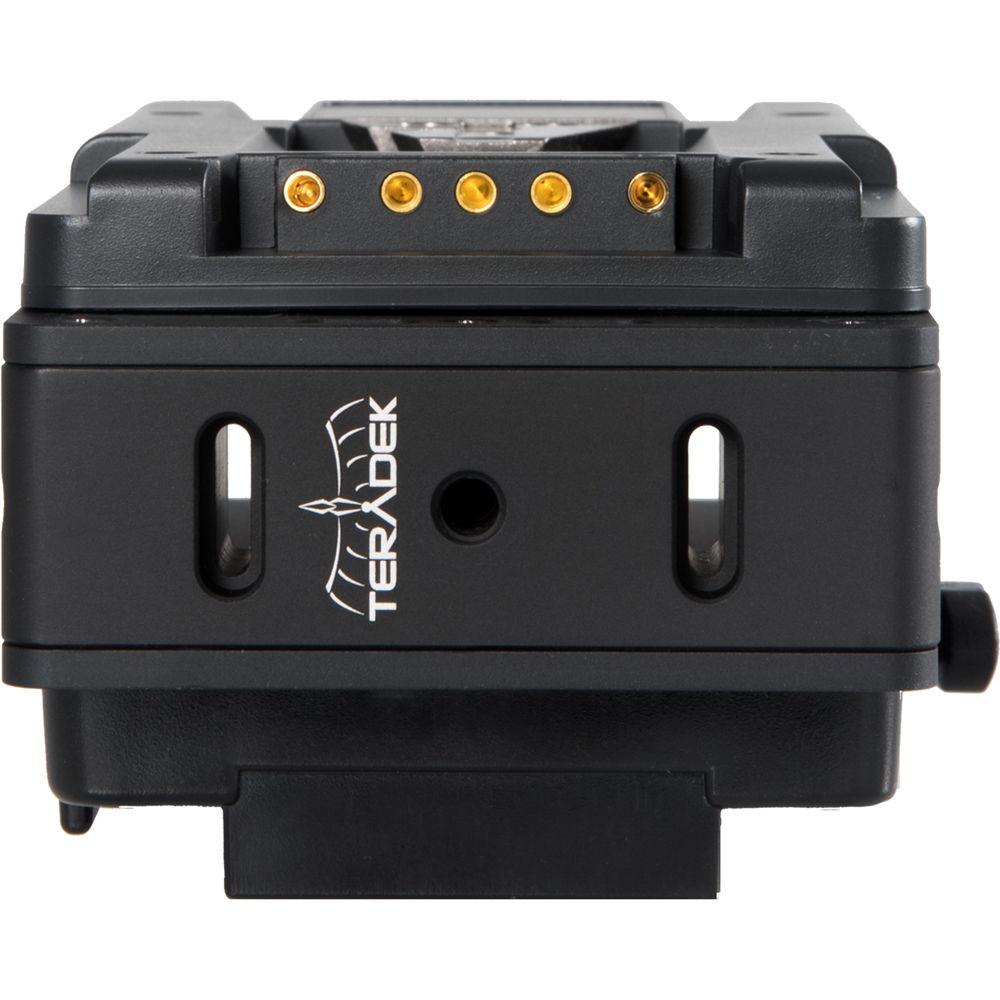

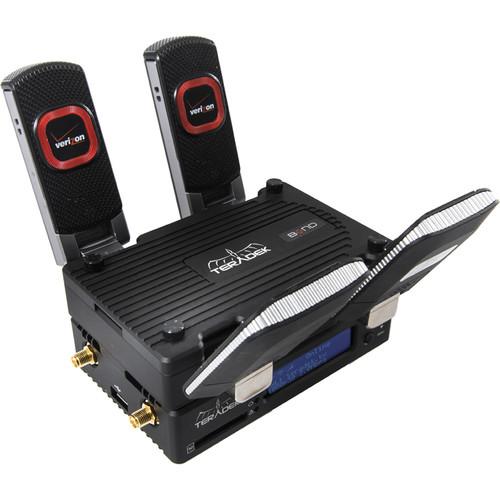

UPC: 818264020470 - Bond USB Cellular Expansion Module The Bond USB Cellular Expansion Module from Teradek combines several 3G/4G/LTE modems into a single bandwidth pipeline so you can stream live and in high definition from a cellular signal area. It connects to any Cube 600, 700, or 800 series through a pogo pin connector and offers up to four additional modem connections via USB (five total with Cube's one USB port), including Teradek Node high performance LTE radios. A built-in, 5 minute Li-ion battery offers continuous power during battery swaps so your transmission is not disrupted.

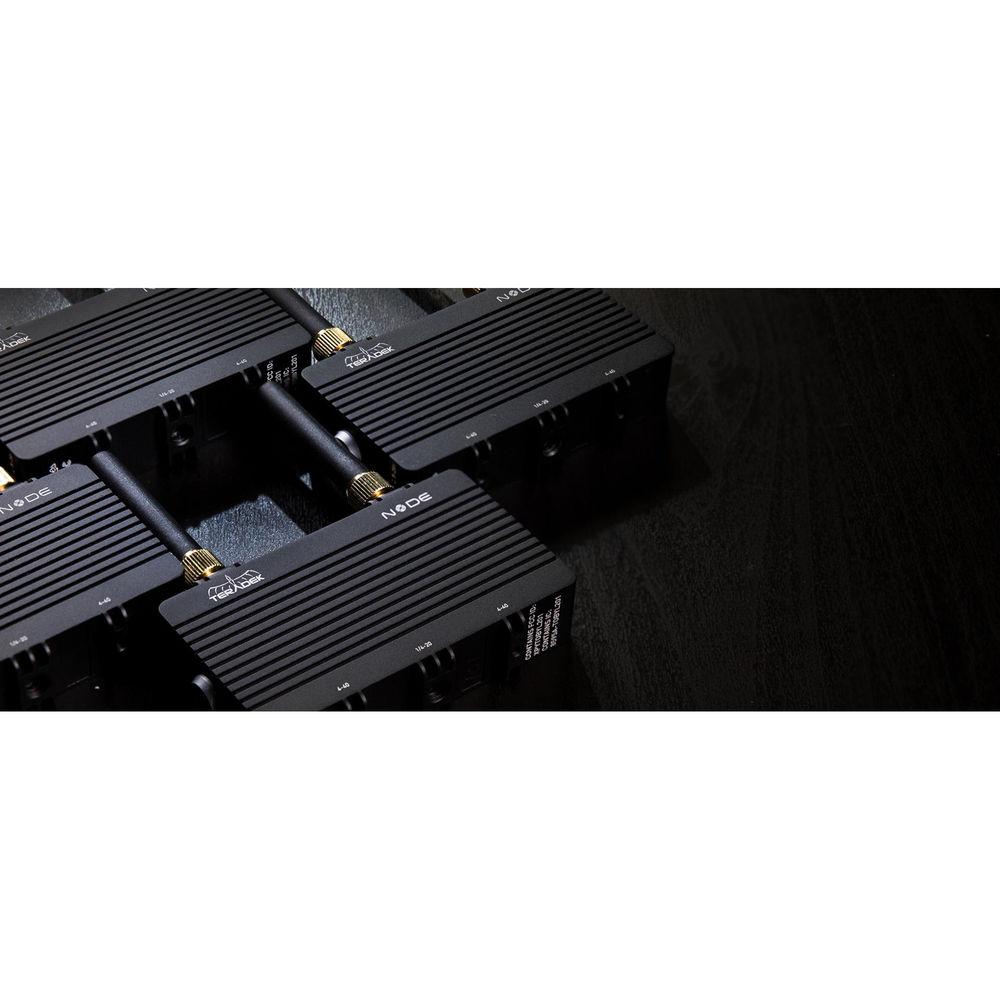

The Node, a high-performance 3G/4G/LTE modem, connects to the Bond module via USB and supports major LTE data bands, allowing you to use any SIM card for your region. When you stream over bonded network connections with the Cube and Bond expansion module, a Core server running demuxing software is required to turn the data back into a video format. The Core expands the Bond module's capabilities, including real-time transcoding, archiving, remote management and configuration, and multi-platform delivery. -
- Stream over multiple 3G/4G/LTE cellular networks
- Supports up to four USB modems
- Integrates with Cube 600, 700, and 800 Series (605/655, 715/755,805/855)
- Built-in Li-ion battery
- Low power consumption
- Impact resistant aluminum chassis
- Supports up to four iOS devices
- Wi-Fi and Ethernet (built into Cube)
UPC: 818264020432 - MPEG Transport Stream License for Cube Encoders The Teradek MPEG Transport Stream License for Cube Encoders allows you to create an MPEG-TS over IP (TCP or UDP) video stream that is compatible with television broadcast equipment and IPTV set-top boxes. A license activation key will be e-mailed to you from Teradek after purchase.

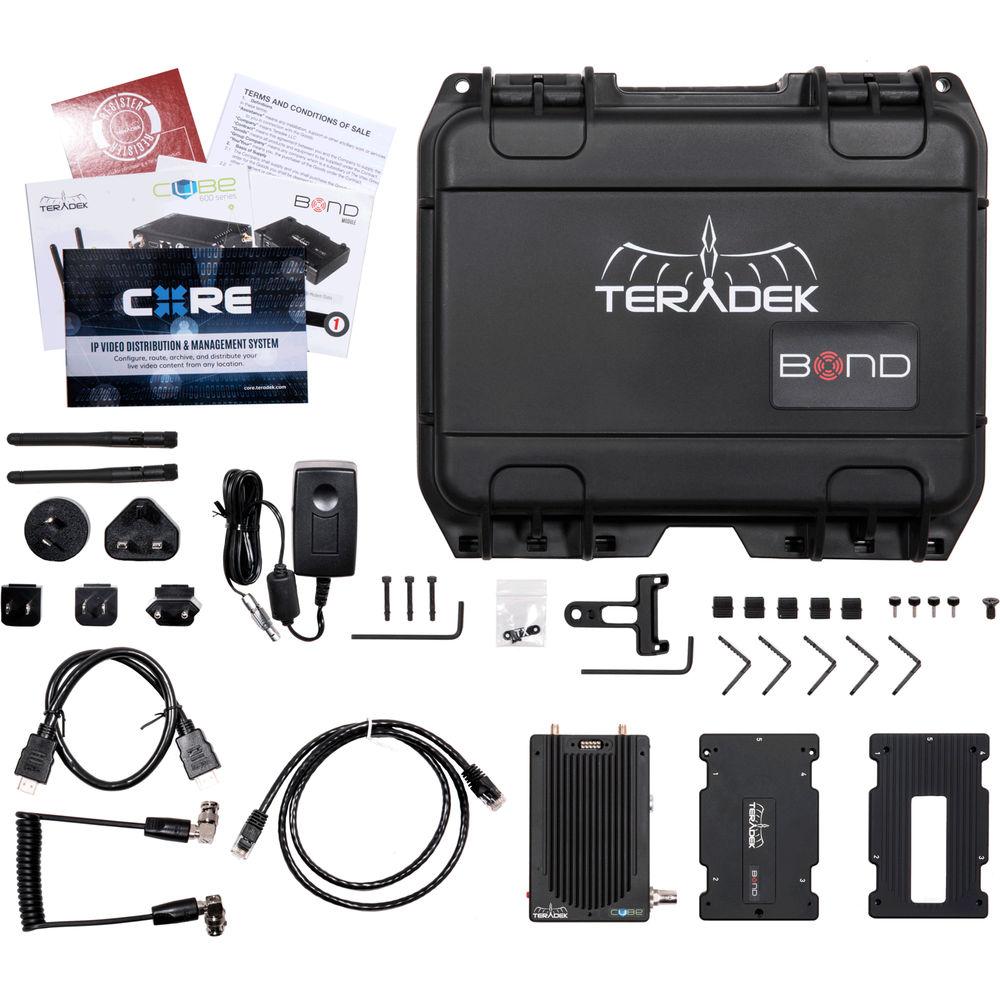

In the Box Bundle Items Cube 755 HEVC/H.264 HD Encoder xytxvcqx - 2-Pin Connector to 18W AC Power Adapter
Bond USB Cellular Expansion Module MPEG Transport Stream License for Cube Encoders
Also Includes - 2-Pin Connector to 30W AC Adapter 6' Cable with International Plugs
- 5 x USB Modem Clips
- USB Modem Plate
- 4 x 4-40 x 3/8" Black Thumb Screw
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bond 318 and Cube 755 Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube 755 HEVC/H.264 HD Encoder
| Video Input | 1 x 3G/HD/SD-SDI BNC (75 Ohms)
1 x HDMI Type A | | Bonding | TeraLink | | Input Resolutions | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080PsF 30/29/25/24/23
576i
480i
720p 60/59.94/50
576p (HDMI input only)
480p (HDMI input only)
NTSC
PAL | | Video Compression | H.264: Baseline, Main, and High Profile
H.265: Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 kbps to 30 Mbps | | Test Pattern Generator Support | Supports custom test pattern | | Format Conversion | Built-in video scaler and deinterlacer | | LUT Support | CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (requires optional paid license) | | Wi-Fi | 2.4/5GHz 802.11 ac/a/b/g/n MiMo
Encryption: 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128bit AES | | Remote Control | Teradek Core | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Configuration | WebUI and OLED display with joystick navigation buttons | | Storage | SD card slot | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000BASE-T Gigabit | | Modem Support | USB 3G/4G modem support (check Teradek website for updated list of compatible modems) | | Mount Type | 1/4"-20 threaded mounting holes allow for horizontal or vertical mounting | | Power Input | 2-pin connector | | Power Consumption | 8 W (max) | | Auxiliary Power Input | 6-28 VDC | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 4.8" | - Bond USB Cellular Expansion Module
| Interfaces | Controlled through Cube
4x powered USB 2.0 host port | | Power Consumption | Nominal: 0.5 W, up to 5 W per USB device
Power supplied by Cube
Internal Li-ion battery | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5% to 95% (non-condensing)
Storage: Maximum 90% | | Construction | Milled aluminum (chassis), regulation-compliant PCB | | Dimensions | 1 x 3 x 4.7" (24 x 77 x 120 mm) | | Weight | 7.9 oz (224 g) | - MPEG Transport Stream License for Cube Encoders
