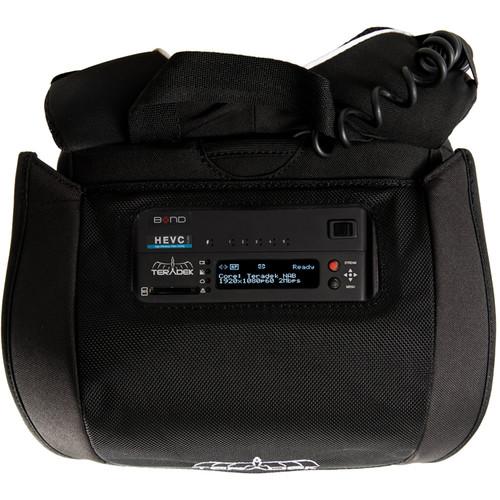

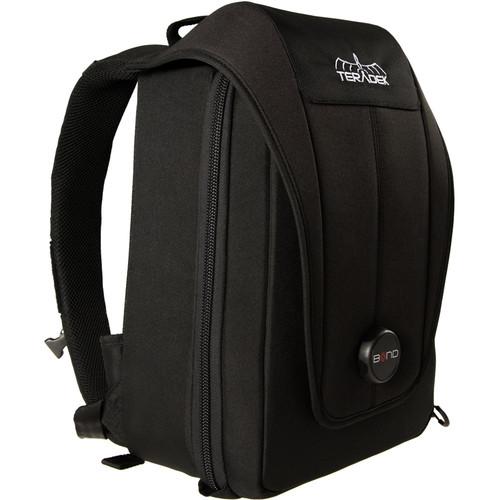

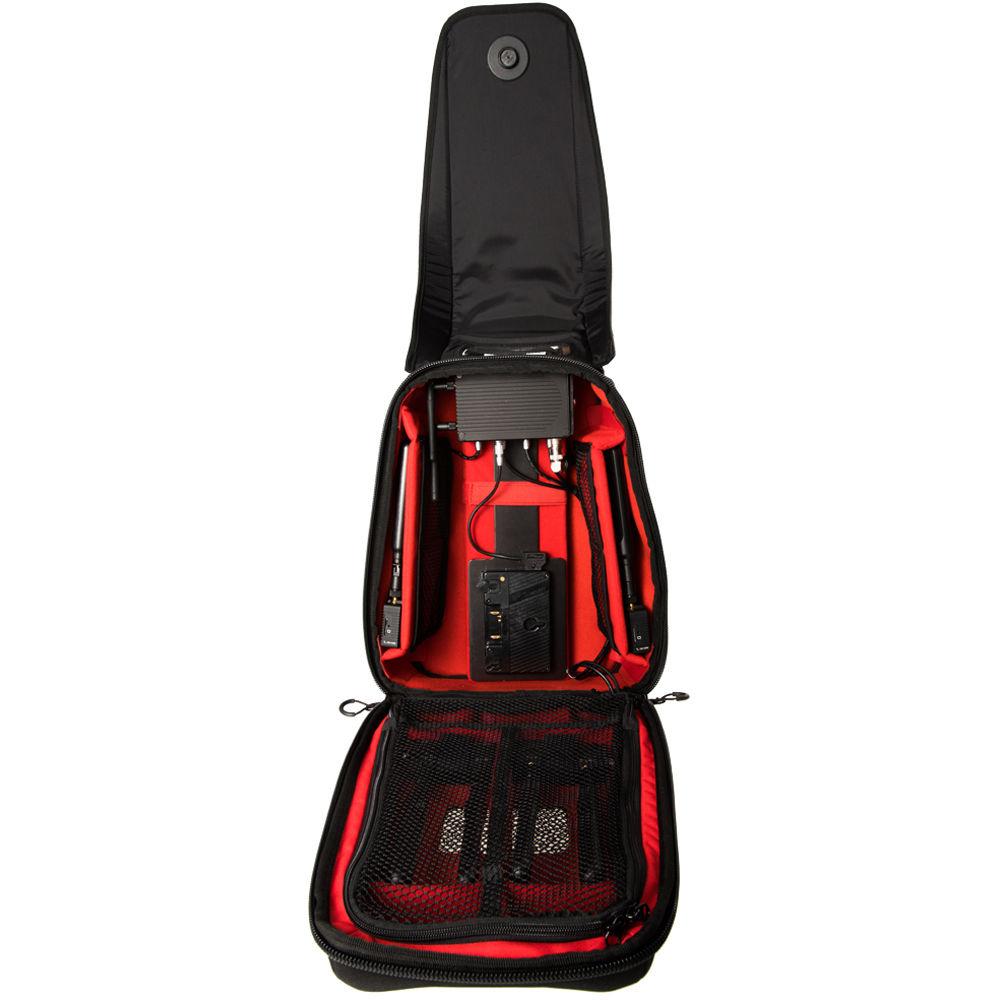

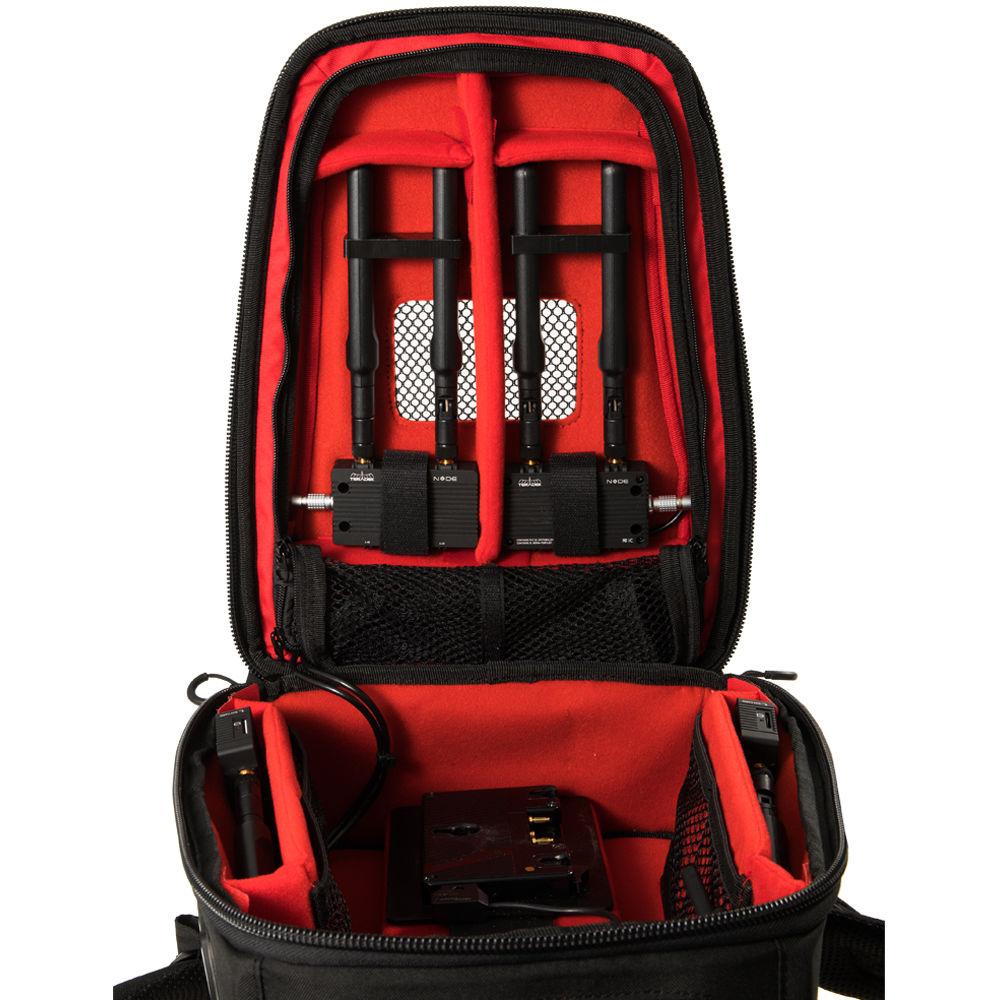

Product description The Bond 759 HEVC Backpack from Teradek includes the Bond 757 Expansion Module with Cube 755 Encoder, a Node Cellular 4G LTE USB Modem (Europe/Asia), and an AB-mount battery plate. - Bond 318 and Cube 755 Package The Bond 318 and Cube 755 Package from Teradek includes a Bond 318 Expansion Module, a Cube 755 Encoder, and an MPEG-TS license. The bond module supports up to five USB devices, Ethernet, and Wi-Fi. It also supports up to four iOS devices and is compatible with Cube 605/655, 715/755, and 805/855.

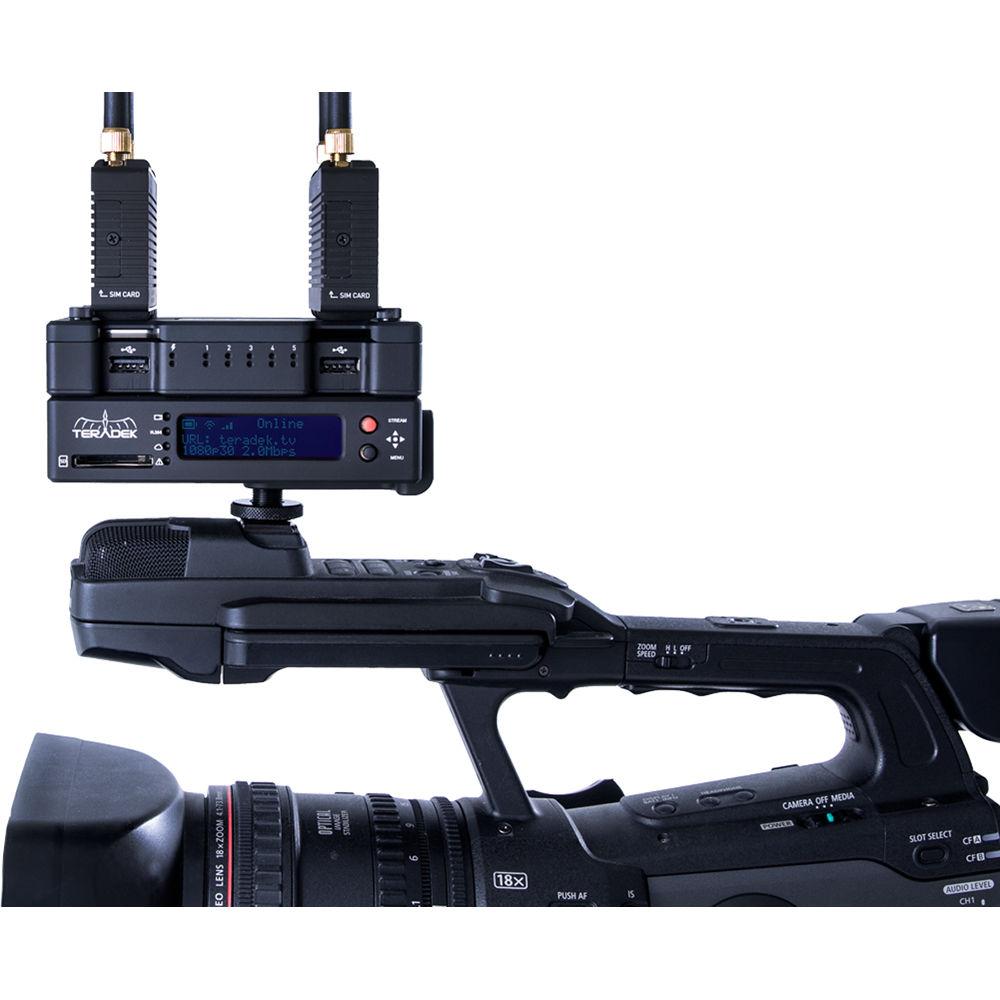

The Cube 755 encoder comes with one 3G/HD/SD-SDI (75 Ohm BNC) input and one HDMI type A receptacle input. It can be mounted horizontally or vertically with 1/4"-20 mounting holes. - Real-time H.264 encoder with network bonding
- Network bond six USB modems (1 Cube + 5 Bond)
- Dual-band 2.4/5 GHz Wi-Fi, Ethernet
- HDMI and SDI video inputs
- Bond module has built-in Li-ion battery for swapping

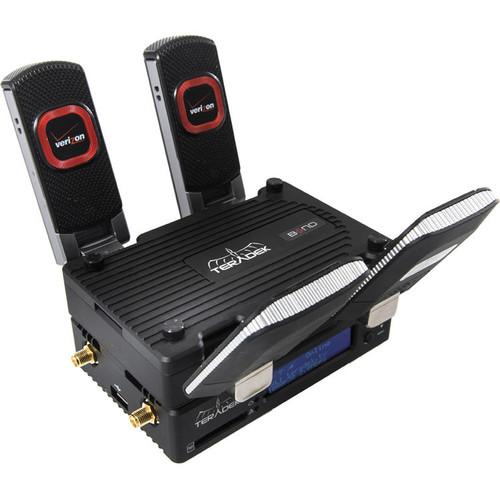

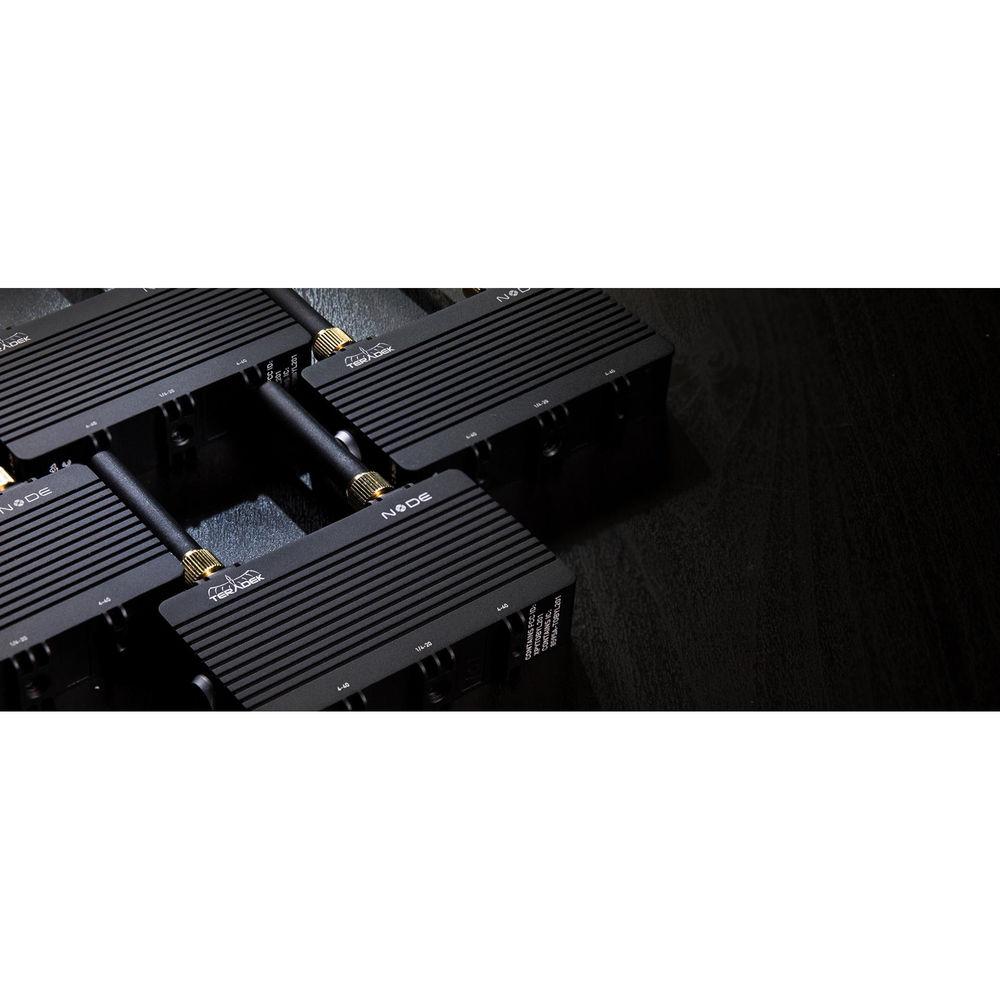

UPC: 818264020883 - Node Cellular 4G LTE USB Modem (EU/Asia) The Node Cellular 4G LTE USB Modem from Teradek allows you to broadcast over 3G, 4G, and 4G LTE network interfaces. With a rugged aluminum chassis and USB connector, it is durable and operates under challenging conditions.
- Better Cellular Connection
- Node allows you to go live from locations with the poorest cellular connectivity
- Data Band Support
- Node can operate on every 3G / 4G/ LTE data band in the region
- Durable and Weather-Resistant
- Node features aluminum chassis, 1/4"-20 and 4-40 mounting options, and an USB connector to attach to your Teradek device
- Compatibility
- Node modems can be used with Teradek Cube 600, 700, and 800 series, Bond II / Pro / Expansion Module, and the new Link wireless access point

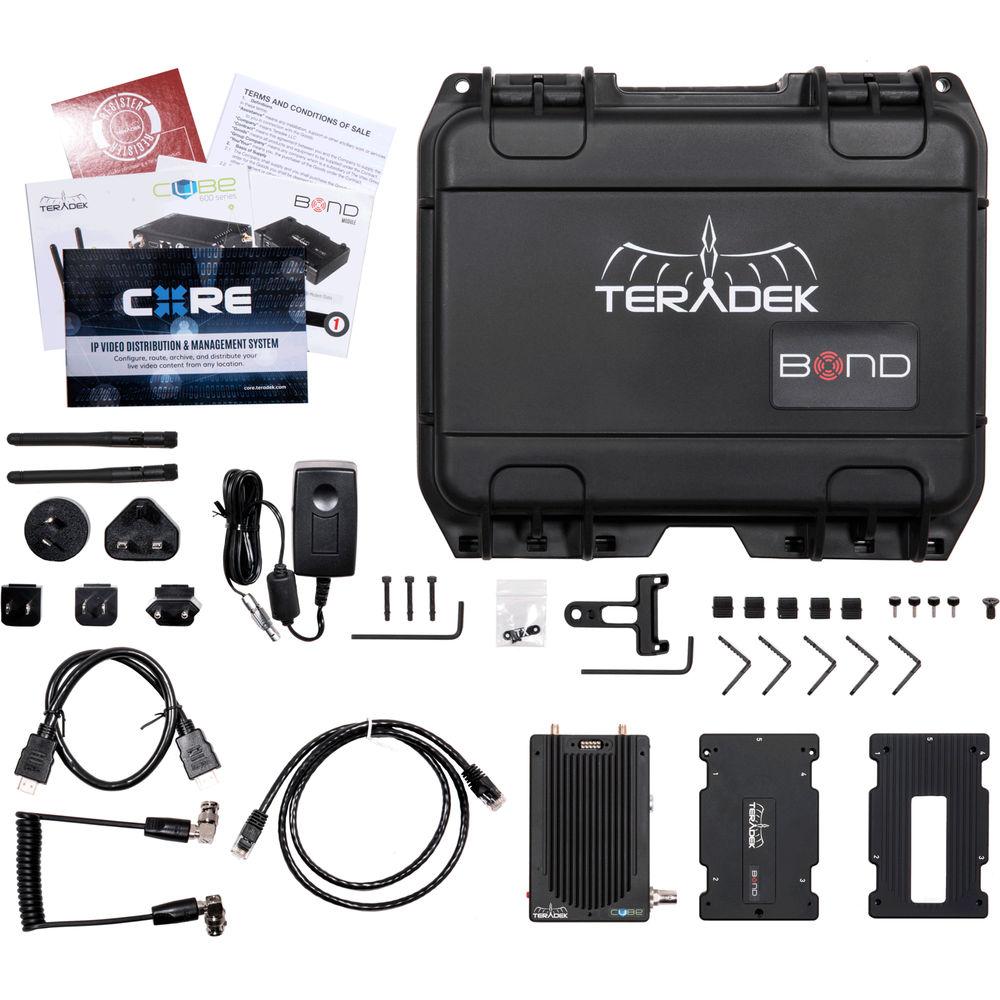

UPC: 818264020654 In the Box Bundle Items Bond 318 and Cube 755 Package dcxveeexbxywvqtxztetuywddfbxws - Cube 755 HEVC/H.264 HD Encoder

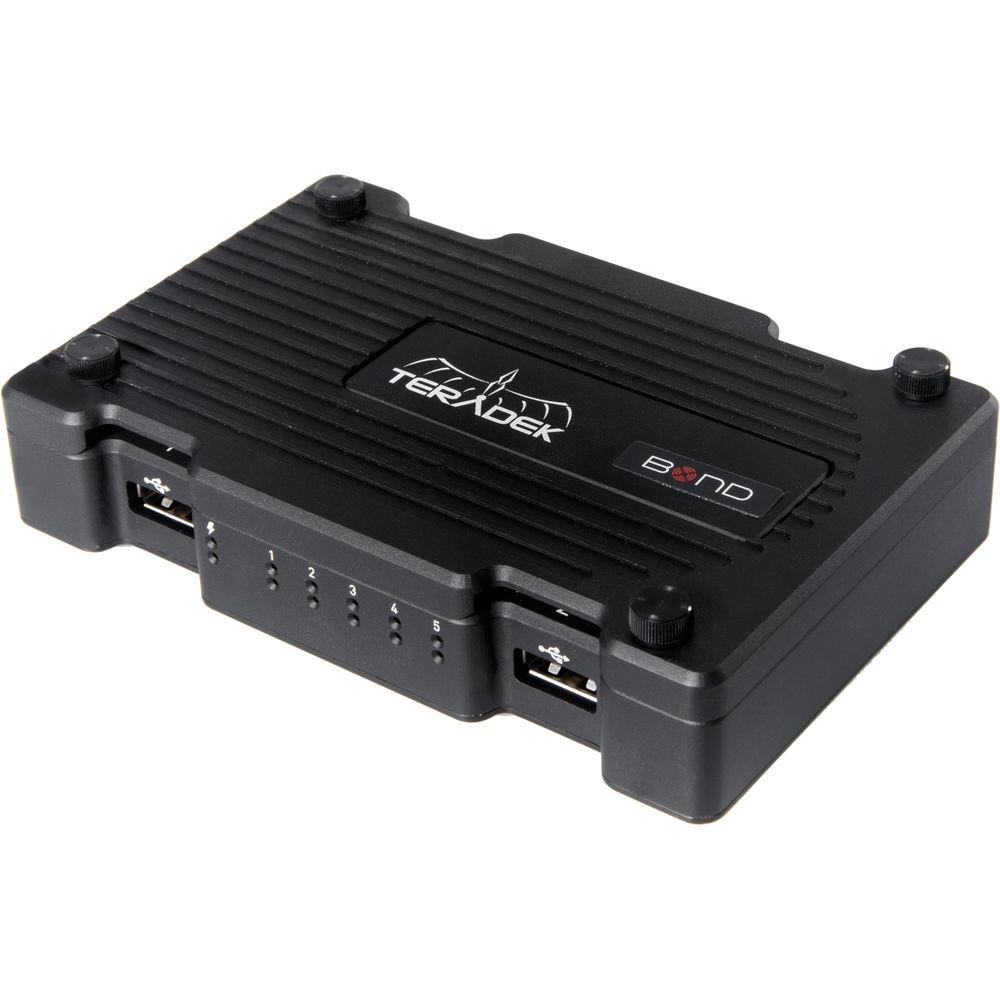

- Bond USB Cellular Expansion Module
- MPEG Transport Stream License for Cube Encoders
- 2-Pin Connector to 30W AC Adapter 6' Cable with International Plugs
- 4 x 4-40 x 3/8" Black Thumb Screw
Node Cellular 4G LTE USB Modem (EU/Asia) dcxveeexbxywvqtxztetuywddfbxws - 2 x Antennas, Wide Band, Whip Tilt, SMA Mount
- 2 x Antennas, Wide Band, Penta Straight, SMA Mount
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bond 759 HEVC Backpack with AB-Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Bond 318 and Cube 755 Package
| | | USB | Up to five USB devices | | Connectivity | Ethernet and Wi-Fi (built into Cube)
Up to four iOS devices | | Compatibility | Cube 605/655, 715/755, 805/855 | | Interfaces | Controlled through Cube
4 x powered USB 2.0 host port | | Battery | Internal lithium-ion | | Power Consumption | Nominal: 0.5 W, up to 5 W per USB device
Power supplied by Cube | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5% to 95% (non-condensing)
Storage: Maximum 90% | | Construction | Milled aluminum (Chassis), regulation-compliant PCB | | Dimensions | 1 x 3 x .4.7" (24 x 77 x 120 mm) | | Weight | 7.9 oz (224 g) | | | | Video Inputs | 1 x 3G/HD/SD-SDI BNC (75 Ohms)
1 x HDMI Type A | | Channel Bonding | TeraLink | | Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29/25/24/23
576i
480i
720p: 60/59.94/50
576p (HDMI input only)
480p (HDMI input only)
NTSC
PAL | | Video Compression | H.264: Baseline, Main, and High Profile
H.265: Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 kbps to 30 Mb/s | | Test Pattern Generator | Supports custom test pattern | | Video Format | Built-in video scaler and deinterlacer | | Color Correction | CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (requires optional paid license) | | Wi-Fi | 2.4/5 GHz 802.11 ac/a/b/g/n MiMo
Encryption: 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128bit AES | | Remote Control | Teradek Core | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Configuration | WebUI and OLED display with joystick navigation buttons | | Storage | SD card slot | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000 BASE-T Gigabit | | Modem Support | USB 3G/4G modem support (check Teradek website for updated list of compatible modems) | | Mount Type | 1/4"-20 threaded mounting holes allow for horizontal or vertical mounting | | Power Input | 2-pin connector | | Power Consumption | 8 W maximum | | Auxiliary Power Input | 6 to 28 VDC | | Dimensions | 4.75 x 3 x 1.1 (12 x 7.6 x 2.8 cm) | | Weight | 11.6 oz (329 g) | | | | Box Dimensions (LxWxH) | 13.0 x 11.2 x 5.3" | - Node Cellular 4G LTE USB Modem (EU/Asia)
| Network | LTE: LTE FDD Cat 4, Bands 1, 3, 5, 7, 8, 20
UMTS: HSDPA Cat 24, HSUPA Cat 6, Bands 850/900/1900/2100
RF: 2 x 2 MIMO SMA
Band 17 (700 MHz), Band 13 (750 MHz), Band 5 (850 MHz), Band 4 (1700 MHz), and Band 2 (1900 MHz)
Power Class: Class 3, 23 dBm LTE mode
Class 3, 24 dBm for UMTS/HSDPA/HSUPA mode
Data Rate: LTE cat 4: up to 150 Mb/s DL, 50 Mb/s UL
HSDPA cat 14, up to 21 Mb/s DL
HSUPA cat 6, up to 5.6 Mb/s UL
SIM: Full size | | Power Input | 2-pin connector, 5 to 28 V | | Power Consumption | 5 W maximum | | Interface | 2 Status LEDs | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5 to 95% (non-condensing)
Storage: Maximum 90% | | Construction | Milled aluminum (chassis), regulation-compliant PCB | | Mounting | 1/4"-20 threaded hole
2 x 4-40 threaded holes
Additional mounting options available | | Dimensions | 3.3 x 0.7 x 2.2" (82.8 x 18.5 x 59.3 mm) | | Weight | 4 oz (110 g) |
