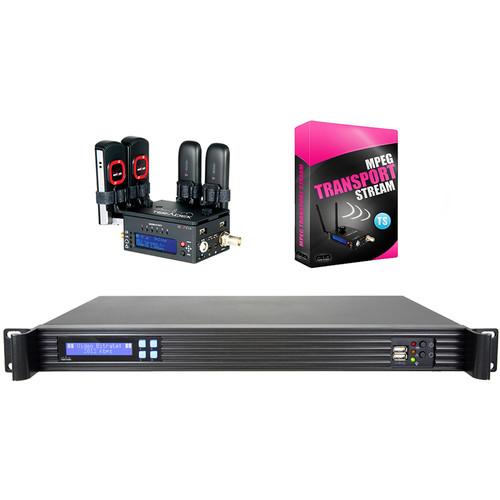

Product description Combining the SDI-capable Bond II with MPEG-TS and the Base Integrated Sputnik Server, this Teradek Bundle is a camera-top system offering a lot of flexibility for broadcasting 1080p30 HD video. It features a cellular modem mounting system and six USB slots supporting 3G/4G/LTE modems, BGAN, Ethernet, and WiFi connections. - Bond II: Integrated Camera-Top H.264 Cellular Bonding Solution
- The Teradek Bond line of cellular bonding solutions allows video professionals to broadcast 1080p HD video over aggregated bandwidth from several network interfaces, including 3G/4G/LTE, WiFi, BGAN, Ethernet, and fiber. Bond devices utilize hardware-based high profile H.264 compression, resulting in very low power consumption and long run times. Each bonding solution offers a local monitoring capability on iOS devices, quick access to settings via an OLED display, and IFB for communication from the studio to the field. All Bond devices require a Sputnik server, which converts each bonded feed into a standard video format that can be sent to any streaming platform on the Web or to several H.264 decoders.
WiFi and Ethernet bonding requires a compatible USB adapter. - Sputnik Server & Dashboard GUI
- Sputnik is Teradek's free software application between Bond and your streaming destination. Sputnik is designed to run on a Linux computer either in the cloud (using Amazon EC2 services), or on a local server with a single, publicly addressable TCP port. Sputnik recombines the various video packets and feeds from Bond into a cohesive stream that can be sent to an H.264 decoder or played back online.
- Base: Integrated Sputnik Server
- Base is an integrated link aggregation and H.264 decoding solution for video broadcasts transmitted over the Teradek Link or Bond. As an alternative to an Amazon EC2 instance or building your own Linux server, Base de-bonds and decodes your video feed from a single rack mount server with an HD-SDI output. Teradek's Base provides you with an alternative to an Amazon EC2 instance for recombining the various streams of your Bond video transmission. Simply connect the server to your network, assign it a static public IP address, and you're ready to go.
- Integration with Core
- Sputnik also integrates with Core, a cloud-based encoder fleet management system. From an intuitive web GUI, users are provided with extensive control over many parameters of connected Teradek IP video devices. Core also offers a unique drag and drop workflow that allows you to direct video feeds from any encoder to any number of decoders in real time.
- Key Features
-
- Six USB slots for 3G/4G/LTE modems, BGAN, Ethernet, WiFi
- Modem-mounting system
- 250 kBps to 10 Mbps
- HD-SDI, SD-SDI: BNC input
- Supports all standard resolutions and frame rates up to 1080p30
- IFB support
- List of Approved Modems
-
- AT&T: USBConnect Momentum 4G (Sierra Wireless Aircard 313U)
- T-Mobile: Jet 2.0 (Huawei e366)
- Telstra: BigPond Ultimate (Sierra Wireless Aircard 312U)
- Telstra: BigPond 4G (Sierra Wireless Aircard 313U)
- Verizon: Pantech UML290
- Vodafone: K3805-Z, K5005 (Huawei e398)
In the Box Teradek Bond II (HD-SDI) + MPEG-TS + Base Bundle BNC to BNC SDI Cable Hot Shoe Mounting Adapter USB Stick 2 x Wireless Antennas Bond II Modem Plate 6 x Bond II Modem Clips Hard Case Two-Pin LEMO 30W AC Adapter Black Hook-and-Loop Fabric 6 x USB Plugs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bond II MPEG-TS Base Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0118-2 Specs | Video Input | HD/SD-SDI on BNC | | Supported Resolutions | 1080p 23.98/24/25/30
1080PsF 23.98/24/25
1080i 50/59.94/60
720p 50/59.94/60
576p (HDMI)
576i (HD-SDI)
480p (HDMI)
480i (HD-SDI) | | Video Codec | Compression Algorithm: Baseline, Main, and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 kBps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS | | Audio | Audio Compression: AAC-LC, MPEG Layer 2
Embedded audio input
Analog Line or Mic in, adjustable gain
Headphone output, adjustable volume | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD display with joystick navigation buttons
On/Off and Reset switch
MicroSD slot
Six powered USB 2.0 host ports | | Network | Ethernet: 10/100BASE-T
WiFi: Dual Band 802.11 a/b/g/n MiMO
Bonded USB modem support | | Power | Two-pin LEMO power input
Nominal Power Consumption: 3 W + 2.5 W (max) per USB device
Power Input: 6-28 VDC | | Dimensions | 2.5 x 3.5 x 1.5" (6.4 x 8.9 x 3.8 cm) | | Weight | 12 oz (340 g) | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 22.4 x 18.0 x 10.6" |
