User Manual for Teradek Bond USB Cellular Expansion Module Click to enlarge the picture
Contents of the user manual for the Teradek Bond USB Cellular Expansion Module
- Product category: Wireless Transmission Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Accessories
 |
User manual for the Teradek Bond USB Cellular Expansion Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

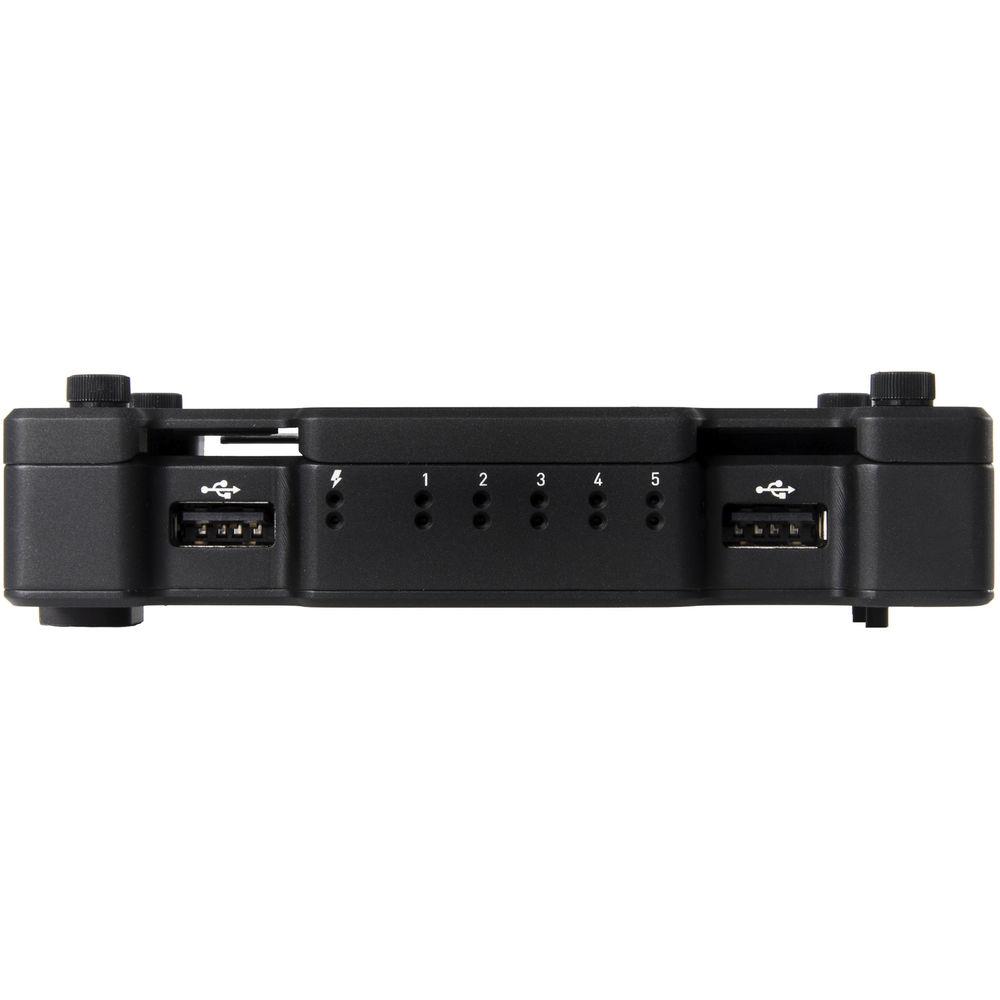

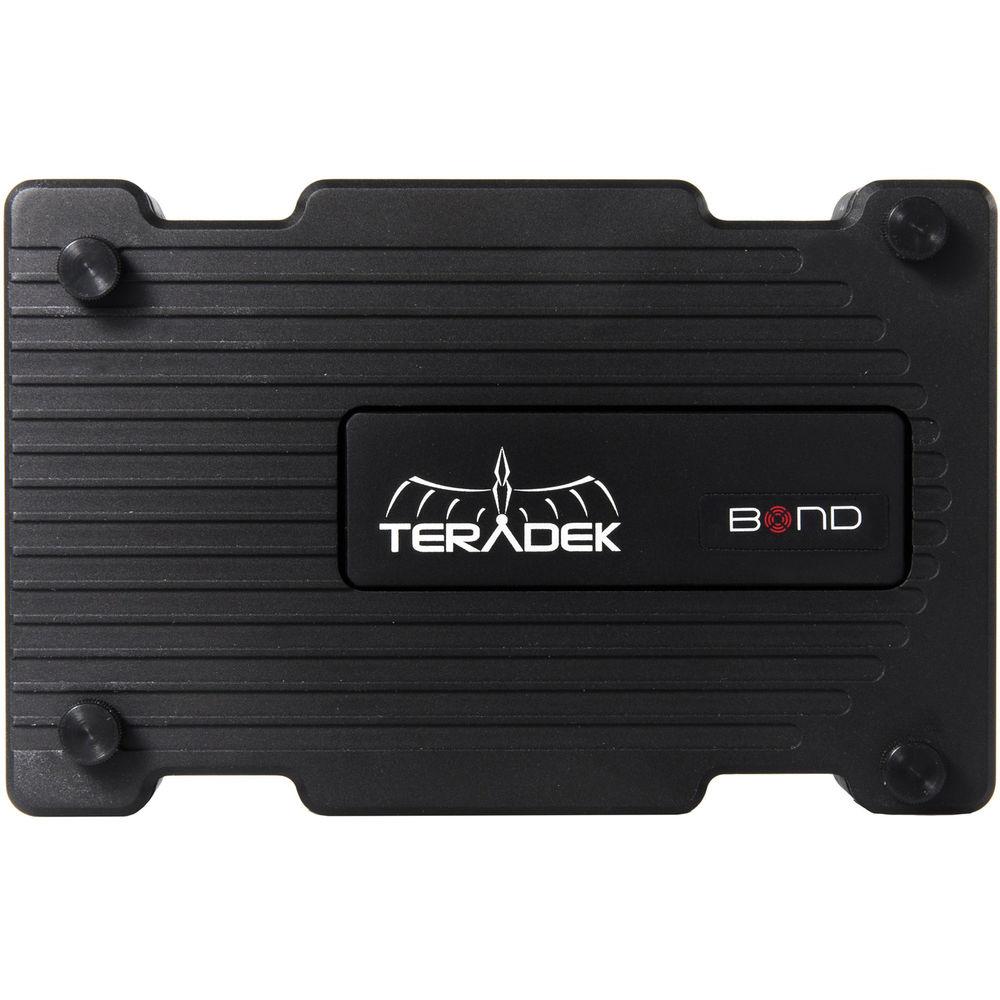

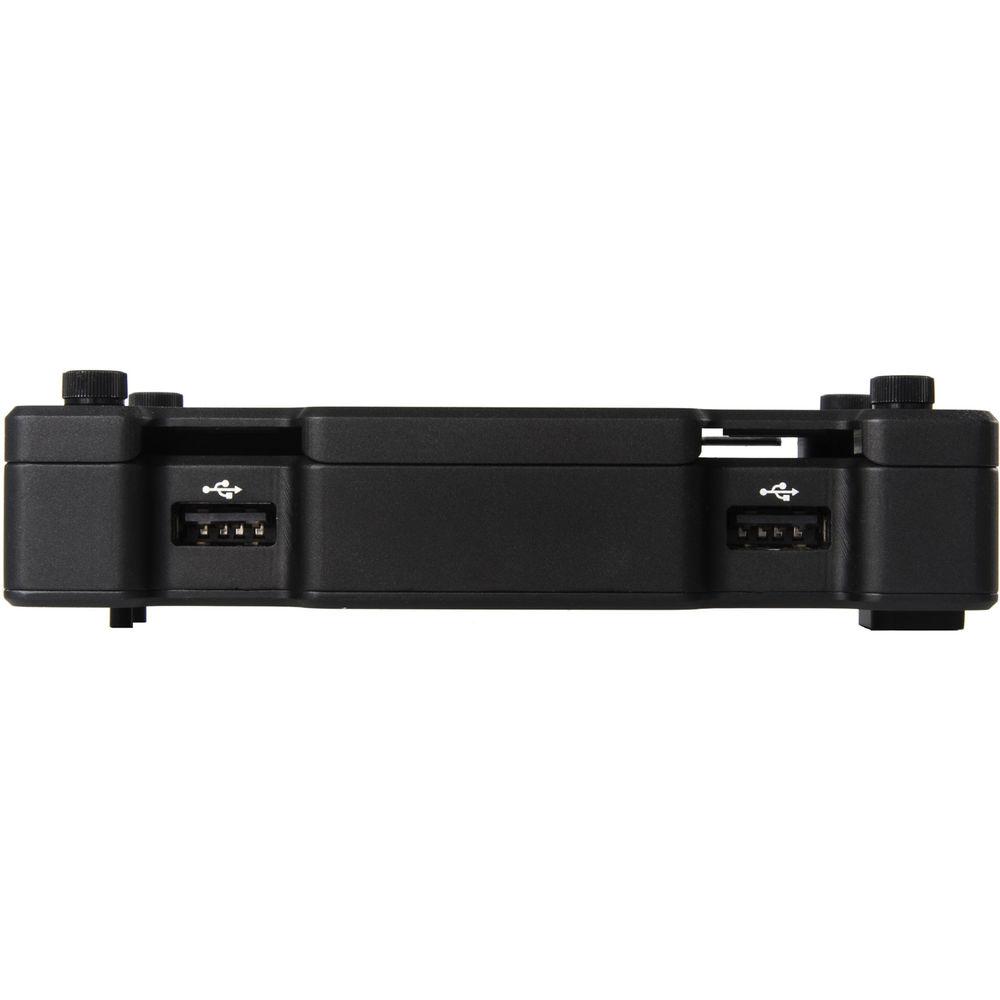

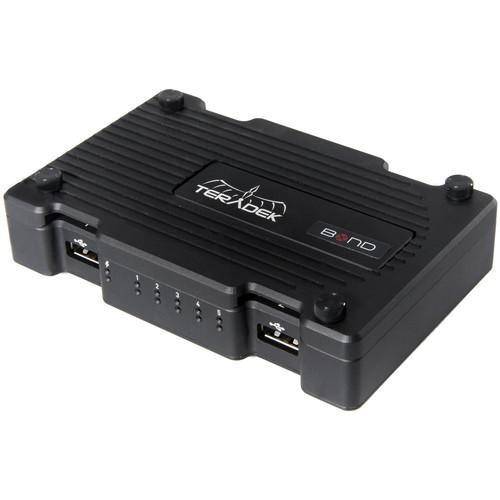

Product description The Bond USB Cellular Expansion Module from Teradek combines several 3G/4G/LTE modems into a single bandwidth pipeline so you can stream live and in high definition from a cellular signal area. It connects to any Cube 600, 700, or 800 series through a pogo pin connector and offers up to four additional modem connections via USB (five total with Cube's one USB port), including Teradek Node high performance LTE radios. A built-in, 5 minute Li-ion battery offers continuous power during battery swaps so your transmission is not disrupted.
The Node, a high-performance 3G/4G/LTE modem, connects to the Bond module via USB and supports major LTE data bands, allowing you to use any SIM card for your region. When you stream over bonded network connections with the Cube and Bond expansion module, a Core server running demuxing software is required to turn the data back into a video format. The Core expands the Bond module's capabilities, including real-time transcoding, archiving, remote management and configuration, and multi-platform delivery. -
- Stream over multiple 3G/4G/LTE cellular networks
- Supports up to four USB modems
- Integrates with Cube 600, 700, and 800 Series (605/655, 715/755,805/855)
- Built-in Li-ion battery
- Low power consumption
- Impact resistant aluminum chassis
- Supports up to four iOS devices
- Wi-Fi and Ethernet (built into Cube)
UPC: 818264020432 In the Box Teradek Bond USB Cellular Expansion Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Bond USB Cellular Expansion Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Bond Specs | Interfaces | Controlled through Cube
4x powered USB 2.0 host port | | Power Consumption | Nominal: 0.5 W, up to 5 W per USB device
Power supplied by Cube
Internal Li-ion battery | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5% to 95% (non-condensing)
Storage: Maximum 90% | | Construction | Milled aluminum (chassis), regulation-compliant PCB | | Dimensions | 1 x 3 x 4.7" (24 x 77 x 120 mm) | | Weight | 7.9 oz (224 g) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
