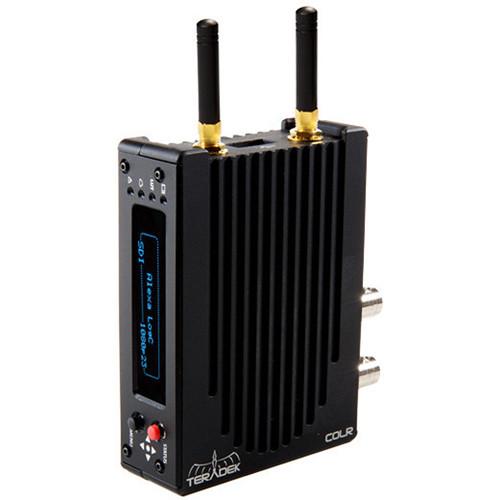

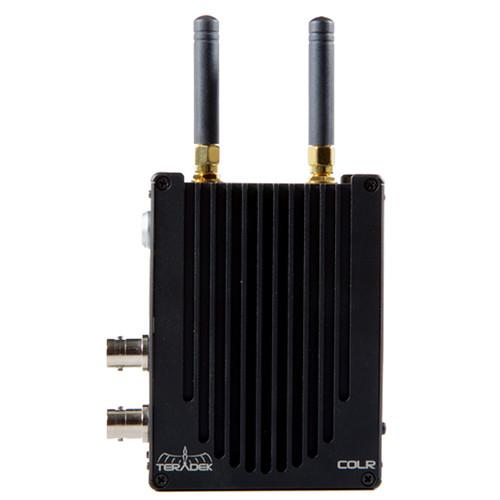

Product description Teradek COLR is a real-time LUT box, camera control bridge, and HDMI/SDI cross-converter in a single device measuring only 2 x 4". Allowing you to store multiple presets, combining CDL 1D and 33-point 3D LUTs, COLR offers directors, ACs, and DITs custom looks at the touch of a button. COLR integrates with Pomfort LiveGrade Pro, allowing DITs and colorists to give everyone the right looks, and providing control of your looks over Wi-Fi, Ethernet, or USB. Various multiple devices can be used simultaneously with LiveGrade, and looks can be saved directly to COLR. COLR features HDMI and SDI inputs and simultaneous HDMI/SDI outputs. COLR supports practically every camera signal and is compatible with virtually all types of monitors.

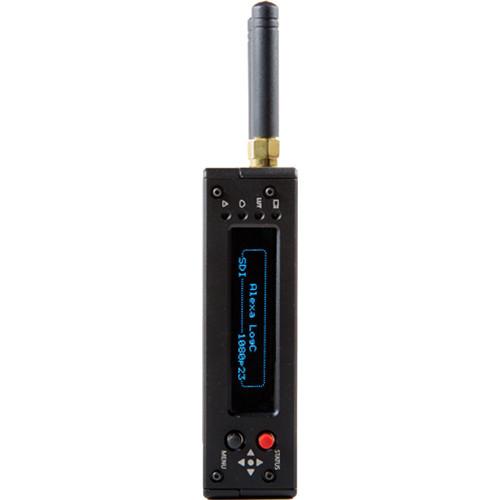

COLR features a built-in video scaler, deinterlacer, frame rate converter, and custom OSD tools. It also has a test pattern generator for calibration, and allows you to save and load screen images. It also offers a WebUI for look management, camera control, and network configuration. It has an OLED LCD that displays pertinent information, and is designed with convenient joystick navigation buttons.
COLR is also an addition into Teradek's Connected Set environment, which is an initiative that wirelessly synchronizes Teradek devices for a streamlined workflow. - Custom Looks at the Touch of a Button
- During camera prep, on your cart, through color timing, or on camera, COLR enables directors, ACs, and DITs to see what they need. Multiple presets, combining CDL 1D and 33 point 3D LUTs (supporting 10-bit color), can be stored on the device for quick conversion or custom looks at the touch of a button.
- Works with Pomfort LiveGrade
- COLR integrates with Pomfort LiveGrade Pro, giving you fine control of your looks over Wi-Fi, Ethernet, or USB. Looks can be saved directly to COLR, and LiveGrade supports multiple simultaneous devices.
- Universal Support
- COLR supports just about every camera signal on the market - from as small as GoPro to as large as ALEXA. RAW or LOG signals can be converted for monitoring, and every camera's look can be synced to show directors their vision while shooting. COLR also enables wireless camera control for Ethernet-enabled cameras, including FoolControl for RED digital cinema cameras and ARRI packages.
- No Monitor Left Behind
- Whether your production requires industry-standard color and gamma-accurate monitors or large consumer-grade screens, COLR is compatible. Versatility is no longer a luxury with COLR's built-in signal converter and simultaneous HDMI and SDI outputs.
- Connected Set
- Connected Set is a Teradek initiative, an environment developed to wirelessly synchronize Teradek devices for a streamlined workflow. With COLR as a piece of the puzzle, the Connected Set initiative encourages seamless integration between all Teradek products, ultimately streamlining on and off-set workflows. This will support a consistent workflow throughout the production process, whether on-set with zero delay transmission, iPad monitoring, or for off-site dailies review and final color grading.
UPC: 854980006916 In the Box Teradek COLR Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek COLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

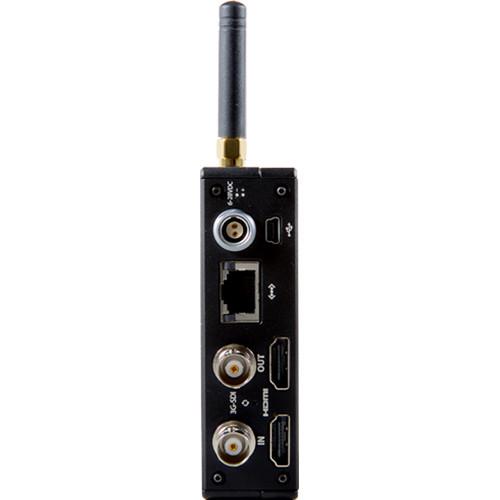

Technical parametersTeradek 10-0070 Specs | Input | 1 x HDMI type A input with embedded audio
1 x 3G/HD/SD-SDI on BNC input with embedded audio | | Output | 1 x HDMI type A output with embedded audio
1 x 3G/HD/SD-SDI on BNC output with embedded audio | | Supported Resolutions | 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080PsF 23.98 / 24 / 25
720p 50 / 59.94 / 60
576p 50 (HDMI only)
576i 50
480p 59.94
480i 59.94
HDMI input supports 8-bit RGB 4:4:4, 8-bit YCrCb 4:4:4, 12-bit YCrCb 4:2:2
HDMI output is 8-bit RGB 4:4:4
SDI input/output is 10-bit YCrCb 4:2:2 | | Video Processing | CDL/1024 1D LUT (supports 10-bit color)
33 x 33 x 33 3D LUT (supports 10-bit color) | | Protocol Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, MDNS/Bonjour | | Network | Ethernet: 10/100/1000BASE-T
Wi-Fi: 2.4/5 GHz 802.11 ac/a/b/g/n MiMO
Mini-B USB | | Power | Two-pin LEMO Power input
Nominal Power Consumption: 5 - 8 W
Auxiliary Power Input: 6-28 VDC | | Dimensions | 2 x 1 x 4" (5.0 x 2.5 x 10.0 cm) | | Weight | 6 oz (170 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.2" |
