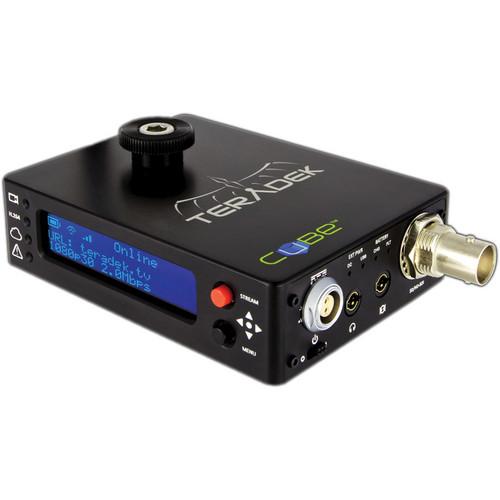

Product description Teradek's Cube-105 HD-SDI Encoder is the same as Cube-155 except that the 155 additionally features WiFi and an internal battery. If you don't require these, then you can take advantage of the 105's more affordable price.
The 105 connects to a camera by SDI, encodes video and embedded audio, and streams these in H.264, in up to 1080p/30, to an optional decoder or to a designated URL, streaming by Ethernet or optionally by a 3G/4G USB modem, which connects into the 105's USB port. You can at the same time also store proxy files to a MicroSD card or stream them to a computer over a network. (You would need to first enable a feature called "Proxy Recording" for free from a Teradek forum.)
Cube can be used camera-top, attaching right into a camera's hot-shoe, or you can mount it onto a rig by an included 1/4" mounting screw. For power, you can use the included AC adapter or you can connect a compatible 2-pin Lemo battery, namely, Teradek's Canon BP-945, Panasonic D54, and Panasonic VW-VGB6. These batteries are sold separately. -
- Streams video and embedded audio in up to 1080p/30 in H.264 to an optional decoder or designated URL
- Can simultaneously also save or stream proxy files
- Streams by Ethernet or by an optional 3G/4G USB modem
- Stores to an optional 32GB MicroSD card
- Attaches to a camera's hot-shoe or onto a rig by a 1/4"-20 screw
- An OLED screen indicates battery life, online status, and the URL being streamed to
UPC: 859273002774 In the Box Teradek Cube-105 HD-SDI Encoder AC Power Adapter SDI Cable Ethernet Cable 1/4"-20 Mounting Screw Teradek Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube-105 HD-SDI Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0105 Specs | Video Input | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live steaming
Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
USB Modem support (optional) | | Power | 2-pin LEMO input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
