User Manual for Teradek Cube 106 HD-SDI Encoder Click to enlarge the picture
Contents of the user manual for the Teradek Cube 106 HD-SDI Encoder
- Product category: Signal Converters Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Signal Converters
|
User manual for the Teradek Cube 106 HD-SDI Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

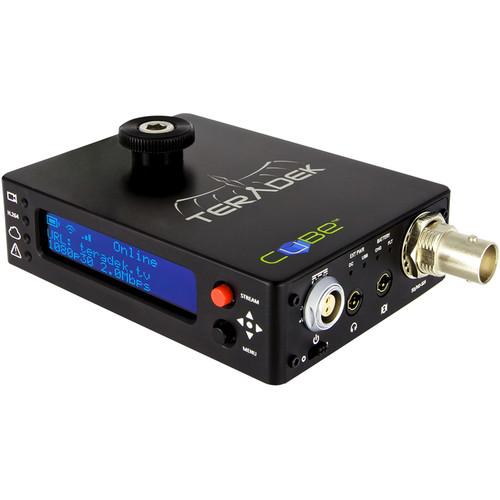

Product description The Cube 106 HD-SDI Encoder from Teradek connects to a camera by SDI, encodes video and embedded audio, and streams via Ethernet or a single 3G/4G LTE USB dongle to decoders or content delivery networks. It features a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS, sold separately), and compatibility with any streaming video platform. This unit can be powered over Ethernet (PoE). UPC: 854980006008 In the Box Teradek Cube 106 HD-SDI Encoder 110 to 240 VAC Power Adapter SDI Cable Ethernet Cable Hot Shoe Adapter with Thumbscrew Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 106 HD-SDI Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0106 Specs | Video Inputs | HD/SD-SDI, BNC | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression Algorithm: Baseline, main, and high profile H.264
Main and baseline profiles
Bit Rate: 250 kb/s to 10 Mb/s
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (optional paid license), Zixi (optional paid license) | | Audio | Audio Compression: AAC-LC, MPEG Layer 2
Embedded audio input
Analog line or mic in, adjustable gain, headphone output, adjustable volume | | Interfaces | Feature-rich Web UI for configuration and control
OLED LCD display with joystick navigation buttons
On/Off and Reset switch
microSD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
USB modem support Proxy recording currently supports select RED, ARRI, Sony, and Canon cameras. | | Power | Two-pin LEMO power input
Nominal Power Consumption: 3 W
LEMO Power Input: 6 to 28 VDC
PoE Power Input: 36 to 57 VDC | | Dimensions (W x D x H) | 3 x 4 x .9" (8 x 10 x 2 cm) | | Weight | 8 oz (227 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.1" |
