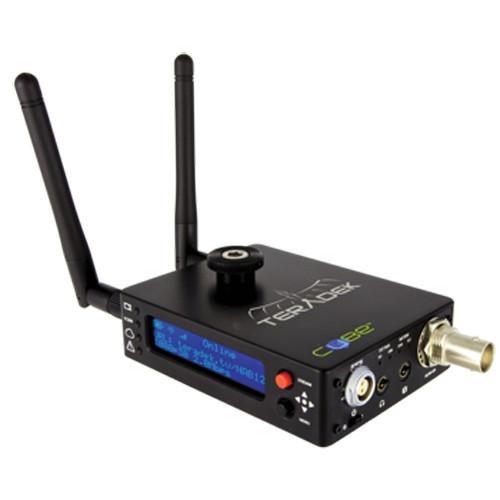

Product description The Teradek Cube 155 HD-SDI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera via SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by an optional 3G/4G modem connection. You can also store the files to a microSD card as the Cube features a microSD slot with support for up to 32GB cards.

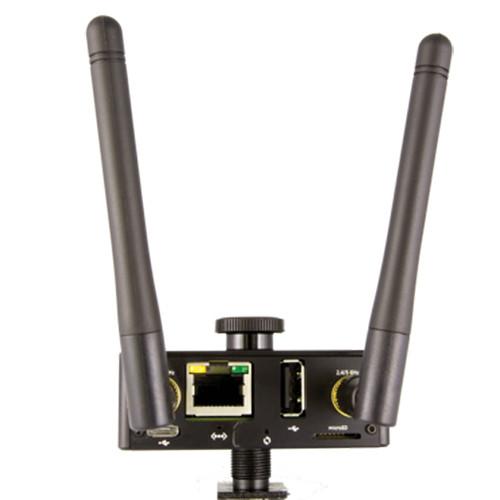

For mounting, the Cube attaches either to a camera's hot shoe or a cage/rig via an included 1/4"-20 mounting screw. Aside from the SDI input, connections consist of an Ethernet port, a 3.5mm line/mic input, and a headphone jack. A micro-USB slot is available for charging and configuring.

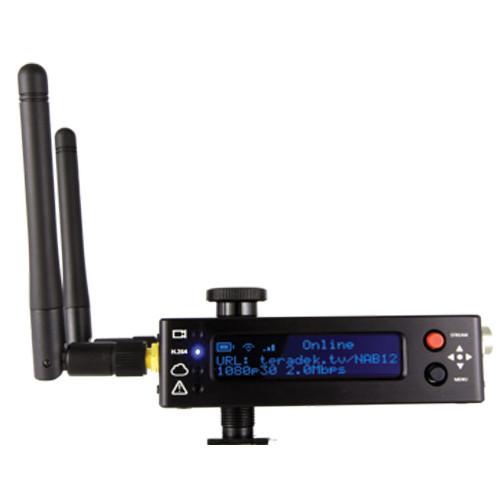

The Teradek Cube has a rechargeable internal lithium-ion battery that lasts up to two hours. It can also be powered with the included AC power adapter or by an external battery via a 2-pin LEMO input. An OLED screen indicates the remaining battery life, online status, and the URL being streamed to. Optionally, Teradek offers camera batteries with 2-pin LEMO output so you can easily power both the camera and Teradek with the same battery. The following three 2-pin LEMO batteries can be used for power: the Teradek Canon BP-945, Teradek Panasonic D54, and the Teradek Panasonic VW-VGB6. - SDI Connection to a Camera
-
- Streams proxy files in H.264 to a decoder or website
- Streams via Wi-Fi, by Ethernet or optional 3G/4G modem
- Stores files to an optional microSD card of up to 32GB in capacity
- Attaches to a camera's hot shoe or to a cage/rig by a 1/4"-20 screw
- Powered by a two-hour internal battery or by the included AC power adapter
- An OLED screen indicates battery life, online status, and the URL being streamed to

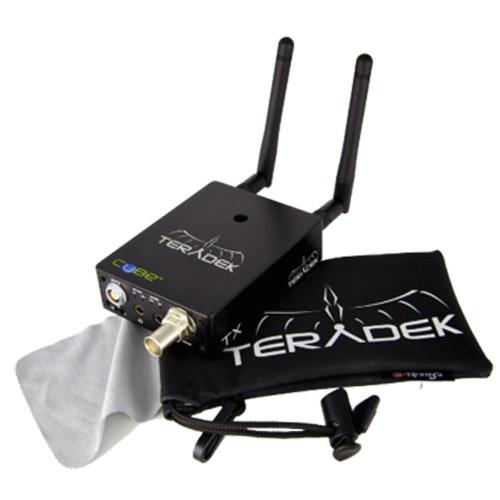

UPC: 859273002521 In the Box Teradek Cube 155 HD-SDI Encoder with Wi-Fi 110-240 VAC Power Adapter 2 x Wireless Antennas Ethernet Cable USB Stick with TeraCentral Desktop Software BNC Cable Hot Shoe Mounting Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 155 HD-SDI Encoder with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0155 Specs | Connections | 1 x HD/SD-SDI input
1 x RJ45 port
1 x 3.5 mm line/mic input with adjustable gain
1 x Headphone jack with adjustable volume
1 x Micro-USB slot
1 x 2-pin LEMO power input | | File Transfer Method | Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible, Ethernet 10/100BASE-T, or optional 3G/4G modem connection | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576i
480i | | Video Codec | Compression Algorithm: Baseline, Main, and High-Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kb/s to 10 Mb/s
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS
RTMP (Adobe Flash streaming)
HTTP live steaming
Point-to-point (TCP or UDP), multiple unicast (UDP), or optional multicast (UDP + IGMP) | | Audio Compression | AAC-LC, MPEG Layer 2 | | Memory | microSDHC card slot with support for up to 32 GB cards | | Mounting | Cold shoe for mounting onto hot shoe mount
1/4"-20 mounting screw for attachment onto a cage or rig | | Power Consumption | 3 W
While Charging: Up to 10 W | | Auxiliary Power Input | 6-28 VDC | | Power | Internal battery lasts up to two hours and is charged via micro-USB slot, included AC power supply, or optional 2-pin LEMO batteries | | Dimensions | 2.5 x 3.5 x .9" / 6.35 x 8.9 x 2.3 cm | | Weight | 8 oz / 226 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 4.1" |
