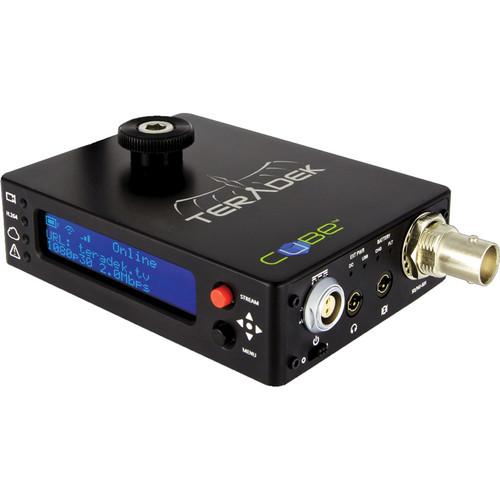

Product description The Teradek Cube 305 HD-SDI Decoder with Ethernet makes up an HD video transmission solution with any Cube Encoder that streams by wired Ethernet (such as Cube 105). Cube 305 receives the stream with embedded audio over Ethernet, decodes it, and outputs it in the widely-used, edit-ready H.264 codec to switchers, professional monitors and other equipment via an HD-SDI output. H.264 is also a popular codec for uploading files to the internet. An alternative to receiving a stream by Ethernet, Cube 305 can receive by an optional 3G/4G USB modem, which would install into a USB port positioned right beside the Ethernet port. A MicroSD card slot enables saving the received stream in addition to outputting it, and an OLED display on the side communicates transmission status and other data.
Cube 305 supports resolutions up to 1080p/30, which is the top resolution that many common camcorders and DSLRs shoot in. The Cube moreover features a built-in scaler and can upscale any lower resolution to 1080p/30.
The Cube powers by an included AC adapter or an optional Teradek/Swit 945, D54, or VGB6 2-pin Lemo battery, and it is outfitted for 1/4" mounting. Cube 305 is almost identical with Cube 355. The only differences between the two are that Cube 355 features WiFi instead of an Ethernet input and also has a 2-hour internal battery. - Key Features
-
- Receives a 1080p/30 stream with embedded audio by Ethernet or optional USB modem
- Outputs 1080p/30 in H.264 to switchers, monitors and other equipment by HD-SDI
- A built-in scaler can internally upscale to 1080p/30
- Powers by an included AC adapter or optional 2-pin Lemo Teradek/Swit battery
- MicroSD card slot enables saving the received stream
- OLED display communicates transmission status and other data
UPC: 859273002736 In the Box Teradek Cube 305 HD-SDI Decoder with Ethernet AC Power Adapter SDI Cable Ethernet Cable 1/4"-20 Mounting Screw Teradek Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 305 HD-SDI Decoder with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0305 Specs | Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | 2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 2.9" |
