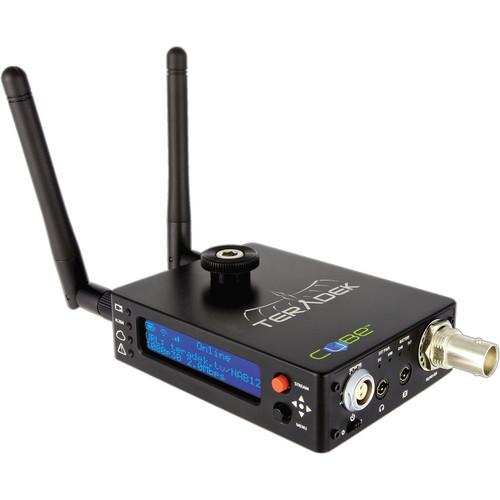

Product description Teradek's Cube-355 HD-SDI Decoder with WiFi connects to SDI switchers and monitors and outputs HD video with embedded audio, in H.264, that it receives and decodes from a Teradek encoder. The encoder can stream resolutions as high as 1080p/30. The 355 supports and can output 1080p/30 and via a built-in scaler can upscale any lower resolution. It can receive from the encoder by dual-band WiFi, by Ethernet, or optionally via a 3G/4G USB modem, which connects into a USB port.
The Cube features an internal 2-hour battery and can also be powered by an included AC adapter or an optional Teradek/SWIT 945, D54, or VGB6 2-pin Lemo battery. A 1/4" thread allows 1/4" mounting but being on the output side, the 355 can simply be used table-top. -
- Outputs in up to 1080p/30, in H.264, to SDI switchers and monitors
- Receives from an optional encoder by WiFi, Ethernet, or an optional USB modem
- Built-in scaler can upscale any resolution lower than 1080p/30
UPC: 859273002590 In the Box Teradek Cube-355 HD-SDI Decoder with WiFi AC Power Adapter SDI Cable Ethernet Cable 1/4"-20 Mounting Screw Teradek Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube-355 HD-SDI Decoder with WiFi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0355 Specs | Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control

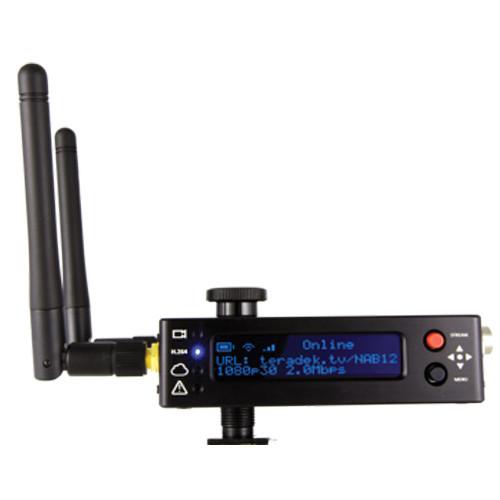

OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | MIMO dual-band WiFi 2.4/5.8G 802.11 a/b/g/n wherever accessible

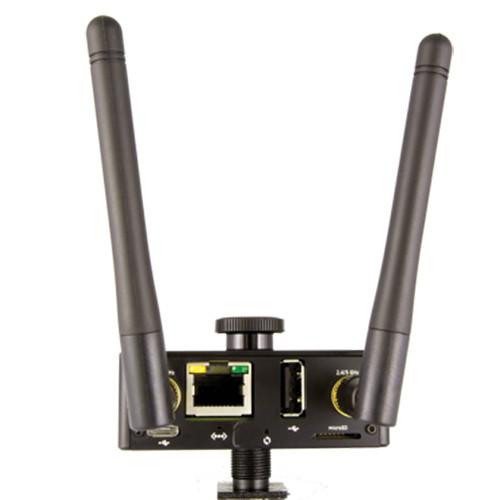

Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | Internal battery (runs for two hours; charged via micro USB slot)

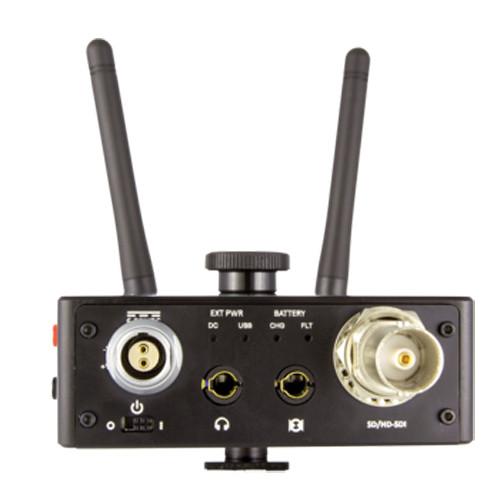

2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
