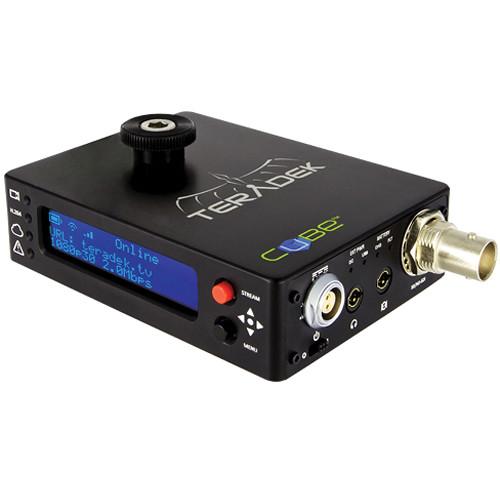

Product description Featuring a composite input and Ethernet output, the Teradek Cube 505 is an H.264 encoder that transmits SD video over wired Ethernet and optional cellular modems. The Cube offers a compact solution for local monitoring on iOS devices, streaming to the Web, or transmitting video point-to-point over a LAN connection.
Setup is simple — connect your video source and power up the Cube, create a network, log on to Cube's web interface, complete the Setup Wizard, and begin streaming. Cube is about the size of a deck of cards and uses only 2.5W - 3.8W of DC power. It weighs only 7 oz and mounts easily to a rail system, cage, hot shoe, or baseplate. UPC: 854980006879 In the Box Teradek Cube 505 Encoder 110V-240 VAC Power Adapter Ethernet Cable USB Stick with TeraCentral Desktop Software BNC Cable Hot Shoe Adapter with Thumbscrew BNC Male to RCA Female Adapter Limited 1-Year Warranty Quick start Guide PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 505 Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0505 Specs | Video Input | Analog BNC | | Supported Resolution | 480i (NTSC)
576i (PAL) | | Video Codec | Compression Algorithm: High Profile H.264 (L4.1)
Bit Rate: 250 Kbps to 10 Mbps | | Mount Type | Hot shoe | | Power Input | Two-pin LEMO | | Ethernet | 10/100BASE-T | | USB | USB 2.0 host port | | Audio | Line or Mic in
Audio Compression: AAC-LC, MPEG Layer 2
Embeds independent stereo audio | | Network | Ethernet: 10/100BASE-T
Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (optional)
HTTP Live Streaming
Feature-rich WebUI for configuration and control
Point-to-Point (TCP or UDP), Multiple Unicast (UDP), Multicast (UDP+IGMP) (optional) | | Storage | microSD card slot | | Auxiliary Power Input | 6-28 VDC | | Power Consumption | 2.5 - 3.8 W | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 95% Non-condensing | | Dimensions | 2.5 x 3.5 x 0.9" (6.4 x 8.9 x 2.3 cm) | | Weight | 7 oz (0.2 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.1" |
