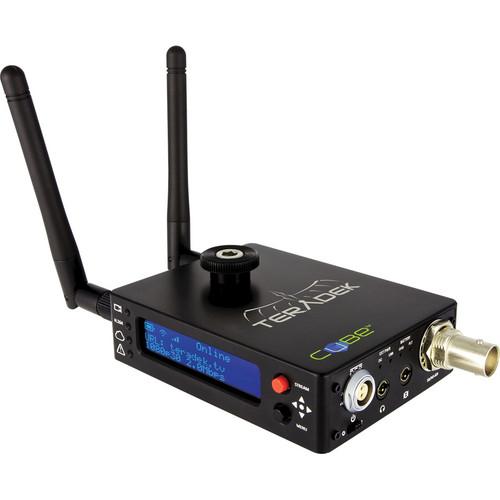

User Manual for Teradek Cube 555 1-Channel Camera-Top Wireless SD Video Encoder Click to enlarge the picture
Contents of the user manual for the Teradek Cube 555 1-Channel Camera-Top Wireless
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
|
User manual for the Teradek Cube 555 1-Channel Camera-Top Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description The Teradek Cube 555 1-Channel Camera-Top Wireless SD Video Encoder works with composite cameras and streams via dual-band MIMO, Wi-Fi, Ethernet, or a single 3G/4G USB modem. The Cube 555 includes all the features of the original Cube such as a compact aluminum chassis and comprehensive transport protocol support like RTP/RTSP/RTMP/MPEG-TS. The OLED display enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status, and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away. The built-in Li-ion battery gives users up to 90 minutes of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer. The new MIMO access point feature improves wireless performance and enables special features such as wireless camera control for devices without a Wi-Fi capability built in, and ensures improved connectivity from an iPad or Android tablets. Also, a headphone output is integrated for immediate audio monitoring. The micro SD slot enables Cube to save on-board proxy recordings in real time. The recorded files (.mov or .mp4) are automatically synced with your proxy server over Wi-Fi or cellular connections. It supports nearly every streaming platform on the Web, including Ustream, Justin.tv, Livestream, Youtube Live, and many others. UPC: 854199005151 In the Box Teradek Cube 555 1-Channel Camera-Top Wireless SD Video Encoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 555 1-Channel Camera-Top Wireless SD Video Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0555 Specs | Video Input | Analog BNC | | Wi-Fi | 802.11 a/b/g/n MIMO | | Mount | Shoe Mount | | Display | OLED Display | | Battery | Li-ion Battery | | Power Input | 2-Pin LEMO Power | | Storage | microSD | | Ethernet | 10/100BASE-T | | USB | USB 2.0 host port | | Supported Resolutions | 576p, 480p | | Video Codec | Compression Algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps
Built-in Video Scaler and De-interlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
RTMP (Adobe Flash Streaming)
HTTP Live Steaming
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP) MPEG-TS is optional. | | Audio | Audio Compression: AAC-LC, MPEG Layer 2
Embedded Audio Input
Analog Line or Mic in, adjustable gain
Headphone output, adjustable volume | | Interface | Feature-rich WebUI for configuration and control
OLED LCD Display with joystick Navigation buttons
On/Off and Reset Switch
Micro SD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
Wi-Fi: Dual Band 802.11 a/b/g/n MIMO
USB Modem support | | Power | 2-Pin LEMO Power input
Internal rechargeable Lithium ion battery
USB Charging
Nominal Power Consumption: 3 W
Nominal Power Consumption while Charging : up to 10 W
Auxiliary Power Input: 6 to 28 VDC | | Dimensions (W x D x H) | 2.5 x 3.5 x 0.9" (6.3 x 8.8 x 2.2 cm) | | Weight | 8 oz (226 g) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 2.9" |
