Product description

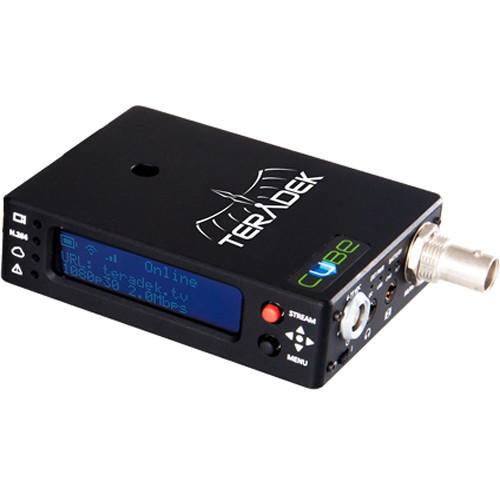

• Cube 305 HD-SDI Decoder with Ethernet The Teradek Cube 305 HD-SDI Decoder with Ethernet makes up an HD video transmission solution with any Cube Encoder that streams by wired Ethernet (such as Cube 105). Cube 305 receives the stream with embedded audio over Ethernet, decodes it, and outputs it in the widely-used, edit-ready H.264 codec to switchers, professional monitors and other equipment via an HD-SDI output. H.264 is also a popular codec for uploading files to the internet. An alternative to receiving a stream by Ethernet, Cube 305 can receive by an optional 3G/4G USB modem, which would install into a USB port positioned right beside the Ethernet port. A MicroSD card slot enables saving the received stream in addition to outputting it, and an OLED display on the side communicates transmission status and other data.

  Cube 305 supports resolutions up to 1080p/30, which is the top resolution that many common camcorders and DSLRs shoot in. The Cube moreover features a built-in scaler and can upscale any lower resolution to 1080p/30.

  The Cube powers by an included AC adapter or an optional Teradek/Swit 945, D54, or VGB6 2-pin Lemo battery, and it is outfitted for 1/4" mounting. Cube 305 is almost identical with Cube 355. The only differences between the two are that Cube 355 features WiFi instead of an Ethernet input and also has a 2-hour internal battery.
  Key Features
  • • Receives a 1080p/30 stream with embedded audio by Ethernet or optional USB modem
    • Outputs 1080p/30 in H.264 to switchers, monitors and other equipment by HD-SDI
    • A built-in scaler can internally upscale to 1080p/30
    • Powers by an included AC adapter or optional 2-pin Lemo Teradek/Swit battery
    • MicroSD card slot enables saving the received stream
    • OLED display communicates transmission status and other data
  UPC: 859273002736

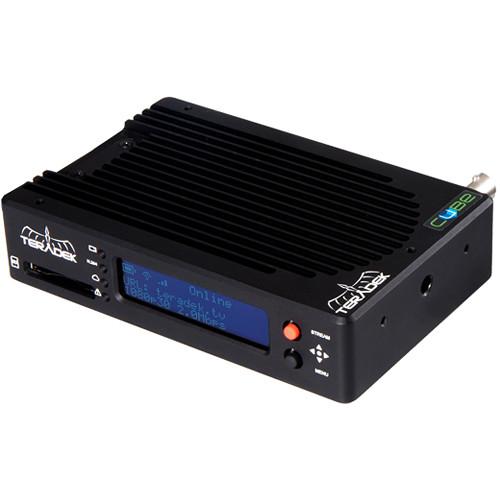

• Cube 605 H.264 HD Encoder The Teradek Cube 605 is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing for high-quality images to be streamed over Ethernet or USB. When bandwidth is limited, adaptive bit rate allows the Cube to automatically adjust and stream at the highest quality possible. The Cube 605 can ingest up to 1080p60 signals, but outputs them at a frame rate of 30 fps (or lower, per your selection), for a max output of 1080p30.

  Cube 605 features support for 33-point 3D LUTs, as well as Pomfort LiveGrade integration that lets you monitor graded footage on the set or afterwards. Looks can be applied to the stream or controlled separately using the free Teradek TeraView app (iOS). Cube also offers support for USB modems for streaming video live over cellular networks.

  Cube 605 has an SD card slot that enables you to record the stream for post-production, in which case the recording bit rate and resolution match the encoded stream quality. The Cube 605 also has a configurable test pattern generator that lets you test your stream without connecting a video source, and prevents interruptions if video sync is lost.

  You can monitor the video stream on up to six networked iOS devices simultaneously using the Teradek TeraView or VUER app, or six Android devices using the Teradek VLC app, or a mix-and-match of six to accommodate both iOS and Android users. This allows clients, the crew, and the director to see the footage at the same time in real time.

  Cube 605 has a robust aluminum housing and an OLED display with joystick navigation buttons. It is manufactured in the USA.
  Key Features
  • • Real-time H.264, 1080p encoder
    • 3G-SDI and HDMI inputs
    • Adaptive bit rate encoding at up to 15 Mbps
    • Support for 33-point 3D LUTs and Pomfort LiveGrade integration
    • Support for 3G/4G USB modems
    • SD card slot
    • Test pattern generator
    • Monitoring on up to six iOS devices simultaneously
    • Aluminum housing, OLED display, and joystick navigation buttons
  UPC: 854980006404

• AC Power Adapter

• SDI Cable

• Ethernet Cable

• 1/4"-20 Mounting Screw

• Teradek Pouch

• Limited 1-Year Warranty

• 2-Pin Connector to 18W AC Power Adapter

• Ethernet Cable

• SDI Cable (10")

• HDMI Cable (36")

• Shoe Mount

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cube 305 HD-SDI Decoder with Ethernet

  Video Output	1x HD/SD-SDI
  Supported Resolutions	1080i 50/59.94/60 1080p 23.98/24/25/30 1080PsF 23.98/24/25 720p 50/59.94/60 576i 480i
  Video Codec	Compression algorithm: Baseline, Main and High Profile H.264 Main and Baseline profiles Bit rate: 250 Kbps to 10 Mbps Built-in video scaler and deinterlacer
  Video Streaming Support	Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP RTMP (Adobe Flash streaming)
  Audio	Audio compression: AAC-LC, MPEG layer 2 Embedded audio output Headphone jack
  Interfaces	Feature-rich WebUI for configuration and control OLED LCD screen with joystick navigation buttons On/Off and Reset Switch MicroSD Powered USB 2.0 host port
  Network	Ethernet 10/100BASE-T USB 3G/4G modem support (optional)
  Power	2-pin Lemo input USB charging Nominal power consumption: 3 W Nominal power consumption while charging: up to 10 W Auxiliary power input: 6-28 V DC
  Dimensions	2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm)
  Weight	.5 lb (.22 kg)

  Box Dimensions (LxWxH)	6.7 x 6.4 x 2.9"

• Cube 605 H.264 HD Encoder

  Video Input	1 x 3G/HD/SD-SDI BNC (75 Ohms) 1 x HDMI Type-A
  Bonding	TeraLink
  Input Resolutions	1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 1080PsF 30/29/25/24/23 720p 60/59.94/50 576p (HDMI input only) 480p (HDMI input only) NTSC PAL 576i The Cube 605 will ingest 1080p60/59.94/50 but will encode it out as 1080p30 or lower (per your selection).
  Video Compression	H.264, Baseline, Main, and High Profile
  Supported Video Bit Rates	250 Kbps to 15 Mbps
  Test Pattern Generator Support	Supports custom test pattern
  Format Conversion	Built-in video scaler and deinterlacer
  LUT Support	CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color)
  Network Protocols	TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
  Supported Video Transport Protocols	RTMP RTP, RTSP, RTSP over HTTP MPEG-TS (requires optional paid license)
  Wi-Fi	None
  Remote Control	Teradek Core
  Audio Compression	AAC-LC, MPEG Layer 2
  Audio Input	Embedded audio input Analog line or mic in, adjustable gain
  Audio Output	Headphone output
  Configuration	WebUI and OLED display with joystick navigation buttons
  Storage	SD card slot
  USB Interface	Powered USB 2.0 host port
  Ethernet	10/100/1000BASE-T Gigabit
  Modem Support	USB 3G/4G modem support (check Teradek website for updated list of compatible modems)
  Mount Type	1/4"-20 threaded mounting holes allow for horizontal or vertical mounting
  Power Input	2-pin connector
  Power Consumption	7 W
  Auxiliary Power Input	6-28 VDC
  Dimensions	4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm
  Weight	11.6 oz / 329 g

  Box Dimensions (LxWxH)	6.9 x 6.75 x 4.75"
