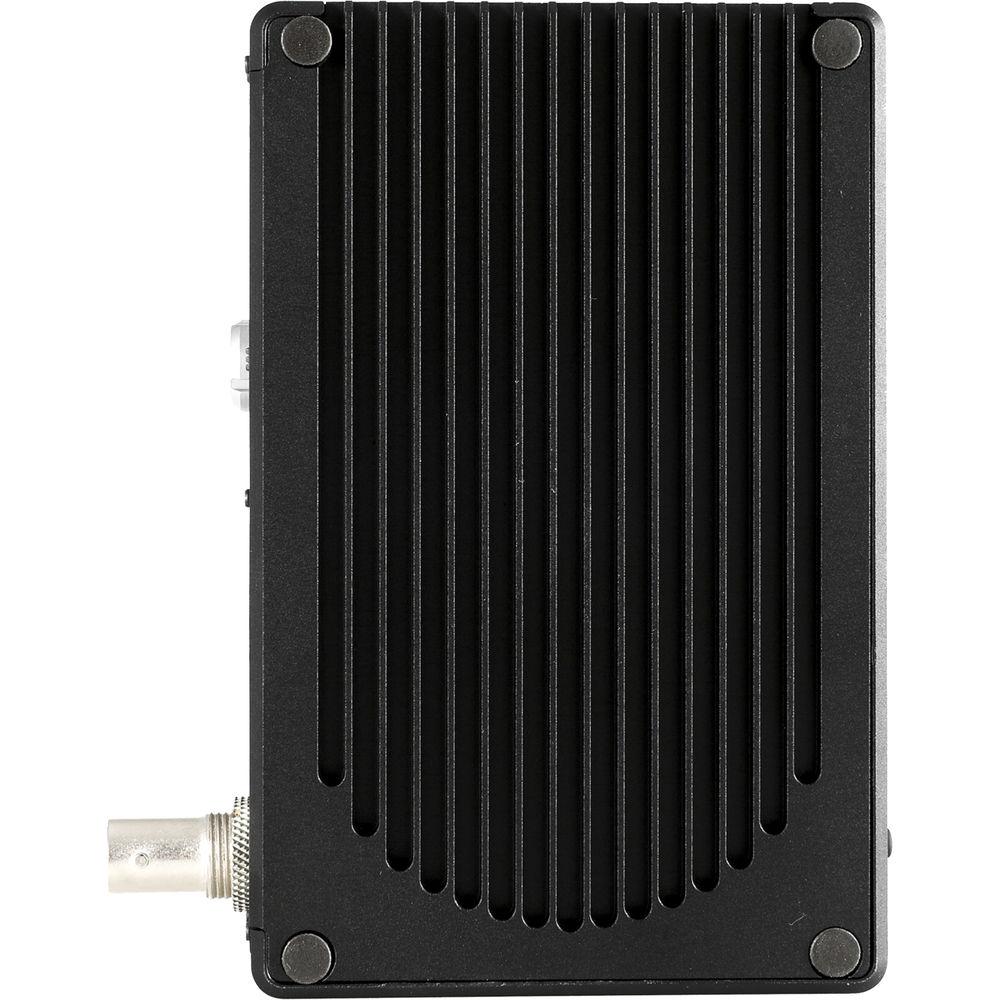

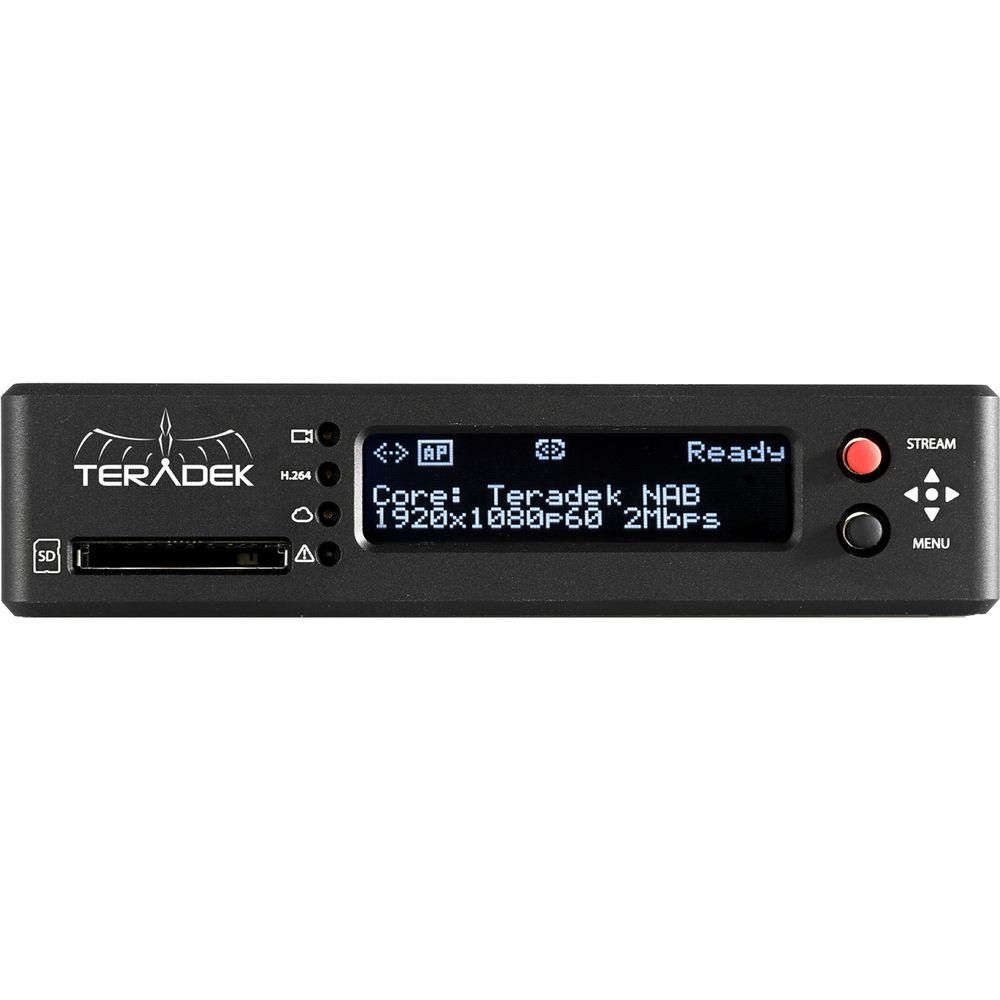

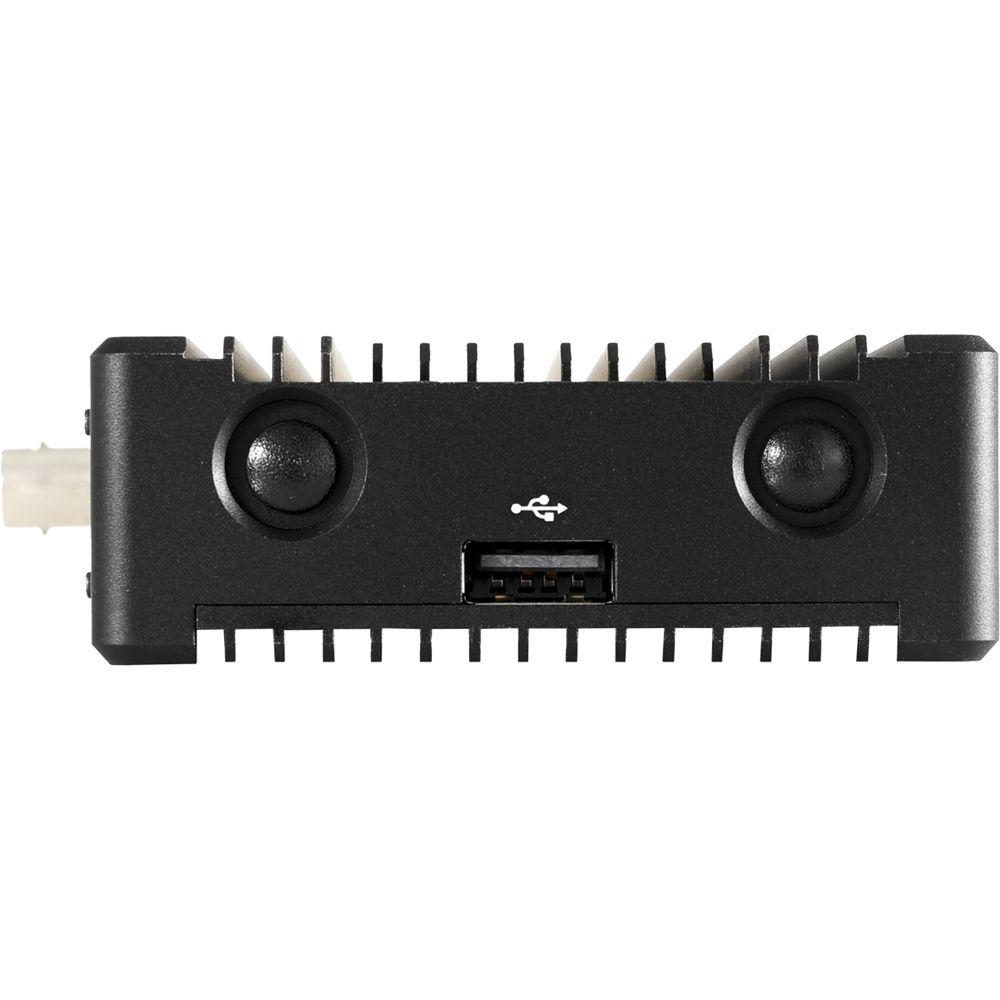

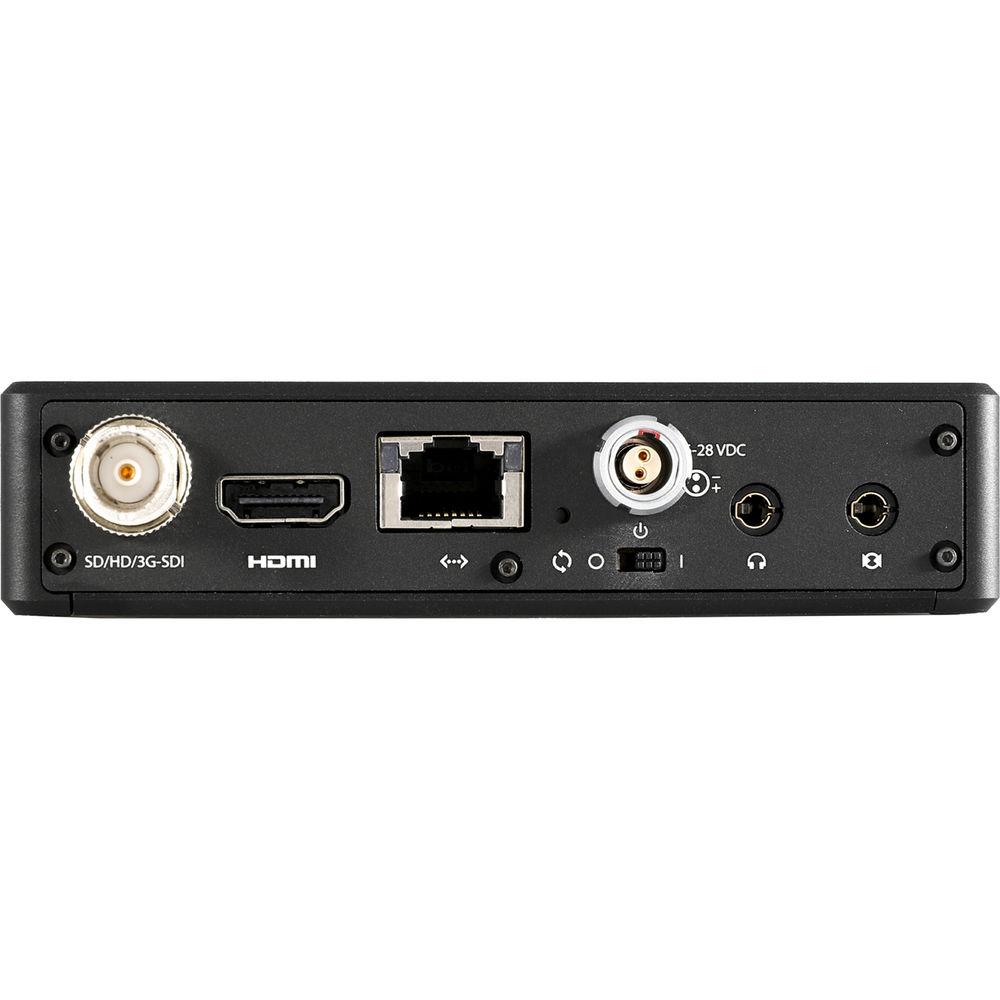

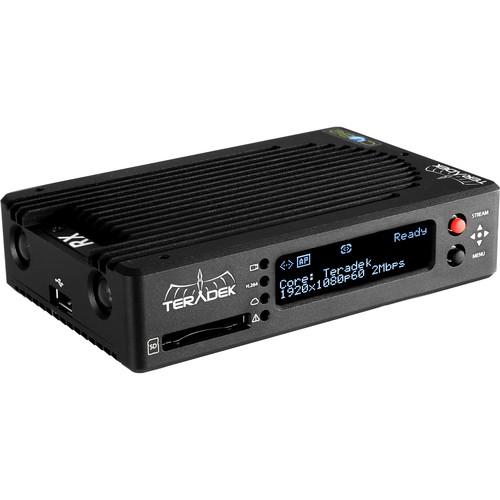

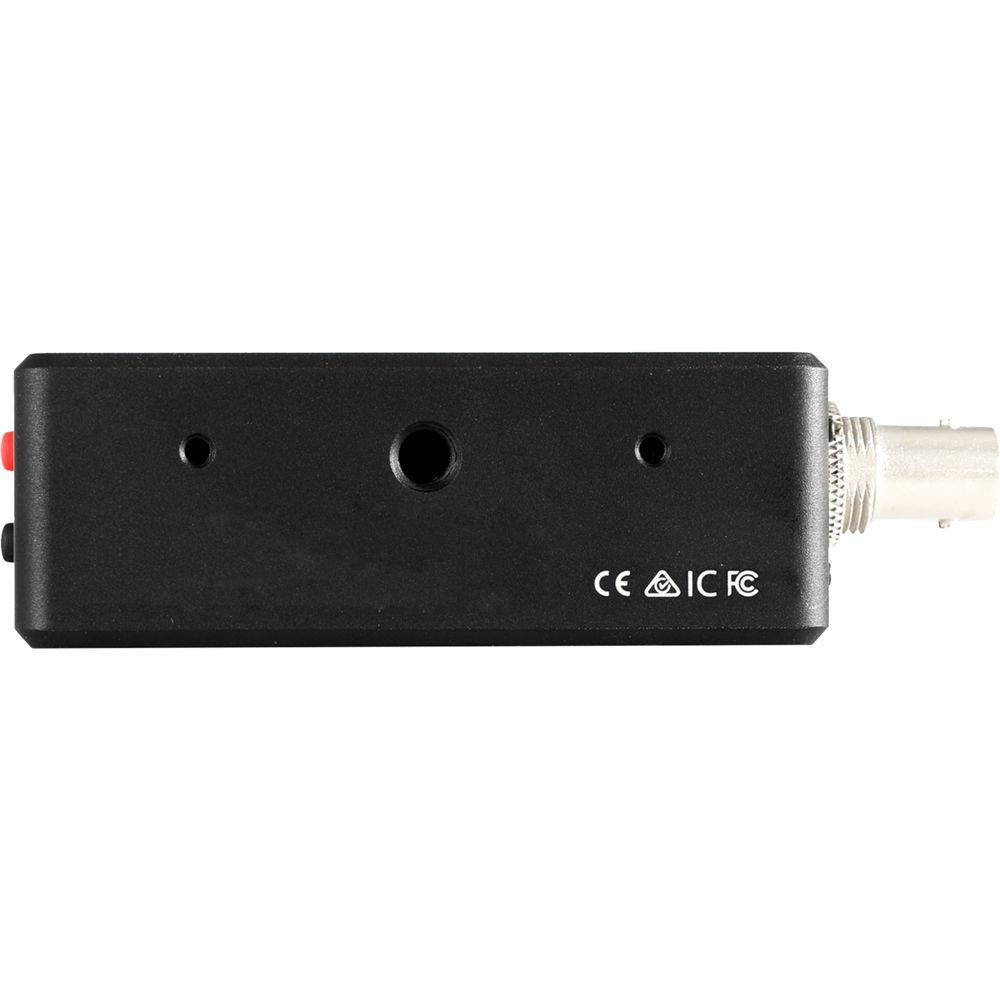

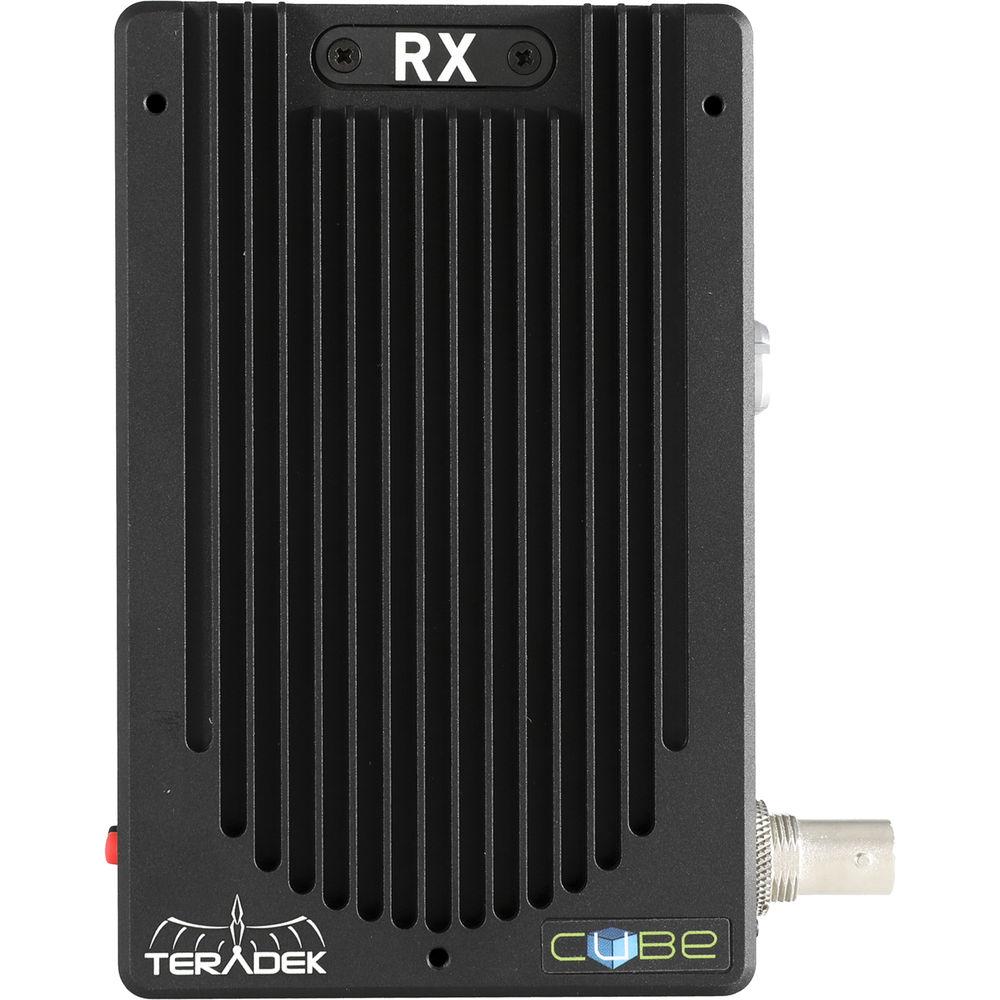

User Manual for Teradek Cube 625 H.264 HD Decoder Click to enlarge the picture
Contents of the user manual for the Teradek Cube 625 H.264 HD Decoder
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Cube 625 H.264 HD Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description The Teradek Cube 625 H.264 HD Decoder is a compact H.264 decoding solution that is useful on set and in the studio for receiving compressed video signals. On set, the Cube 625 can be connected to an HDMI or SDI monitor for a live feed coming in from your IP network. Alternately, the Cube 625 can be used in a remote studio location as a receiver of a point-to-point IP stream over Ethernet or USB modem. The connectivity options offered make the Cube 625 a versatile option for productions requiring real-time decoding. UPC: 818264020463 In the Box Teradek Cube 625 H.264 HD Decoder AC Adapter Ethernet Cable SDI Cable (10") HDMI Cable (18") Limited 1-Year Warranty Quick start Guide PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 625 H.264 HD Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Cube 645 Specs | | | Video Outputs | 1 x HDMI type A, v1.4a
1 x BNC, SD/HD/3G-SDI | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23/24/25/29/30
1080i 50/59.94/60
720p 50/59.94/60
576p (HDMI only)
480p (HDMI only)
NTSC
PAL | | | | Video Compression | Decodes H.264: Baseline, Main, and High Profile | | Bit Rate | 250 kbps to 15 Mbps | | Format Conversion | Built-in video scaler and deinterlacer | | | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP
MPEG-TS: Unicast/TCP, Unicast/UDP, Multicast/UDP
Teradek Streaming: Unicast/UDP, Multicast/UDP | | Remote | Teradek Core | | | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Analog line or mic in, adjustable gain | | Audio Output | SDI/HDMI embedded audio output
1 x 3.5mm stereo headphone | | | | Configuration | Configuration Interface: OLED display with joystick navigation buttons, WebUI | | Switches | On/Off and Reset switch | | App Control | Web UI for configuration and control | | USB Interface | Powered USB 2.0 host port | | | | Ethernet | 10/100/1000Base-T Gigabit | | Wireless | Not available on this model | | RF Channels | Not available on this model | | Encryption | 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP
128-bit AES | | USB | USB 3G/4G modem support | | | | Power Input | 2-pin connector, 6 to 28 VDC | | Power Consumption | Nominal: 7 to 8 W | | Compliance | FCC, CE, IC, RCM | | | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 6.7 x 6.7 x 4.9" |
