User Manual for Teradek Cube 705 HEVC H.264 HD Encoder Click to enlarge the picture
Contents of the user manual for the Teradek Cube 705 HEVC H.264 HD
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Cube 705 HEVC H.264 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

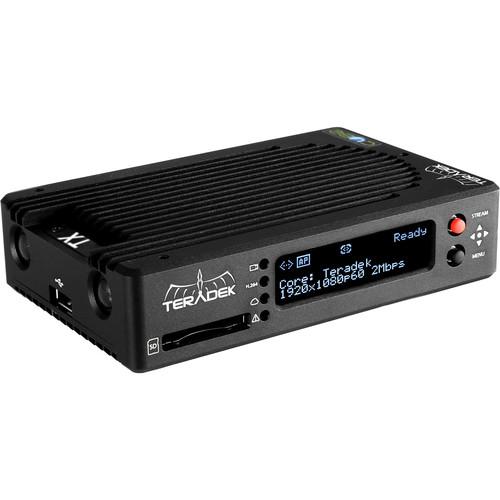

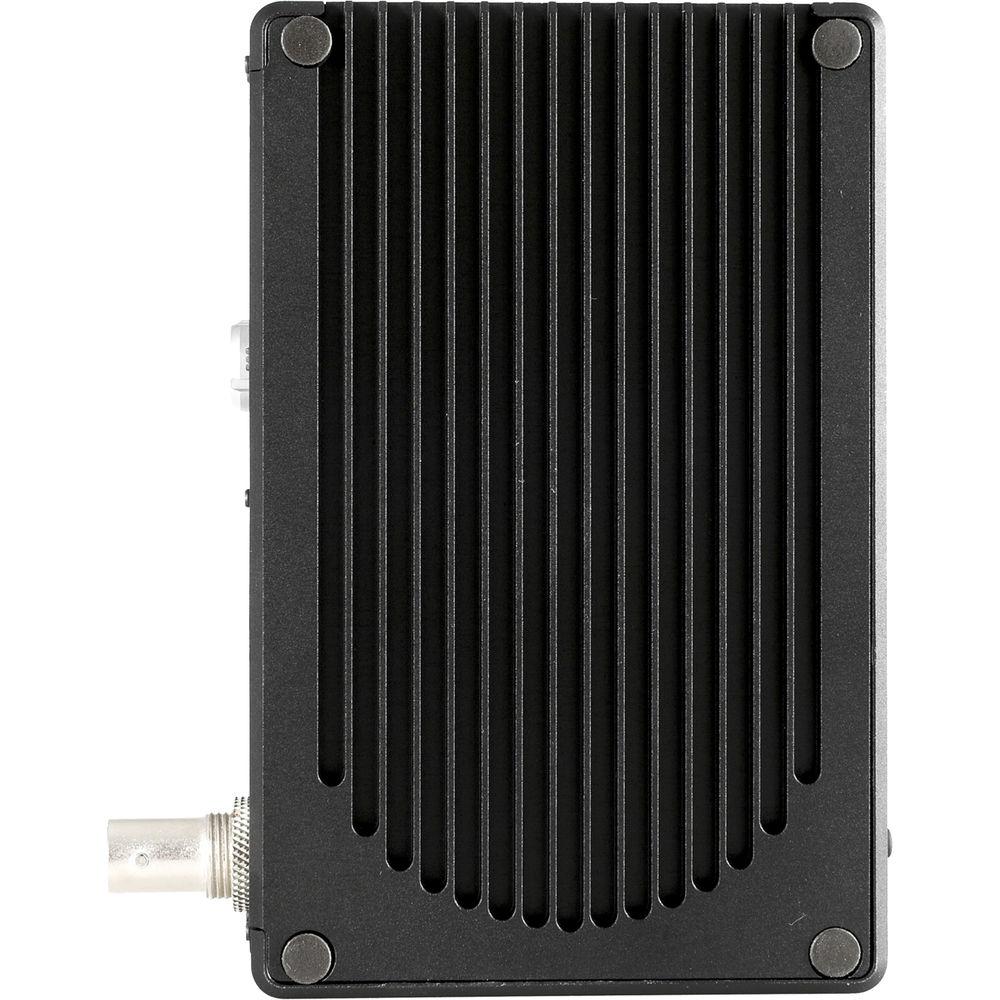

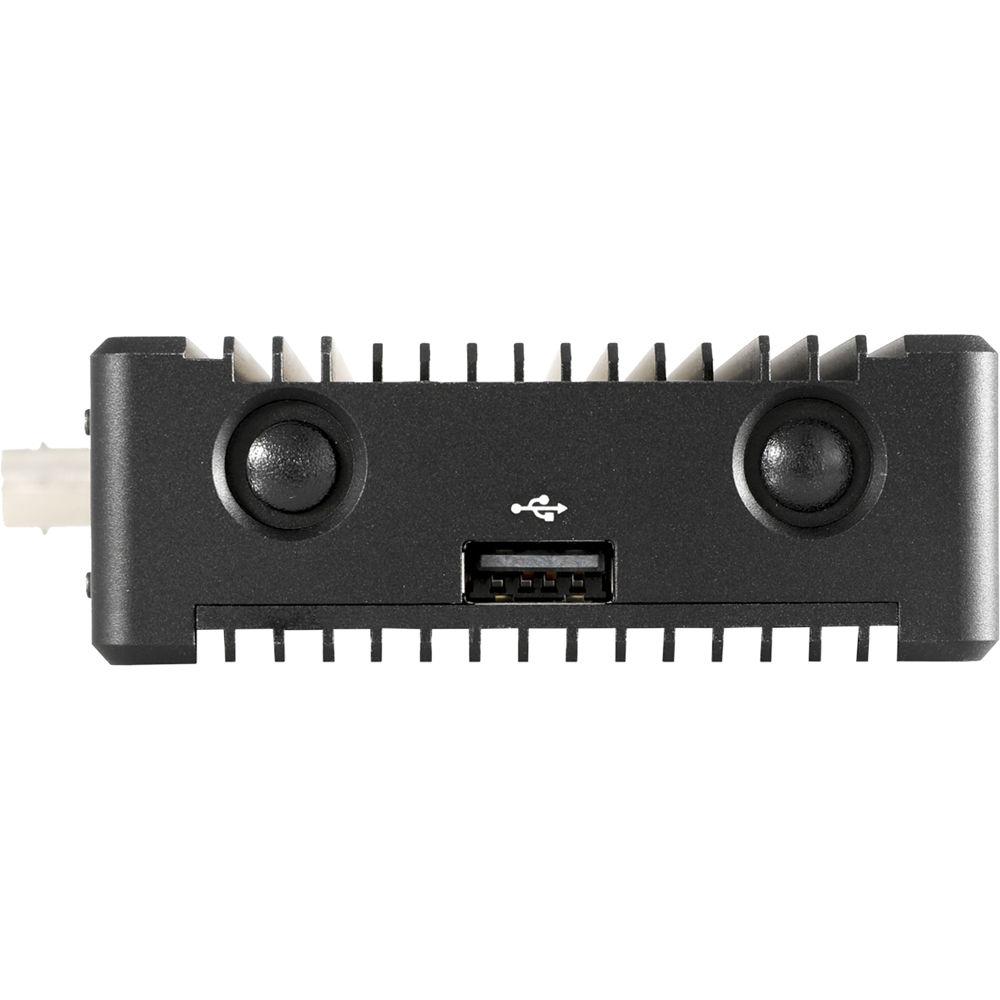

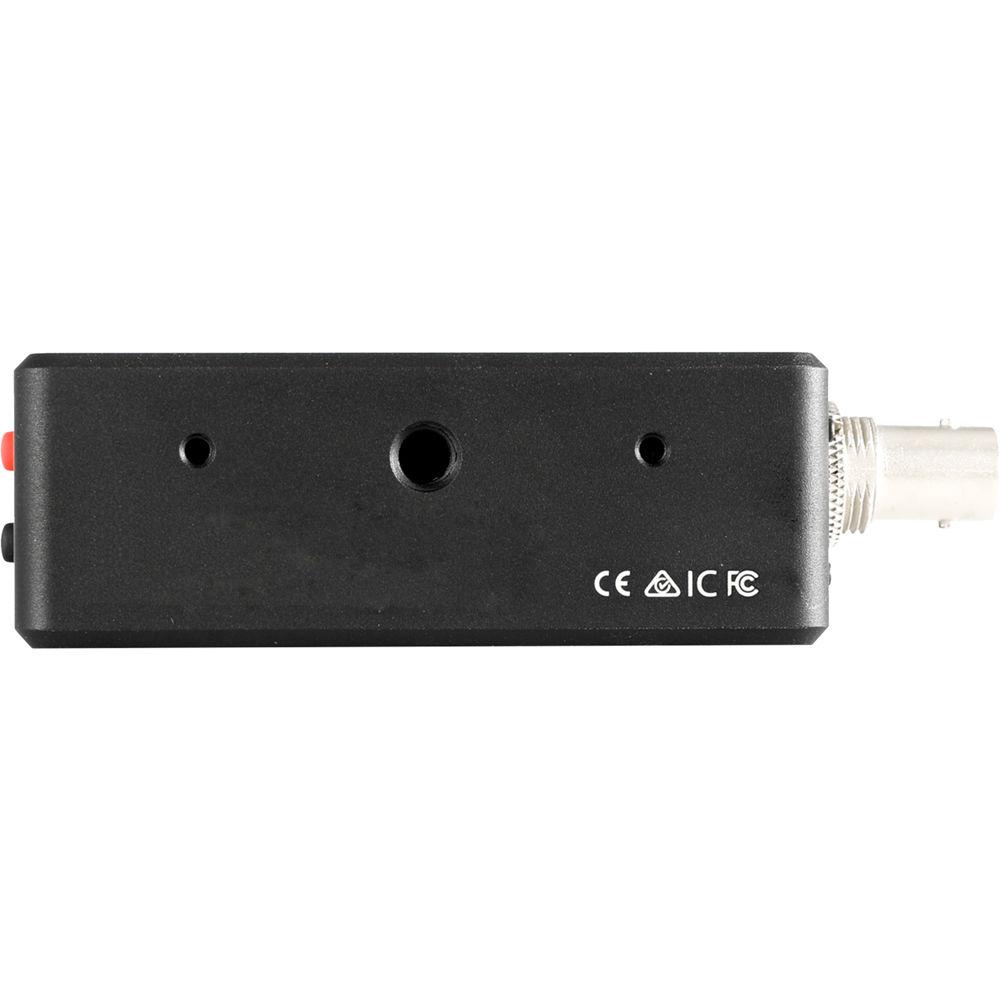

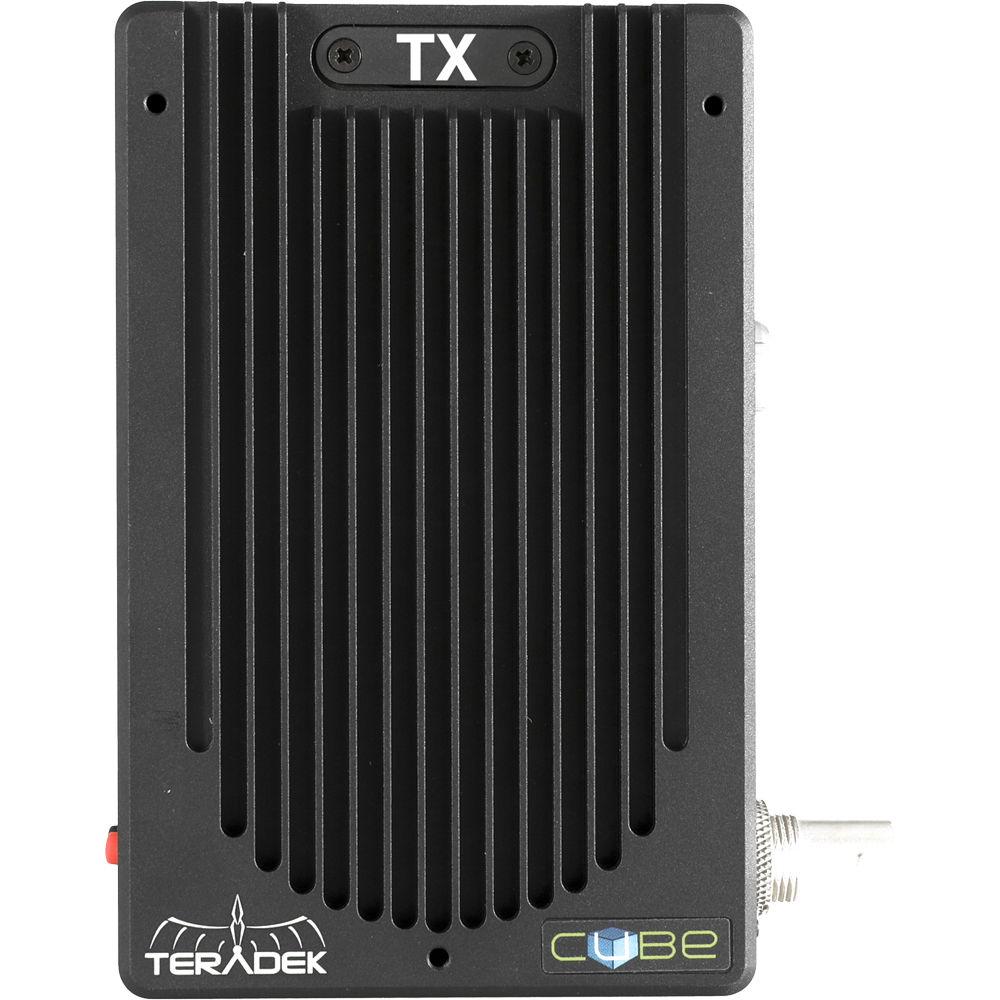

Product description Set up a Teradek Cube 705 HEVC/H.264 HD Encoder and output video for live monitoring on a local area network or stream to a remote destination over a cellular network. SDI and HDMI inputs can accept up to 1080p60 resolution video and any resolution that is accepted by either input can be streamed live over hardwired Ethernet or USB (for connecting a cellular modem), and/or recorded to an SD card at a data rate of up to 30 Mbps. The lightweight chassis itself is built from robust aluminum and it can be secured atop most cameras using the included shoe mount. One side features an OLED panel for displaying device status and menus and a joystick for navigation. - HEVC and H.264 Encoding
- HEVC, or H.265 provides an encoding efficiency improvement over the older H.264 format. All other things being equal an H.265 encoding will be of higher fidelity than H.264. H.264 encoding is still useful, and included to ensure compatibility with legacy hardware.
- Monitoring
- If connected to a local area network via Ethernet, the Cube 705 can stream the incoming video signal to up to 6 mobile devices running Android with the VLC app or iOS with the TeraView or VUER apps. Set your crew up with compatible devices and give them real-time wireless camera feeds without breaking the bank.
- LUT Support
- Import a 33-point 1D or 3D LUT to apply to the video being encoded by the Cube 705 to give your encoded video a finished look. Later, you can go back to the camera originals recorded with the log or flat profile and color grade them, but on-set your director, client, and crew will appreciate a more true-to-life image than the one being recorded. Another option is to use the Pomfort LiveGrade integration, using LiveGrade to manually configure a grade to apply to the encoded footage.
- Quick Features
-
- Real-time HEVC H.264, 1080p encoding up to 60 fps
- SDI and HDMI inputs
- Adaptive bit rate encoding at up to 30 Mbps
- Support for 33-point 3D LUTs and Pomfort LiveGrade integration
- Support for USB cellular modems
- SD card slot for recording
- Test pattern generator with custom test pattern loading
- Monitoring on up to six iOS and/or Android devices simultaneously
- Aluminum housing, OLED display, and joystick navigation buttons
UPC: 818264020487 In the Box Teradek Cube 705 HEVC/H.264 HD Encoder 2-Pin Connector to 18W AC Power Adapter Ethernet Cable SDI Cable (10") HDMI Cable (36") Shoe Mount Limited 1-Year Warranty Specification PDF 298.1kbcdfdefxddtcf Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cube 705 HEVC H.264 HD Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

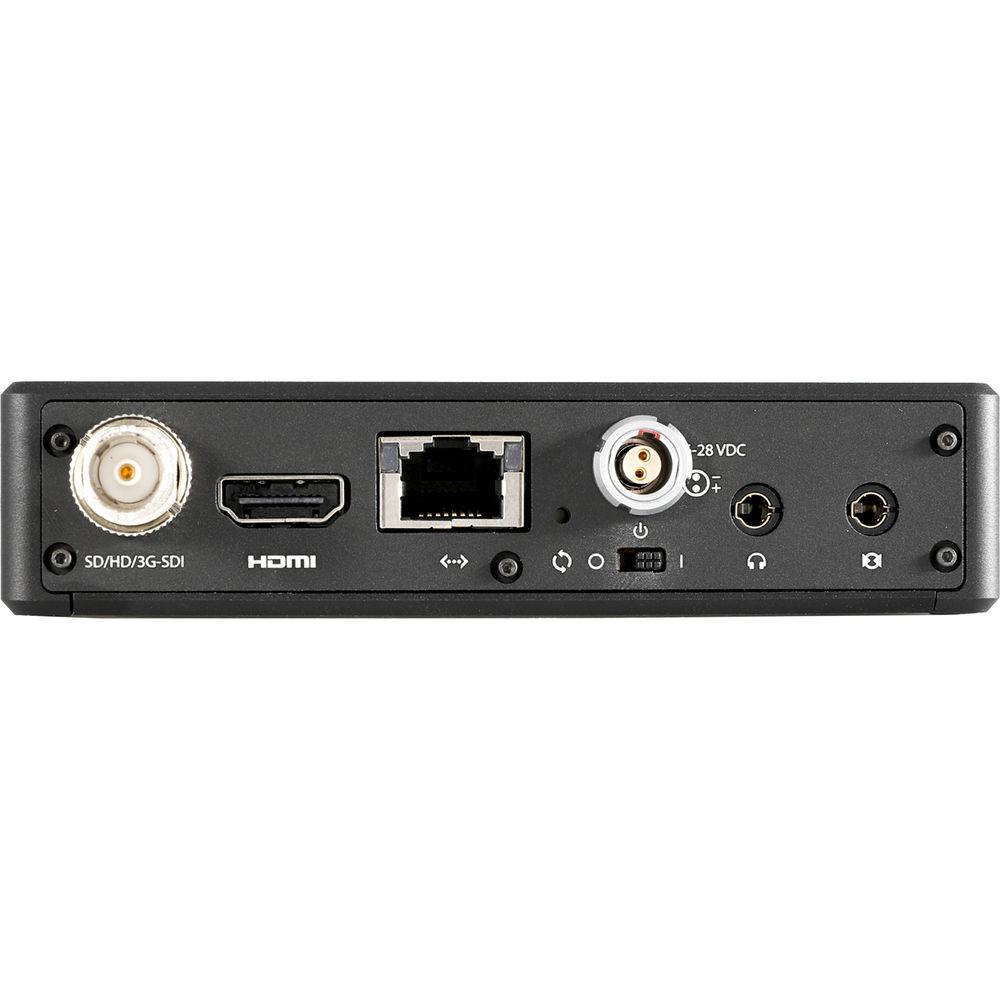

Technical parametersTeradek Cube 705 Specs | Video Input | 1 x 3G/HD/SD-SDI BNC (75 Ohms)
1 x HDMI Type A | | Bonding | TeraLink | | Input Resolutions | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080PsF 30/29/25/24/23
576i
480i
720p 60/59.94/50
576p (HDMI input only)
480p (HDMI input only)
NTSC
PAL | | Video Compression | H.264: Baseline, Main, and High Profile
H.265: Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 kbps to 30 Mbps | | Test Pattern Generator Support | Supports custom test pattern | | Format Conversion | Built-in video scaler and deinterlacer | | LUT Support | CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (requires optional paid license) | | Wi-Fi | None | | Remote Control | Teradek Core | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Configuration | WebUI and OLED display with joystick navigation buttons | | Storage | SD card slot | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000BASE-T Gigabit | | Modem Support | USB 3G/4G modem support (check Teradek website for updated list of compatible modems) | | Mount Type | 1/4"-20 threaded mounting holes allow for horizontal or vertical mounting | | Power Input | 2-pin connector | | Power Consumption | 7 W (max) | | Auxiliary Power Input | 6-28 VDC | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.8" |
