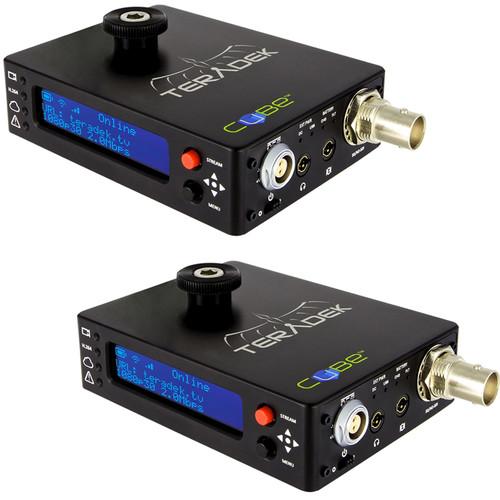

Product description The Teradek Cubelet 106/306 HD-SDI Encoder and Decoder Pair provides a high definition end-to-end streaming video solution that eliminates the need for PC-based decoding.The Cube 106 HD-SDI is an H.264 encoder that streams HD video over Ethernet and cellular. It streams via Ethernet or a single 3G/4G LTE USB dongle to the included decoder. The encoder features a compact aluminum chassis, comprehensive protocol support (like RTP/RTSP/RTMP/MPEG-TS), and an HD-SDI input. In addition, it offers an OLED display, headphone out for audio monitoring, microSD card slot, and micro USB port for charging the internal battery. The Cube 306 HD-SDI decodes IP video and outputs high definition video via HD-SDI for use with production switchers and professional monitors.The encoder and decoder ship paired and will automatically connect with one another over the network. The Cubelet 106/306 is particularly useful for filmmaking, ENG, and professional AV applications. - Cube 106 HD-SDI Encoder The Cube 106 HD-SDI Encoder from Teradek connects to a camera by SDI, encodes video and embedded audio, and streams via Ethernet or a single 3G/4G LTE USB dongle to decoders or content delivery networks. It features a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS, sold separately), and compatibility with any streaming video platform. This unit can be powered over Ethernet (PoE). UPC: 854980006008
- Cube 306 HD-SDI Decoder with OLED Display, External USB Port, and PoE The Cube 306 HD-SDI Decoder from Teradek is a video decoder that outputs high-definition video via HD-SDI for use with video switchers and professional monitors. This device decodes IP video from Teradek encoders via Ethernet and includes many of the same features of the original Cube such as a compact aluminum chassis and low power requirements. This device can also be powered over Ethernet (PoE).
- Built-in video scaler and deinterlacer
- Web UI for configuration and control
- OLED LCD display with joystick navigation buttons
- Powered USB 2.0 host port
UPC: 854980006701 In the Box Bundle Items Cube 106 HD-SDI Encoder - 110 to 240 VAC Power Adapter
- Hot Shoe Adapter with Thumbscrew
Cube 306 HD-SDI Decoder with OLED Display, External USB Port, and PoE - 110 to 240V AC Power Adapter
- Hot Shoe Adapter with Thumbscrew
Also Includes - USB Stick with TeraCentral Desktop Software
- Hard Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 106 306 HD-SDI Encoder and Decoder Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube 106 HD-SDI Encoder
| Video Inputs | HD/SD-SDI, BNC | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression Algorithm: Baseline, main, and high profile H.264
Main and baseline profiles
Bit Rate: 250 kb/s to 10 Mb/s
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (optional paid license), Zixi (optional paid license) | | Audio | Audio Compression: AAC-LC, MPEG Layer 2
Embedded audio input
Analog line or mic in, adjustable gain, headphone output, adjustable volume | | Interfaces | Feature-rich Web UI for configuration and control
OLED LCD display with joystick navigation buttons
On/Off and Reset switch
microSD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
USB modem support Proxy recording currently supports select RED, ARRI, Sony, and Canon cameras. | | Power | Two-pin LEMO power input
Nominal Power Consumption: 3 W
LEMO Power Input: 6 to 28 VDC
PoE Power Input: 36 to 57 VDC | | Dimensions (W x D x H) | 3 x 4 x .9" (8 x 10 x 2 cm) | | Weight | 8 oz (227 g) | | | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.1" | - Cube 306 HD-SDI Decoder with OLED Display, External USB Port, and PoE
| Video Outputs | HD-SDI, SD-SDI: BNC | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Compression | Baseline, Main, and High Profile H.264 | | Video Bit Rate | 250 kbps to 10 Mbps | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | RTP, RTSP, RTP over HTTP, MPEG-TS (optional paid license), Zixi (optional paid license) | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Output | Embedded | | Ethernet | 10/100BASE-T | | Power Input | 6 to 28 VDC via 2-pin LEMO
36 to 57 VDC via PoE | | Power Consumption | Nominal: 3 W | | Dimensions | 2.5 x 3.5 x 0.9" (6.4 x 8.9 x 2.3 cm) | | Weight | 8 oz (227 g) | | | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
