Product description

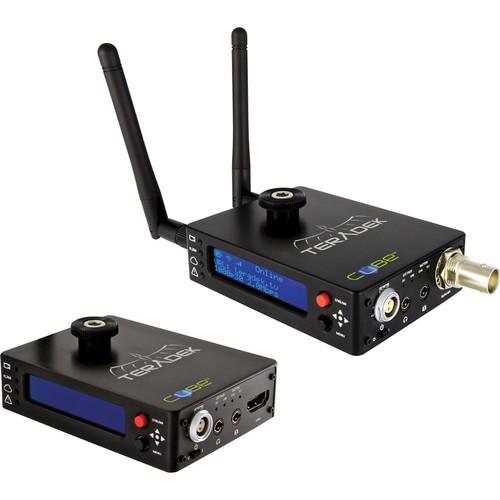

• Cube 155 HD-SDI Encoder with Wi-Fi The Teradek Cube 155 HD-SDI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera via SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by an optional 3G/4G modem connection. You can also store the files to a microSD card as the Cube features a microSD slot with support for up to 32GB cards.

  For mounting, the Cube attaches either to a camera's hot shoe or a cage/rig via an included 1/4"-20 mounting screw. Aside from the SDI input, connections consist of an Ethernet port, a 3.5mm line/mic input, and a headphone jack. A micro-USB slot is available for charging and configuring.

  The Teradek Cube has a rechargeable internal lithium-ion battery that lasts up to two hours. It can also be powered with the included AC power adapter or by an external battery via a 2-pin LEMO input. An OLED screen indicates the remaining battery life, online status, and the URL being streamed to. Optionally, Teradek offers camera batteries with 2-pin LEMO output so you can easily power both the camera and Teradek with the same battery. The following three 2-pin LEMO batteries can be used for power: the Teradek Canon BP-945, Teradek Panasonic D54, and the Teradek Panasonic VW-VGB6.
  SDI Connection to a Camera
  • • Streams proxy files in H.264 to a decoder or website
    • Streams via Wi-Fi, by Ethernet or optional 3G/4G modem
    • Stores files to an optional microSD card of up to 32GB in capacity
    • Attaches to a camera's hot shoe or to a cage/rig by a 1/4"-20 screw
    • Powered by a two-hour internal battery or by the included AC power adapter
    • An OLED screen indicates battery life, online status, and the URL being streamed to
  UPC: 859273002521
• CUBE-405 HDMI Decoder The CUBE-405 HDMI Decoder from Teradek is a video decoder that outputs high-definition video via HDMI for use with video switchers and professional monitors. This device decodes IP video from encoders via Ethernet and includes a compact aluminum chassis and low power consumption. The Cube-405 comes with new hardware refinements to increase the ease of use and versatility. With the new OLED, users can rapidly change and review the settings of their unit in addition to providing real-time feedback for wireless connectivity. UPC: 859273002743

• 110-240 VAC Power Adapter

• 2 x Wireless Antennas

• Ethernet Cable

• USB Stick with TeraCentral Desktop Software

• BNC Cable

• Hot Shoe Mounting Adapter

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• SKB Plastic Case
  (Limited Lifetime Warranty on the Case /
  Limited 1-Year Warranty on the Foam for Original End User)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cube 155 HD-SDI Encoder with Wi-Fi

  Connections	1 x HD/SD-SDI input 1 x RJ45 port 1 x 3.5 mm line/mic input with adjustable gain 1 x Headphone jack with adjustable volume 1 x Micro-USB slot 1 x 2-pin LEMO power input
  File Transfer Method	Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible, Ethernet 10/100BASE-T, or optional 3G/4G modem connection
  Supported Resolutions	1080i 50/59.94/60 1080p 23.98/24/25/30 720p 23.98/24/50/59.94/60 576i 480i
  Video Codec	Compression Algorithm: Baseline, Main, and High-Profile H.264 Main and Baseline profiles Bit Rate: 250 Kb/s to 10 Mb/s Built-in video scaler and deinterlacer
  Video Streaming Support	Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Transport Protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS RTMP (Adobe Flash streaming) HTTP live steaming Point-to-point (TCP or UDP), multiple unicast (UDP), or optional multicast (UDP + IGMP)
  Audio Compression	AAC-LC, MPEG Layer 2
  Memory	microSDHC card slot with support for up to 32 GB cards
  Mounting	Cold shoe for mounting onto hot shoe mount 1/4"-20 mounting screw for attachment onto a cage or rig
  Power Consumption	3 W While Charging: Up to 10 W
  Auxiliary Power Input	6-28 VDC
  Power	Internal battery lasts up to two hours and is charged via micro-USB slot, included AC power supply, or optional 2-pin LEMO batteries
  Dimensions	2.5 x 3.5 x .9" / 6.35 x 8.9 x 2.3 cm
  Weight	8 oz / 226 g

  Box Dimensions (LxWxH)	6.6 x 6.6 x 4.1"

• CUBE-405 HDMI Decoder

  Box Dimensions (LxWxH)	6.6 x 6.4 x 4.1"
