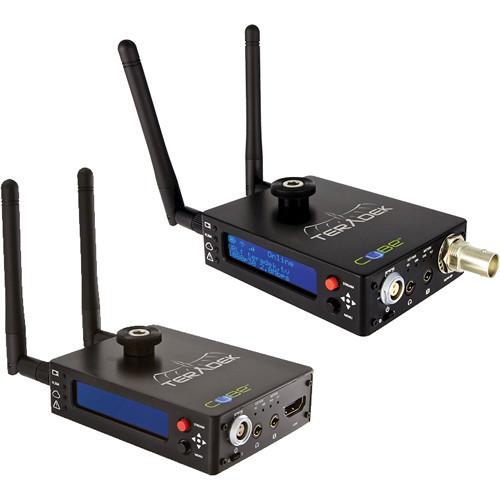

Teradek Cubelet 155 455

User Manual for Teradek Cubelet 155 455

• Product category: Wireless Transmission Systems Teradek
• Brand: Teradek
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Teradek Wireless Transmission Systems

Product description

• Cube 155 HD-SDI Encoder with Wi-Fi The Teradek Cube 155 HD-SDI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera via SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by an optional 3G/4G modem connection. You can also store the files to a microSD card as the Cube features a microSD slot with support for up to 32GB cards.

  For mounting, the Cube attaches either to a camera's hot shoe or a cage/rig via an included 1/4"-20 mounting screw. Aside from the SDI input, connections consist of an Ethernet port, a 3.5mm line/mic input, and a headphone jack. A micro-USB slot is available for charging and configuring.

  The Teradek Cube has a rechargeable internal lithium-ion battery that lasts up to two hours. It can also be powered with the included AC power adapter or by an external battery via a 2-pin LEMO input. An OLED screen indicates the remaining battery life, online status, and the URL being streamed to. Optionally, Teradek offers camera batteries with 2-pin LEMO output so you can easily power both the camera and Teradek with the same battery. The following three 2-pin LEMO batteries can be used for power: the Teradek Canon BP-945, Teradek Panasonic D54, and the Teradek Panasonic VW-VGB6.
  SDI Connection to a Camera
  • • Streams proxy files in H.264 to a decoder or website
    • Streams via Wi-Fi, by Ethernet or optional 3G/4G modem
    • Stores files to an optional microSD card of up to 32GB in capacity
    • Attaches to a camera's hot shoe or to a cage/rig by a 1/4"-20 screw
    • Powered by a two-hour internal battery or by the included AC power adapter
    • An OLED screen indicates battery life, online status, and the URL being streamed to
  UPC: 859273002521
• Cube 455 HDMI Decoder The Teradek Cube 455 HDMI Decoder is a wireless video decoder that outputs high definition video via HDMI for use with switchers and professional monitors. This device decodes IP video from Teradek encoders via dual band Wi-Fi or Ethernet. The Cube Decoder features a compact aluminum chassis with an OLED display, a built-in Li-Ion battery, an analog audio input, a headphone jack, a USB port, a micro USB port and a LEMO power input. The Cube utilizes H.264 compression to stream 1080p at 5mbps over Wi-Fi or 10mbps over Ethernet. In addition, a micro SD memory card slot also enables on-board proxy recordings.
  Wireless Decoder with HDMI Connectivity
  • The Cube Decoder streams HD 1080p video at up to 5mbps over Wi-Fi or 10mbps over Ethernet. It then outputs the video signal via HDMI.
  Dual Band a/b/g/n MIMO Wi-Fi
  • The MIMO access point feature improves wireless performance and enables special features such as wireless camera control for devices without built-in Wi-Fi capabilities. The access point feature also enables Master Mode, which provides a direct connection between your Teradek device and an 802.11 device over the 5.8 GHz band.
  Reviewing Settings with the OLED Display
  • Cube's OLED display enables users to change and review settings. The display also provides real-time feedback for filenames, recording status, and wireless connectivity.
  Analog Audio Input and Headphone Jack
  • Cube supports embedded audio via HDMI but it also features an analog audio input. The dedicated audio input is Line/Mic switchable and offers adjustable gain settings. Cube also has a headphone jack for convenient audio monitoring.
  Proxy Video Recording via Micro SD
  • The micro SD memory card slot enables on-board proxy recordings in real time. The recorded MOV or mp4 files are automatically synced with your proxy server over a Wi-Fi or cellular connection.
  USB 3G/4G Option and Micro USB Charging
  • Cube features two USB ports, USB type-A and micro USB. The type-A port can be used with an optional 3G/4G USB modem for streaming over cellular networks. Cube's micro USB port charges the unit's internal Li-Ion battery.
  Built-in Rechargeable Li-Ion Battery
  • Cube's built-in Li-Ion battery gives users up to 1.5 hours of runtime, which allows for seamless external battery swapping or quick broadcasts. The battery can also be charged from an AC adapter, USB cable, or by a suitable battery such as an Anton Bauer.
  Captive LEMO Power Connector
  • All Cube encoders and decoders utilize LEMO captive power connectors so you never have to worry about the plug being pulled in the middle of a broadcast.
  Universal 1/4"-20 Mount
  • The 1/4"-20 mount allows the Cube to be attached to a cheese plate or hot shoe.
  UPC: 859273002705

• 110-240 VAC Power Adapter

• 2 x Wireless Antennas

• Ethernet Cable

• USB Stick with TeraCentral Desktop Software

• BNC Cable

• Hot Shoe Mounting Adapter

• Limited 1-Year Warranty

• AC Power Adapter

• HDMI Cable

• Ethernet Cable

• 1/4"-20 Mounting Screw

• Teradek Pouch

• Limited 1-Year Warranty

Also Includes

• SKB Plastic Case
  (Limited Lifetime Warranty on the Case /
  Limited 1-Year Warranty on the Foam for Original End User)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cube 155 HD-SDI Encoder with Wi-Fi

  Connections	1 x HD/SD-SDI input 1 x RJ45 port 1 x 3.5 mm line/mic input with adjustable gain 1 x Headphone jack with adjustable volume 1 x Micro-USB slot 1 x 2-pin LEMO power input
  File Transfer Method	Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible, Ethernet 10/100BASE-T, or optional 3G/4G modem connection
  Supported Resolutions	1080i 50/59.94/60 1080p 23.98/24/25/30 720p 23.98/24/50/59.94/60 576i 480i
  Video Codec	Compression Algorithm: Baseline, Main, and High-Profile H.264 Main and Baseline profiles Bit Rate: 250 Kb/s to 10 Mb/s Built-in video scaler and deinterlacer
  Video Streaming Support	Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Transport Protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS RTMP (Adobe Flash streaming) HTTP live steaming Point-to-point (TCP or UDP), multiple unicast (UDP), or optional multicast (UDP + IGMP)
  Audio Compression	AAC-LC, MPEG Layer 2
  Memory	microSDHC card slot with support for up to 32 GB cards
  Mounting	Cold shoe for mounting onto hot shoe mount 1/4"-20 mounting screw for attachment onto a cage or rig
  Power Consumption	3 W While Charging: Up to 10 W
  Auxiliary Power Input	6-28 VDC
  Power	Internal battery lasts up to two hours and is charged via micro-USB slot, included AC power supply, or optional 2-pin LEMO batteries
  Dimensions	2.5 x 3.5 x .9" / 6.35 x 8.9 x 2.3 cm
  Weight	8 oz / 226 g

  Box Dimensions (LxWxH)	6.6 x 6.6 x 4.1"

• Cube 455 HDMI Decoder

  Video Output	HDMI type A (female)
  Supported Resolutions	1080i 50/59.94/60 1080p 23.98/24/25/30 1080PsF 23.98/24/25 720p 50/59.94/60 576i 480i
  Video Codec	Compression Algorithm: Baseline, Main and High Profile H.264 Main and Baseline profiles Bit Rate: 250 Kbps to 10 Mbps Built in Video Scaler and Deinterlacer
  Video Streaming Support	Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (optional) RTMP (Adobe Flash Streaming) HTTP Live Steaming Point to Point (TCP or UDP) (optional) Multiple Unicast (UDP) (optional) Multicast (UDP+IGMP) (optional)
  Audio	Audio Compression: AAC-LC, MPEG Layer 2 Embedded Audio Input Analog Line or Mic input with adjustable gain Headphone output with adjustable volume
  Interfaces	WebUI for configuration and control OLED LCD display Joystick Navigation buttons On/Off and Reset Switch Micro SD card slot Powered USB 2.0 host port
  Network	Ethernet: 10/100BASE-T Wi-Fi: Dual Band 802.11 a/b/g/n MIMO USB Modem support (optional)
  Power	Internal rechargeable Lithium Ion battery micro USB (for charging internal battery) 2-pin LEMO power input Auxiliary Power Input: 6-28V DC
  Power Consumption	3W (up to 10W while charging)
  Dimensions	2.5 x 3.5 x 0.9" (6.35 x 8.89 x 2.29 cm)
  Weight	8 oz (226.8 g)

  Box Dimensions (LxWxH)	6.5 x 6.5 x 4.0"
