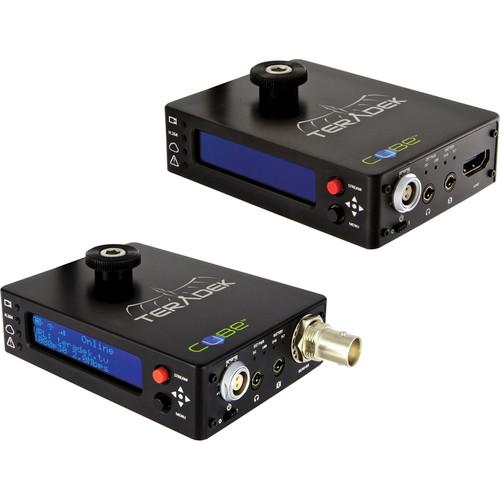

Product description The Teradek Cubelet 205/305 consists of the Cube 205 HDMI Encoder and Cube 305 HD-SDI Decoder, delivered to you paired and ready to connect with one another. This bundle provides a high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. - Cube-205 HDMI Encoder Teradek's Cube-205 HDMI Encoder connects to a camera by HDMI. The unit encodes video and embedded audio, and streams these in H.264, in up to 1080p/30, to an optional decoder or to a designated URL, streaming by Ethernet or optionally by a 3G/4G USB modem, which connects into the 205's USB port. You can at the same time also store short-form (2-3 min) proxy files to a microSD card or stream them to a computer over a network. (You would need to first enable a feature called "Proxy Recording" for free from a Teradek forum).
An OLED screen allows you to change and review settings of the unit, also offering feedback for filenames and recording status. Each feature of the unit is easily controllable from here, rather than configuration through a computer or tablet. A headphone output allows for immediate audio monitoring. Additionally, the Cube supports several Content Delivery Networks (CDNs) including UStream, Justin.tv, Livestream, YouTube Live and more.
The Cube can be used camera-top, attaching right into your camera's hot-shoe, or you can mount it onto a rig by an included 1/4" mounting screw. For power, you can use the included AC adapter or you can connect a 2-pin LEMO battery. - Streams video and embedded audio in up to 1080p/30 in H.264 to an optional decoder or designated URL
- Can simultaneously also save or stream proxy files
- Streams by Ethernet or by an optional 3G/4G USB modem
- Stores short-form proxy recordings to optional microSD cards up to 32GB in capacity
- Headphone output allows for immediate audio monitoring
- Supports CDNs like UStream, Justin.tv, Livestream, YouTube Live and more
- Attaches to a camera's hot-shoe or onto a rig by a 1/4"-20 screw
- OLED screen indicates online status and the URL being streamed to
- Cube 305 HD-SDI Decoder with Ethernet The Teradek Cube 305 HD-SDI Decoder with Ethernet makes up an HD video transmission solution with any Cube Encoder that streams by wired Ethernet (such as Cube 105). Cube 305 receives the stream with embedded audio over Ethernet, decodes it, and outputs it in the widely-used, edit-ready H.264 codec to switchers, professional monitors and other equipment via an HD-SDI output. H.264 is also a popular codec for uploading files to the internet. An alternative to receiving a stream by Ethernet, Cube 305 can receive by an optional 3G/4G USB modem, which would install into a USB port positioned right beside the Ethernet port. A MicroSD card slot enables saving the received stream in addition to outputting it, and an OLED display on the side communicates transmission status and other data.
Cube 305 supports resolutions up to 1080p/30, which is the top resolution that many common camcorders and DSLRs shoot in. The Cube moreover features a built-in scaler and can upscale any lower resolution to 1080p/30.
The Cube powers by an included AC adapter or an optional Teradek/Swit 945, D54, or VGB6 2-pin Lemo battery, and it is outfitted for 1/4" mounting. Cube 305 is almost identical with Cube 355. The only differences between the two are that Cube 355 features WiFi instead of an Ethernet input and also has a 2-hour internal battery. - Key Features
-
- Receives a 1080p/30 stream with embedded audio by Ethernet or optional USB modem
- Outputs 1080p/30 in H.264 to switchers, monitors and other equipment by HD-SDI
- A built-in scaler can internally upscale to 1080p/30
- Powers by an included AC adapter or optional 2-pin Lemo Teradek/Swit battery
- MicroSD card slot enables saving the received stream
- OLED display communicates transmission status and other data
UPC: 859273002736 In the Box Bundle Items Cube-205 HDMI Encoder tduawdtfyytstuadrefuyvacdrzwzycezswtr Cube 305 HD-SDI Decoder with Ethernet
Also Includes - SKB Plastic Case
(Limited Lifetime Warranty on the Case /
Limited 1-Year Warranty on the Foam for Original End User) Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 205 305 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube-205 HDMI Encoder
| Display | OLED | | Video Input | 1 x HDMI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live streaming
Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
USB Modem support (optional) | | Power | 2-pin LEMO input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Chassis | Aluminum | | Dimensions | 2.5 x 3.5 x 0.9" (6.35 x 8.9 x 2.2 cm) | | Weight | 8 oz (227 g) | | | | Box Dimensions (LxWxH) | 6.8 x 6.7 x 4.8" | - Cube 305 HD-SDI Decoder with Ethernet
| Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | 2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 2.9" |
