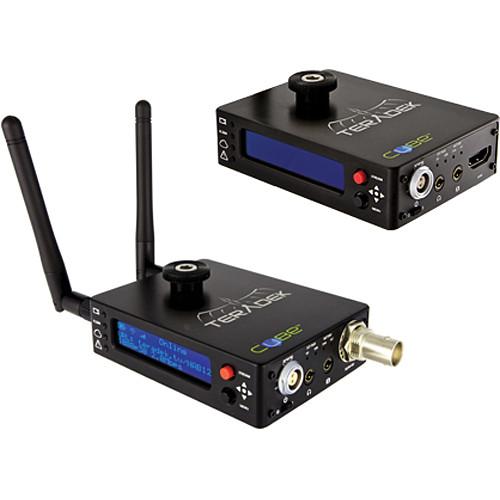

Product description The Teradek Cubelet 205/355 consists of the Cube 205 HDMI Encoder and Cube 355 HD-SDI Decoder, delivered to you paired and ready to connect with one another. This bundle provides a high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. The 205/355 bundle is particularly useful for filmmaking, ENG, and Pro AV applications. - Cube-205 HDMI Encoder Teradek's Cube-205 HDMI Encoder connects to a camera by HDMI. The unit encodes video and embedded audio, and streams these in H.264, in up to 1080p/30, to an optional decoder or to a designated URL, streaming by Ethernet or optionally by a 3G/4G USB modem, which connects into the 205's USB port. You can at the same time also store short-form (2-3 min) proxy files to a microSD card or stream them to a computer over a network. (You would need to first enable a feature called "Proxy Recording" for free from a Teradek forum).
An OLED screen allows you to change and review settings of the unit, also offering feedback for filenames and recording status. Each feature of the unit is easily controllable from here, rather than configuration through a computer or tablet. A headphone output allows for immediate audio monitoring. Additionally, the Cube supports several Content Delivery Networks (CDNs) including UStream, Justin.tv, Livestream, YouTube Live and more.
The Cube can be used camera-top, attaching right into your camera's hot-shoe, or you can mount it onto a rig by an included 1/4" mounting screw. For power, you can use the included AC adapter or you can connect a 2-pin LEMO battery. - Streams video and embedded audio in up to 1080p/30 in H.264 to an optional decoder or designated URL
- Can simultaneously also save or stream proxy files
- Streams by Ethernet or by an optional 3G/4G USB modem
- Stores short-form proxy recordings to optional microSD cards up to 32GB in capacity
- Headphone output allows for immediate audio monitoring
- Supports CDNs like UStream, Justin.tv, Livestream, YouTube Live and more
- Attaches to a camera's hot-shoe or onto a rig by a 1/4"-20 screw
- OLED screen indicates online status and the URL being streamed to
- Cube-355 HD-SDI Decoder with WiFi Teradek's Cube-355 HD-SDI Decoder with WiFi connects to SDI switchers and monitors and outputs HD video with embedded audio, in H.264, that it receives and decodes from a Teradek encoder. The encoder can stream resolutions as high as 1080p/30. The 355 supports and can output 1080p/30 and via a built-in scaler can upscale any lower resolution. It can receive from the encoder by dual-band WiFi, by Ethernet, or optionally via a 3G/4G USB modem, which connects into a USB port.
The Cube features an internal 2-hour battery and can also be powered by an included AC adapter or an optional Teradek/SWIT 945, D54, or VGB6 2-pin Lemo battery. A 1/4" thread allows 1/4" mounting but being on the output side, the 355 can simply be used table-top. -
- Outputs in up to 1080p/30, in H.264, to SDI switchers and monitors
- Receives from an optional encoder by WiFi, Ethernet, or an optional USB modem
- Built-in scaler can upscale any resolution lower than 1080p/30
UPC: 859273002590 In the Box Bundle Items Cube-205 HDMI Encoder tvrcbcfqyeedzs Cube-355 HD-SDI Decoder with WiFi
Also Includes - SKB Plastic Case
(Limited Lifetime Warranty on the Case /
Limited 1-Year Warranty on the Foam for Original End User) Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 205 355 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube-205 HDMI Encoder
| Display | OLED | | Video Input | 1 x HDMI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming)
HTTP live streaming
Optional:
Transport protocols: RTP, RTSP, RTP over HTTP, MPEG-TS
Point to Point (TCP or UDP), Multiple Unicast (UDP), or Multicast (UDP+IGMP) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio input
Analog line or mic in, adjustable gain
Headphone output, adjustable volume | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
microSD
Powered USB 2.0 host port | | Network | Ethernet: 10/100BASE-T
USB Modem support (optional) | | Power | 2-pin LEMO input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Chassis | Aluminum | | Dimensions | 2.5 x 3.5 x 0.9" (6.35 x 8.9 x 2.2 cm) | | Weight | 8 oz (227 g) | | | | Box Dimensions (LxWxH) | 6.8 x 6.7 x 4.8" | - Cube-355 HD-SDI Decoder with WiFi
| Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | MIMO dual-band WiFi 2.4/5.8G 802.11 a/b/g/n wherever accessible
Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | Internal battery (runs for two hours; charged via micro USB slot)
2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
