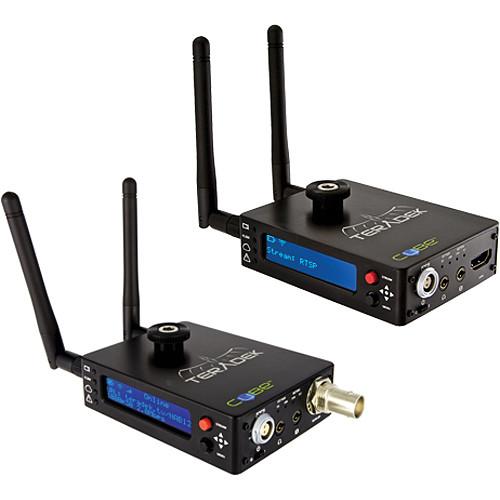

Product description The Teradek Cubelet 255/355 consists of the Cube 255 HDMI Encoder and Cube 355 HD-SDI Decoder, delivered to you paired and ready to automatically connect with one another over an ad-hoc or WiFi network.
The bundle offers a variety of network connectivity options, namely, RJ-45 Ethernet, dual band WiFi, and USB port for 3G/4G modems. This bundle provides a high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. The 255/355 bundle is particularly useful for filmmaking, ENG, and Pro AV applications. - Cube 255 HDMI Encoder with Wi-Fi The Teradek Cube 255 HDMI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera via HDMI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by an optional 3G/4G modem connection. You can also store the files to a microSD card as the Cube features a microSD slot with support for up to 32GB cards.
For mounting, the Cube attaches either to a camera's hot shoe or a cage/rig via an included 1/4"-20 mounting screw. Aside from the HDMI input, connections consist of an Ethernet port, a 3.5mm line/mic input, and a headphone jack. A micro-USB slot is available for charging and configuring.
The Teradek Cube has a rechargeable internal lithium-ion battery that lasts up to two hours. It can also be powered with the included AC power adapter or by an external battery via a 2-pin LEMO input. An OLED screen indicates the remaining battery life, online status, and the URL being streamed to. Optionally, Teradek offers camera batteries with 2-pin LEMO output so you can easily power both the camera and Teradek with the same battery. The following three 2-pin LEMO batteries can be used for power: the Teradek Canon BP-945, Teradek Panasonic D54, and the Teradek Panasonic VW-VGB6. - HDMI Connection to a Camera
-
- Streams proxy files in H.264 to a decoder or website
- Streams via Wi-Fi, by Ethernet or optional 3G/4G modem
- Stores files to an optional microSD card of up to 32GB in capacity
- Attaches to a camera's hot shoe or to a cage/rig by a 1/4"-20 screw
- Powered by a two-hour internal battery or by the included AC power adapter
- An OLED screen indicates battery life, online status, and the URL being streamed to
UPC: 859273002538 - Cube-355 HD-SDI Decoder with WiFi Teradek's Cube-355 HD-SDI Decoder with WiFi connects to SDI switchers and monitors and outputs HD video with embedded audio, in H.264, that it receives and decodes from a Teradek encoder. The encoder can stream resolutions as high as 1080p/30. The 355 supports and can output 1080p/30 and via a built-in scaler can upscale any lower resolution. It can receive from the encoder by dual-band WiFi, by Ethernet, or optionally via a 3G/4G USB modem, which connects into a USB port.
The Cube features an internal 2-hour battery and can also be powered by an included AC adapter or an optional Teradek/SWIT 945, D54, or VGB6 2-pin Lemo battery. A 1/4" thread allows 1/4" mounting but being on the output side, the 355 can simply be used table-top. -
- Outputs in up to 1080p/30, in H.264, to SDI switchers and monitors
- Receives from an optional encoder by WiFi, Ethernet, or an optional USB modem
- Built-in scaler can upscale any resolution lower than 1080p/30
UPC: 859273002590 In the Box Bundle Items Cube 255 HDMI Encoder with Wi-Fi txuzxyqdsyvq - 110-240 VAC Power Adapter
- USB Stick with TeraCentral Desktop Software
- Hot Shoe Mounting Adapter
Cube-355 HD-SDI Decoder with WiFi
Also Includes - SKB Plastic Case
(Limited Lifetime Warranty on the Case /
Limited 1-Year Warranty on the Foam for Original End User) Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 255 355 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube 255 HDMI Encoder with Wi-Fi
| Connections | 1 x HDMI input
1 x RJ45 port
1 x 3.5 mm line/mic input with adjustable gain
1 x Headphone jack with adjustable volume
1 x Micro-USB slot
1 x 2-pin LEMO power input | | File Transfer Method | Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible, Ethernet 10/100BASE-T, or optional 3G/4G modem connection | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576i
480i | | Video Codec | Compression Algorithm: Baseline, Main, and High-Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kb/s to 10 Mb/s
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS
RTMP (Adobe Flash streaming)
HTTP live steaming
Point-to-point (TCP or UDP), multiple unicast (UDP), or optional multicast (UDP + IGMP) | | Audio Compression | AAC-LC, MPEG Layer 2 | | Memory | microSDHC card slot with support for up to 32 GB cards | | Mounting | Cold shoe for mounting onto hot shoe mount
1/4"-20 mounting screw for attachment onto a cage or rig | | Power Consumption | 3 W
While Charging: Up to 10 W | | Auxiliary Power Input | 6-28 VDC | | Power | Internal battery lasts up to two hours and is charged via micro-USB slot, included AC power supply, or optional 2-pin LEMO batteries | | Dimensions | 2.5 x 3.5 x .9" / 6.35 x 8.9 x 2.3 cm | | Weight | 8 oz / 226 g | | | | Box Dimensions (LxWxH) | 6.75 x 6.6 x 4.85" | - Cube-355 HD-SDI Decoder with WiFi
| Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | MIMO dual-band WiFi 2.4/5.8G 802.11 a/b/g/n wherever accessible
Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | Internal battery (runs for two hours; charged via micro USB slot)
2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
