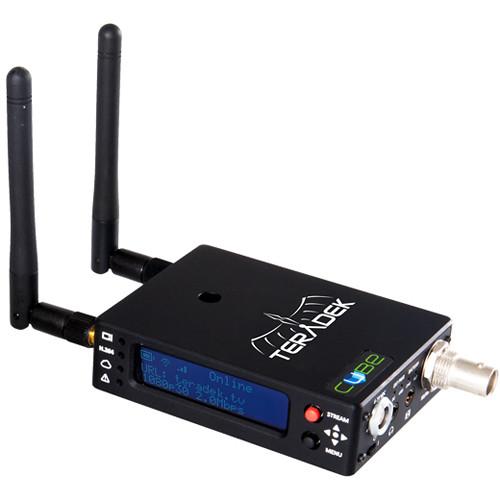

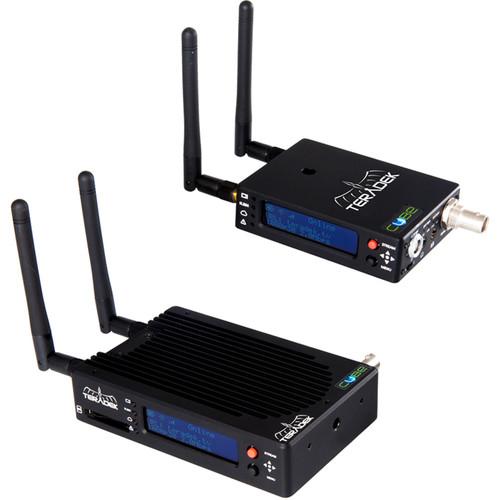

Product description The Cubelet 655 Encoder and 355 Decoder Set from Teradek can be used to output HD/SD-SDI video to a monitor or switcher via its BNC port. The Cubelet 655 encodes an HDMI or SDI stream using H.264 for real-time transmission at up to 15 Mbps. Network connection functions include dual-band antennas for Wi-Fi connectivity, an Ethernet port for a wired connection, and a USB port for use with a cellular modem.The Cubelet 355 Decoder outputs HD video and audio up to 1080p30 in H.264 via one HD/SD-SDI BNC port, and has a built-in scaler to bump up lower resolution streams. Streams are received from the encoder via dual-band Wi-Fi, Ethernet, or via an optional 3G/4G USB modem (not included). The Cubelet 355 Decoder features multiple powering options including an internal, micro-USB–chargeable battery, an external battery (not included), and an AC adapter. - Cube 655 H.264 HD Encoder The Teradek Cube 655 is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing for high-quality images to be streamed over Ethernet, Wi-Fi, or USB (Wi-Fi streaming is limited to 10 Mbps). When bandwidth is limited, adaptive bit rate allows the Cube to automatically adjust and stream at the highest quality possible. The Cube 655 can ingest up to 1080p60 signals, but outputs them at a frame rate of 30 fps (or lower, per your selection), for a max output of 1080p30.
Cube 655 features support for 33-point 3D LUTs, as well as Pomfort LiveGrade integration that lets you monitor graded footage on the set or afterwards. Looks can be applied to the stream or controlled separately using the free Teradek TeraView app (iOS). Cube also offers support for USB modems for streaming video live over cellular networks.
Cube 655 has an SD card slot that enables you to record the stream for post-production, in which case the recording bit rate and resolution match the encoded stream quality. The Cube 655 also has a configurable test pattern generator that lets you test your stream without connecting a video source, and prevents interruptions if video sync is lost.
You can monitor the video stream on up to six networked iOS devices simultaneously using the Teradek TeraView or VUER app, or six Android devices using the Teradek VLC app, or a mix-and-match of six to accommodate both iOS and Android users. This allows clients, the crew, and the director to see the footage at the same time in real time.

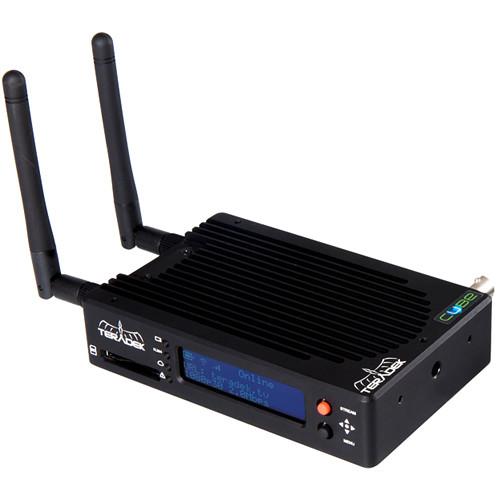

Cube 655 has a robust aluminum housing and an OLED display with joystick navigation buttons. It is manufactured in the USA. - Key Features
-
- Real-time H.264, 1080p encoder
- 3G-SDI and HDMI inputs
- Adaptive bit rate encoding at up to 15 Mbps
- Support for 33-point 3D LUTs and Pomfort LiveGrade integration
- Support for 3G/4G USB modems
- SD card slot
- Test pattern generator
- Monitoring on up to six iOS devices simultaneously
- Aluminum housing, OLED display, and joystick navigation buttons
UPC: 854980006411 - Cube-355 HD-SDI Decoder with WiFi Teradek's Cube-355 HD-SDI Decoder with WiFi connects to SDI switchers and monitors and outputs HD video with embedded audio, in H.264, that it receives and decodes from a Teradek encoder. The encoder can stream resolutions as high as 1080p/30. The 355 supports and can output 1080p/30 and via a built-in scaler can upscale any lower resolution. It can receive from the encoder by dual-band WiFi, by Ethernet, or optionally via a 3G/4G USB modem, which connects into a USB port.
The Cube features an internal 2-hour battery and can also be powered by an included AC adapter or an optional Teradek/SWIT 945, D54, or VGB6 2-pin Lemo battery. A 1/4" thread allows 1/4" mounting but being on the output side, the 355 can simply be used table-top. -
- Outputs in up to 1080p/30, in H.264, to SDI switchers and monitors
- Receives from an optional encoder by WiFi, Ethernet, or an optional USB modem
- Built-in scaler can upscale any resolution lower than 1080p/30
UPC: 859273002590 In the Box Bundle Items Cube 655 H.264 HD Encoder tsbfcquxsxybrubbvdfzxwzrcvbdfuwazz - 2-Pin Connector to 18W AC Power Adapter
Cube-355 HD-SDI Decoder with WiFi tsbfcquxsxybrubbvdfzxwzrcvbdfuwazz Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 655 Encoder and 355 Decoder Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube 655 H.264 HD Encoder
| Video Input | 1 x 3G/HD/SD-SDI BNC (75 Ohms)
1 x HDMI Type-A | | Bonding | TeraLink | | Input Resolutions | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080PsF 30/29/25/24/23
720p 60/59.94/50
576p (HDMI input only)
480p (HDMI input only)
NTSC
PAL 576i
The Cube 655 will ingest 1080p60/59.94/50 but will encode it out as 1080p30 or lower (per your selection). | | Video Compression | H.264, Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 Kbps to 15 Mbps (10 Mbps wireless) | | Test Pattern Generator Support | Supports custom test pattern | | Format Conversion | Built-in video scaler and deinterlacer | | LUT Support | CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (requires optional paid license) | | Wi-Fi | 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | Remote Control | Teradek Core | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Configuration | WebUI and OLED display with joystick navigation buttons | | Storage | SD card slot | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000BASE-T Gigabit | | Modem Support | USB 3G/4G modem support (check Teradek website for updated list of compatible modems) | | Mount Type | 1/4"-20 threaded mounting holes allow for horizontal or vertical mounting | | Power Input | 2-pin connector | | Power Consumption | 7 W | | Auxiliary Power Input | 6-28 VDC | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.0" | - Cube-355 HD-SDI Decoder with WiFi
| Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | MIMO dual-band WiFi 2.4/5.8G 802.11 a/b/g/n wherever accessible
Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | Internal battery (runs for two hours; charged via micro USB slot)
2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Box Dimensions (LxWxH) | 6.6 x 6.5 x 4.1" |
