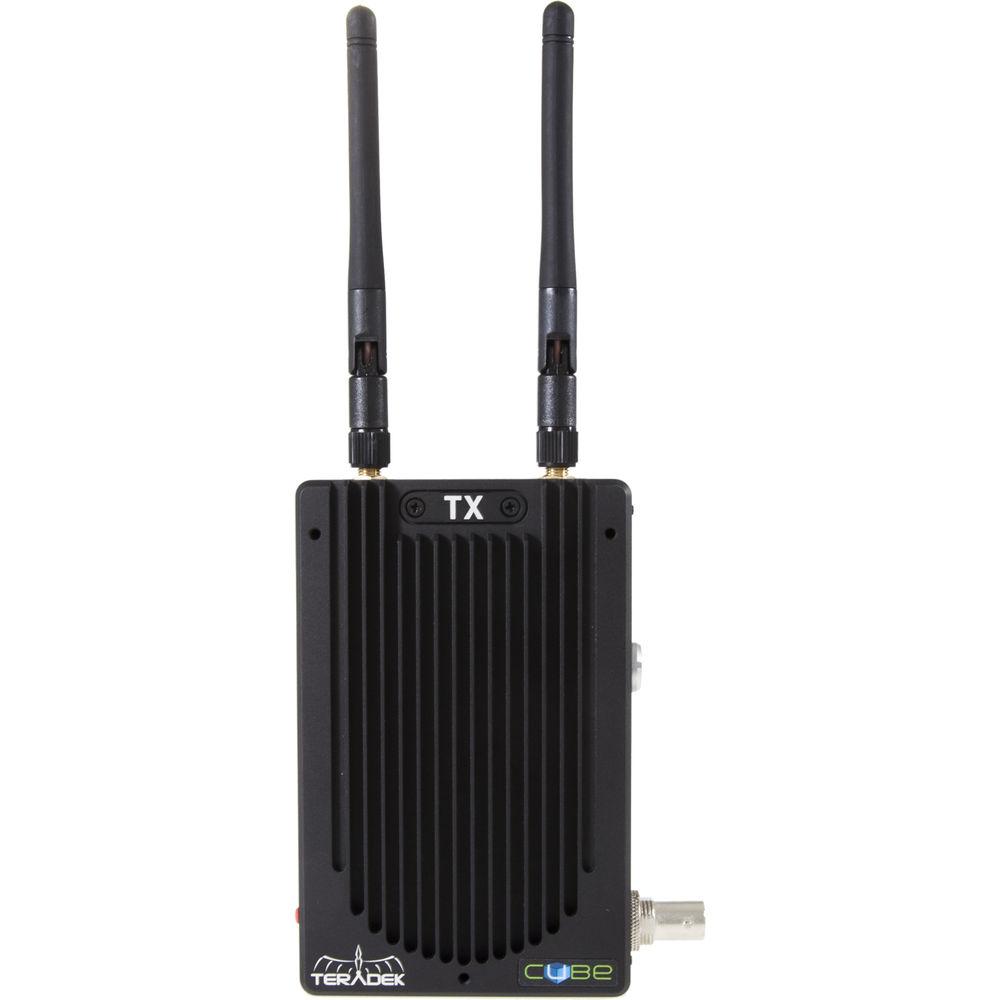

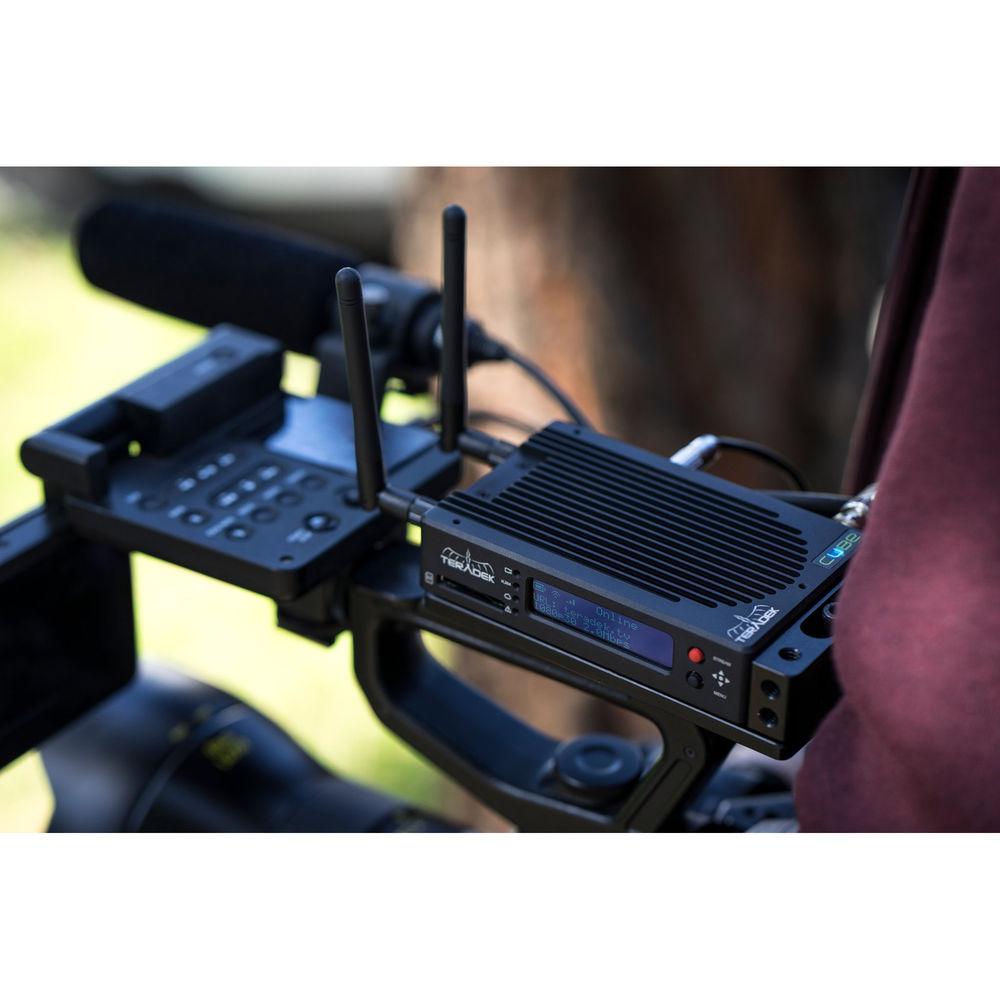

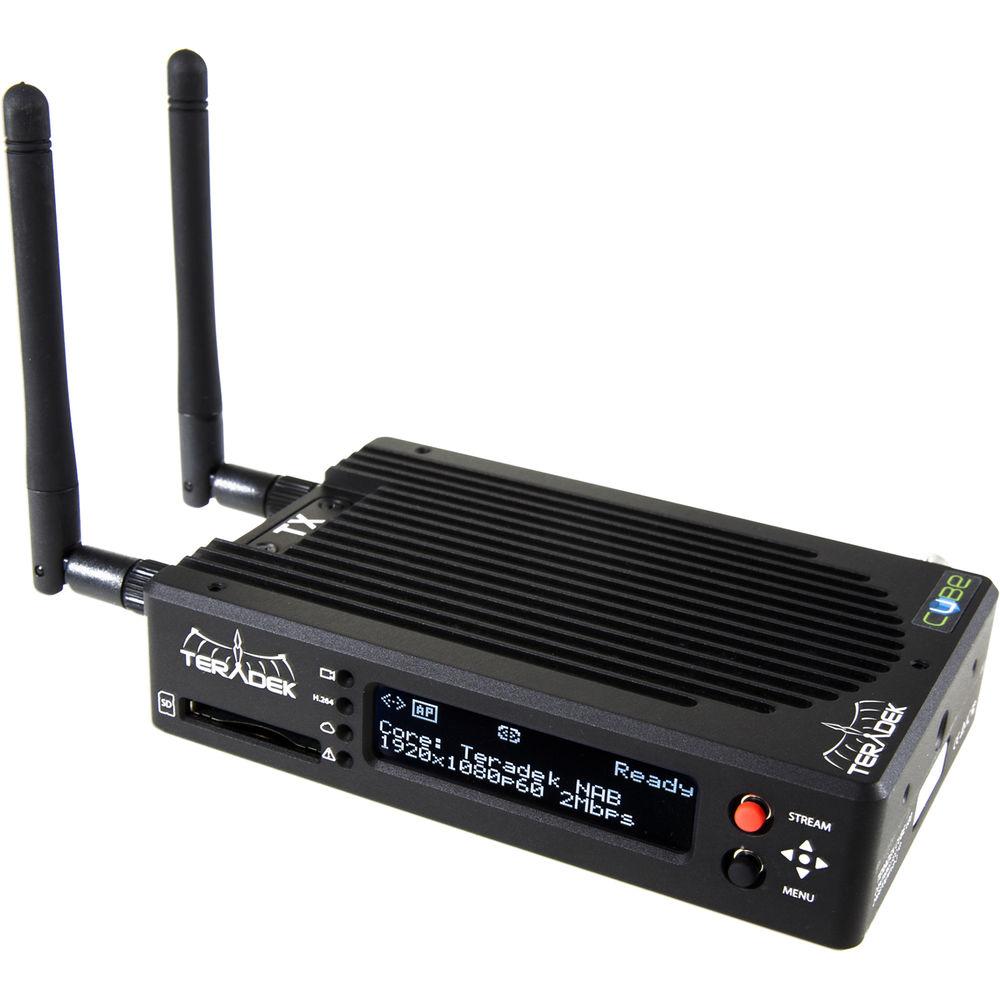

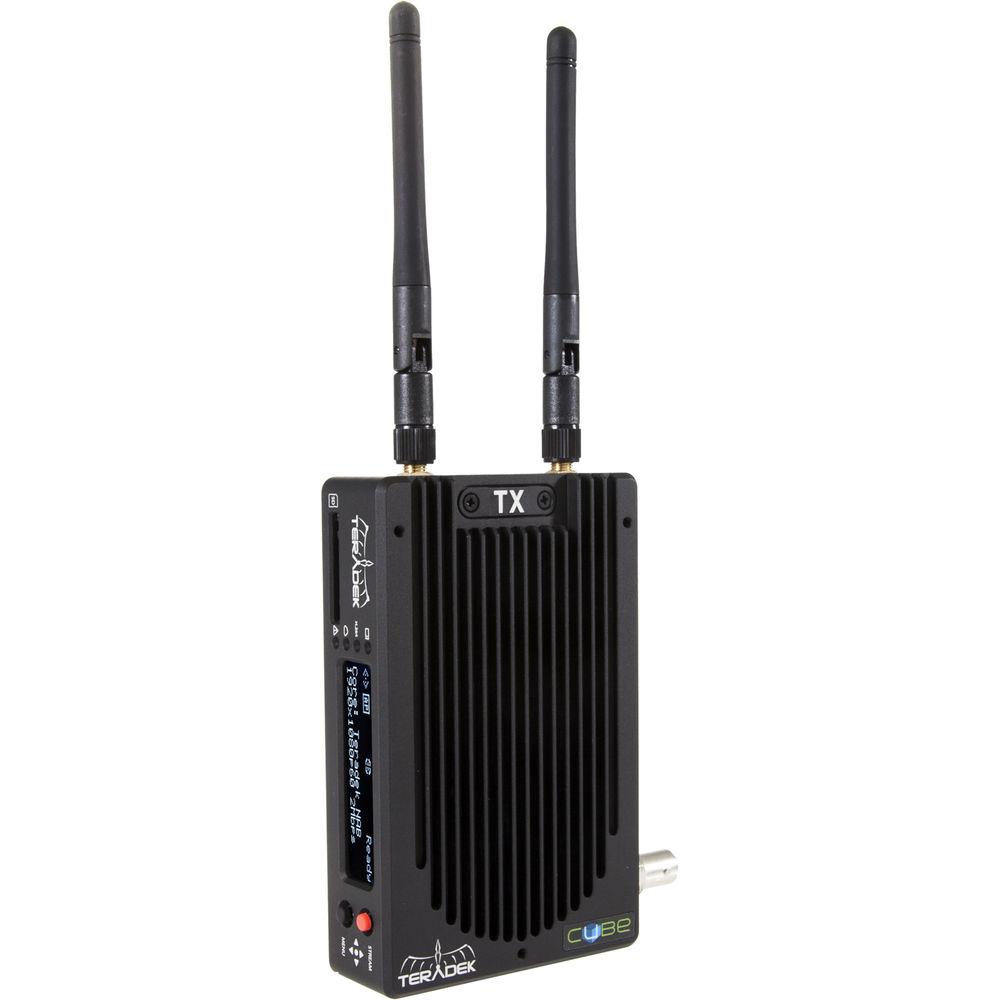

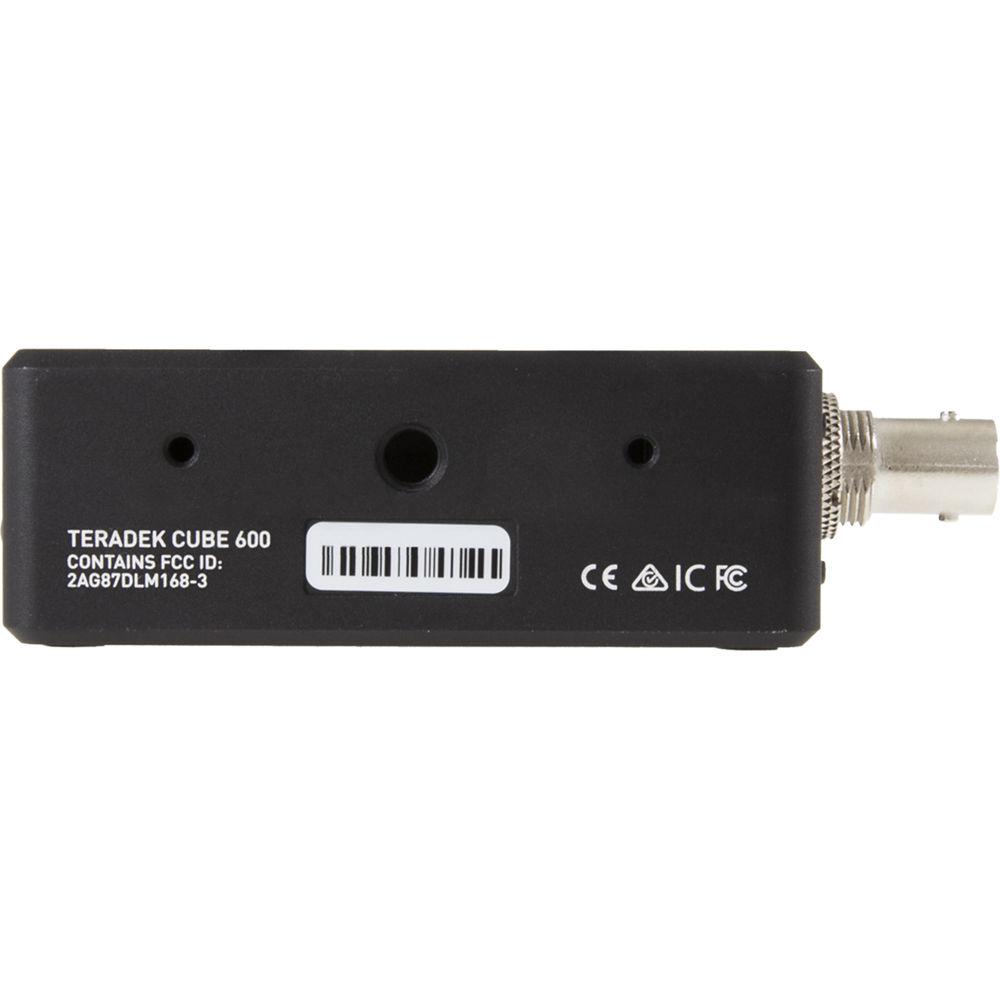

Product description This Teradek Cubelet 655 Encoder with 625 Decoder bundle is a full point-to point video streaming solution. Attach the Cube 655 Encoder to your HD or SD video source via HDMI or SDI, and it will encode it into an H.264 stream prior to broadcasting. The Cube 655 can be networked using hardwired Ethernet, Wi-Fi, or USB with an LTE modem. On the other end, the Cube 625 decodes the H.264-encoded signal via Ethernet, Wi-Fi, or USB, and outputs an uncompressed HDMI or SDI signal for monitoring the streaming feed. A hard case with foam cutouts is included for storing both Cubes along with the small essentials included with both Cube units. - Cube 655 H.264 HD Encoder The Teradek Cube 655 is a real-time H.264 encoder with 3G-SDI and HDMI inputs. It encodes up to 1080p video at bit rates up to 15 Mbps, allowing for high-quality images to be streamed over Ethernet, Wi-Fi, or USB (Wi-Fi streaming is limited to 10 Mbps). When bandwidth is limited, adaptive bit rate allows the Cube to automatically adjust and stream at the highest quality possible. The Cube 655 can ingest up to 1080p60 signals, but outputs them at a frame rate of 30 fps (or lower, per your selection), for a max output of 1080p30.
Cube 655 features support for 33-point 3D LUTs, as well as Pomfort LiveGrade integration that lets you monitor graded footage on the set or afterwards. Looks can be applied to the stream or controlled separately using the free Teradek TeraView app (iOS). Cube also offers support for USB modems for streaming video live over cellular networks.
Cube 655 has an SD card slot that enables you to record the stream for post-production, in which case the recording bit rate and resolution match the encoded stream quality. The Cube 655 also has a configurable test pattern generator that lets you test your stream without connecting a video source, and prevents interruptions if video sync is lost.
You can monitor the video stream on up to six networked iOS devices simultaneously using the Teradek TeraView or VUER app, or six Android devices using the Teradek VLC app, or a mix-and-match of six to accommodate both iOS and Android users. This allows clients, the crew, and the director to see the footage at the same time in real time.

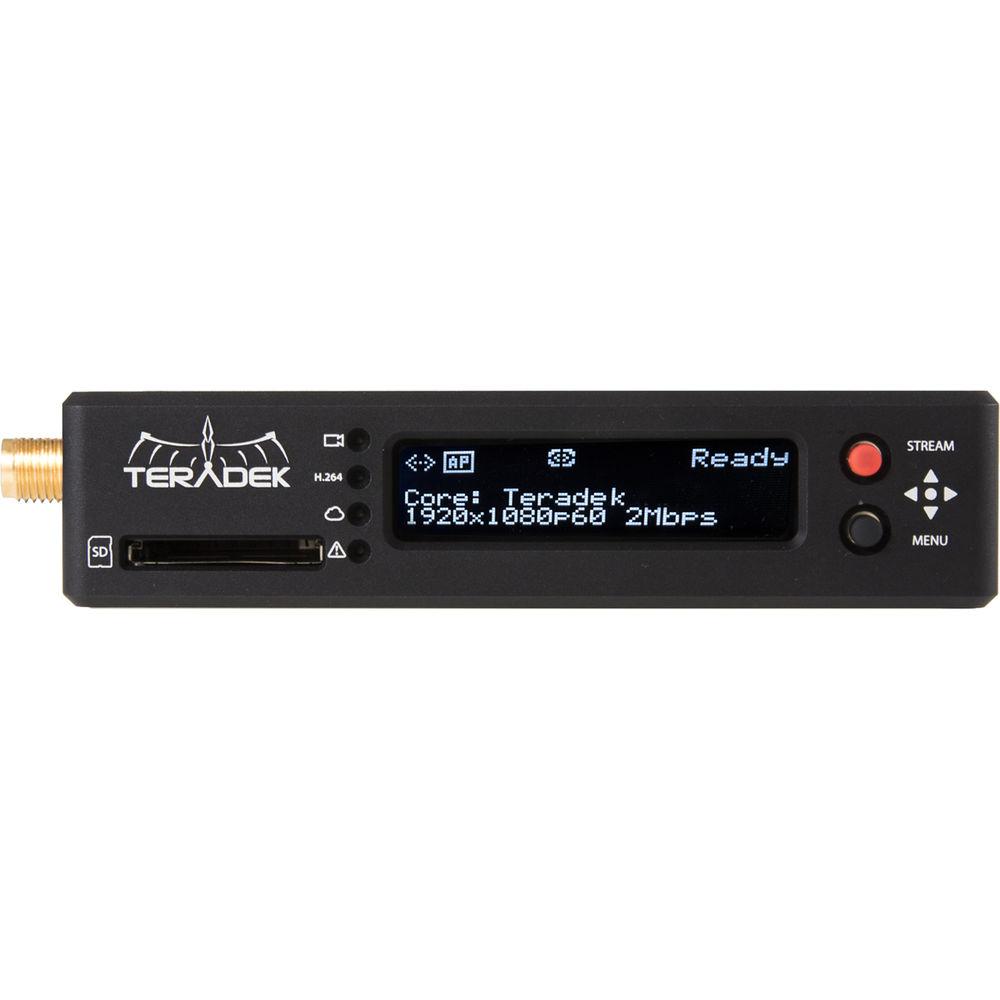

Cube 655 has a robust aluminum housing and an OLED display with joystick navigation buttons. It is manufactured in the USA. - Key Features
-
- Real-time H.264, 1080p encoder
- 3G-SDI and HDMI inputs
- Adaptive bit rate encoding at up to 15 Mbps
- Support for 33-point 3D LUTs and Pomfort LiveGrade integration
- Support for 3G/4G USB modems
- SD card slot
- Test pattern generator
- Monitoring on up to six iOS devices simultaneously
- Aluminum housing, OLED display, and joystick navigation buttons

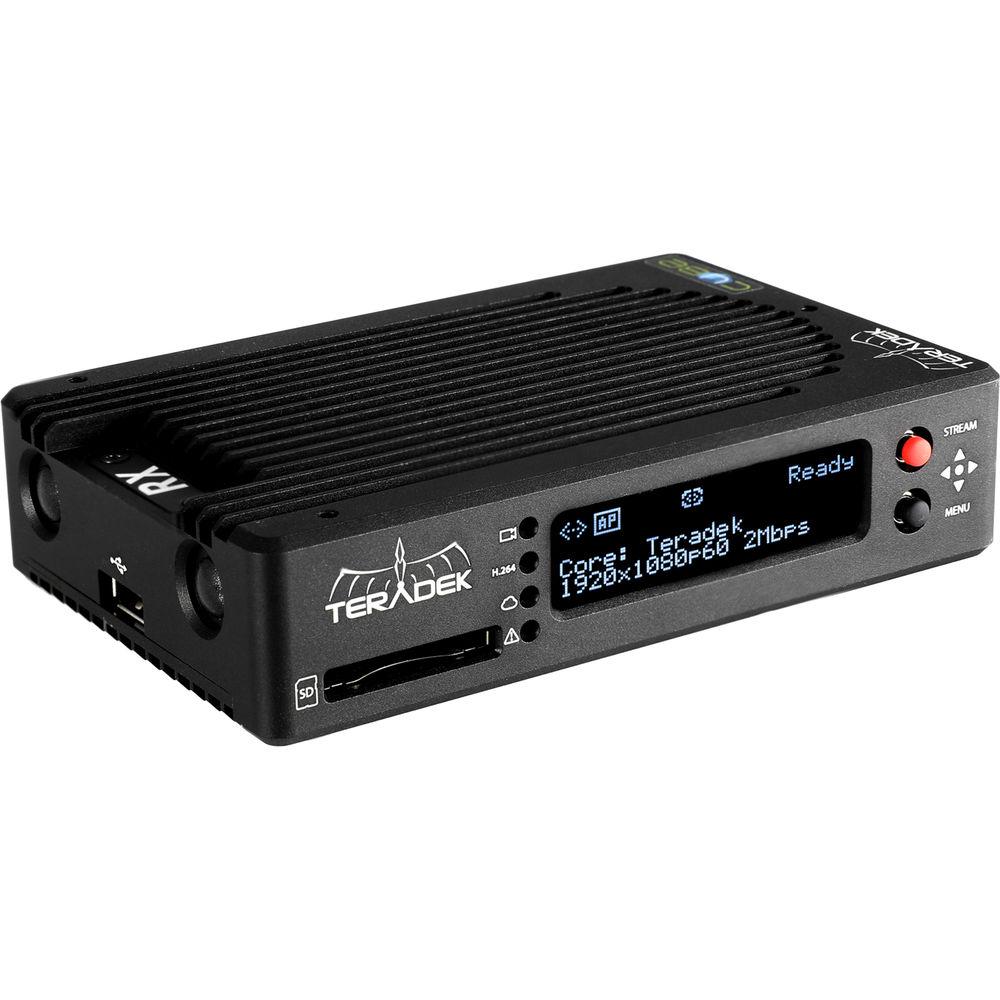

UPC: 854980006411 - Cube 625 H.264 HD Decoder The Teradek Cube 625 H.264 HD Decoder is a compact H.264 decoding solution that is useful on set and in the studio for receiving compressed video signals. On set, the Cube 625 can be connected to an HDMI or SDI monitor for a live feed coming in from your IP network. Alternately, the Cube 625 can be used in a remote studio location as a receiver of a point-to-point IP stream over Ethernet or USB modem. The connectivity options offered make the Cube 625 a versatile option for productions requiring real-time decoding. UPC: 818264020463

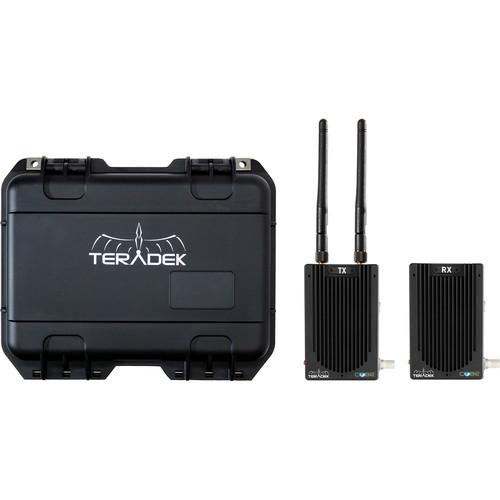

- Protective Case for Teradek Cube Encoder/Decoder The Protective Case from Teradek is a hard case that can be used to hold two Teradek Cube encoders/decoders, along with their shipping components. UPC: 818264020012
In the Box Bundle Items Cube 655 H.264 HD Encoder edyfbryewcscsbtuuausybvccwxcyuvswfbrr - 2-Pin Connector to 18W AC Power Adapter
Cube 625 H.264 HD Decoder Protective Case for Teradek Cube Encoder/Decoder User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet 655 Encoder with 625 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

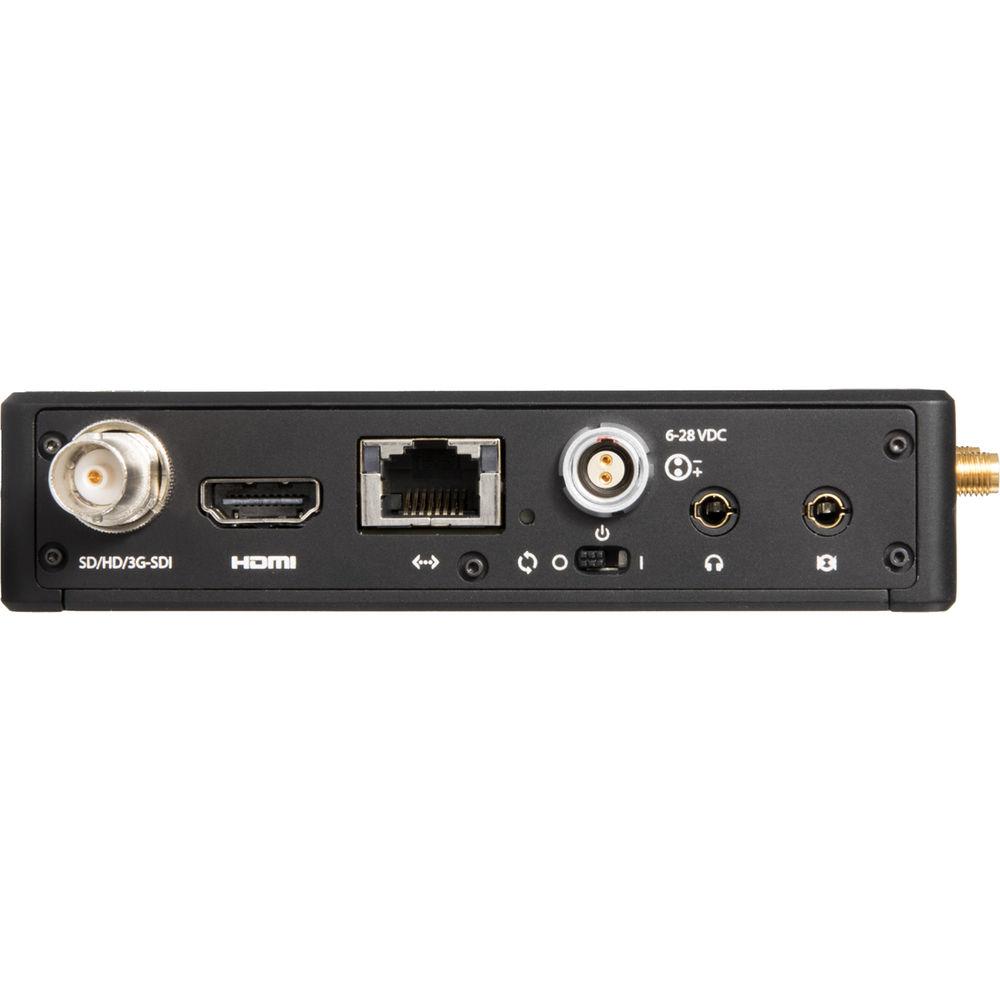

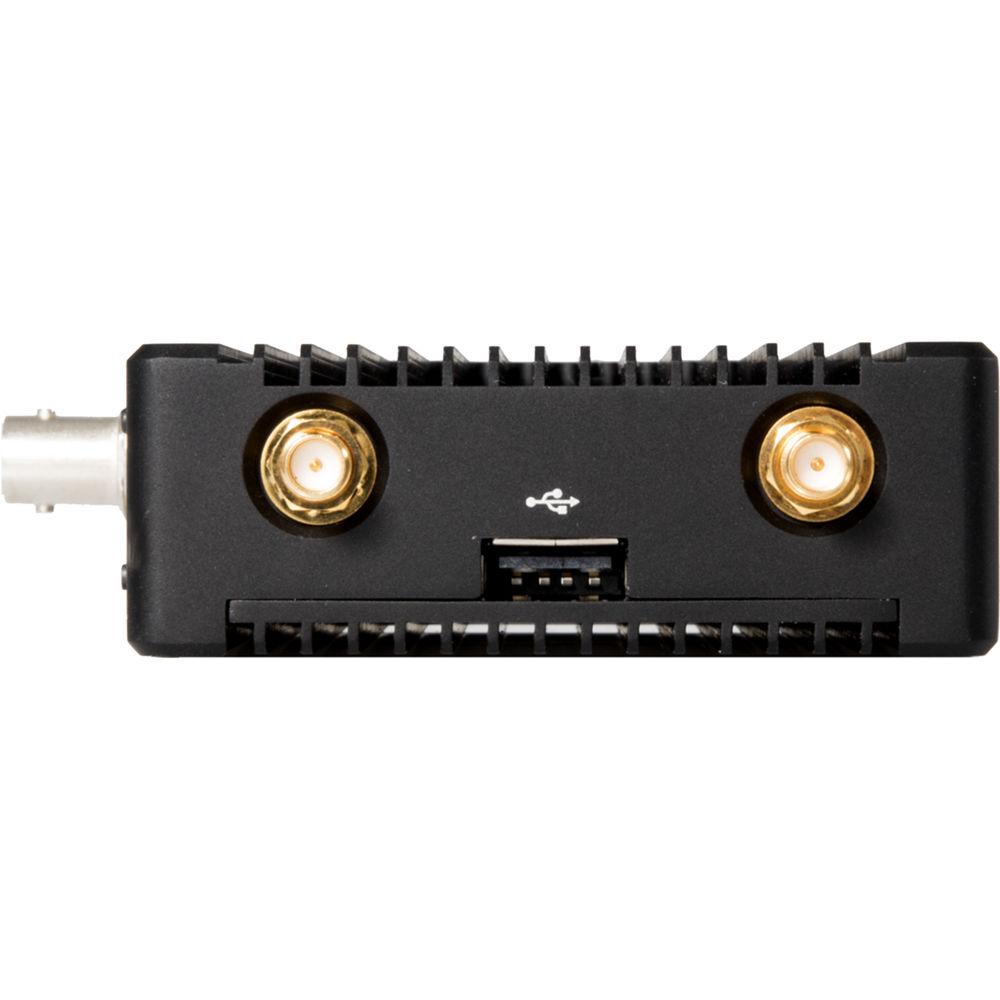

Technical parameters - Cube 655 H.264 HD Encoder
| Video Input | 1 x 3G/HD/SD-SDI BNC (75 Ohms)
1 x HDMI Type-A | | Bonding | TeraLink | | Input Resolutions | 1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080PsF 30/29/25/24/23
720p 60/59.94/50
576p (HDMI input only)
480p (HDMI input only)
NTSC
PAL 576i
The Cube 655 will ingest 1080p60/59.94/50 but will encode it out as 1080p30 or lower (per your selection). | | Video Compression | H.264, Baseline, Main, and High Profile | | Supported Video Bit Rates | 250 Kbps to 15 Mbps (10 Mbps wireless) | | Test Pattern Generator Support | Supports custom test pattern | | Format Conversion | Built-in video scaler and deinterlacer | | LUT Support | CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color) | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | RTMP
RTP, RTSP, RTSP over HTTP
MPEG-TS (requires optional paid license) | | Wi-Fi | 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | Remote Control | Teradek Core | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input
Analog line or mic in, adjustable gain | | Audio Output | Headphone output | | Configuration | WebUI and OLED display with joystick navigation buttons | | Storage | SD card slot | | USB Interface | Powered USB 2.0 host port | | Ethernet | 10/100/1000BASE-T Gigabit | | Modem Support | USB 3G/4G modem support (check Teradek website for updated list of compatible modems) | | Mount Type | 1/4"-20 threaded mounting holes allow for horizontal or vertical mounting | | Power Input | 2-pin connector | | Power Consumption | 7 W | | Auxiliary Power Input | 6-28 VDC | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.5 x 4.0" | - Cube 625 H.264 HD Decoder
| | | Video Outputs | 1 x HDMI type A, v1.4a
1 x BNC, SD/HD/3G-SDI | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23/24/25/29/30
1080i 50/59.94/60
720p 50/59.94/60
576p (HDMI only)
480p (HDMI only)
NTSC
PAL | | | | Video Compression | Decodes H.264: Baseline, Main, and High Profile | | Bit Rate | 250 kbps to 15 Mbps | | Format Conversion | Built-in video scaler and deinterlacer | | | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP
MPEG-TS: Unicast/TCP, Unicast/UDP, Multicast/UDP
Teradek Streaming: Unicast/UDP, Multicast/UDP | | Remote | Teradek Core | | | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Analog line or mic in, adjustable gain | | Audio Output | SDI/HDMI embedded audio output
1 x 3.5mm stereo headphone | | | | Configuration | Configuration Interface: OLED display with joystick navigation buttons, WebUI | | Switches | On/Off and Reset switch | | App Control | Web UI for configuration and control | | USB Interface | Powered USB 2.0 host port | | | | Ethernet | 10/100/1000Base-T Gigabit | | Wireless | Not available on this model | | RF Channels | Not available on this model | | Encryption | 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP
128-bit AES | | USB | USB 3G/4G modem support | | | | Power Input | 2-pin connector, 6 to 28 VDC | | Power Consumption | Nominal: 7 to 8 W | | Compliance | FCC, CE, IC, RCM | | | | Dimensions | 4.75 x 3 x 1.1 / 12 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Box Dimensions (LxWxH) | 6.7 x 6.7 x 4.9" | - Protective Case for Teradek Cube Encoder/Decoder
| | | Box Dimensions (LxWxH) | 10.3 x 9.4 x 4.8" |
