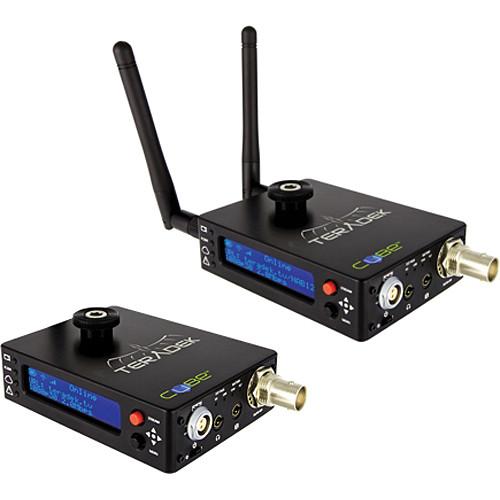

Product description The Teradek Cubelet 155/305 consists of the Cube 155 HD-SDI Encoder and Cube 305 HD-SDI Decoder, delivered to you paired and ready to connect with one another.
This bundle provides a high definition end-to-end streaming video solution that eliminates the need for PC-based decoding. The 155/305 bundle is particularly useful for for filmmaking, ENG, and Pro AV applications. - Cube 155 HD-SDI Encoder with Wi-Fi The Teradek Cube 155 HD-SDI Encoder with Wi-Fi is a wireless camera-top video and embedded audio encoder. It connects to a camera via SDI and streams proxy files/dailies in H.264 to a decoder or website. You can stream by dual-band Wi-Fi wherever a network is available, by Ethernet via an optional router, or by an optional 3G/4G modem connection. You can also store the files to a microSD card as the Cube features a microSD slot with support for up to 32GB cards.
For mounting, the Cube attaches either to a camera's hot shoe or a cage/rig via an included 1/4"-20 mounting screw. Aside from the SDI input, connections consist of an Ethernet port, a 3.5mm line/mic input, and a headphone jack. A micro-USB slot is available for charging and configuring.
The Teradek Cube has a rechargeable internal lithium-ion battery that lasts up to two hours. It can also be powered with the included AC power adapter or by an external battery via a 2-pin LEMO input. An OLED screen indicates the remaining battery life, online status, and the URL being streamed to. Optionally, Teradek offers camera batteries with 2-pin LEMO output so you can easily power both the camera and Teradek with the same battery. The following three 2-pin LEMO batteries can be used for power: the Teradek Canon BP-945, Teradek Panasonic D54, and the Teradek Panasonic VW-VGB6. - SDI Connection to a Camera
-
- Streams proxy files in H.264 to a decoder or website
- Streams via Wi-Fi, by Ethernet or optional 3G/4G modem
- Stores files to an optional microSD card of up to 32GB in capacity
- Attaches to a camera's hot shoe or to a cage/rig by a 1/4"-20 screw
- Powered by a two-hour internal battery or by the included AC power adapter
- An OLED screen indicates battery life, online status, and the URL being streamed to
UPC: 859273002521 - Cube 305 HD-SDI Decoder with Ethernet The Teradek Cube 305 HD-SDI Decoder with Ethernet makes up an HD video transmission solution with any Cube Encoder that streams by wired Ethernet (such as Cube 105). Cube 305 receives the stream with embedded audio over Ethernet, decodes it, and outputs it in the widely-used, edit-ready H.264 codec to switchers, professional monitors and other equipment via an HD-SDI output. H.264 is also a popular codec for uploading files to the internet. An alternative to receiving a stream by Ethernet, Cube 305 can receive by an optional 3G/4G USB modem, which would install into a USB port positioned right beside the Ethernet port. A MicroSD card slot enables saving the received stream in addition to outputting it, and an OLED display on the side communicates transmission status and other data.
Cube 305 supports resolutions up to 1080p/30, which is the top resolution that many common camcorders and DSLRs shoot in. The Cube moreover features a built-in scaler and can upscale any lower resolution to 1080p/30.
The Cube powers by an included AC adapter or an optional Teradek/Swit 945, D54, or VGB6 2-pin Lemo battery, and it is outfitted for 1/4" mounting. Cube 305 is almost identical with Cube 355. The only differences between the two are that Cube 355 features WiFi instead of an Ethernet input and also has a 2-hour internal battery. - Key Features
-
- Receives a 1080p/30 stream with embedded audio by Ethernet or optional USB modem
- Outputs 1080p/30 in H.264 to switchers, monitors and other equipment by HD-SDI
- A built-in scaler can internally upscale to 1080p/30
- Powers by an included AC adapter or optional 2-pin Lemo Teradek/Swit battery
- MicroSD card slot enables saving the received stream
- OLED display communicates transmission status and other data
UPC: 859273002736 In the Box Bundle Items Cube 155 HD-SDI Encoder with Wi-Fi tduawdtfyytstuadrefuyvacdrzwzycezswtr - 110-240 VAC Power Adapter
- USB Stick with TeraCentral Desktop Software
- Hot Shoe Mounting Adapter
Cube 305 HD-SDI Decoder with Ethernet tduawdtfyytstuadrefuyvacdrzwzycezswtr
Also Includes - SKB Plastic Case
(Limited Lifetime Warranty on the Case /
Limited 1-Year Warranty on the Foam for Original End User) Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Cubelet HD-SDI 155 Encoder 305 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cube 155 HD-SDI Encoder with Wi-Fi
| Connections | 1 x HD/SD-SDI input
1 x RJ45 port
1 x 3.5 mm line/mic input with adjustable gain
1 x Headphone jack with adjustable volume
1 x Micro-USB slot
1 x 2-pin LEMO power input | | File Transfer Method | Dual-band 2.4/5.8G 802.11 a/b/g/n MiMO Wi-Fi wherever accessible, Ethernet 10/100BASE-T, or optional 3G/4G modem connection | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576i
480i | | Video Codec | Compression Algorithm: Baseline, Main, and High-Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kb/s to 10 Mb/s
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: RTP, RTSP, RTP over HTTP, optional MPEG-TS
RTMP (Adobe Flash streaming)
HTTP live steaming
Point-to-point (TCP or UDP), multiple unicast (UDP), or optional multicast (UDP + IGMP) | | Audio Compression | AAC-LC, MPEG Layer 2 | | Memory | microSDHC card slot with support for up to 32 GB cards | | Mounting | Cold shoe for mounting onto hot shoe mount
1/4"-20 mounting screw for attachment onto a cage or rig | | Power Consumption | 3 W
While Charging: Up to 10 W | | Auxiliary Power Input | 6-28 VDC | | Power | Internal battery lasts up to two hours and is charged via micro-USB slot, included AC power supply, or optional 2-pin LEMO batteries | | Dimensions | 2.5 x 3.5 x .9" / 6.35 x 8.9 x 2.3 cm | | Weight | 8 oz / 226 g | | | | Box Dimensions (LxWxH) | 6.6 x 6.6 x 4.1" | - Cube 305 HD-SDI Decoder with Ethernet
| Video Output | 1x HD/SD-SDI | | Supported Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
1080PsF 23.98/24/25
720p 50/59.94/60
576i
480i | | Video Codec | Compression algorithm: Baseline, Main and High Profile H.264
Main and Baseline profiles
Bit rate: 250 Kbps to 10 Mbps
Built-in video scaler and deinterlacer | | Video Streaming Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
RTMP (Adobe Flash streaming) | | Audio | Audio compression: AAC-LC, MPEG layer 2
Embedded audio output
Headphone jack | | Interfaces | Feature-rich WebUI for configuration and control
OLED LCD screen with joystick navigation buttons
On/Off and Reset Switch
MicroSD
Powered USB 2.0 host port | | Network | Ethernet 10/100BASE-T
USB 3G/4G modem support (optional) | | Power | 2-pin Lemo input
USB charging
Nominal power consumption: 3 W
Nominal power consumption while charging: up to 10 W
Auxiliary power input: 6-28 V DC | | Dimensions | 2.5 x 3.5 x .9" (6.35 x 8.9 x 2.2 cm) | | Weight | .5 lb (.22 kg) | | | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 2.9" |
