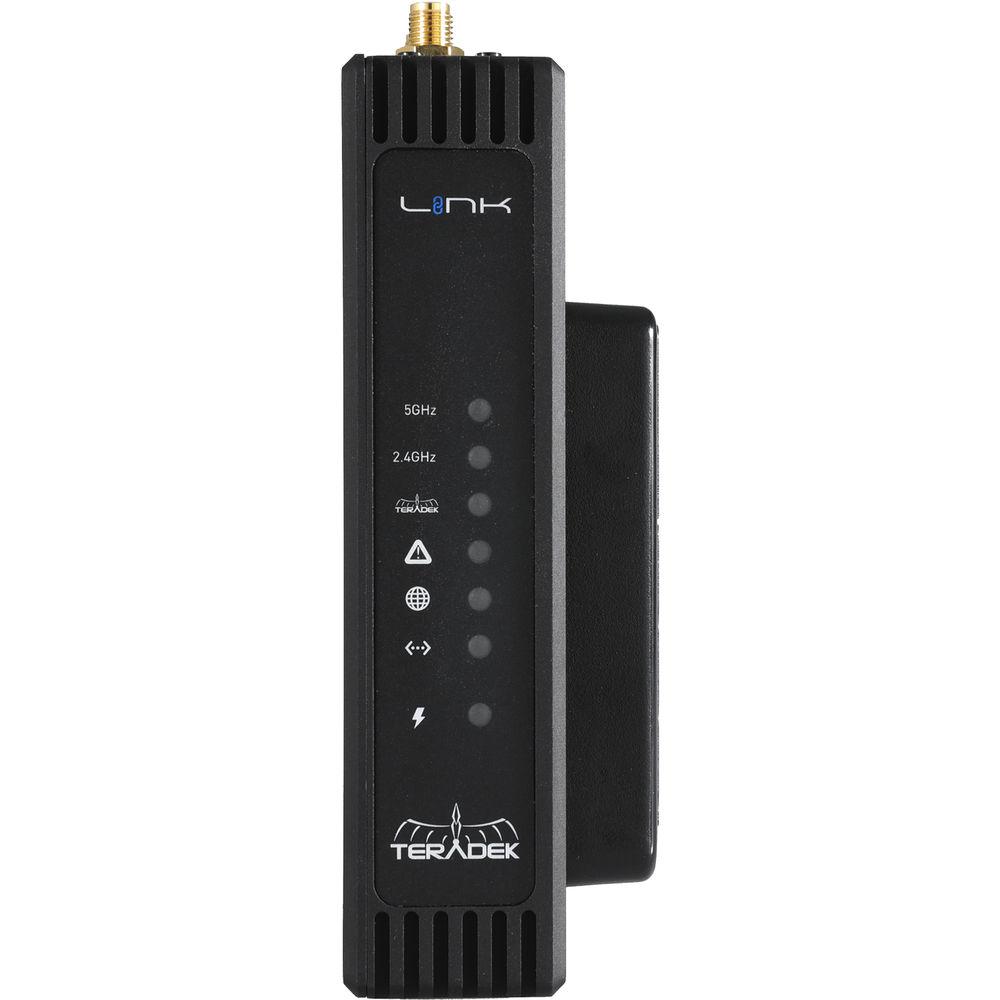

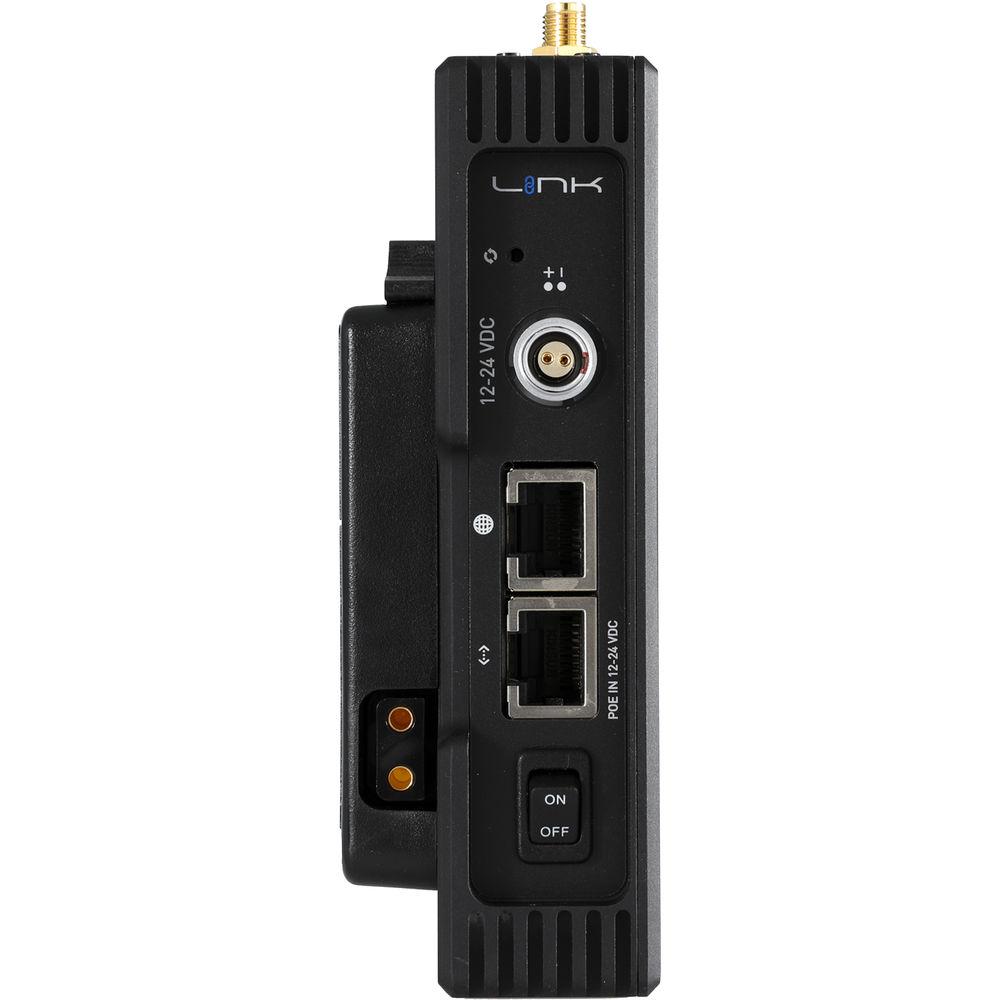

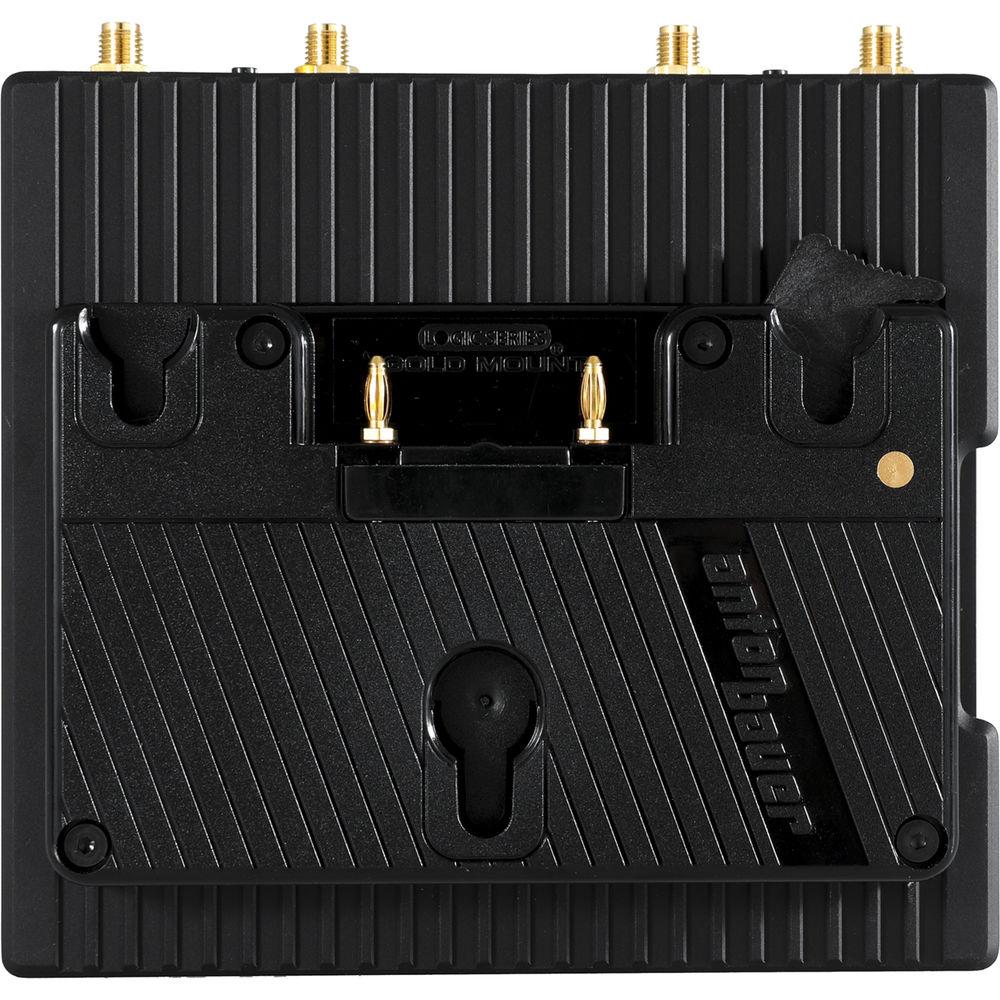

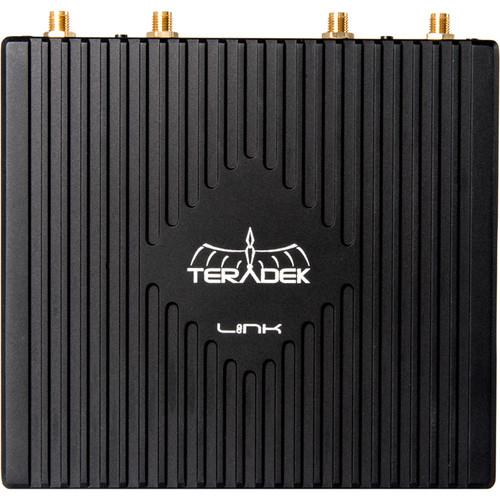

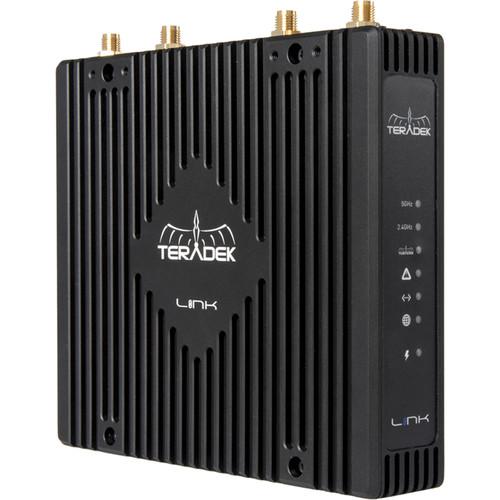

Product description Designed for connecting professional video equipment, the Teradek Link Dual-Band Wi-Fi Router is more robust than consumer routers and access points, plus it can be powered by a separately available Gold mount battery in remote locations. Teradek devices that use Wi-Fi can benefit from the greater throughput provided by the Link and its 1000' range. A light stand adapter is included for mounting versatility. A power supply, a 2-pin to D-Tap cable, and an Ethernet cable are also included. - Dual Band 2.4 / 5 GHz | 802.11ac Wi-Fi
- Supports common Wi-Fi standards, such as 802.11ac, and legacy Wi-Fi 802.11a/b/g/n standards for compatibility with a wide range of devices. 1000' coverage is provided for connecting to on-set devices.
- High Throughput and Interference Resistant
- Link's quad core processor and significant internal memory ensure high data throughput despite numerous clients utilizing the network at once. Compared to typical consumer access points, Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.
- Rugged Design
- Link's aluminum chassis allows it to withstand the daily abuse common in production environments or in the field. With several 1/4"-20 mounts, the device can easily be mounted onto light stands, DIT carts, or OB vans.
- PoE Power
- Link's passive PoE connection allows the system to be powered in line with the Teradek Sphere or any other PoE injector for a more streamlined setup on set.
- Network Security
- Link offers standard WiFi network protection, including WEP, WPA, and WPA2 security.

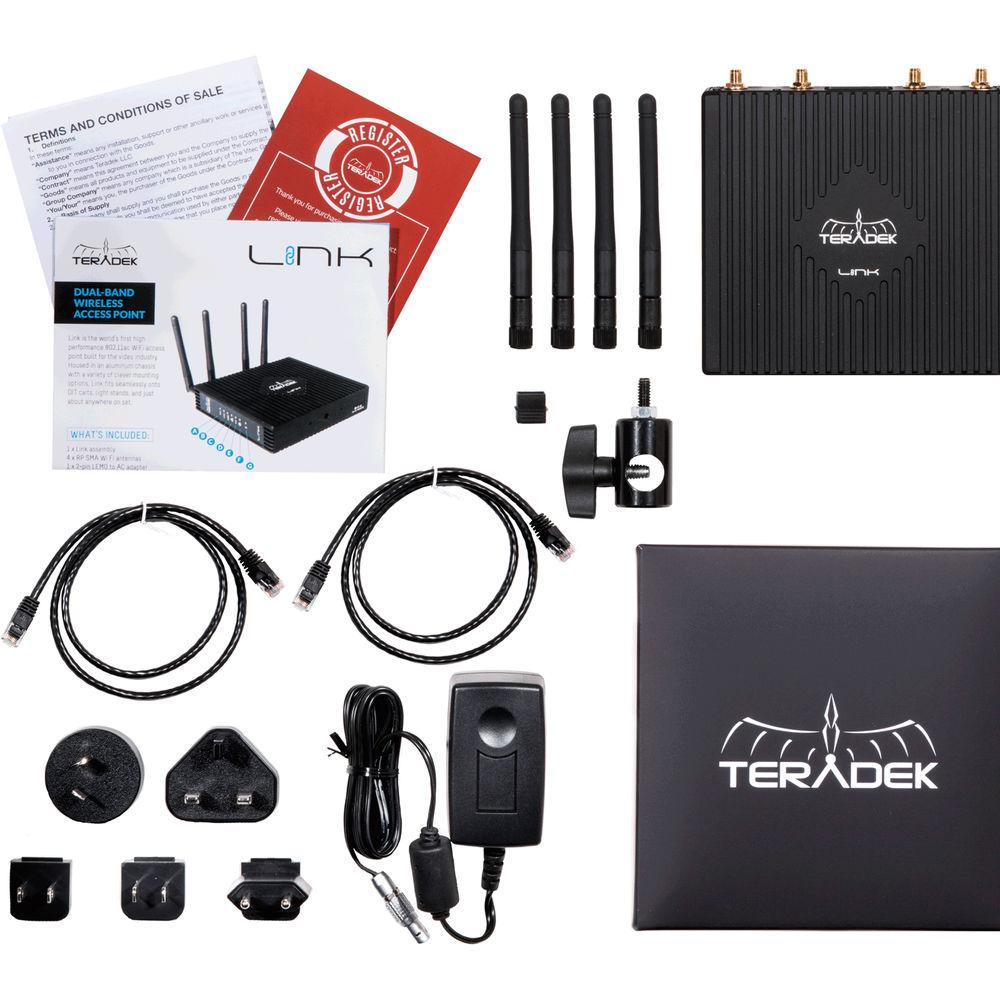

UPC: 818264021040 In the Box Teradek Link Dual-Band Wi-Fi Router (Gold Mount) 4 x Wi-Fi Antennas Ethernet Cable D-Tap to 2-Pin Power Cable (6.5") 1/4"-20 Light Stand Adapter 2-Pin Cable AC Adapter (6') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Link Dual-Band Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Link Specs | Ethernet | 2 x RJ45, Gigabit Ethernet | | Wi-Fi | 2x2 2.4 GHz 802.11b/g/n, max 20 dBm per chain
2x2 5 GHz 802.11a/n/ac, max 16 dBm per chain
Frequency Range: 2.412-2.472 GHz, 5.180-5.825 GHz
Encryption: 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP 128-bit AES | | Transmission Range | 1000' / 300 m | | Network Protocol | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Mounting Threads | 1 x 1/4"-20
2 x 4-40 | | Power Input | 12-24 VDC
1 x 2-pin circular locking connector
24 V PoE (Power over Ethernet) | | Power Consumption | 19 W (max) | | Environmental | Operating Temperature: 14 to 122°F / -10 to 50°C
Storage Temperature: -40 to 194°F / -40 to 90°C
Operating Humidity: 5-95% (non-condensing)
Storage Humidity: 0-90% | | Dimensions | 5.2 x 1.1 x 5.1" / 13.3 x 28.5 x 13 cm | | Weight | 13.2 oz / 374 g | | | | Package Weight | 2.695 lb | | Box Dimensions (LxWxH) | 6.75 x 6.7 x 4.9" |
