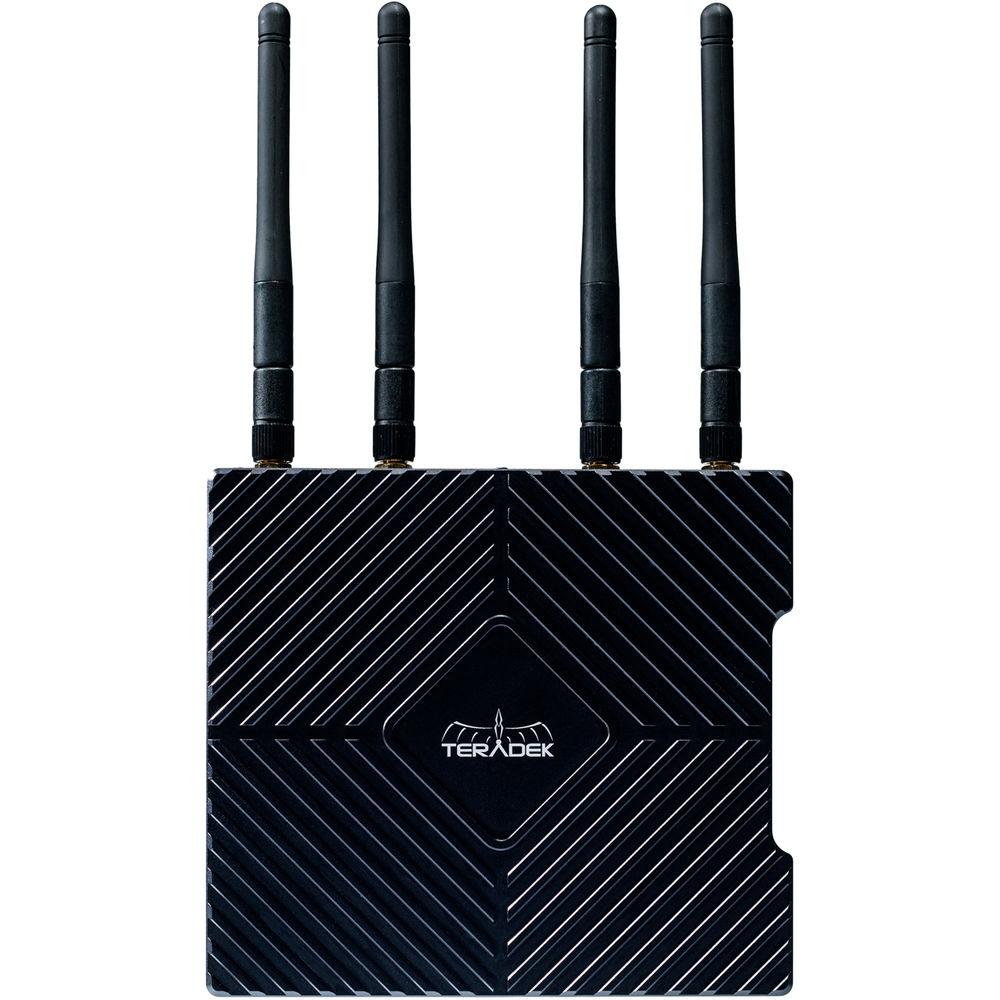

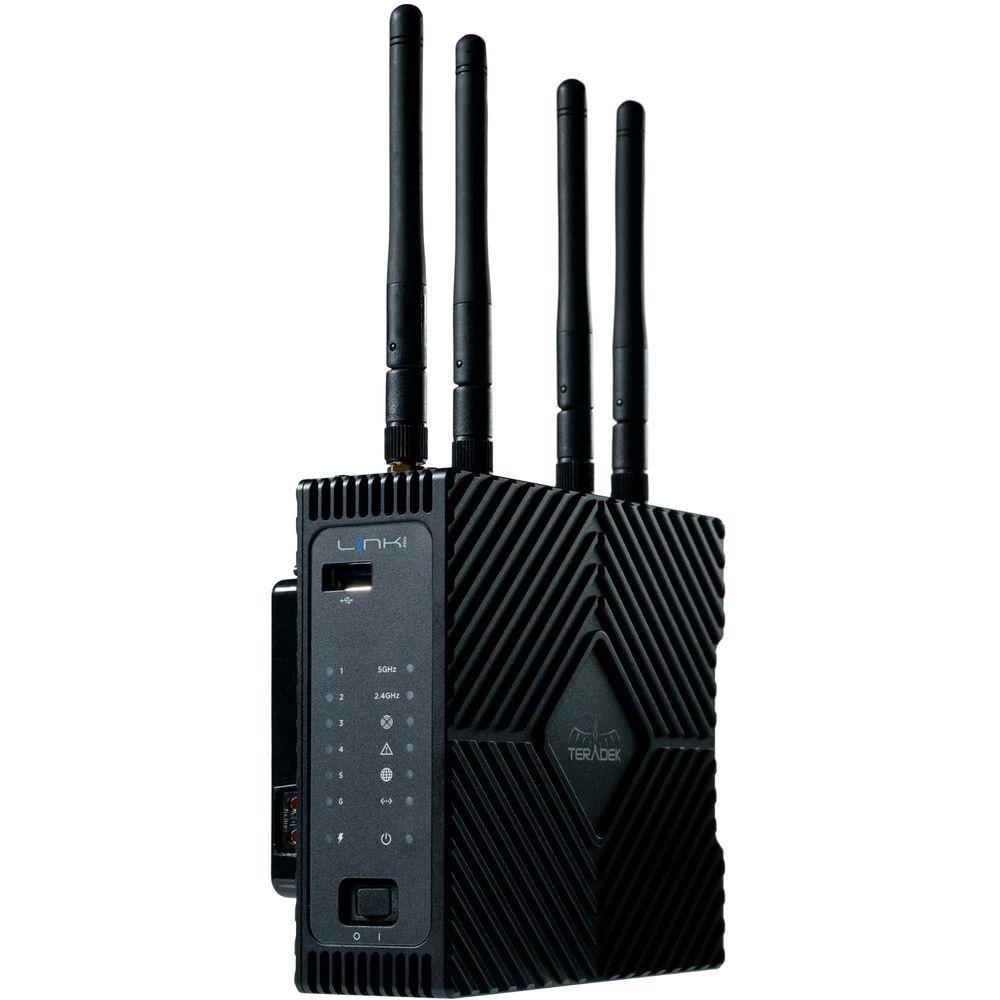

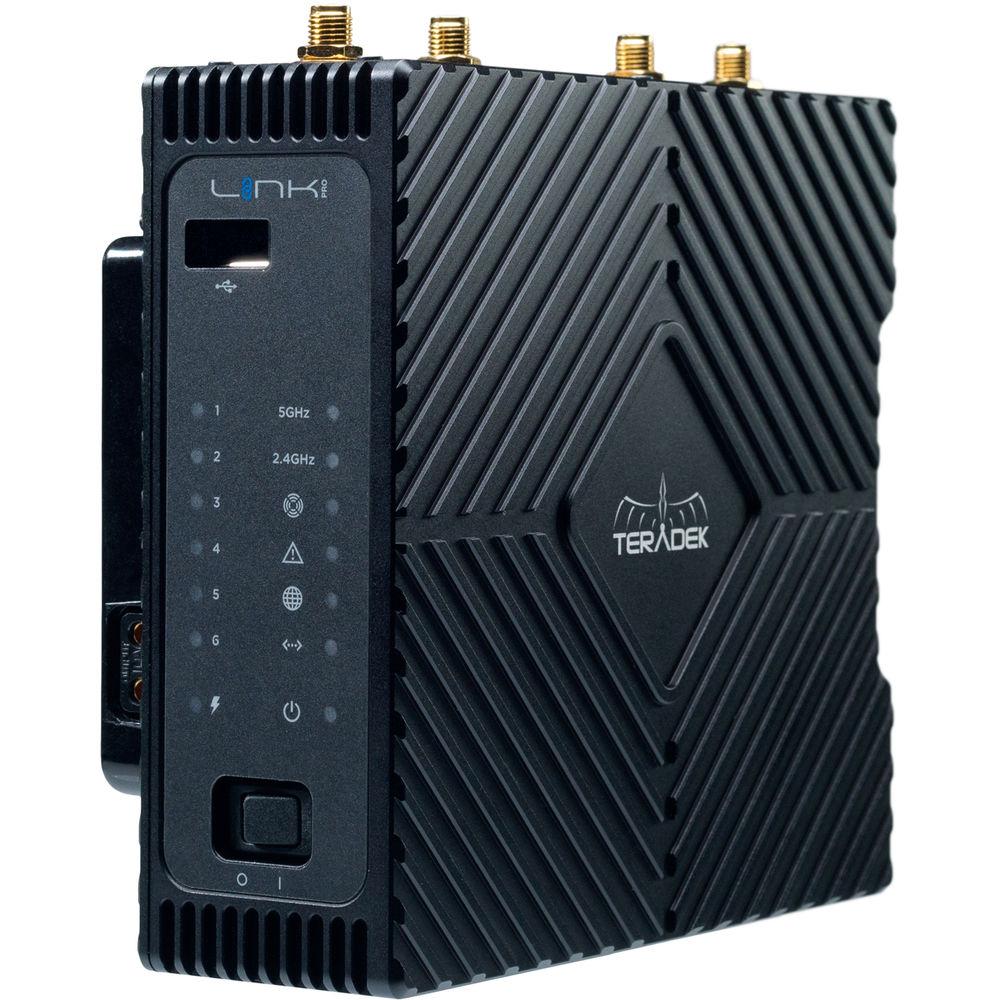

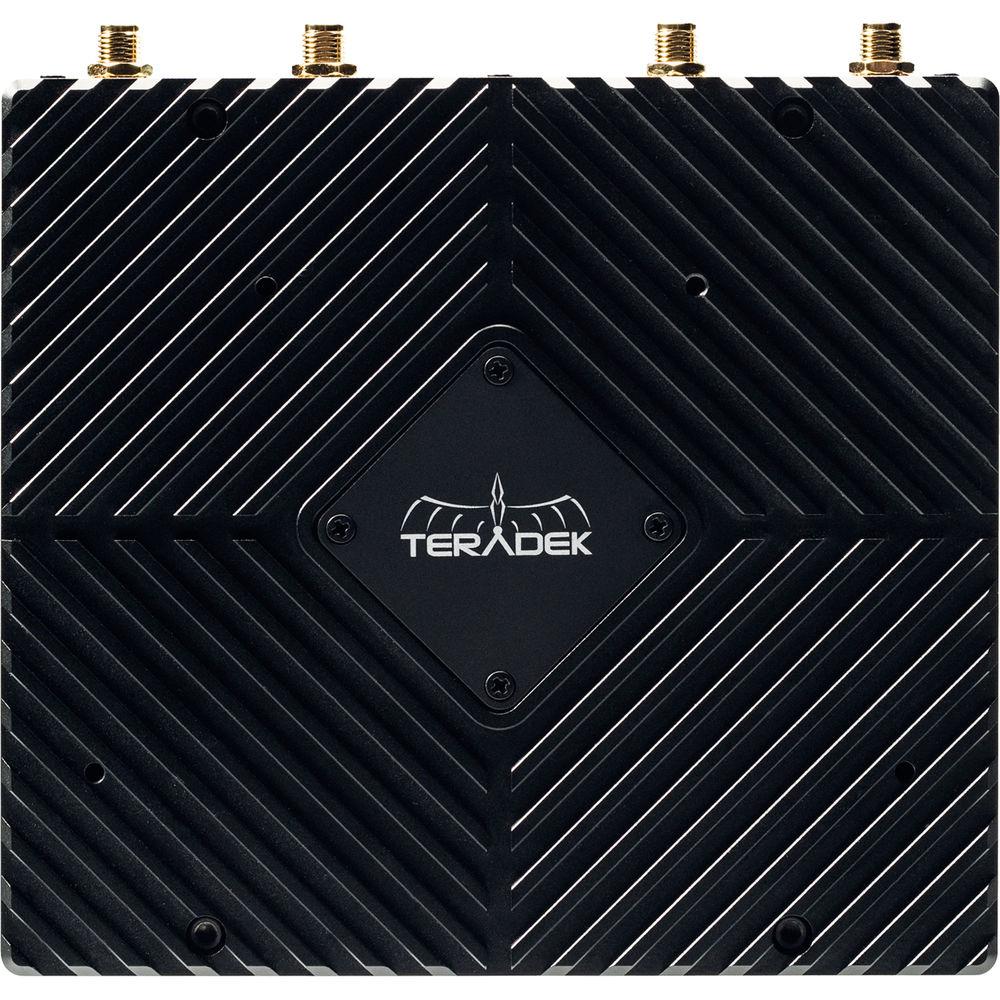

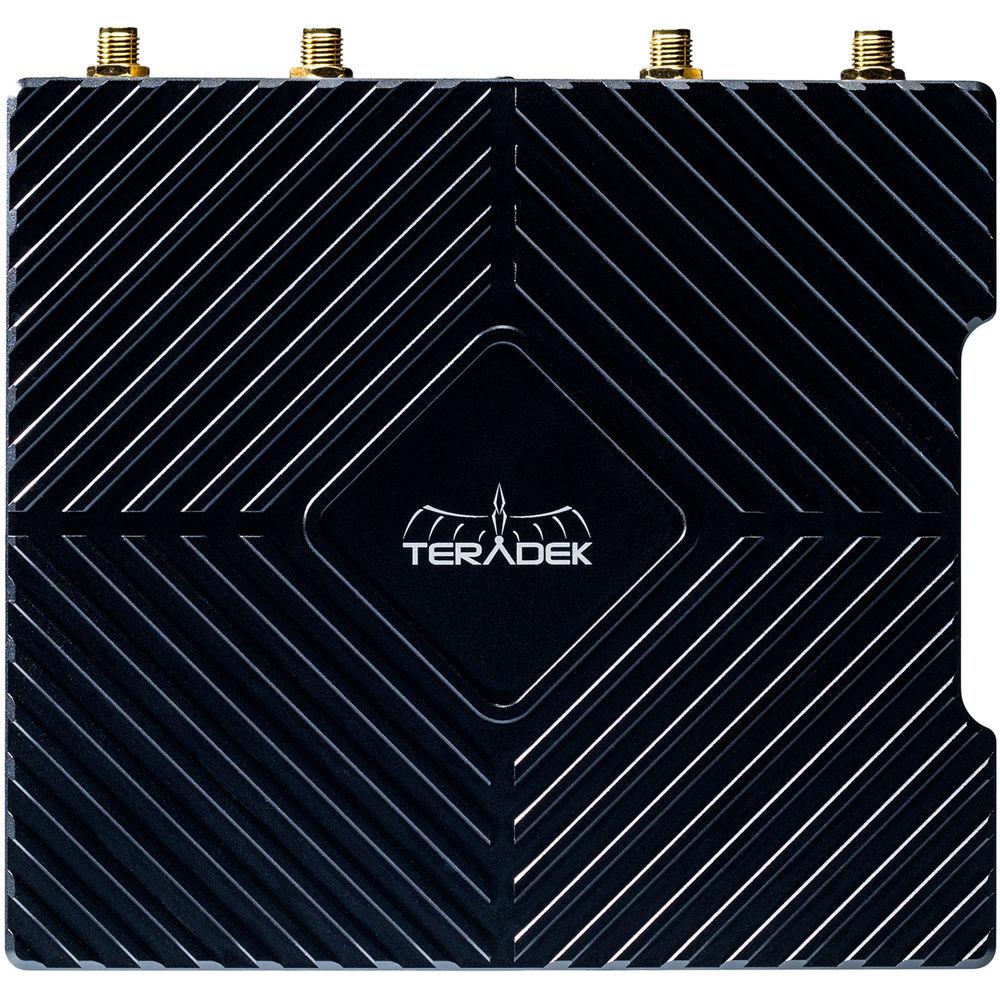

Product description The Teradek Link Pro Dual Band Wi-Fi Router is well-suited for use on sets both cinematic and broadcast. It features a rugged, milled aluminum chassis to withstand the daily rigors of production. The dual band Wi-Fi support allows you to work with a wide variety of wireless devices at ranges up to 1000'. If you need more coverage you can use multiple Link Pro routers to improve coverage within an area, or daisy chain them together to increase the distance coverage.
The router accepts external power via a V-mount battery plate and 2-pin power connector, and it also supports PoE, which allows you to power the router by the Ethernet connection. The link's quad core processor and installed memory provides high-data throughput. It supports network security protocols and encryption to keep your footage secure. - Dual Band 2.4 / 5 GHz | 802.11ac Wi-Fi
- Link supports the 802.11ac Wi-Fi standard and is backwards compatible with 802.11a/b/g/n.
- Extra Range with Link-to-Link
- Multiple Link devices can be used together to extend the range of your Wi-Fi network (with or without internet).
- Set the first Link to Master mode, and your next Link routers to Client mode. Your 2nd Link must be set to Client mode; this allows you to connect multiple Links to the Master Link, or daisy-chain them to cover more distance.
- This feature is perfect for multicamera productions, sports coverage, interactive marketing activations, and any other occasion that requires large areas to be connected on the same Wi-Fi network.
- High Throughput and Interference Resistance
- Link's quad core processor and significant internal memory ensure high data throughput even with numerous clients utilizing the network at the same time. Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.
- External Battery Connection

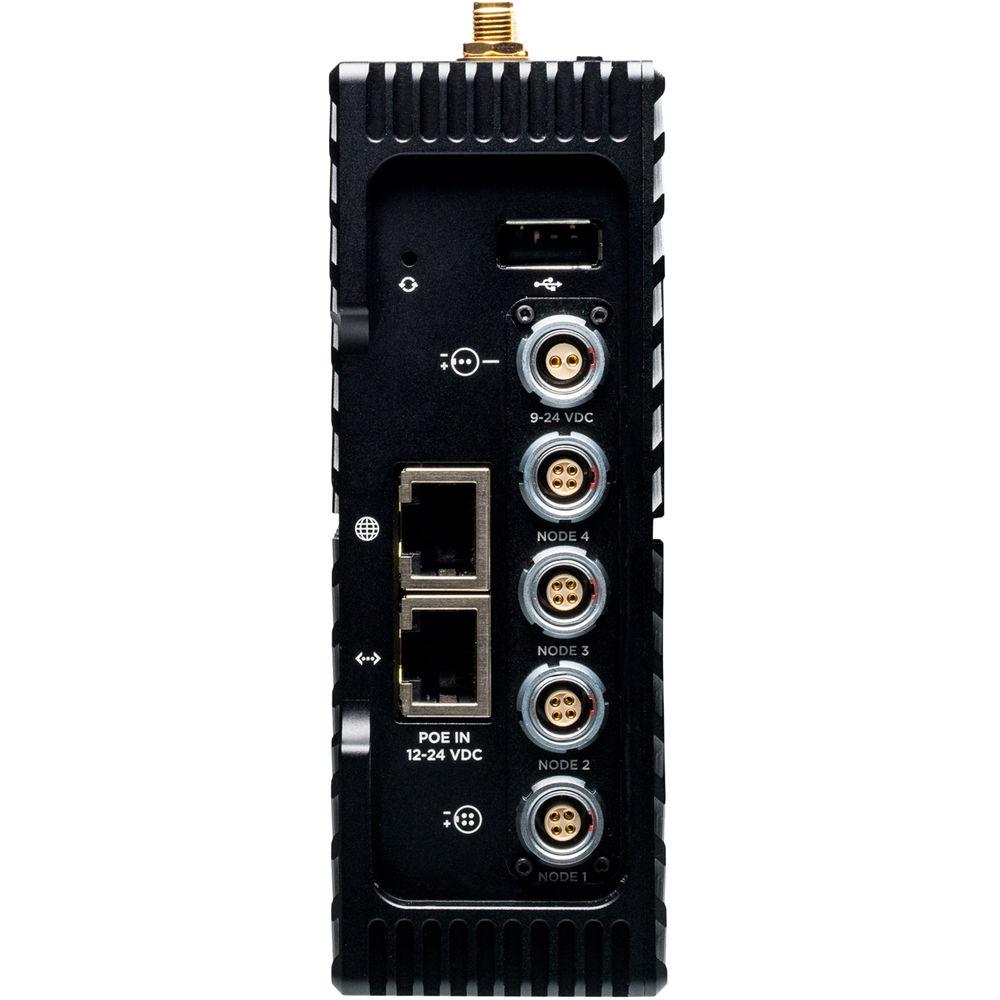

- Power the unit via PoE, the built-in 12 to 24 VDC 2-pin power connector, or optional professional battery plates (Gold or V-mount).
- Security
- Supports WPA2, WPA, and WEP network security protocols as well as 64/128 TKIP and 128-bit AES encryption.
UPC: 818264022610 In the Box Teradek Link Pro Dual Band Wi-Fi Router (V-Mount) 4 x Antennas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Link Pro Dual Band Wi-Fi Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

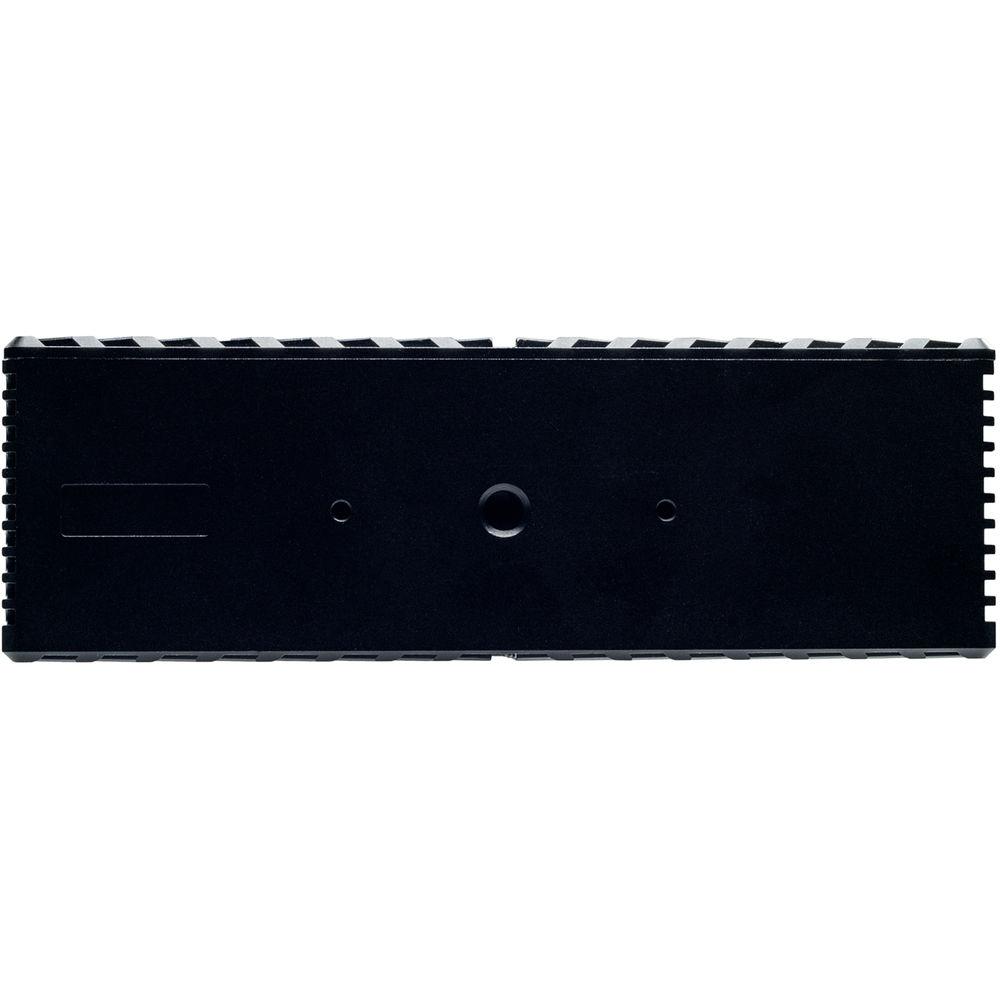

Technical parametersTeradek Link Pro Specs | Material of Construction | Milled aluminum chassis | | Mounting | 1 x 1/4"-20 threaded hole
2 x 4-40 threaded holes | | Network | Ethernet
2 x RJ45 (Gigabit) with Auto MDI-X | | Wireless | Wi-Fi
2x2 2.4 GHz 802.11b/g/n, max 20 dBm per chain
2x2 5 GHz 802.11a/n/ac, max 16 dBm per chain
Frequency Range 2.412~2.472 GHz, 5.180~5.825 GHz
Encryption
802.1x, 802,11i, WPA2, WPA and WEP
64/128 TKIP 128-bit AES | | Protocol Support | Network Protocols
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Bonding
Up to 6 devices, Ethernet, Wi-Fi | | Interface | http
Web UI for configuration and control
Switches
On/off and reset
Expansion
2 x USB 3.0 Type-A

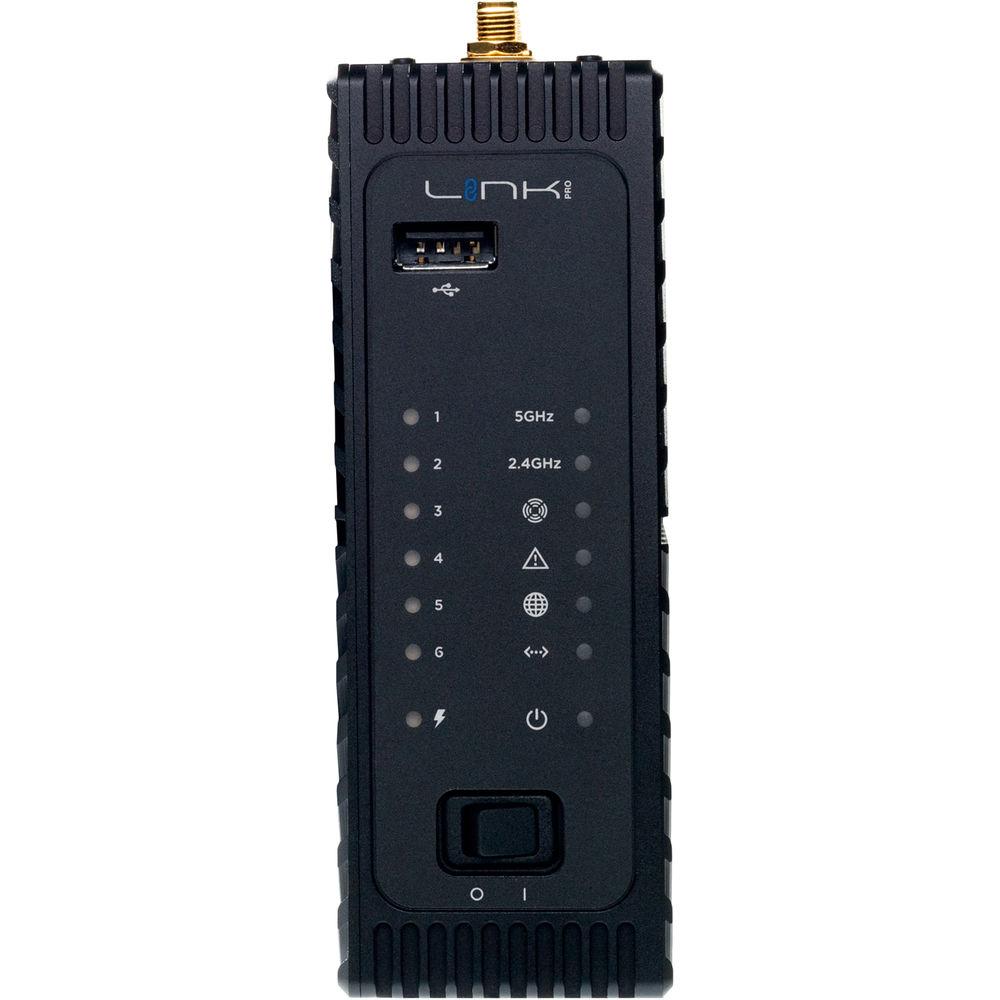

Status LEDs
Multiple LEDs for device, wireless, and network status
Connectors
4 x 4-pin locking connectors | | Power | Power Input
12 to 24 VDC
1 x 2-pin locking connector
Battery Plate
V-mount
Consumption
Router Max: 19 W USB: Up to 5 W | | Environmental | Temperature
Operating: 14 to 122°F / -10 to 50°C
Storage: -40 to 194°F / -40 to 90°C
Humidity
Operating: 5% to 95% (non-condensing)
Storage: 90% (Max) | | Dimensions | 1.69 x 5.22 x 4.72" / 4.29 x 13.26 x 11.99 cm | | Weight | 19.8 oz / 561.3 g | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 14.2 x 11.6 x 7.4" |
