User Manual for Teradek MDR.ACI Wireless RED Camera Control Click to enlarge the picture
Contents of the user manual for the Teradek MDR.ACI Wireless RED Camera Control
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
 |
User manual for the Teradek MDR.ACI Wireless RED Camera Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description Use this MDR.ACI Wireless RED Camera Control from Teradek to remotely access the settings and menu system of RED DSMC2 cameras. The unit connects to the assistant side of the camera and you can control FIZ from up to 5000' away over 2.4 GHz Wi-Fi.

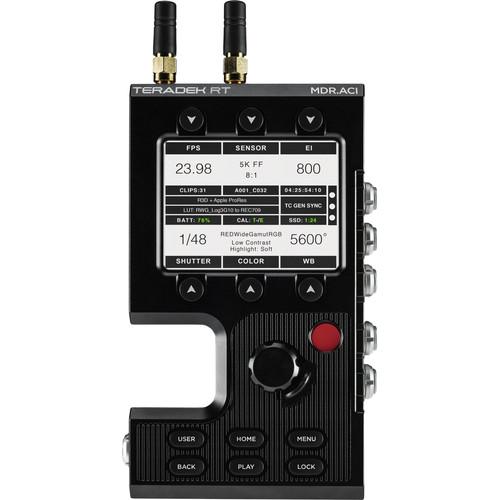

The unit has a bright, integrated LCD display that reformats the RED menu system and displays settings and clearly displays vital information. Customizable buttons and a jog wheel allow you to navigate the camera menus. The unit is also configured for Teradek RT FIZ control and supports MK3.1 motor and CTRL.1 controller settings.

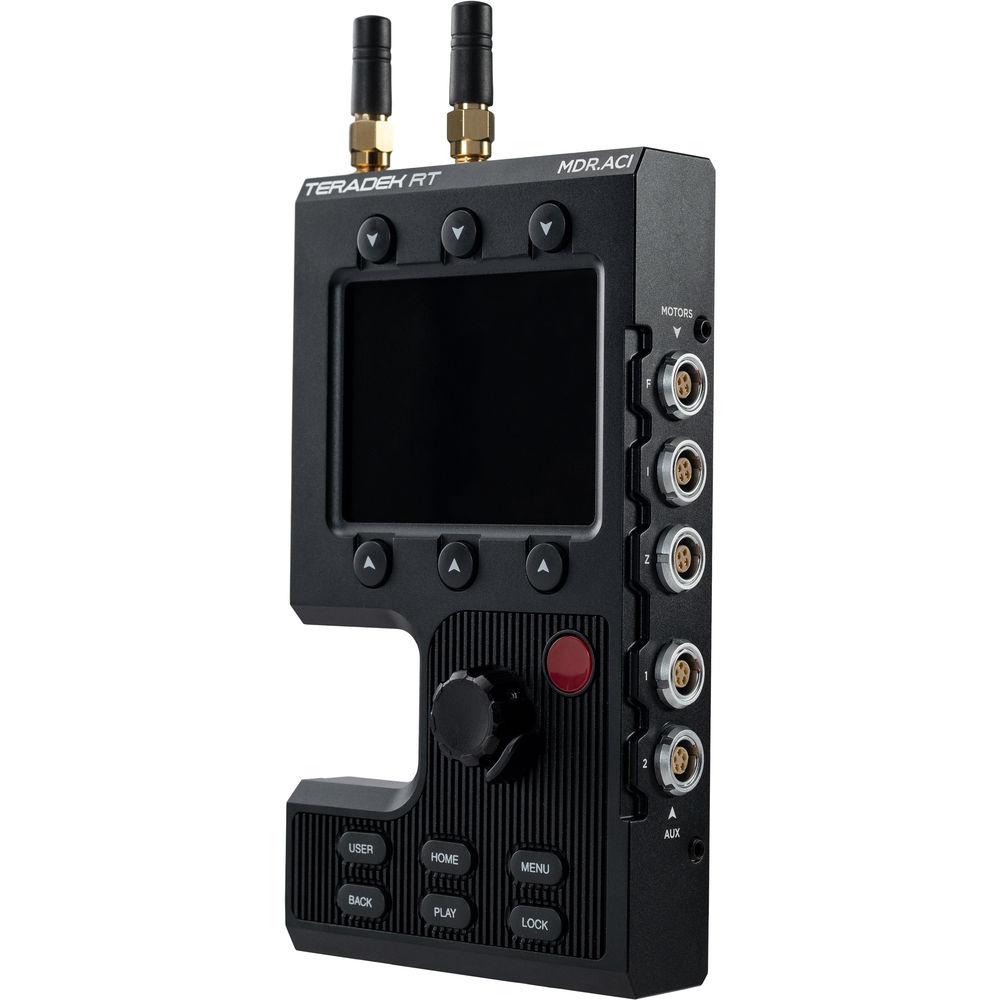

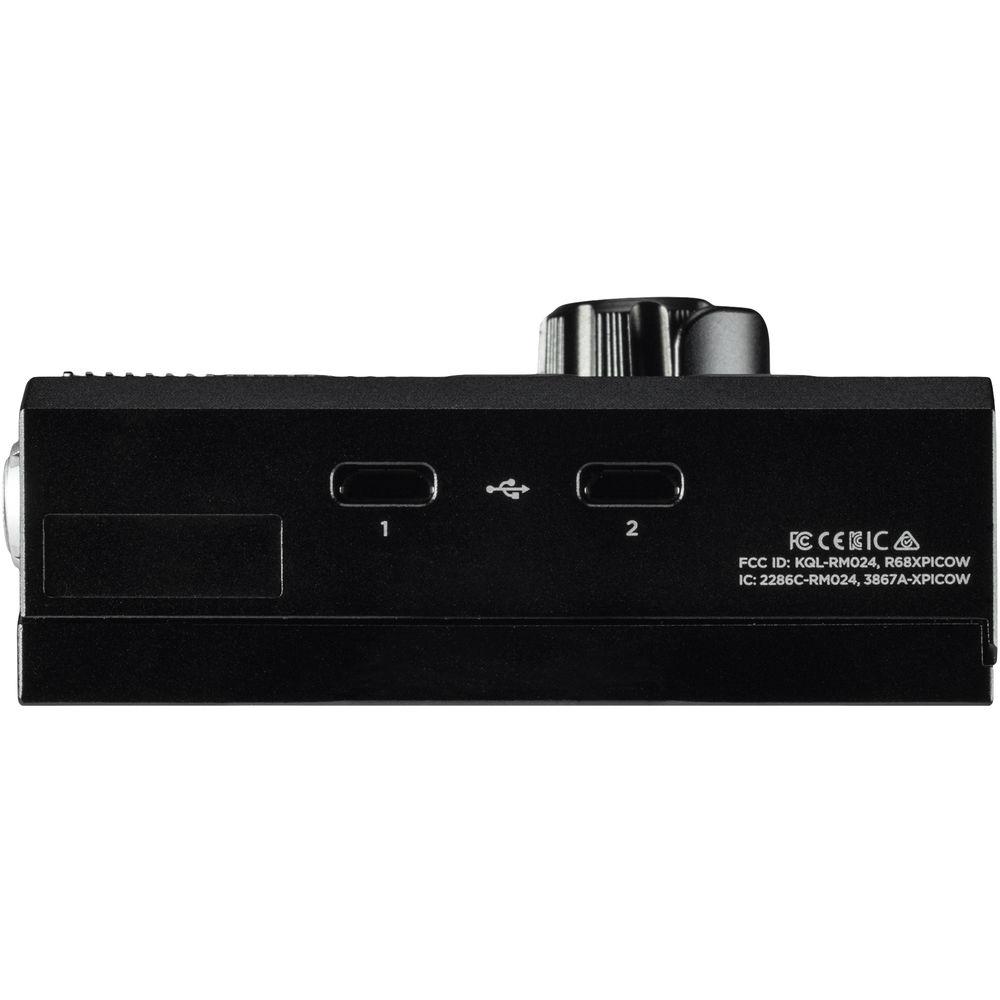

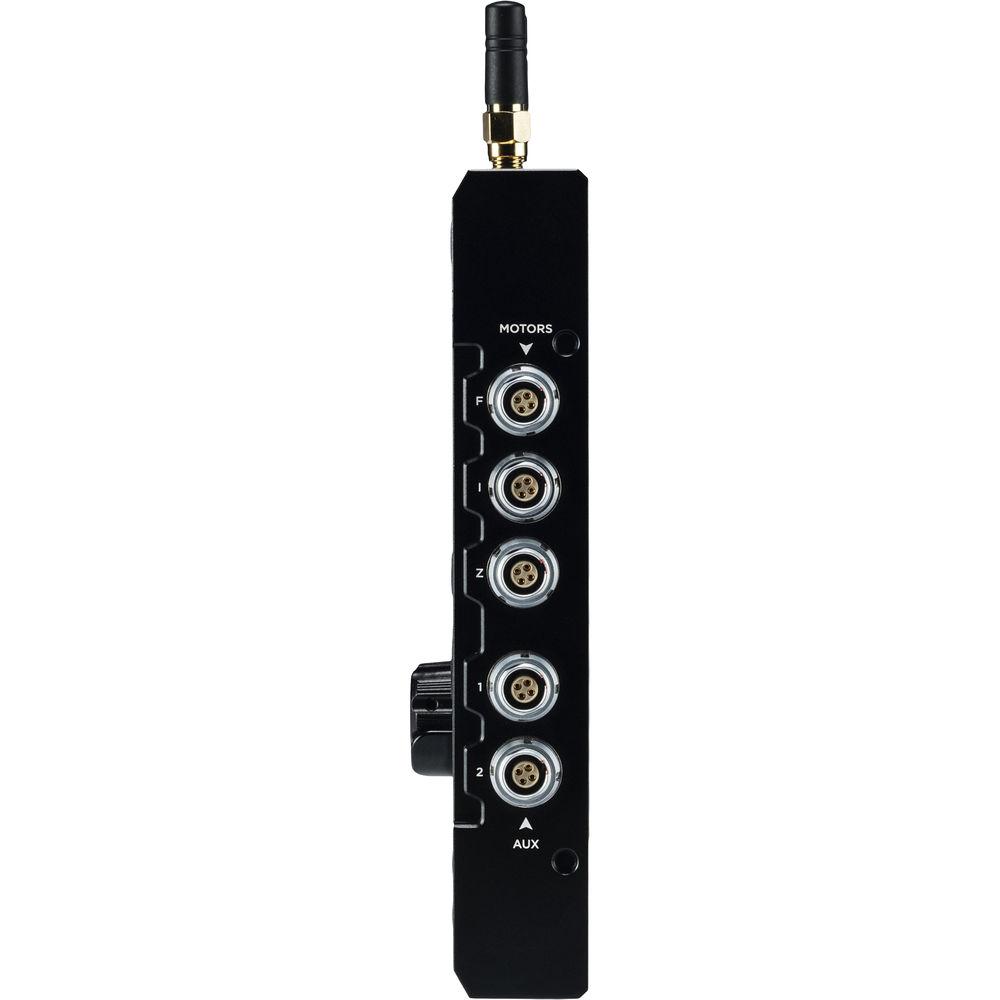

The MDR.ACI features three 4-pin motor ports, one 4-pin power input, and two Aux slave controller input ports. A USB port allows you to configure the unit and upgrade the firmware. - Access RED camera settings via an intuitive menu system on integrated LCD display

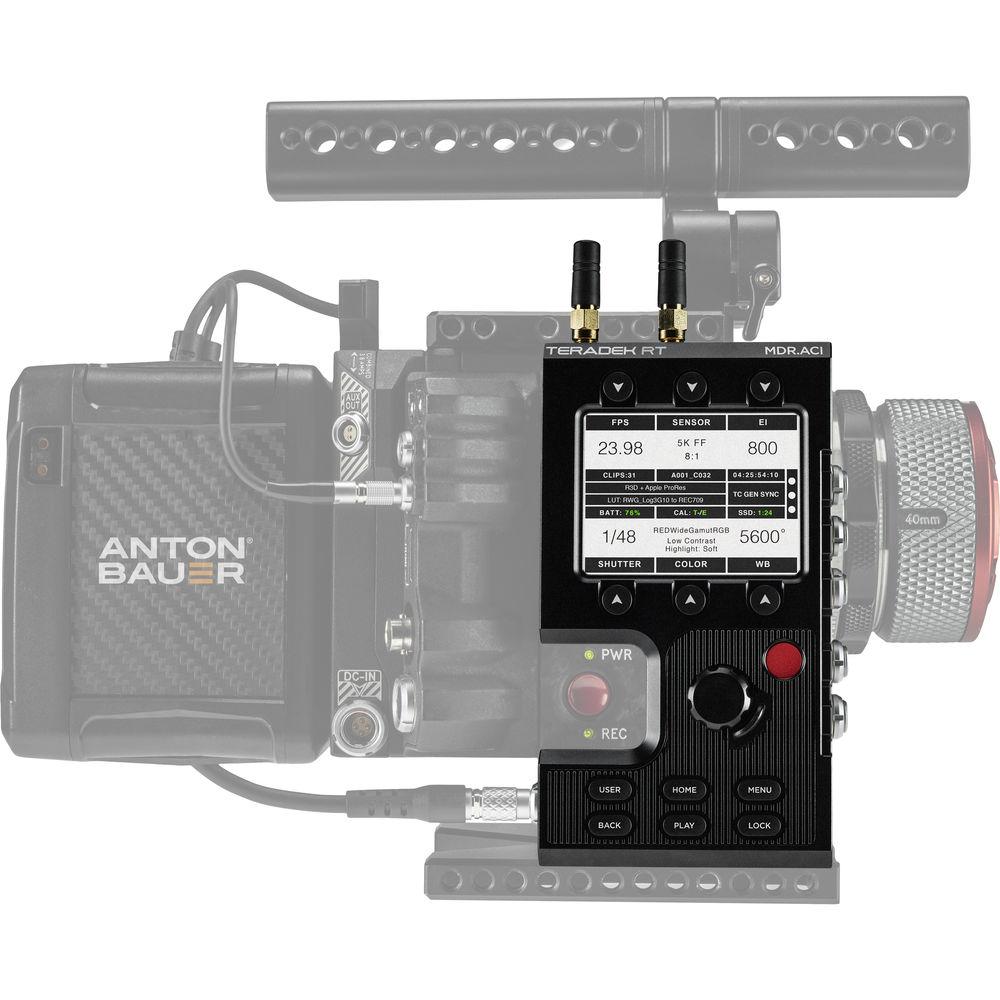

- Connects seamlessly to the assistant side of RED DSMC2 cameras
- Redesigns RED's default camera menu
- Dedicated button and jog wheel controls to navigate through settings
- Fully customizable button layout
- Integrated three-channel MDR for wireless FIZ controls with Teradek RT
- Wireless range up to 5000'
UPC: 818264024355 In the Box Teradek MDR.ACI Wireless RED Camera Control ACUI Top Bracket ACUI Bottom Bracket USB Type-A to Micro-USB Type-B Cable (3') 2 x 2.4 GHz RP-SMA Straight Antenna Power/ACI Control Cable 4 x M4 Screw 4 x Screw Head Cap 2mm Allen Key 3mm Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek MDR.ACI Wireless RED Camera Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-1320 Specs | Material of Construction | Aluminum, PCB Plastic | | Compatibility | Run/Stop and Full Control:
RED DSMC2 Cameras
RF Handsets:
CTRL.1 Controller
MK3.1 Controller
Accessories:
MK3.1 Motor
Thumbwheel

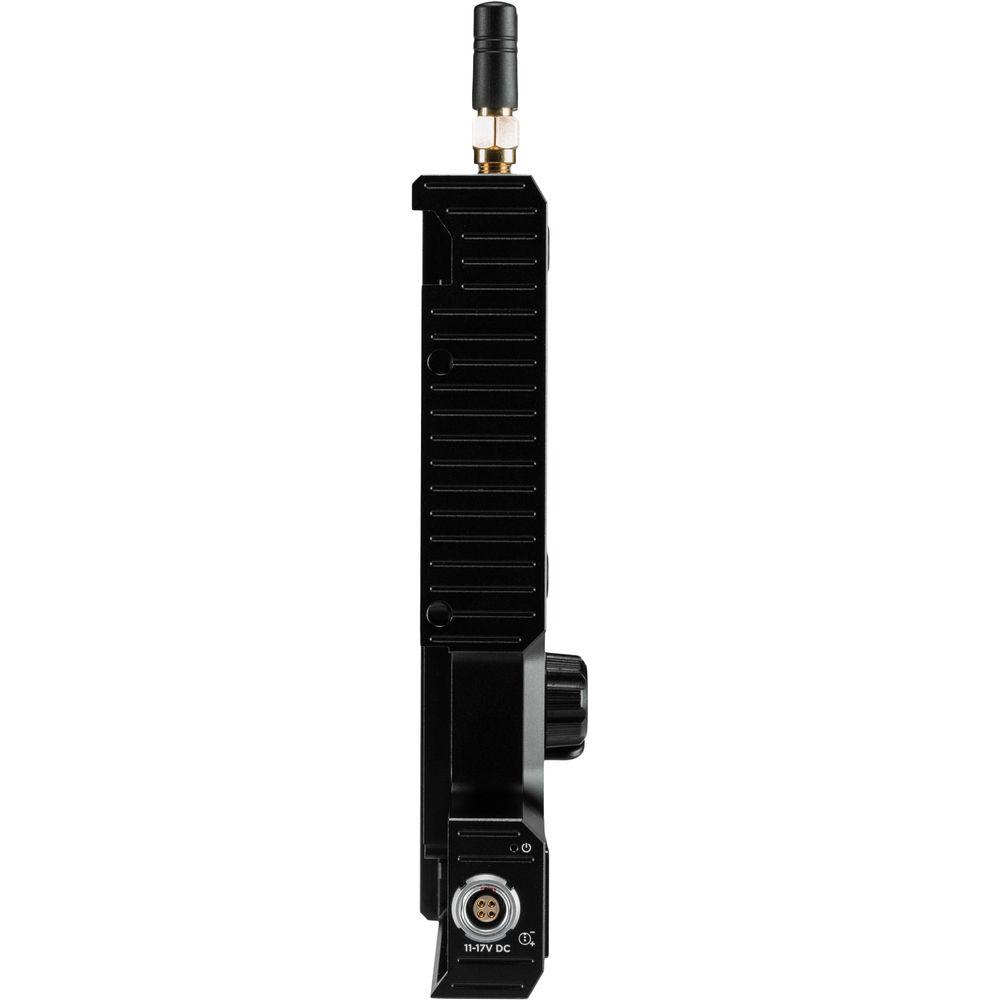

Smartknob | | Connectors | 1 x 4-Pin Power
1 x 4-Pin CTRL, RS-232 RED Control
3 x 4-Pin Motor
2 x 4-Pin Aux/Slave Controller
1 x Micro-USB (Firmware Updates) | | Power Input | 7 to 24 VDC, via 4-Pin Power Input | | Power Consumption | 3 W, Nominal | | Network Protocol | RCP (RED Command Protocol) | | Software Supported | FoolControl for iOS, Android, and macOS devices | | Wireless Protocols | Teradek RT FHSS 2.4 GHz
Bluetooth BLE 5.0 | | Wireless Range | 5000' / 1500 m (Line-of-Sight)
500' / 150 m (Indoors) | | Mounting | M4 Screws to Included DSMC2 Bracket | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 0.9 x 3.1 x 5.7" / 2.4 x 8 x 14.4 cm | | Weight | 9.6 oz / 272 g | | | | Package Weight | 1.28 lb | | Box Dimensions (LxWxH) | 9.8 x 6.8 x 6.4" |
