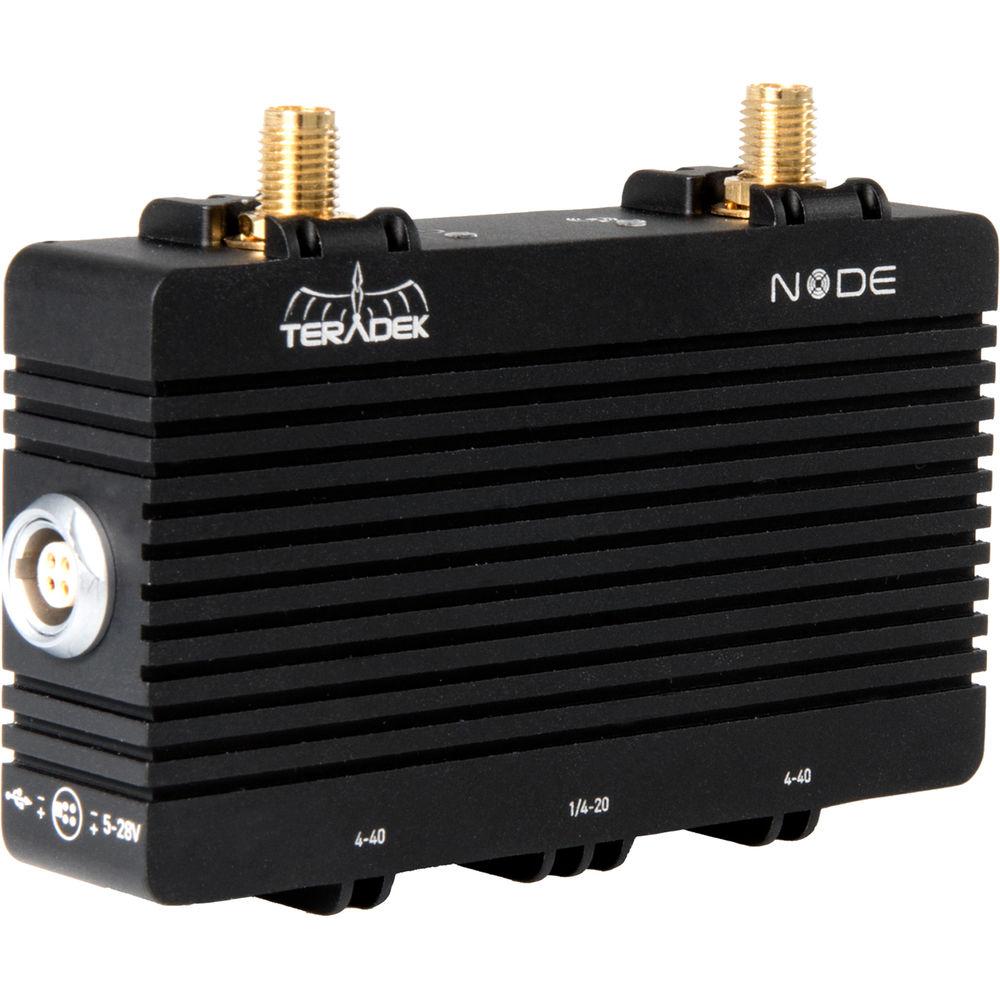

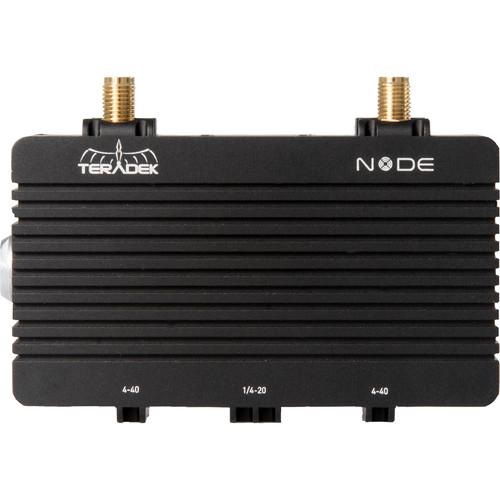

Product description The Node Cellular 4G LTE USB Modem from Teradek allows you to broadcast over 3G, 4G, and 4G LTE network interfaces. With a rugged aluminum chassis and USB connector, it is durable and operates under challenging conditions. - Better Cellular Connection
- Node allows you to go live from locations with the poorest cellular connectivity
- Data Band Support
- Node can operate on every 3G / 4G/ LTE data band in the region
- Durable and Weather-Resistant
- Node features aluminum chassis, 1/4"-20 and 4-40 mounting options, and an USB connector to attach to your Teradek device
- Compatibility
- Node modems can be used with Teradek Cube 600, 700, and 800 series, Bond II / Pro / Expansion Module, and the new Link wireless access point
UPC: 818264020654 In the Box Teradek Node Cellular 4G LTE USB Modem (EU/Asia) 2 x Antennas, Wide Band, Whip Tilt, SMA Mount 2 x Antennas, Wide Band, Penta Straight, SMA Mount SIM Card Adapter 4-Pin to USB Cable (18") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Node Cellular 4G LTE USB Modem in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Node Specs | Network | LTE: LTE FDD Cat 4, Bands 1, 3, 5, 7, 8, 20
UMTS: HSDPA Cat 24, HSUPA Cat 6, Bands 850/900/1900/2100
RF: 2 x 2 MIMO SMA
Band 17 (700 MHz), Band 13 (750 MHz), Band 5 (850 MHz), Band 4 (1700 MHz), and Band 2 (1900 MHz)
Power Class: Class 3, 23 dBm LTE mode
Class 3, 24 dBm for UMTS/HSDPA/HSUPA mode
Data Rate: LTE cat 4: up to 150 Mb/s DL, 50 Mb/s UL
HSDPA cat 14, up to 21 Mb/s DL
HSUPA cat 6, up to 5.6 Mb/s UL

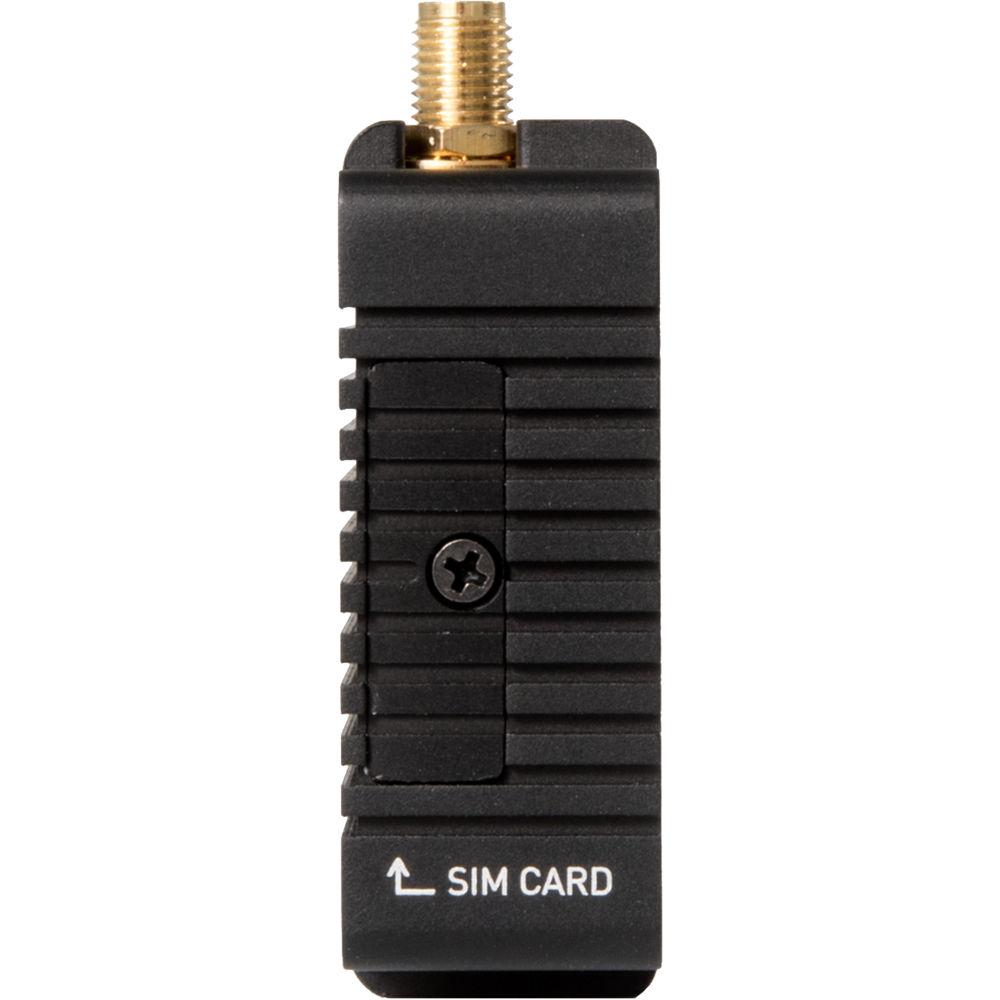

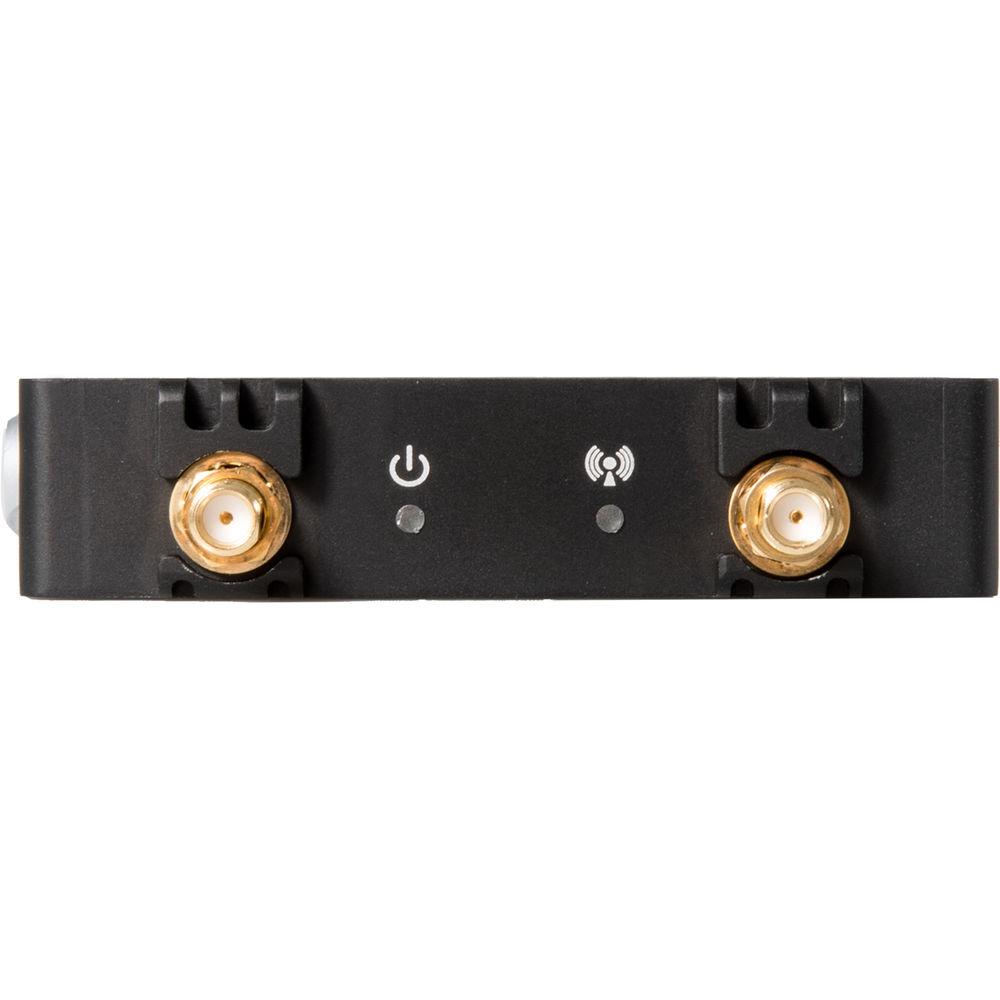

SIM: Full size | | Power Input | 2-pin connector, 5 to 28 V | | Power Consumption | 5 W maximum | | Interface | 2 Status LEDs | | Temperature | Operating: 14 to 122°F (-10 to 50°C)
Storage: -40 to 194°F (-40 to 90°C) | | Humidity | Operating: 5 to 95% (non-condensing)

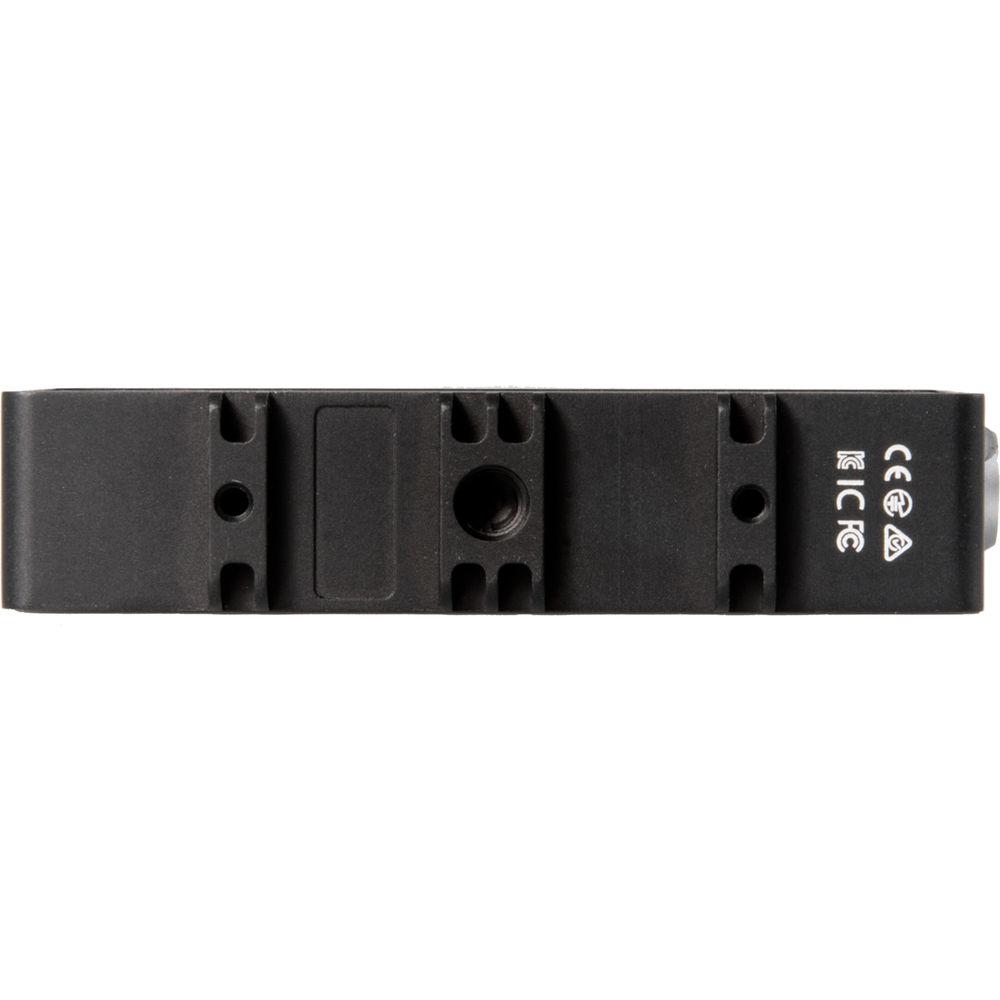

Storage: Maximum 90% | | Construction | Milled aluminum (chassis), regulation-compliant PCB | | Mounting | 1/4"-20 threaded hole
2 x 4-40 threaded holes
Additional mounting options available | | Dimensions | 3.3 x 0.7 x 2.2" (82.8 x 18.5 x 59.3 mm) | | Weight | 4 oz (110 g) |
