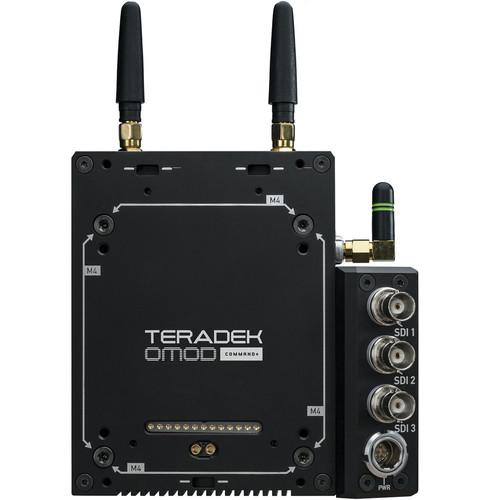

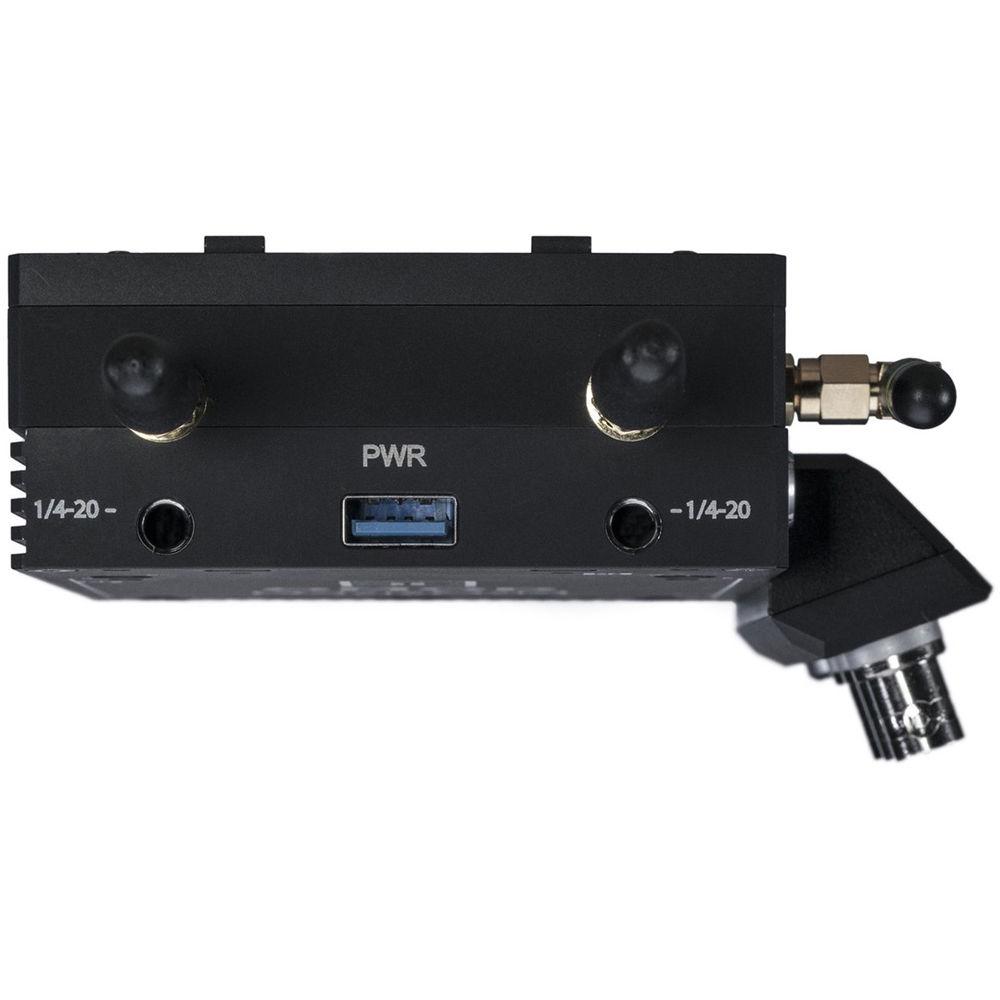

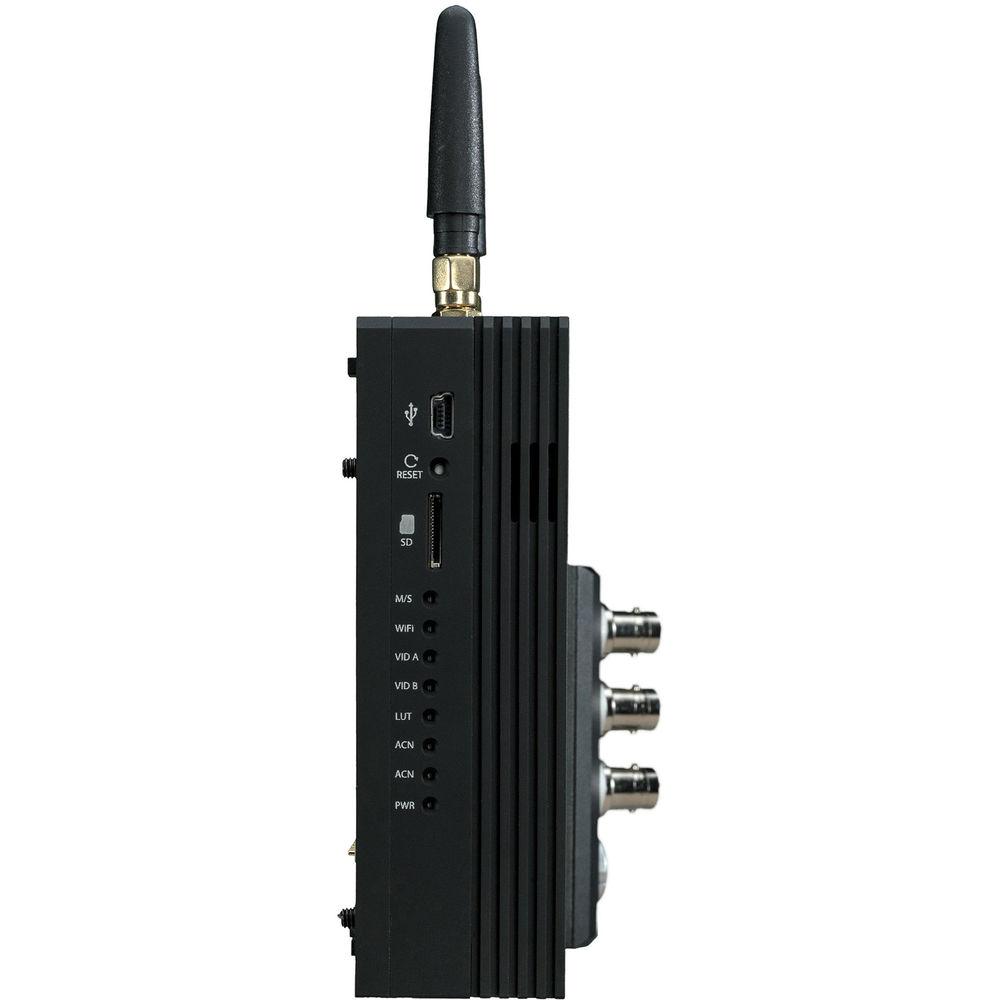

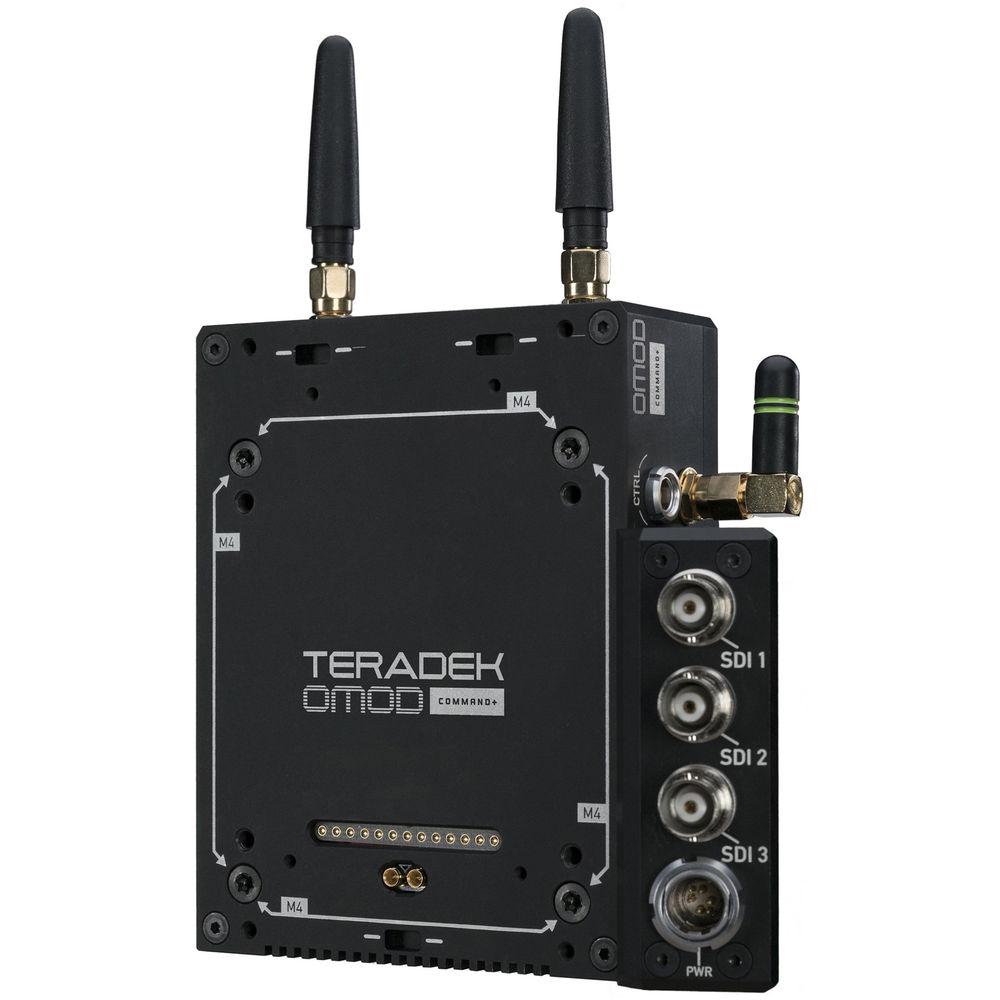

Product description Add connectivity and overall workflow flexibility to your RED DSMC2 camera with the Teradek OMOD COMMAND+ expander module. Not only does the module offer three independent 10-bit HD-SDI outputs, each of which can be configured with its own LUT, it also has wired and wireless timecode sync with genlock, live color processing with HDR compatibility, and 802.11ac Wi-Fi for wireless configuration of the module. A 6-pin LEMO connection is available for mains power, otherwise a separately available compatible battery plate can be used for V-mount or Gold mount batteries. - Live Grade and Look Management
- The OMOD COMMAND+ features advanced signal path options and color processing functionality with three independent HD-SDI outputs. CDL/1024 1D LUTs and 33-point 3D LUTs with ACES compliance, can be synced in realtime, wirelessly to the camera from a computer or tablet running compatible software, such as Pomfort LiveGrade, CODEX Live, or QTAKE Advanced Video Assist.
- Real-Time HDR-2084 Monitoring
- Producing HDR content is easier when you can monitor using an HDR standard. SMPTE 2084 is a PQ HDR transfer function compatible with REC 2020.
- Wireless Internal Timecode and Genlock
- An integrated Ambient ACN module wirelessly transmits, receives, and syncs timecode to a separately available AMBIENT ACN slate or device like the Tiny Lockit or Master Lockit. Internally generated genlock assure precise shutter sync with the timecode. AMBIENT's MasterLockit can also capture the clip filenames from the OMOD.
- SpectraCal CalMAN Integration
- With cooperation from SpectraCal, the OMOD COMMAND+ features integrated CalMAN compatibility. The OMOD delivers the necessary video test patterns at CalMAN's direction. CalMAN measures the display's output, creates a 3D display correction LUT, and loads it into the OMOD onto any specific SDI monitor output path allowing three independent outputs with monitor specific calibration LUTs.
UPC: 818264022894 In the Box Teradek OMOD COMMAND+ MOD GUARD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek OMOD COMMAND in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

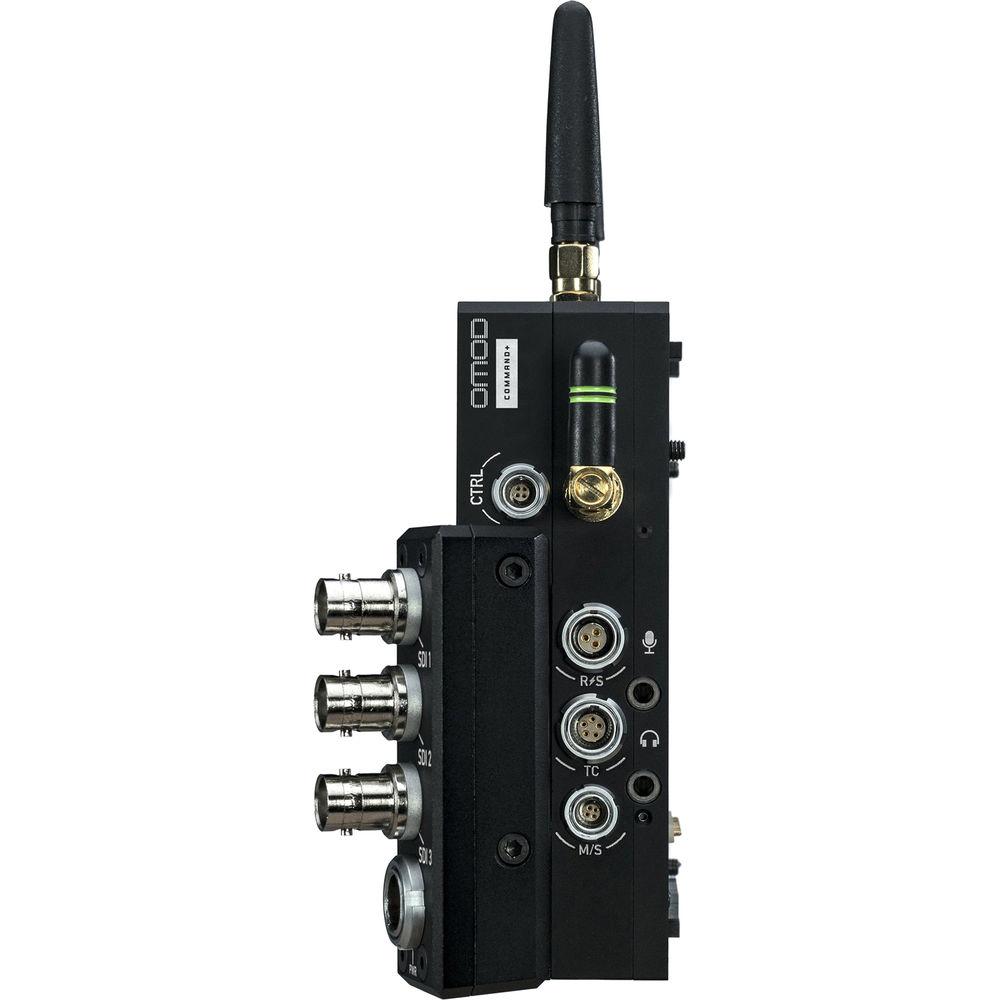

Technical parametersTeradek OMOD Command Specs | Connectors | SDI Output: 3 x BNC
AUX Power Output + Start/Stop: 1 x 3-pin Fischer
Timecode Input: 1 x 5-pin LEMO
RS-232 Control: 2 x 4-pin LEMO
5 V Power Output: 1 x USB Type-A
Mic Input: 1 x 3.5mm stereo
Headphone Output: 1 x 3.5mm stereo
Power Input: 1 x 6-pin LEMO
Camera: RED DSMC2 pogo plate | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.5 x 6.4 x 4.9" |
