User Manual for Teradek OMOD COMMAND RT Click to enlarge the picture
Contents of the user manual for the Teradek OMOD COMMAND RT
- Product category: Camcorder Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Camcorder Accessories
 |
User manual for the Teradek OMOD COMMAND RT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

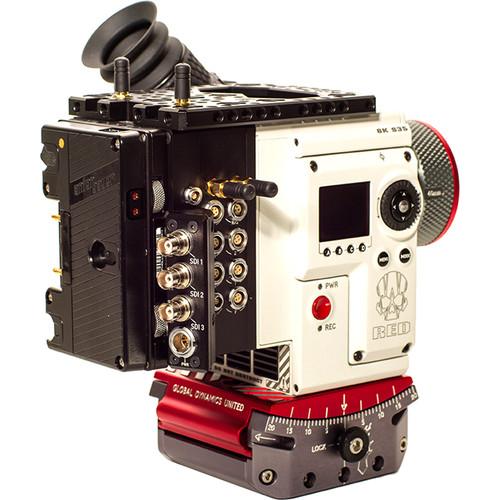

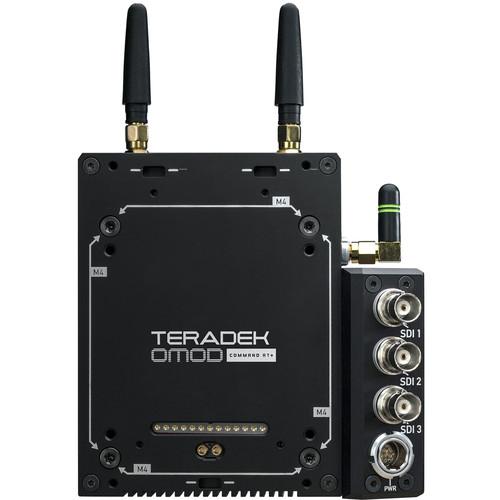

Product description Use the Teradek OMOD COMMAND RT+ expander module to add essential I/O plus wireless camera and lens control capabilities to your DSMC2 camera without massively increasing your camera's footprint. While similar in function to the OMOD COMMAND+ the OMDO COMMAND RT+ adds compatibility with Teradek RT and RTMotion lens control equipment. Up to three motors, for focus, iris, and zoom actuation, can be connected directly to the OMOD COMMAND RT+ unit via 4-pin LEMO terminals. After that, it's just a matter of connecting your MK3.1 hand unit, and you're ready to go. Like the OMOD COMMAND+, the OMOD COMMAND RT+ offers three independent 10-bit HD-SDI outputs, each of which can be configured with its own LUT. It also has wired and wireless timecode sync with genlock, live color processing with HDR compatibility, and 802.11ac Wi-Fi for wireless configuration of the module. A 6-pin LEMO connection is available for mains power, otherwise a separately available compatible battery plate can be used for V-mount or Gold mount batteries. - Live Grade and Look Management
- The OMOD COMMAND RT+ features advanced signal path options and color processing functionality with three independent HD-SDI outputs. CDL/1024 1D LUTs and 33-point 3D LUTs with ACES compliance, can be synced in realtime, wirelessly to the camera from a computer or tablet running compatible software, such as Pomfort LiveGrade, CODEX Live, or QTAKE Advanced Video Assist.
- Real-Time HDR-2084 Monitoring
- Producing HDR content is easier when you can monitor using an HDR standard. SMPTE 2084 is a PQ HDR transfer function compatible with REC 2020.
- Wireless Internal Timecode and Genlock
- An integrated Ambient ACN module wirelessly transmits, receives, and syncs timecode to a separately available AMBIENT ACN slate or device like the Tiny Lockit or Master Lockit. Internally generated genlock assure precise shutter sync with the timecode. AMBIENT's MasterLockit can also capture the clip filenames from the OMOD.
- SpectraCal CalMAN Integration
- With cooperation from SpectraCal, the OMOD COMMAND RT+ features integrated CalMAN compatibility. The OMOD delivers the necessary video test patterns at CalMAN's direction. CalMAN measures the display's output, creates a 3D display correction LUT, and loads it into the OMOD onto any specific SDI monitor output path allowing three independent outputs with monitor specific calibration LUTs.
UPC: 818264022887 In the Box Teradek OMOD COMMAND RT+ MOD GUARD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek OMOD COMMAND RT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

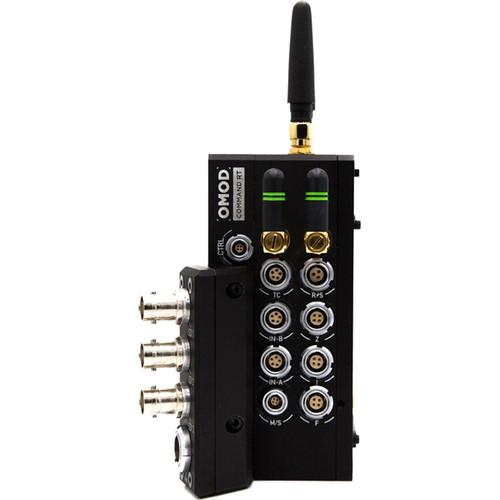

Technical parametersTeradek OMOD Command Specs | Connectors | SDI Output: 3 x BNC
AUX Power Output + Start/Stop: 1 x 3-pin Fischer
Teradek RT Control Input: 2 x 5-pin LEMO
Motor Drive Output: 3 x 4-pin LEMO
Timecode Input: 1 x 5-pin LEMO
RS-232 Control: 2 x 4-pin LEMO
5 V Power Output: 1 x USB Type-A
Mic Input: 1 x 3.5mm stereo
Headphone Output: 1 x 3.5mm stereo
Power Input: 1 x 6-pin LEMO
Camera: RED DSMC2 pogo plate | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 6.5 x 6.4 x 4.8" |
