User Manual for Teradek OMOD XLR2 Click to enlarge the picture
Contents of the user manual for the Teradek OMOD XLR2
- Product category: Camcorder Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Camcorder Accessories
 |
User manual for the Teradek OMOD XLR2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

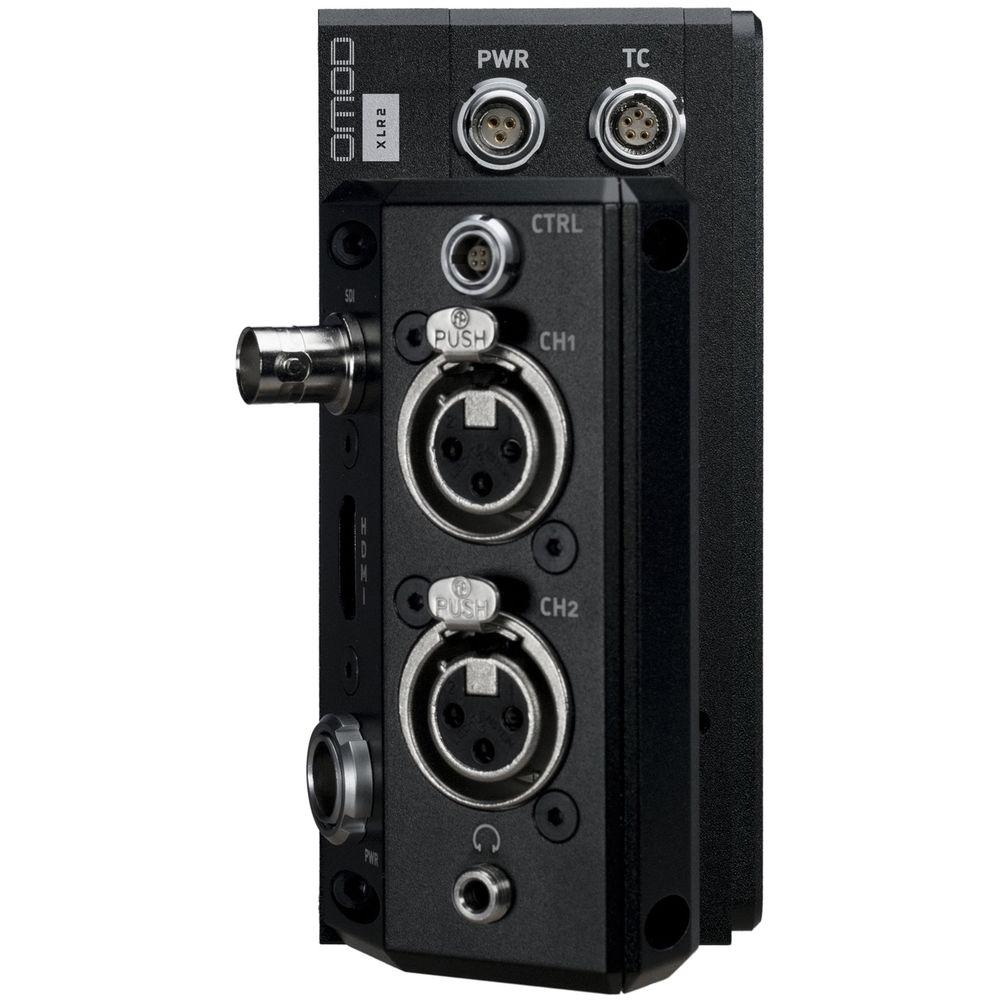

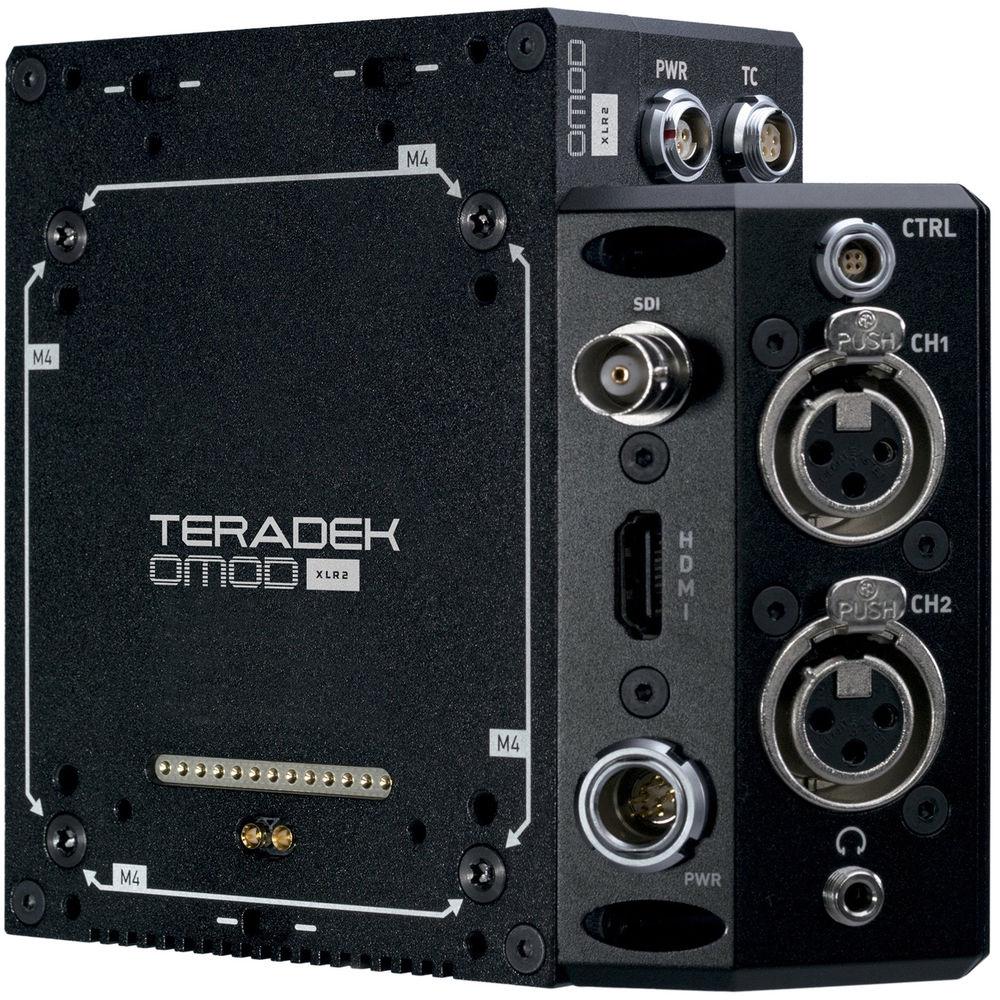

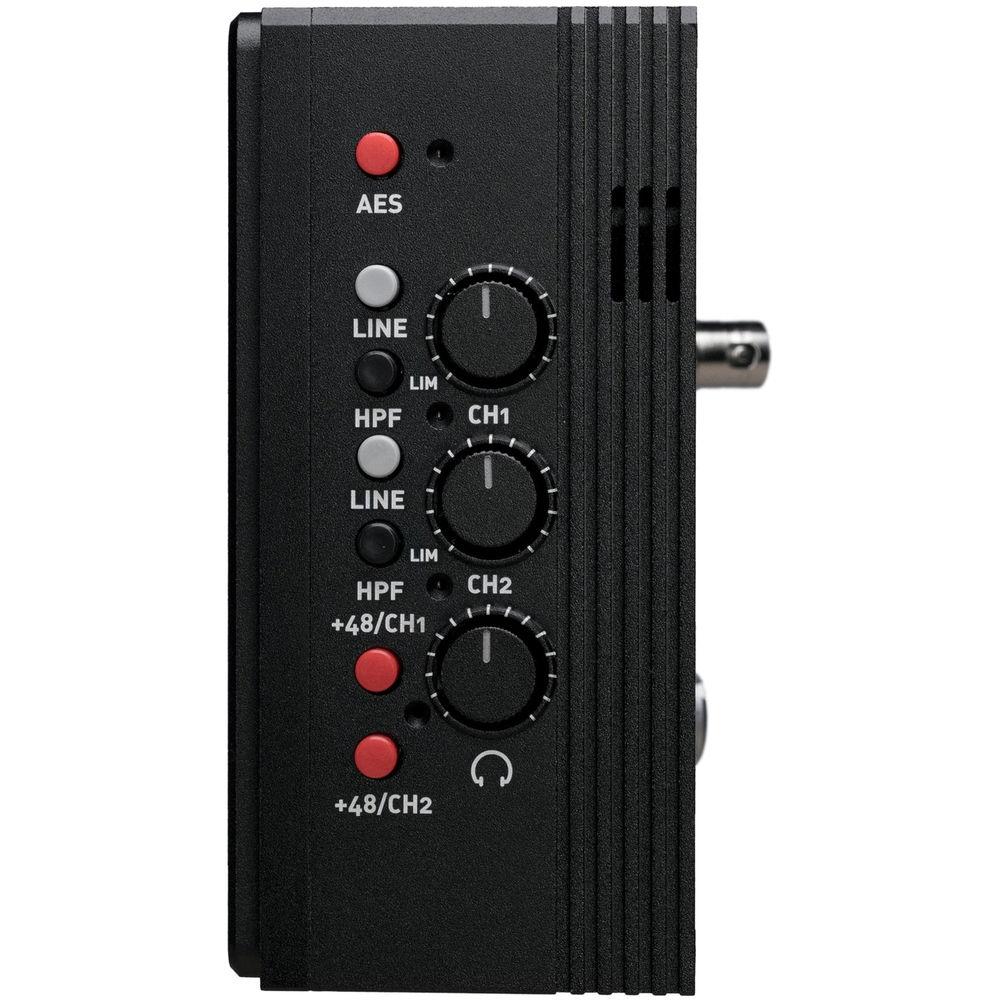

Product description The Teradek OMOD XLR2 is the second generation OMOD XLR expander module for RED DSMC2 camera BRAINs. The second generation features upgraded audio circuitry for improved audio performance over its predecessor. Two XLR inputs accept mic and line level analog signals as well as AES digital signals. 48V phantom power can be provided for condenser microphones. On the video side, HDMI and SDI video outputs are available for connecting to monitors or wireless transmitters. Timecode and RTMotion control LEMO inputs plus a 3-pin power output with start/stop control are also available. If no separate battery plate is mounted, a 6-pin LEMO power connection for RED power supplies can be connected for mains power. Use the 3.5mm headphone jack to quickly monitor audio input. On the operator side, gain knobs for the XLR inputs, line/AES selection, high-pass filter, and phantom power switches can be easily accessed. UPC: 818264020739 In the Box Teradek OMOD XLR2 MOD GUARD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek OMOD XLR2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek OMOD XLR2 Specs | Connections | HDMI Output: 1 x HDMI type A
SDI Output: 1 x BNC
Line/Mic Audio Input: 2 x XLR (analog/AES)
Headphone Output: 1 x 3.5mm stereo
AUX Power Output + Start/Stop: 1 x 3-pin LEMO
Timecode Input: 1 x 5-pin LEMO
RTMotion Control Input: 1 x 4-pin LEMO
Power Input: 1 x 6-pin LEMO
Camera: RED DSMC2 pogo plate | | Audio Input | Max Gain: 65 dB (mic), 35 dB (line)
Max Input Level: 0 dBu (mic), +20 dBu (line)
Impedance: 2 kOhm (mic), 10 kOhm (line)
Phantom Power: +48V
Frequency Response: 20 Hz to 20 kHz (+0 at -1.5 dB)
High-Pass Filter: -3 dB @ 90 Hz, 6 dB per octave
Harmonic Distortion: <0.03% (1 kHz, 0 dB), <0.15% (40 Hz to 20 kHz +15 dBm)
Crosstalk: <70 dB (40 Hz to 15 kHz) | | Audio Output | Max Level: +18 dBm, +14 dBm (monitor)
Impedance: <20 ohms (monitor path)
Noise: <-125 db ein (mic level, 20 hz to khz, 200 ohm source), 80 snr (line khz)
Limiter Threshold: +8 dB | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 6.4 x 6.4 x 4.9" |
