User Manual for Teradek RT ACI Module for RED DSMC2 Click to enlarge the picture
Contents of the user manual for the Teradek RT ACI Module for RED
- Product category: Camcorder Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Camcorder Accessories
 |
User manual for the Teradek RT ACI Module for RED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

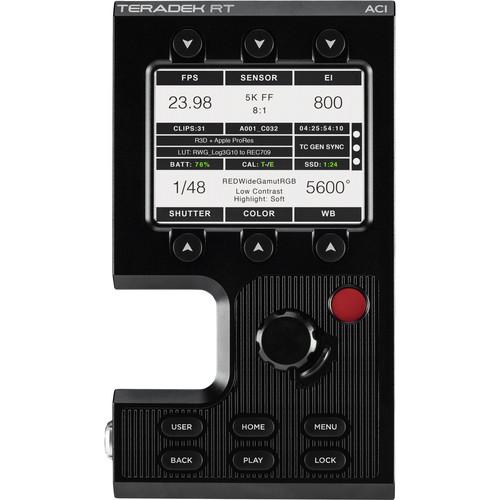

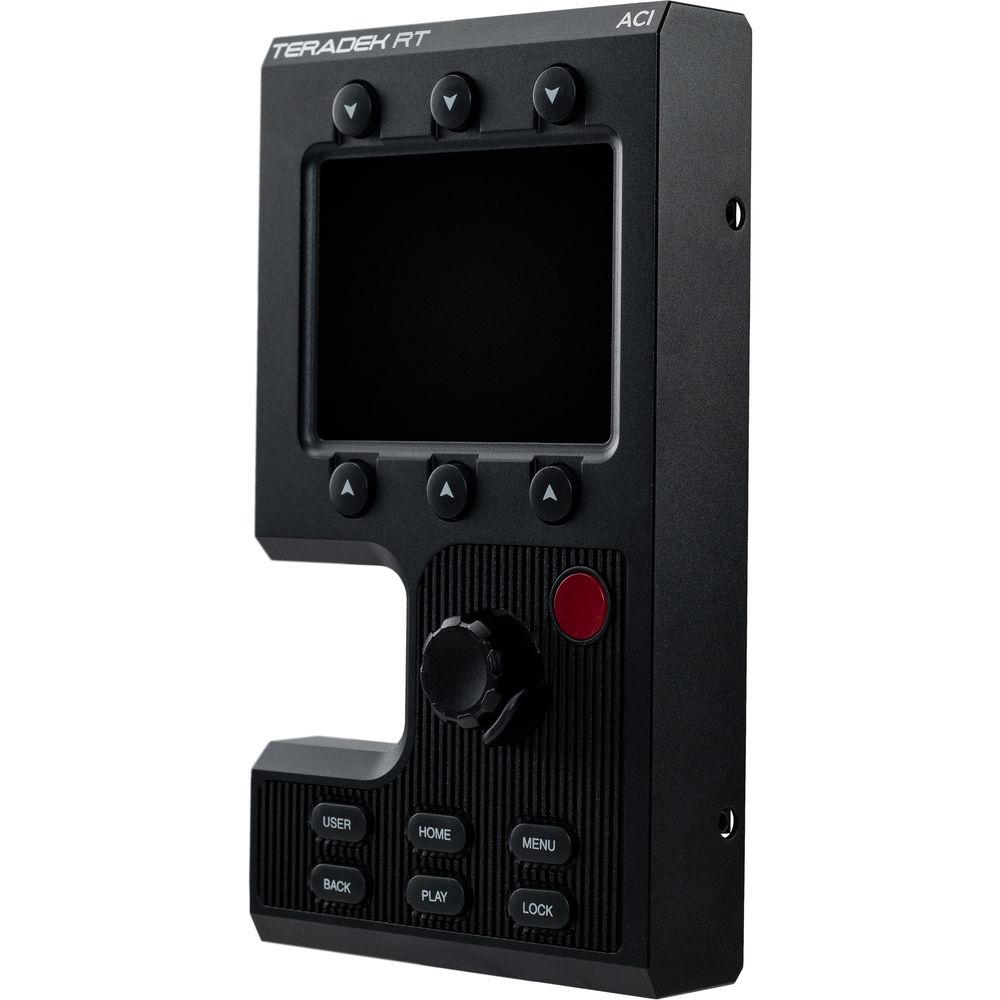

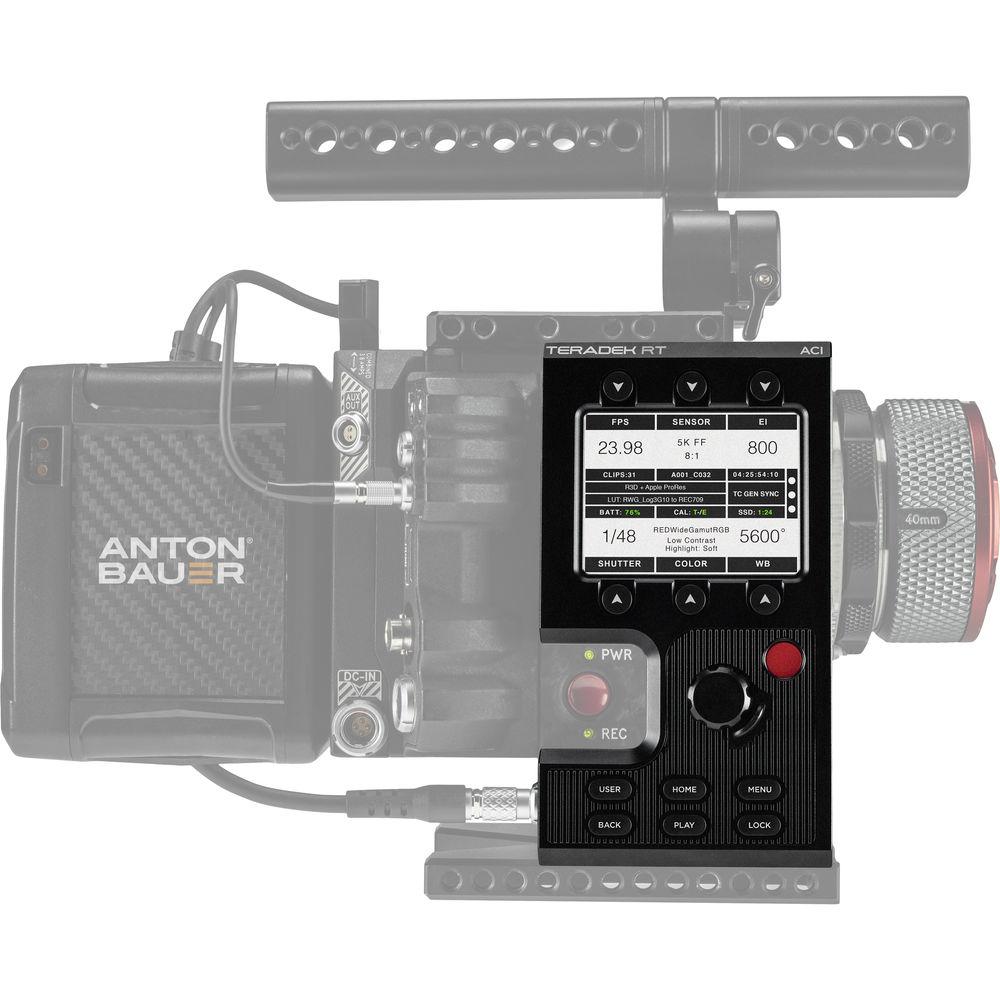

Product description The Teradek RT ACI Module is a sleek component offering intuitive menu control for your DSMC2 camera. This add-on unit connects seamlessly to the assistant's (right) side of the camera, placing optimal control at your AC's fingertips.The ACI Module redesigns RED DSMC2's default menu for easier navigating and incorporates push buttons and a jog wheel for fully customizable, reassuring tactile control. This unit is constructed from lightweight, durable aluminum, and its LCD display screen features both daylight and interior settings for maximum visibility. Note: Requires a RED-approved DSMC2 Expander module with an RS-232 control port. Features -
- Redesigns RED DSMC2's default menu for easier navigating
- Built-in push buttons and a jog wheel provide fully customizable, reassuring tactile control
- LCD display screen features both daylight and interior settings for maximum visibility

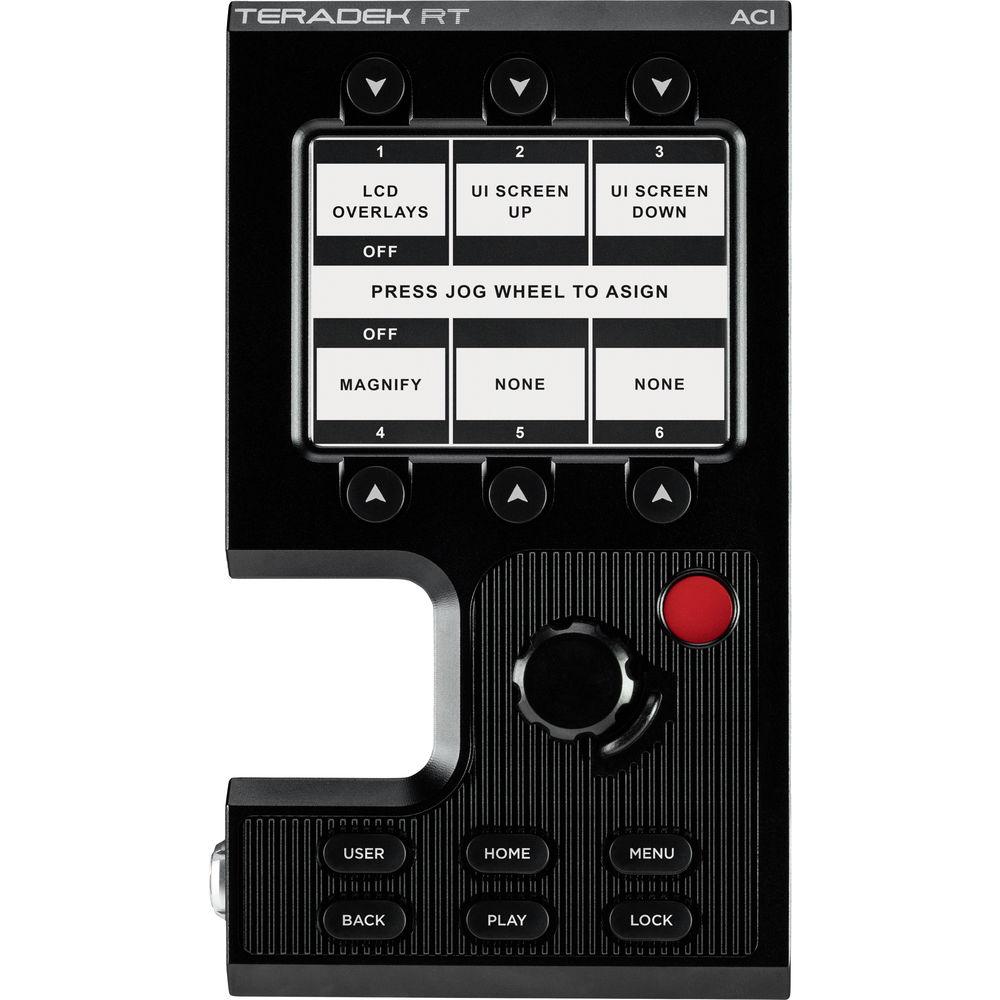

- Fully customizable button layout
UPC: 818264024348 In the Box Teradek RT ACI Module for RED DSMC2 Top Bracket Bottom Bracket 4 x Nylon-Tipped, Steel M4 x 8mm Screw 4 x Socket Head Cap, Black Oxide M3 x 4mm Screw 2mm Allen Key (3 3/8") 3mm Allen Key (2 9/16") USB Type-A to USB Micro-B Cable (3') Power/Control Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT ACI Module for RED DSMC2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-1322 Specs | Interface | 12 x Menu Buttons

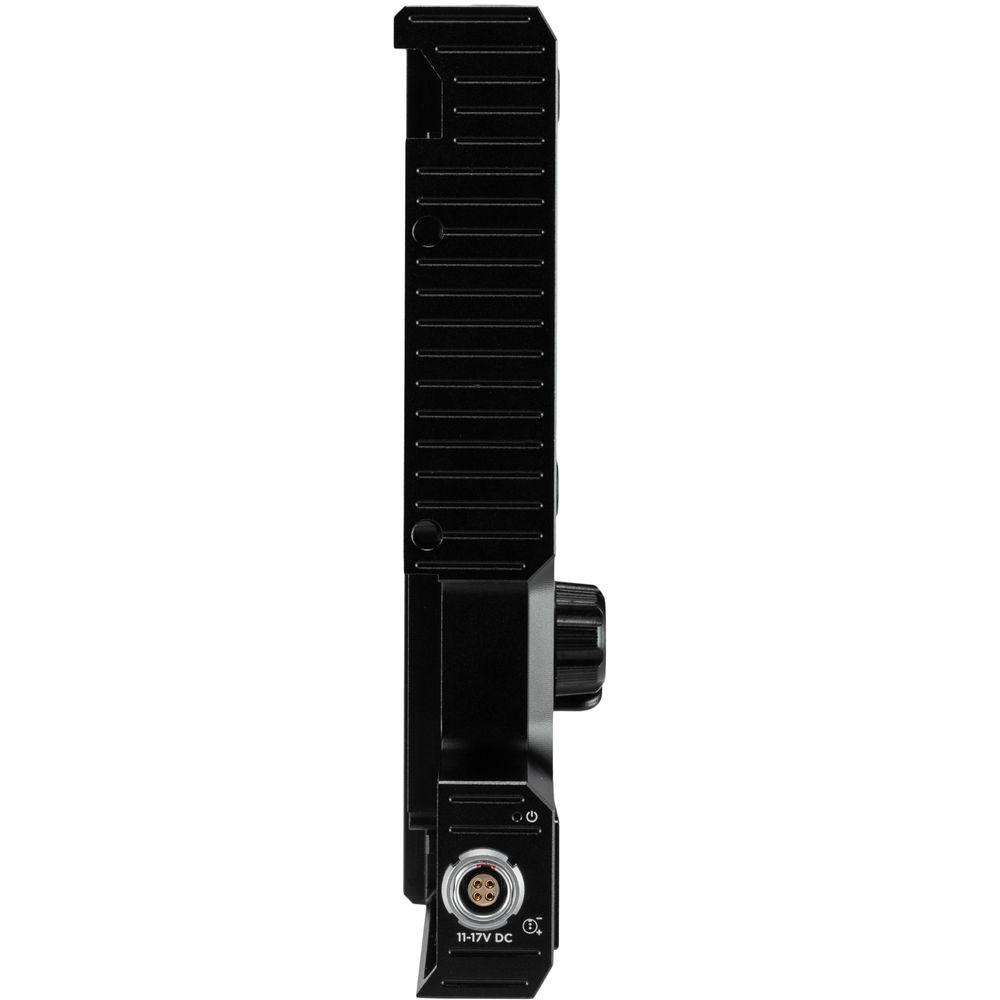

1 x Jog Wheel | | Connectors | 1 x Power/Control

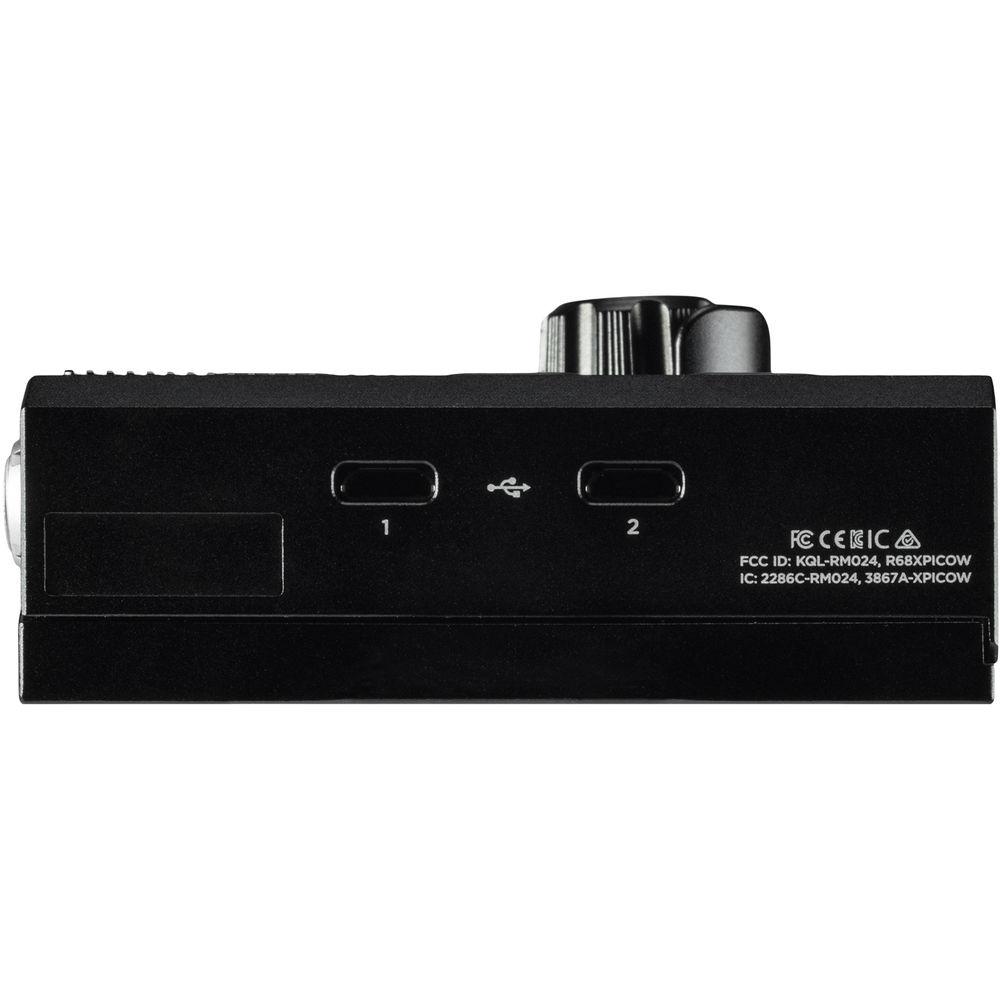

1 x Micro-USB, for Upgrades | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Material of Construction | Milled Aluminum
Regulation-Compliant PCB | | Dimensions | 5.7 x 3.1 x 0.9" / 143.9 x 79.6 x 23.7 mm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.53 lb | | Box Dimensions (LxWxH) | 8.8 x 6.8 x 5.0" |
