User Manual for Teradek RT Latitude MDR-M Receiver Click to enlarge the picture
Contents of the user manual for the Teradek RT Latitude MDR-M Receiver
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
|
User manual for the Teradek RT Latitude MDR-M Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

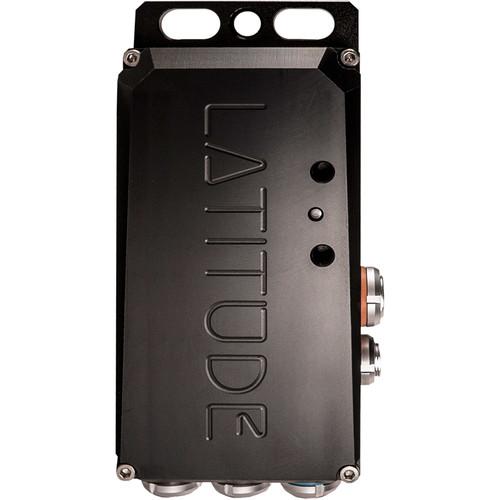

Product description The mini RT MDR-M Receiver (1-2 Axis) from Teradek is part of the Latitude lens control system operating via both RF (wireless) and WiFi. This receiver's 0.6-mile wireless range is handy for drone use and for when you're operating in harsh RF environments like stadiums. Expanding upon the camera run/stop function of the RT MK3.1, the MDR-M's WiFi connectivity provides camera control for RED DSMC2/DSMC cameras (with additional cameras to be added via a firmware update). This Latitude receiver is compatible with RT MK3.1 controllers and motors, driving up to two lens motors with functions such as focus, iris, and/or zoom (controller and motors available separately).The MDR-M Receiver's integration with RED provides several options for DSMC2/DSMC lens and camera control. Use the RT MK3.1 wireless controller and RF wireless to control EF lenses via their internal motor; PL lenses can be controlled with the addition of RT Motors. Both the MK3.1 controller and the RT Smartknob can provide shutter, ISO, and button-feature control. RT Thumbwheels can provide focus and iris control, and the Foolcontrol app can be used with a WiFi connection.In Transmitter Mode, two MRR-M units can be paired to extend control up to 0.9 miles away from your camera using WiFi, RF wireless, and the RT Foolcontrol iOS/Android app. Use the Foolcontrol app to a create a versatile interface between the Latitude system and your camera, lens, and smartphone.The RT MDR-M Receiver is made from aircraft-grade aluminum, and is designed with an integrated antenna, lessening the chance of antenna damage. Power this ultra-compact, lightweight receiver via its 7-17V 2-pin LEMO port. Note: This receiver has one motor port, a Dual Motor cable (not included) is required to control two motors. - Features
-
- Drives up to two motors for focus, iris, or zoom functions
- Compatible with RT MK3.1 controllers and motors
- RF (wireless) and WiFi control
- Run/stop support for most cine-style HD cameras
- Camera control for RED DSMC2/DSMC cameras
- Supports RT Smartknob and Thumbwheel control
- Compact, lightweight aluminum alloy unit
- Internal antenna lessens chance of damage
- Power via 2-pin LEMO 7-17V input.
- Controller Support
- RT MK3.1 controller
RT Thumbwheel
RT Smartknob - Run/Stop Support
- Including but not limited to:
ARRI ALEXA, ALEXA Mini, AMIRA, etc.
Blackmagic
Canon C100, C300 (MkII+), C500
Panasonic Varicam
Phantom
RED DSMC2, DSMC, ONE
Sony F5, F55, FS7 (MkII+) - Camera Control Support
- RED DSMC2, RED DSMC control:
EF/AF Focus/Iris
Shutter
ISO
Button features: 2x Magnification, Edge, Focus Assist UPC: 818264022214 In the Box Teradek RT Latitude MDR-M Receiver (1-2 Axis) - Limited 1-Year Warranty, Extendable to 2 Years with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT Latitude MDR-M Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 15-0008 Specs | Interface - Connectors | 1 x Power-In: 2-pin LEMO 0B, 7-17 VDC
2 x Accessory In: 5-pin LEMO 0B
1 x Motor: 4-pin LEMO 0B
(Use separately available breakout cable to control 2 x motors)
1 x Control (Camera): 4-pin LEMO 00B
(RS-232 for RED control, serial control for LANC, programmable line driver for select cameras)
1 x USB: Mini-USB (firmware updates) | | WiFi Connectivity | 1 x 2.4 GHz WiFi module
1 x 2.4 GHz RT FHSS wireless module | | Wireless Range | RT FHSS:
Line-of-sight: Up to 4921' (1500 m) (in USA/FCC mode)
Indoors: Up to 492' (150 m)
WiFi:
Outdoors: Up to 328' (100 m) | | Operating Temperature Range | -4 to 122°F (-20 to 50°C) | | Storage Temperature Range | -40 to 185°F (-40 to 85°C) | | Dimensions | 3.9 x 1.9 x 0.9" (100 x 48 x 22 mm) | | Weight | 3.7 oz (106.3 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.7 x 3.6 x 2.8" |
