User Manual for Teradek RT Latitude MDR-SK SIDEKICK Interface for Red DSMC2 Cameras Click to enlarge the picture
Contents of the user manual for the Teradek RT Latitude MDR-SK SIDEKICK Interface
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
|
User manual for the Teradek RT Latitude MDR-SK SIDEKICK Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

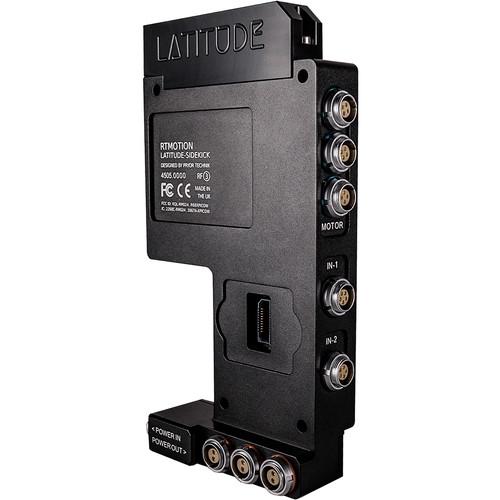

Product description The slim RT Latitude MDR-SK SIDEKICK Interface from Teradek is a component of the Latitude lens control system. Sandwiched between the SIDEKICK and your DSMC2 camera, this unit provides an array of input and output ports for various control devices. Use the MDR-SK with the RT MK3.1 wireless controller to drive up to three RT MK3.1 lens motors. Or attach up to two Slave Controllers like the RT Thumbwheel, Zoomrocker, or Smartknob to the MDR-SK's two accessory inputs. Data passes through the MDR-SK module so your SIDEKICK unit functions normally. This interface attaches to your RED DSCM2 camera and can be topped with either the RED SIDEKICK control, a RED cheeseplate, or a blank plate. * The MDR-SK interface requires more power than the RED BRAIN can supply via the SIDEKICK port, and must be powered via the External Power port and Control cables. * The MDR-SK does not have WiFi built in, as it is designed for use with DSMC2 cameras with integral WiFi. * Although the RED SIDEKICK remains fully functional, use of the RED DSMC2 SIDE HANDLE is not supported due to physical warranty concerns. - Features
-
- Control up to three focus, iris, or zoom functions
- Compatible with RT MK3.1 controllers and motors
- Passes data through, and maintains SIDEKICK functions
- Supports RT Smartknob, Zoomrocker, and Thumbwheel controls
- Lightweight aluminum unit fits between the RED SIDEKICK and a DSCM2 camera
- Three 2-pin LEMO power output ports for accessories
UPC: 818264022252 In the Box Teradek RT Latitude MDR-SK SIDEKICK Interface for Red DSMC2 Cameras (3 Axis) - Limited 1-Year Warranty, Extendable to 2 Years with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT Latitude MDR-SK SIDEKICK Interface for Red DSMC2 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 15-0012 Specs | Interface - Connectors | 1 x Power input
3 x Power outputs
3 x Motor ports
2 x Slave controller inputs The 3 x 2-pin LEMO power outputs are passed through directly at the same voltage as the power input. | | Dimensions and Weight | Not specified by manufacturer | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 11.3 x 6.5 x 2.3" |
