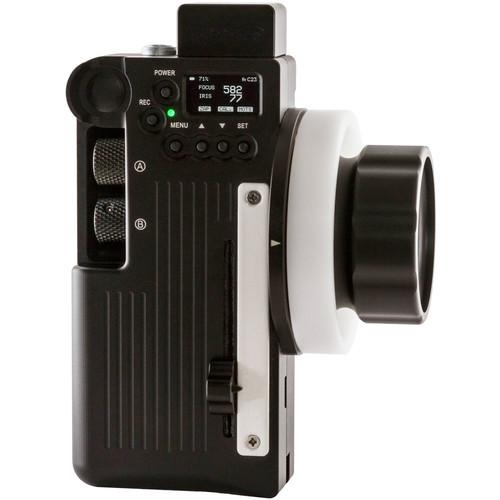

User Manual for Teradek RT MK3.1 4-Axis Wireless Lens Controller Click to enlarge the picture
Contents of the user manual for the Teradek RT MK3.1 4-Axis Wireless Lens
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
|
User manual for the Teradek RT MK3.1 4-Axis Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description Teradek's RT MK3.1 4-Axis Wireless Controller enables you to regulate up to four lens motors, or other controls such as 3D functions (receiver and motors available separately). This controller offers a large focus knob, one slider control, and two side knobs (A and B). Each input on the versatile MK3.1 Controller can be mapped to any lens axis (focus, iris, zoom, or 3D function) as you prefer. In addition to F/I/Z control, the MK3.1 system enables you to remotely start/stop select HD cameras such as ARRI, Blackmagic, Phantom Flex, RED, Sony, and LANC-compatible models. Navigate the MK3.1 Controller's menu using its push buttons, and view your settings on the OLED screen display. Automatic and manual calibration options combine with a large, adjustable fluid-feel knob to provide lens-friendly adjustments. The lightweight MK3.1 system features 42 selectable channels, 16-bit transmission up to 0.9 miles, and minimal latency of 2 ms. Wired operation is supported for locations like medical facilities where RF transmission is not allowed. Constructed from aerospace-grade aluminum, the MK3.1 Controller is designed with internal antennas to lessen the possibility of damage. A lanyard-mounting point, and three 1/4"-20 mounts provide options for safely securing the controller when you need to free your hands for other tasks. The MK3.1 Controller is powered using widely available Canon LP-E6 batteries, providing a runtime of up to 36 hours. The MK3.1 can also be powered via USB, after removing the spent LP-E6 battery. Note: This more basic unit does not include the Force Zoom Joystick of the MK3.1/Z model. - Features
-
- Versatile 4-axis control for one to four motors, including 3D functions
- Push-button menu control and OLED screen display
- 16-bit transmission with up to 0.9-mile range, and 2ms of latency
- 4-axis control with large knob, slider, and two side knobs
- Internal antennas lessen possibility of damage
- Robust aluminum construction
- Auto or manual (soft-stop) calibration
- Calibration algorithm and torque control protects lenses
- Updatable firmware via Mac OS X or PC
- FCC/IC/CE–certified
- Uses the widely available Canon LP-E6 battery
- Run/Stop Support
- Including but not limited to:
ARRI ALEXA, Blackmagic, LANC-compatible cameras, RED EPIC, RED ONE, Phantom Flex, Sony F55 UPC: 818264022146 In the Box Teradek RT MK3.1 4-Axis Wireless Lens Controller White Marking Disk for RT MK3.1 Controller Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT MK3.1 4-Axis Wireless Lens Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 15-0001 Specs | Power Requirements | Canon LP-E6 Battery: 6.2 to 8.4 V
USB Port: 4.75 to 9 V (maximum) | | Transmission | Rate: 16-bit
Range: 0.9 miles (1.5 km) | | Latency | 2 ms | | Certifications | FCC/IC/CE | | Mounting Options | 3 x 1/4"-20 holes
1 x lanyard mount | | Material of Construction | Aerospace-grade aluminum billet | | Dimensions | Excluding Knob: 5.5 x 2.8 x 1.2" (140 x 70 x 31 mm)
Including Knob & Antenna: 6.1 x 4.3 x 3" (155 x 110 x 75 mm) | | Weight | 1.3 lb (576 g) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 10.8 x 6.4 x 4.1" |
