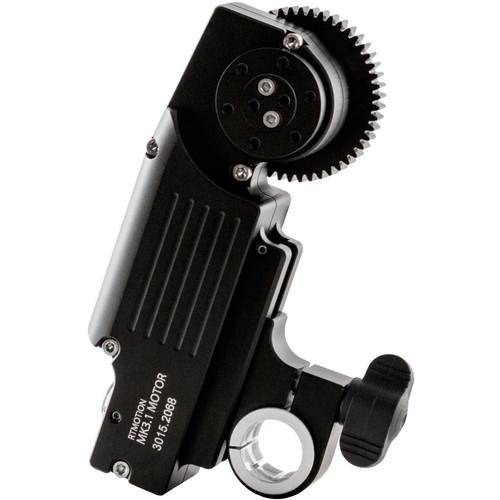

User Manual for Teradek RT MK3.1 Brushless Lens Motor Click to enlarge the picture
Contents of the user manual for the Teradek RT MK3.1 Brushless Lens Motor
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
|
User manual for the Teradek RT MK3.1 Brushless Lens Motor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description Teradek's RT MK3.1 Brushless Lens Motor is designed to remotely control your lens focus, iris, or zoom, or other function. The MK3.1 motor operates smoothly and quietly, even during slow, high-torque moves. This brushless motor features electronic backlash-compensation, a high-resolution encoder, and an integrated heat sink. For optimal flexibility, a gear can be attached to either side of the MK3.1 Motor, expanding position choice to either side of the lens, depending on your camera configuration. For maximum mounting flexibility, the MK3.1 Motor includes a height-adjustable 19mm rod bracket with a 15mm insert adapter. A 0.8 mod lens gear is included with the motor; gears are available separately in 0.4/0.5/0.6 mod, and 0.8 mod wide options. Thin, flexible 3mm cables (available separately) save space, and enable close arrangements of your motor(s) on your camera rig. - Features
-
- Remotely control your lens focus, iris, or zoom, or other function
- Long-lasting brushless vector drive
- Includes a 0.8 mod lens gear
- Gear can be positioned on either side of the motor
- Height-adjustable 19mm rod bracket with a 15mm insert adapter
- Electronic backlash-compensation accommodates a wide range of lens torque
- Uses strong, thin, 3mm cables for easy positioning on your camera rig
UPC: 818264022382 In the Box Teradek RT MK3.1 Brushless Lens Motor RT Motor Gear (0.8-Mod, 32-Pitch) fwtyqrtyvvfzbvvubzevqxusbftxerd RT MK3.1/3 Motor Bracket for 19/15mm Rods Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT MK3.1 Brushless Lens Motor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 15-0025 Specs | Maximum Torque | 2.2 nm | | Dimensions | 4.5 x 1.6 x 1" (115 x 40 x 26 mm) | | Weight | 7.5 oz (212 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.8 x 5.8 x 2.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
