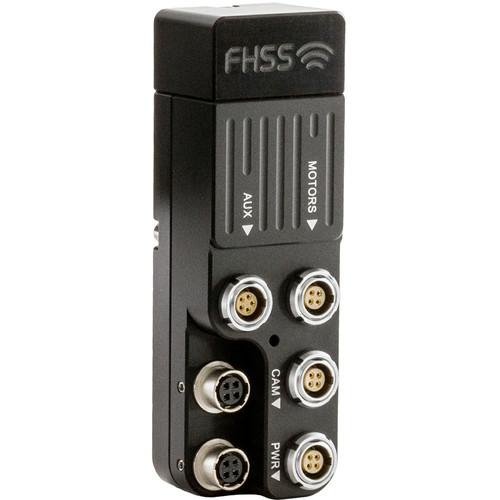

User Manual for Teradek RT MK3.1 Lightweight Receiver Click to enlarge the picture
Contents of the user manual for the Teradek RT MK3.1 Lightweight Receiver
- Product category: Wireless Lens Control Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Lens Control Accessories
|
User manual for the Teradek RT MK3.1 Lightweight Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description The RT MK3.1 Lightweight Receiver Module (3 Axis) from Teradek controls up to three lens settings such as focus, iris, and/or zoom. It also offers a start/stop function for select HD cameras such as ARRI, Blackmagic, Phantom Flex, RED, Sony, and LANC-compatible models. Features include an auxiliary port for slave (analog) controllers or wired mode support, and a multicolored status display. Use this receiver with a RT MK3.1 controller and motors (receiver and motors available separately). This ultra-compact, lightweight unit measures less than 4" in length, and weighs just over 4 oz. The RT MK3.1 Receiver is designed with an integrated antenna, lessening the chance of antenna damage. - Features
-
- Controls up to three lens settings such as focus, iris, or zoom
- Run/stop support for select cameras
- Supports slave/analog controllers and wired mode via an auxiliary port
- Lightweight unit measures less than 4" in length, and weighs just over 4 oz
- Internal antenna lessens chance of damage
- Multicolored status display
- Run/Stop Support
- Including but not limited to:
ARRI
Blackmagic
LANC-compatible models
Phantom Flex
RED
Sony UPC: 818264022436 In the Box Teradek RT MK3.1 Lightweight Receiver (3 Axis) Limited 1-Year Warranty, Extendable to 2 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek RT MK3.1 Lightweight Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 15-0030 Specs | Connections | Motors: 3 x 4-pin LEMO 0B
Power: 1 x 4-pin Hirose HR10
Camera: 1 x 4-pin Hirose HR10
Aux: 1 x 5-pin LEMO 0B
USB: 1 x micro-USB | | Status Indicators | Solid Green: Connected
Orange: No connection (or PC Mode)
Blue: Wired mode
Purple: Please wait
Red (Solid): Camera running
Red (Pulse): Camera trigger | | Power Requirements | 8-15 VDC (17 V absolute maximum)
(The receiver will block any voltage over ~17.5 V, or any reverse voltage.) | | Dimensions | 3.9 x 1.3 x 0.9" (100 x 32 x 23 mm) | | Weight | 4.2 oz (118 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.7 x 3.6 x 2.8" |
