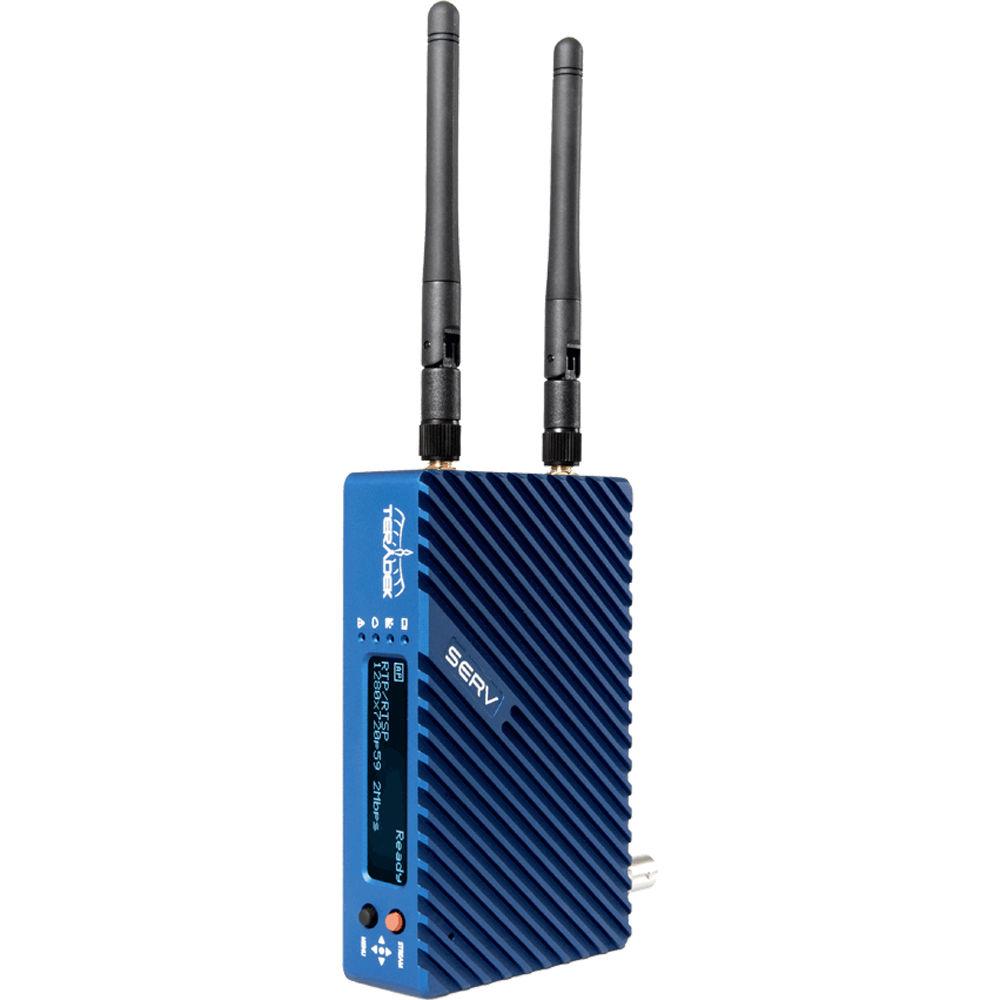

User Manual for Teradek Serv Pro Click to enlarge the picture
Contents of the user manual for the Teradek Serv Pro
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Serv Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

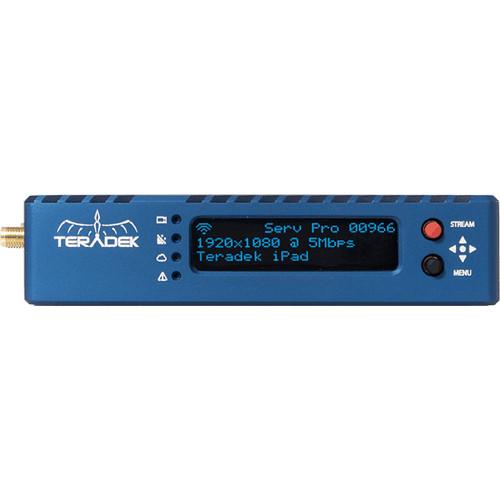

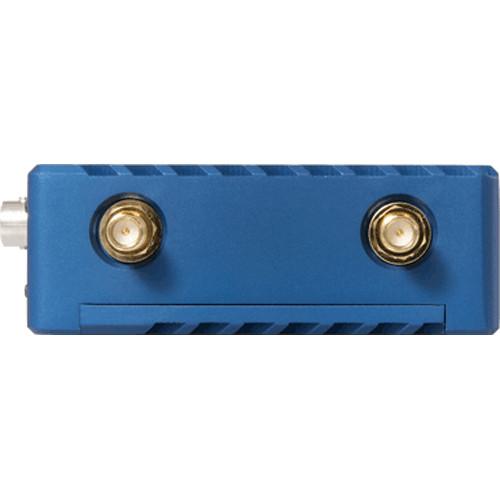

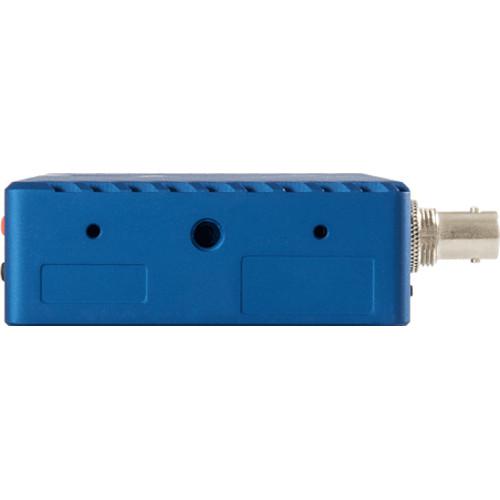

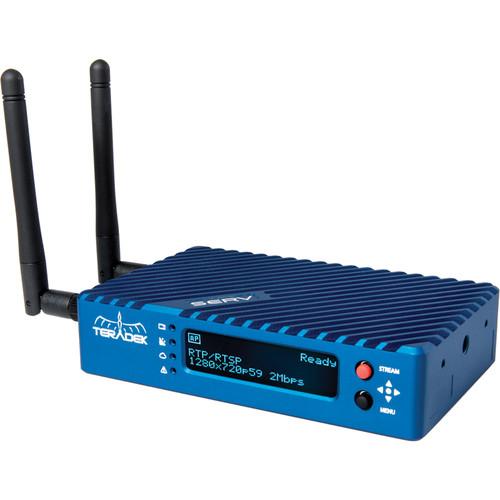

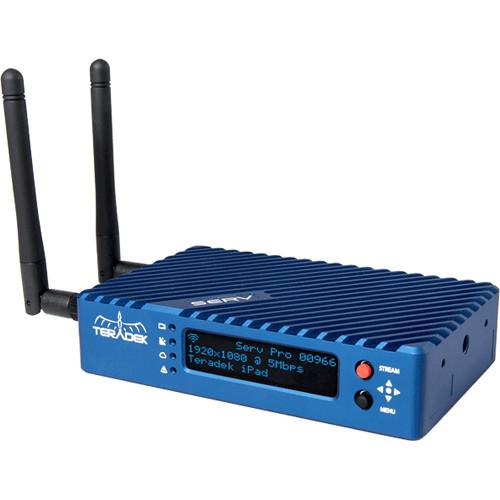

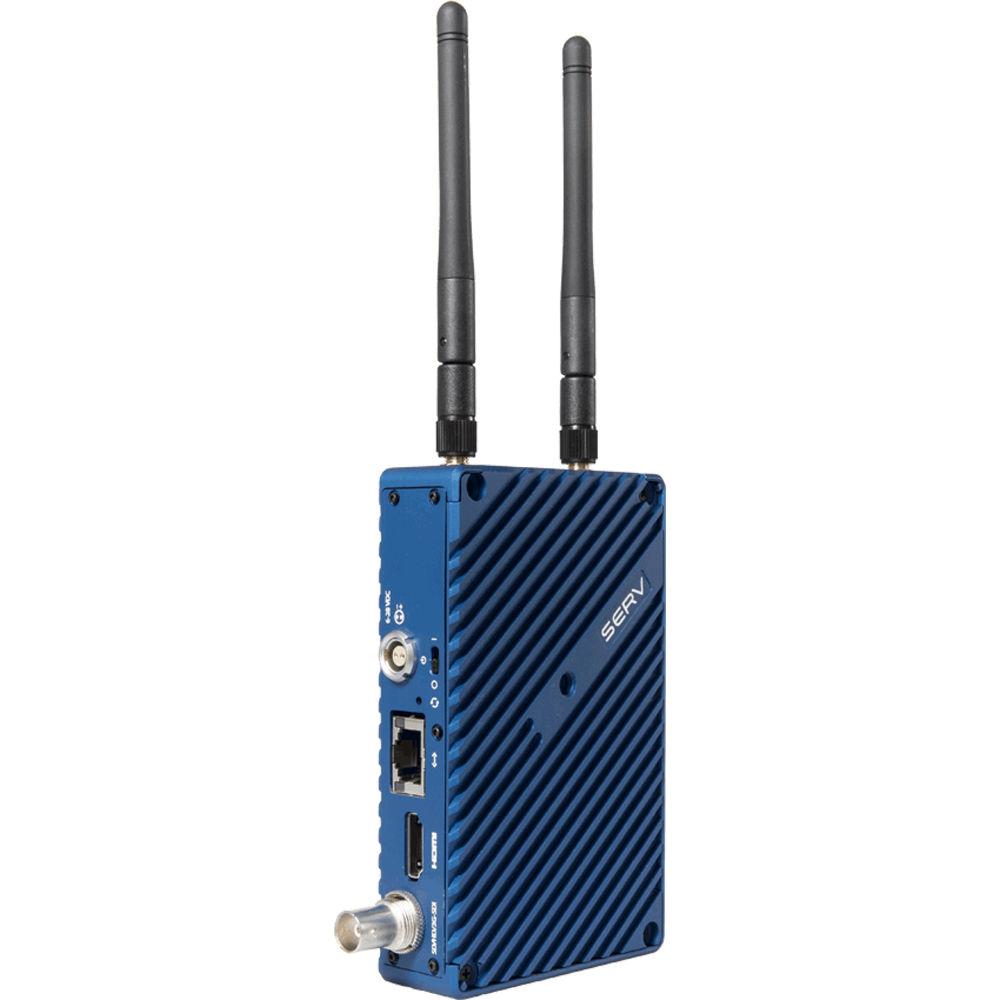

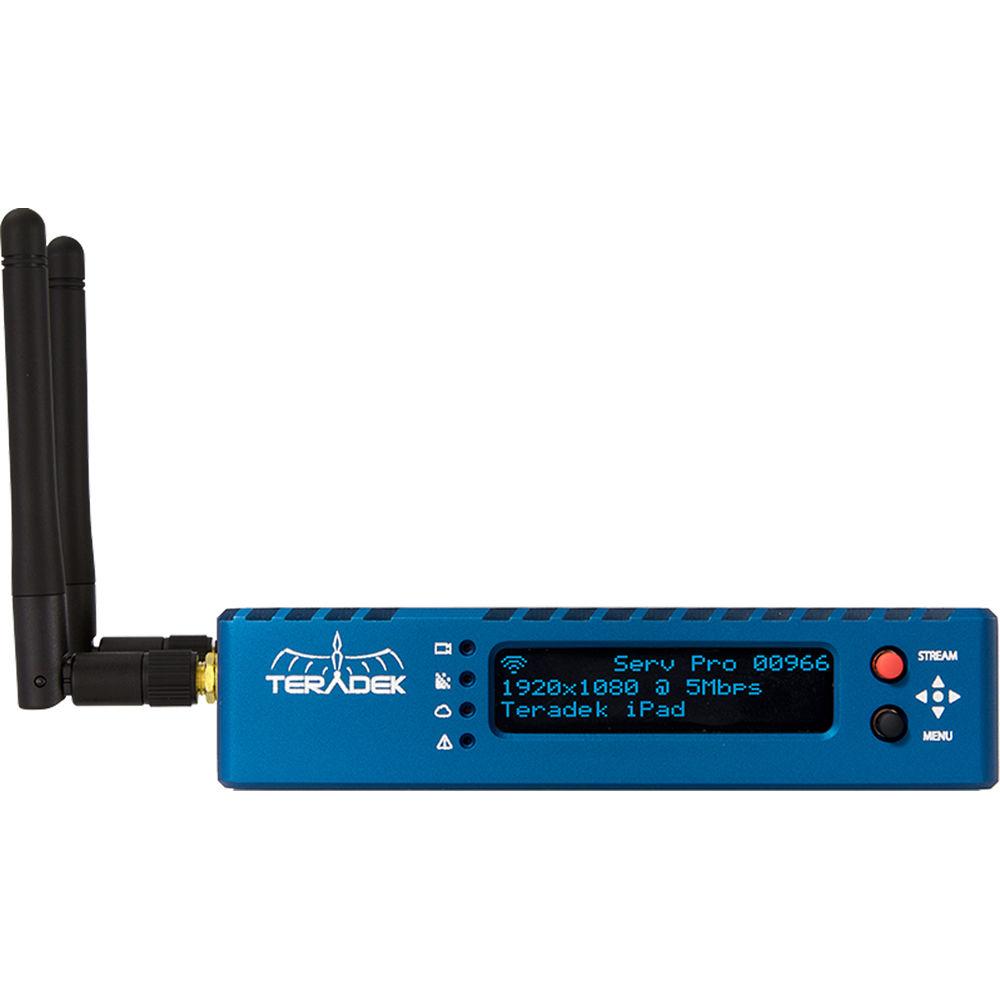

Product description Designed to be used on-set for single or multi-cam productions, the Teradek Serv Pro is the foundation of Teradek's network-based video monitoring system. Connect the Serv Pro unit to your camera's SDI or HDMI port, and up to 10 iOS devices running the free VUER app can monitor the camera's video signal in resolutions up to 1080p with minimal 2-frame latency. The Serv Pro can achieve this through efficient H.264 compression schemes which maintain a high standard of video quality without requiring the massive bandwidth of uncompressed video solutions. Since the transmission is Wi-Fi based, the Serv Pro can be integrated into your local network for increased versatility. Multiple Serv Pro units can be linked over the same network for multi-camera monitoring functionalities. One iPad can monitor up to four simultaneous feeds at the same 1080p resolution and 2-frame latency as a single feed. - Stream Using Local Networks
- The Serv Pro connects to cameras via HDMI or 3G-SDI and streams over 2.4/5 GHz Wi-Fi or Ethernet to iOS devices connected to the same network. Each unit supports up to 10 simultaneous connections, whether you connect directly to Serv Pro or to the same wireless access point.
- High-Definition at Low Latency
- Each Serv Pro feed is streamed at 1080p with just a 2-frame delay. The video stream also includes a stereo audio channel that can be enabled or disabled from the VUER iOS application.
- Complements other Wireless Solutions
- The Serv Pro operates on 5 GHz Wi-Fi and is a complementary tool to zero delay wireless systems like the Bolt series. With proper frequency management, these systems will work together without interference.
- VUER iOS App
- The VUER application for iOS puts an entire cinematographer's toolset in your hands, allowing you to use tools such as vectorscopes, false color, focus peaking, and more on each Serv Pro feed you're monitoring. The application is free to use and can be customized to allow users full or limited access to the toolset. VUER can monitor up to 4 Serv Pro feeds at the same time, all in 1080p, and all at the same 2-frame delay.
UPC: 818264020937 In the Box Teradek Serv Pro Power Supply Ethernet Cable BNC Cable HDMI Cable Shoe Mount 2 x Antennas Limited 1-Year Warranty User Manual PDF 630.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Serv Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

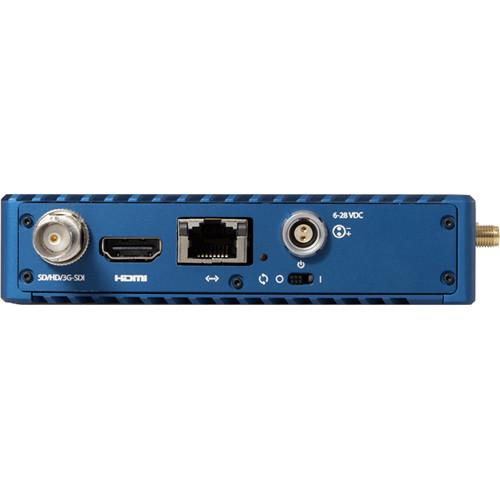

Technical parametersTeradek Serv Pro Specs | Inputs | Video:
1 x BNC, SD/HD-SDI
1 x HDMI Type-A
Audio:
Embedded audio
1 x 3.5 mm, analog audio | | Input Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
576p (HDMI only)
480p (HDMI only)
NTSC
PAL | | Output Resolutions | 1920 x 1080
1536 x 864
1280 x 720
960 x 540
480 x 270 | | Compression | Video: H.264 (Baseline, Main, and High Profile)
Audio: AAC-LC, MPEG Layer 2 | | Bit-Rate | Max Bit-rate: 15 Mbps (wired), 10 Mbps (Wi-Fi)
Supported Bit-rates:
750 kbps
1 Mbps
1.5 Mbps
2.5 Mbps
3 Mbps
4 Mbps
5 Mbps | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Supported Video Transport Protocols | Teradek Streaming Protocol (compatible with Teradek Apps, e.g. Live:Air, VUER) | | Network | Ethernet: 10/100/1000 Base-T
Wireless: 2.4/5 GHz 802.11 a/b/g/n/ac MiMo | | Power | 1 x 2-pin LEMO input
Consumption: 8 W (Wi-Fi on), 7 W (Wi-Fi off)
Aux | | Dimensions | 4.75 x 3 x 1.1" / 12.1 x 7.6 x 2.8 cm | | Weight | 11.6 oz / 329 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 6.7 x 6.4 x 4.8" |
