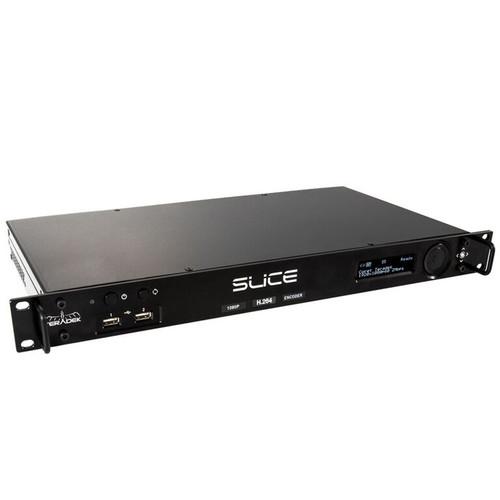

User Manual for Teradek Slice 656 H.264 Rackmount H.264 Encoder Click to enlarge the picture
Contents of the user manual for the Teradek Slice 656 H.264 Rackmount H.264
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
|
User manual for the Teradek Slice 656 H.264 Rackmount H.264 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|
Product description Outfit your studio with the Teradek Slice 656 H.264 Rackmount H.264 Encoder and encode incoming uncompressed SDI or HDMI video to H.264 compressed video for convenient proxy recording to an SD card, streaming over the web, or point-to-point streaming. As it is designed for professional workflows, the Slice 656 H.264 can be mounted in a standard 19" equipment rack. Its compact form factor only takes up a single rack space. - Live Web Streaming
- One option is to use the Slice 656 H.264 for live streaming via the web. Many popular delivery platforms, such as Facebook Live, YouTube Live, Periscope, Ustream, Livestream, and Twitch.tv are supported, as is delivery to a private server via Wowza's streaming engine.
Multipoint streaming can be accomplished with the Core Cloud Management Platform. Stream to multiple delivery networks (some compatible ones listed above) simultaneously to reach a wider audience. - Point-to-Point Streaming
- Transmit high definition video from any HDMI, HD-SDI, or composite video source over the Internet or on local networks at extremely low latency. Slice is compatible with a variety of streaming protocols, including MPEG-TS, TDS, and RTSP/RTP. The Slice 656 H.264 encoder can stream to Slice, Cube, and T-Rax decoders, in addition to 3rd party decoding solutions compatible with MPEG-TS. Using the Core Cloud Management platform, a single Slice encoder can stream to any number of destinations around the world. From an intuitive drag-and-drop interface, Core users can configure and route their Teradek encoder feeds to decoders, online video platforms, or even another company's Sputnik server all in real time.
- Core Fleet Management
- Core is Teradek's new cloud-based encoder fleet management system. From a single web GUI, you can monitor and control all of your Teradek encoders, cellular bonding systems, and decoders effortlessly. The interface allows you to direct streams from any one encoder to any number of decoders, even if both are behind firewalls or on private networks. All the encoding and transmission parameters can be controlled remotely from any location, allowing your field reporters to focus on the content and not the transmission gear. The automatic device discovery and drag and drop workflow makes entering IP addresses a thing of the past, while customizable warnings and notifications ensure that things keep operating smoothly.
- Sputnik 2.0
- Sputnik is Teradek's free software application between Edge and your streaming destination. Sputnik is designed to run on a Linux computer either in the Cloud (using Amazon EC2) or on a local server with a single, publicly addressable TCP port. The software recombines packets from connected cellular modems into a cohesive video stream that can be sent to an H.264 decoder, computer, or viewed online.
- LUT Support
- Load in a 1D or 3D 33-point LUT to apply to incoming video. LUTs applied to your footage will ensure that you can achieve the look you require for your broadcast content.
- Closed Caption Support
- The Slice 656 H.264 encoders support EIA-608 and EIA-708 closed captioning via H.264 SEI insertion, as per SCTE 128-1.
UPC: 818264020548 In the Box Teradek Slice 656 H.264 Rackmount H.264 Encoder IEC Power Cable 2 x Wi-Fi Antennas Limited 1-Year Warranty Quick start Guide PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Slice 656 H.264 Rackmount H.264 Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Slice 656 Specs | | | Video Inputs | 1 x HDMI type A, v1.4a
1 x BNC, SD/HD/3G-SDI | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23/24/25/29/30
1080i 50/59.94/60
720p 50/59.94/60
480p (HDMI input)
576p (HDMI input)
NTSC
PAL | | | | Video Compression | H.264, baseline, main and high profile | | Bit Rate | 250 kbps to 15 Mbps (10 Mb/s over Wi-Fi) | | LUT Support | CDL/1024 1D LUT
33x33x33 3D LUT | | | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | Supported Video Transport Protocols: RTMP, RTSP, RTP, RTSP over HTTP, MPEG Transport Stream (MPEG-TS) | | Remote | Teradek Core | | | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input, analog line/mic input, adjustable gain | | Audio Output | Embedded audio output, analog line output | | | | Configuration | Configuration Interface: OLED display with joystick navigation buttons | | Switches | On/Off and Reset switch | | App Control | Web UI for configuration and control | | USB Interface | 2 x powered USB 2.0 host port | | | | Ethernet | 10/100/1000Base-T Gigabit | | Wireless | Wi-Fi: 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | USB | USB 3G/4G modem support (check Teradek website for compatible modems) | | RF Channels | Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only)
Auto (5 GHz only)
Configurable to specific channels | | Encryption | 802.1x, 802,11i, WPA2, WPA, and WEP 64/128 TKIP
128-bit AES | | | | Power Input | 110/240 VAC power input | | Power Consumption | 7 to 8 W nominal | | | | Dimensions (W x D x H) | 9.8 x 17 x 1.7" / 24.9 x 43.2 x 4.3 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 24.1 x 14.5 x 6.6" |
