User Manual for Teradek Slice 676 Rackmount H.264 Decoder Click to enlarge the picture
Contents of the user manual for the Teradek Slice 676 Rackmount H.264 Decoder
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Slice 676 Rackmount H.264 Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

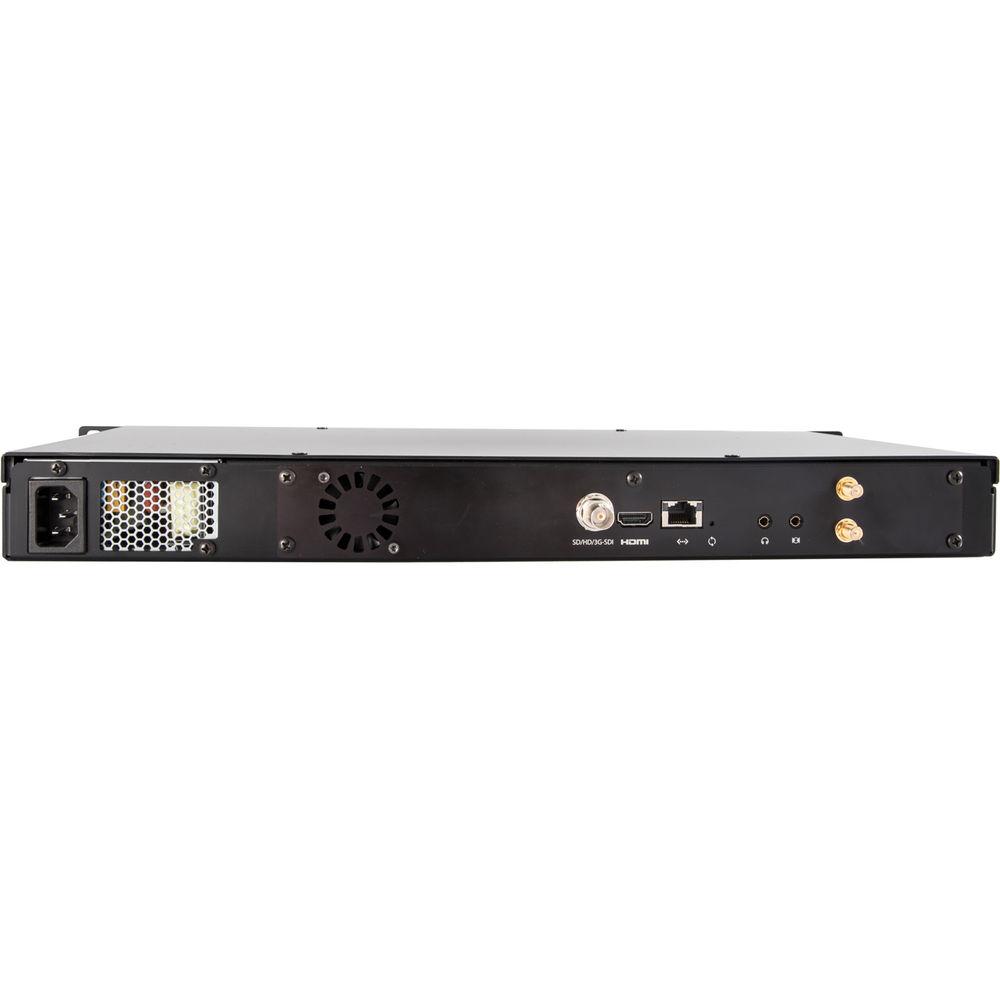

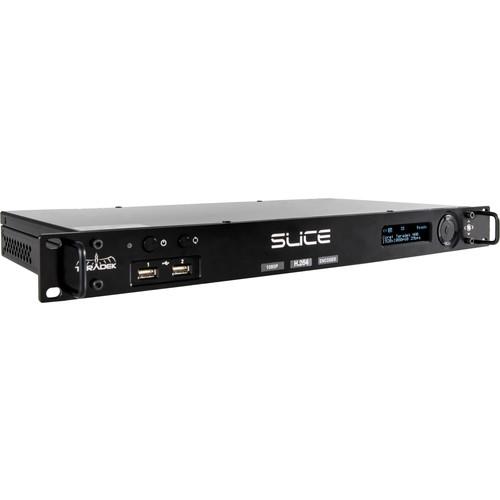

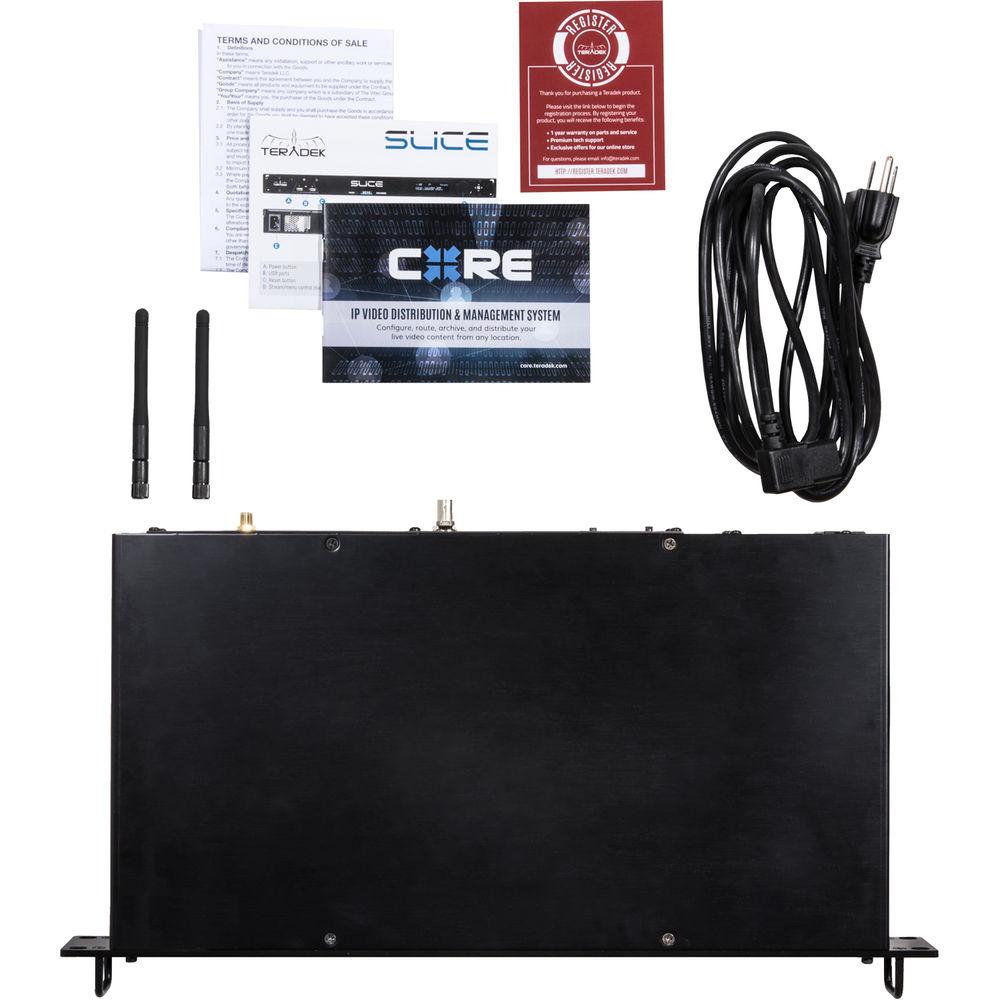

Product description The Teradek Slice 676 Rackmount H.264 Decoder is a professional H.264 decoding solution which integrates perfectly with Slice encoders. HD or SD H.264 video transmitted over the web at up to 15 Mbps can be decoded and output over SDI or HDMI connections. Audio can either be embedded in the digital outputs or de-embedded and output over 3.5mm analog for compatibility with analog equipment. MPEG-TS and RTP/RTSP streams are supported. Wi-Fi, Ethernet, and USB integration means that the Slice 676 can operate wirelessly either over a local network, or accept incoming streams over a cellular network. The Slice 676 can also communicate with Teradek's Sputnik server for IFB and remote monitoring capabilities, giving broadcasters full control over IP video deployments. UPC: 818264020555 In the Box Teradek Slice 676 Rackmount H.264 Decoder IEC Power Cable 2 x Wi-Fi Antennas Limited 1-Year Warranty Quick start Guide PDF 979.9kbrwxbtufuezd Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Slice 676 Rackmount H.264 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek Slice 676 Specs | | | Video Outputs | 1 x HDMI type A, v1.4a
1 x BNC, SD/HD/3G-SDI | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23/24/25/29/30
1080i 50/59.94/60
720p 50/59.94/60
576p (HDMI only)
480p (HDMI only)
NTSC
PAL | | | | Video Compression | Decodes H.264, baseline, main, or high profile | | Bit Rate | 250 kbps to 15 Mbps | | Conversion | Video Format Conversion Support: Built-in video scaler and deinterlacer | | | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | Supported Video Transport Protocols: RTP/RTSP, MPEG Transport Stream (MPEG-TS), Teradek Streaming | | Remote | Teradek Core | | | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Output | SDI/HDMI embedded audio output
1 x 3.5mm stereo headphone | | | | Configuration | Configuration Interface: OLED display with joystick navigation buttons | | Switches | On/Off and Reset switch | | App Control | Web UI for configuration and control | | USB Interface | 2 x powered USB 2.0 host port | | | | Ethernet | 10/100/1000Base-T Gigabit | | Wireless | Wi-Fi: 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | USB | USB 3G/4G modem support | | RF Channels | Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only)
Auto (5 GHz only)
Configurable to specific channels | | Encryption | 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP
128-bit AES | | | | Power Input | 110/240 VAC power input | | Power Consumption | Nominal: 7 to 8 W | | | | Dimensions (W x D x H) | 9.8 x 17 x 1.7" / 24.9 x 43.2 x 4.3 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 24.2 x 14.3 x 6.8" |
