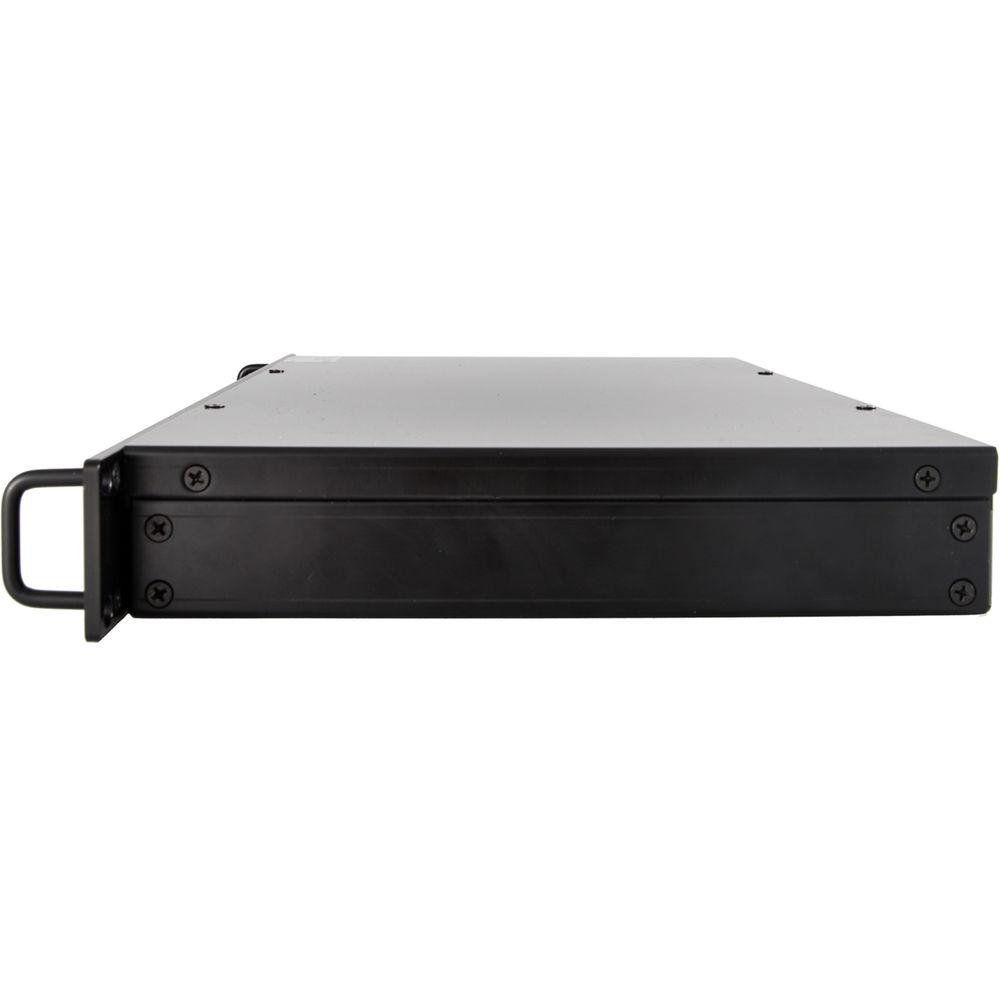

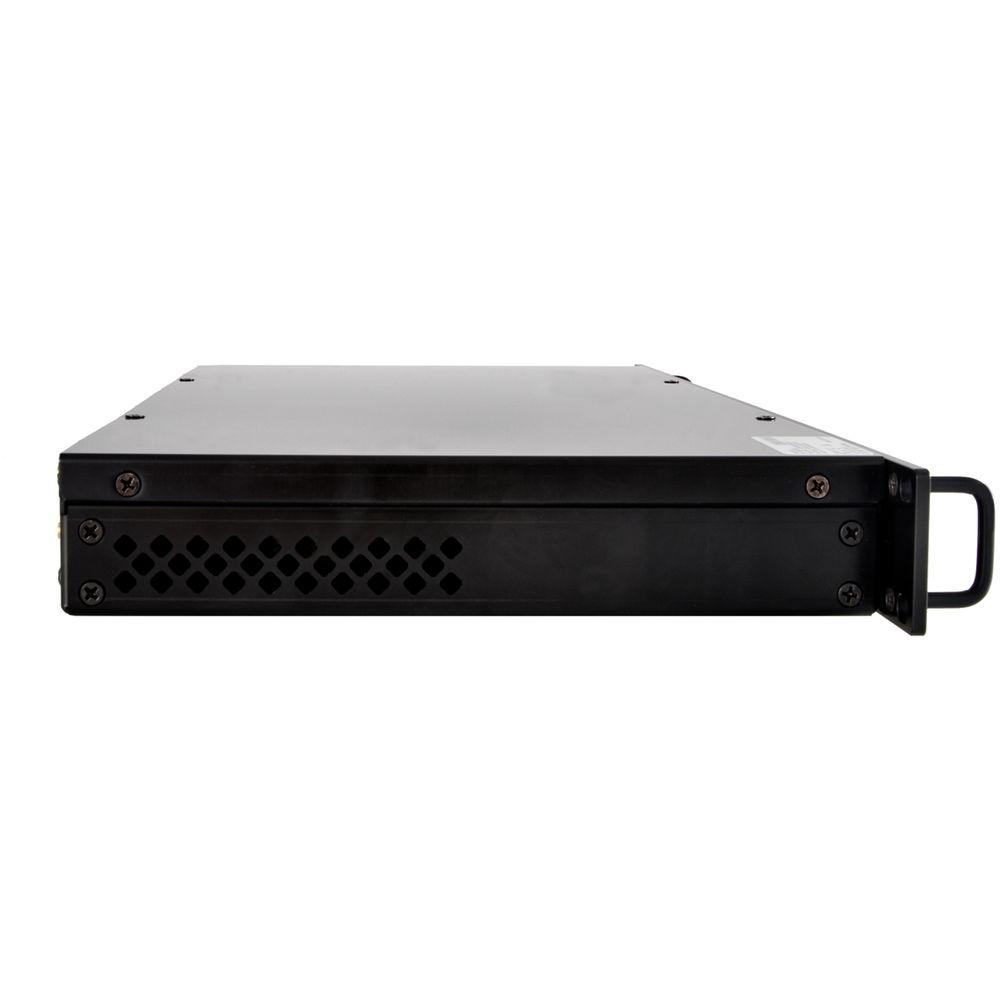

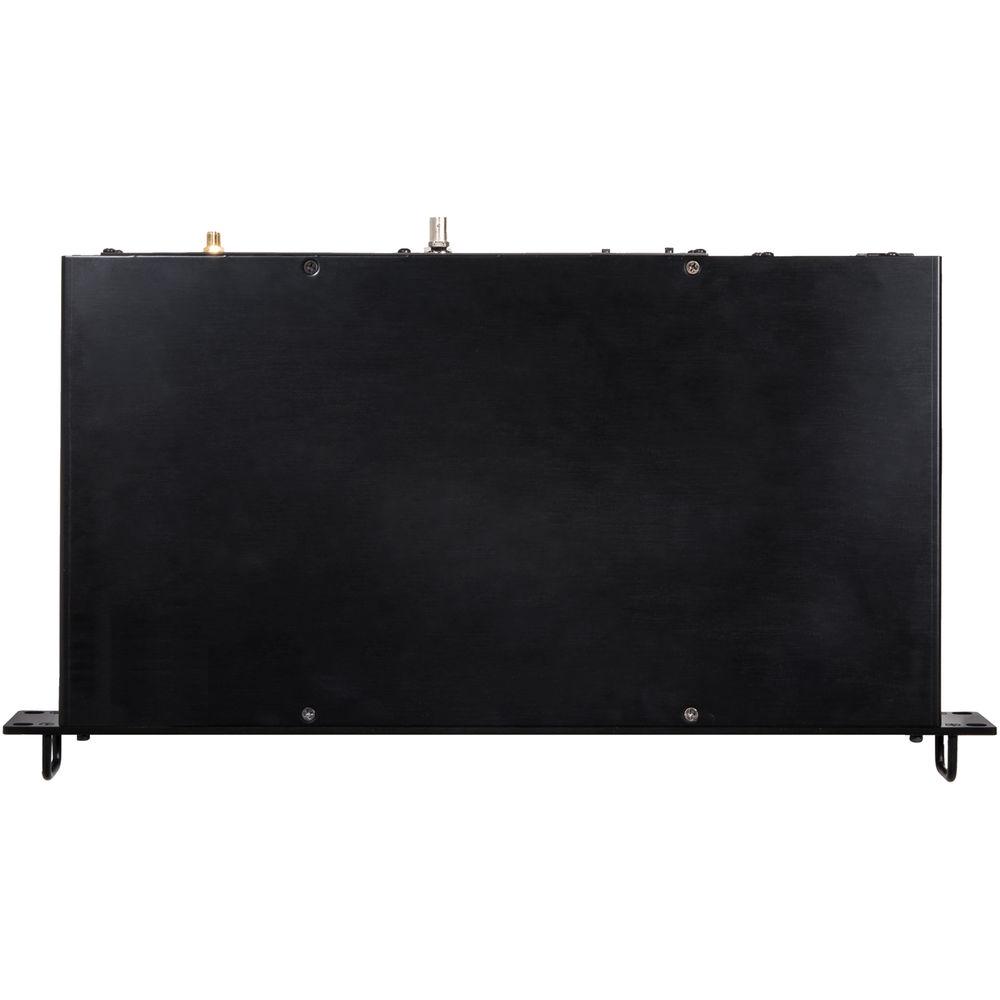

User Manual for Teradek Slice 776 HEVC AVC SDI HDMI Rack-Mount H.264 Decoder with Wi-Fi and Ethernet Connectivity Click to enlarge the picture
Contents of the user manual for the Teradek Slice 776 HEVC AVC SDI
- Product category: Wireless Transmission Systems Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek Wireless Transmission Systems
 |
User manual for the Teradek Slice 776 HEVC AVC SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

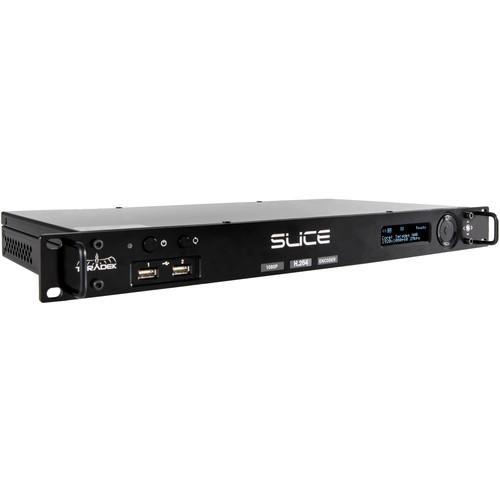

Product description The Slice 776 HEVC/AVC SDI/HDMI Rack-Mount H.264 Decoder from Teradek is a 1 RU, HEVC/H.264 decoder for Teradek Cube, Slice, and T-Rax H.264 encoders. The system can output high definition videos via either HDMI or 3G-SDI. The decoder is compatible with Teradek Core platform. The Core is a complete cloud IP video management platform that offers several features to expand the capabilities of Slice, including real-time transcoding, archiving, remote management and configuration, and simultaneous multi-platform delivery to as many destinations as you like. - Decode over Ethernet and dual-band 802.11ac Wi-Fi
- Supports HEVC and H.264 compression
- Supports RTP/RTSP, MPEG-TS, and TDS protocols

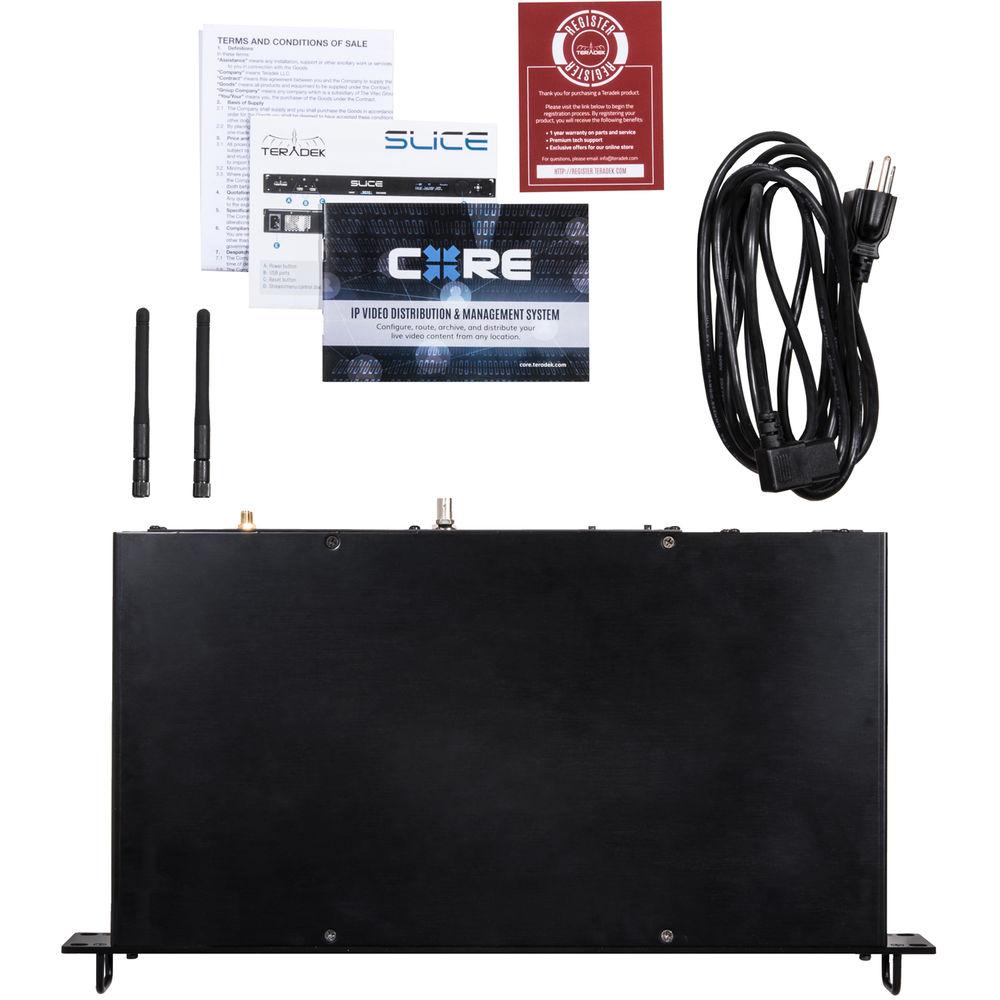

UPC: 818264020579 In the Box Teradek Slice 776 HEVC/AVC SDI/HDMI Rack-Mount H.264 Decoder with Wi-Fi and Ethernet Connectivity Limited 1-Year Warranty User Manual PDF 979.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Slice 776 HEVC AVC SDI HDMI Rack-Mount H.264 Decoder with Wi-Fi and Ethernet Connectivity in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

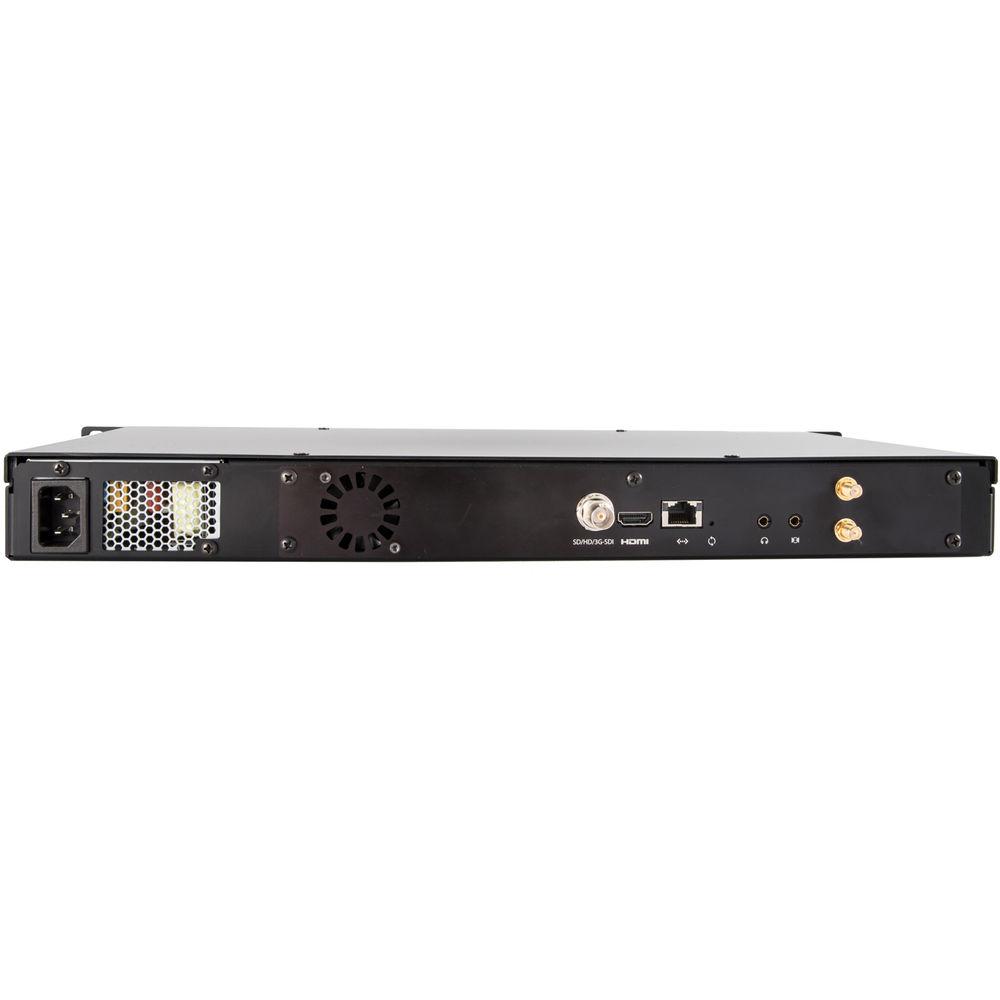

Technical parametersTeradek Slice 776 Specs | | | Video Outputs | HDMI 1.4a: Full size
SD/HD/3G-SDI (75 Ohms BNC) | | Supported Resolutions | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i
480i | | | | Video Compression | HEVC, H.264, baseline, main and high profile | | Video Bitrates | 250 kbps to 30 Mbps | | Conversion | Video Format Conversion Support: Built-in video scaler and deinterlacer | | | | Network Protocols | TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP | | Transport Protocols | Supported Video Transport Protocols: RTMP, RTSP, RTP, RTSP over HTTP, MPEG Transport Stream (MPEG-TS) | | Remote | Teradek Core | | | | Audio Compression | AAC-LC, MPEG Layer 2 | | Audio Input | Embedded audio input, analog line/mic input, adjustable gain | | Audio Output | Embedded audio output, analog line output | | | | Configuration | Configuration Interface: OLED Display with joystick navigation buttons | | Switches | On/Off and Reset switch | | App Control | Desktop App: Feature-rich Web UI for configuration and control | | USB Interface | 2 x powered USB 2.0 host port | | | | Ethernet | 10/100/1000Base-T Gigabit | | Wireless | Wi-Fi: 2.4/5 GHz 802.11 ac/a/b/g/n MiMo | | USB | USB 3G/4G modem support | | RF Channels | Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only)
Auto (5 GHz only)
Configurable to specific channels | | Encryption | 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP
128-bit AES | | | | Power Input | 110/240 VAC power input | | Power Consumption | Nominal: 6 W | | | | Construction | Milled aluminum (chassis), regulation-compliant PCB | | Dimensions (W x D x H) | 9.8 x 17 x 1.7" (248.92 x 431.8 x 43.2 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 24.0 x 6.9 x 4.2" |
