User Manual for Teradek Sphere SDI Real-Time 360-Degree Monitoring System Click to enlarge the picture
Contents of the user manual for the Teradek Sphere SDI Real-Time 360-Degree Monitoring
- Product category: 360 Camera Accessories Teradek
- Brand: Teradek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Teradek 360 Camera Accessories
 |
User manual for the Teradek Sphere SDI Real-Time 360-Degree Monitoring contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Teradek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Teradek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Teradek product will considerably shorten its lifespan!
|

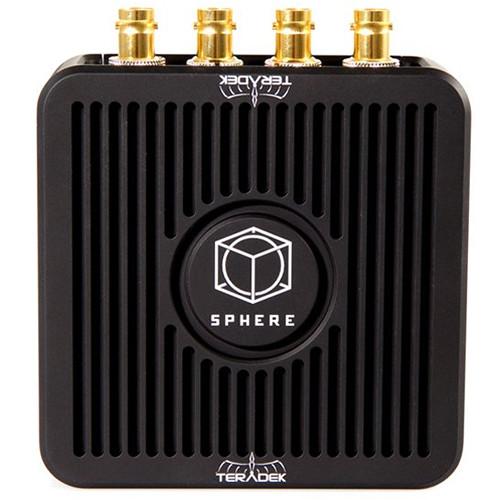

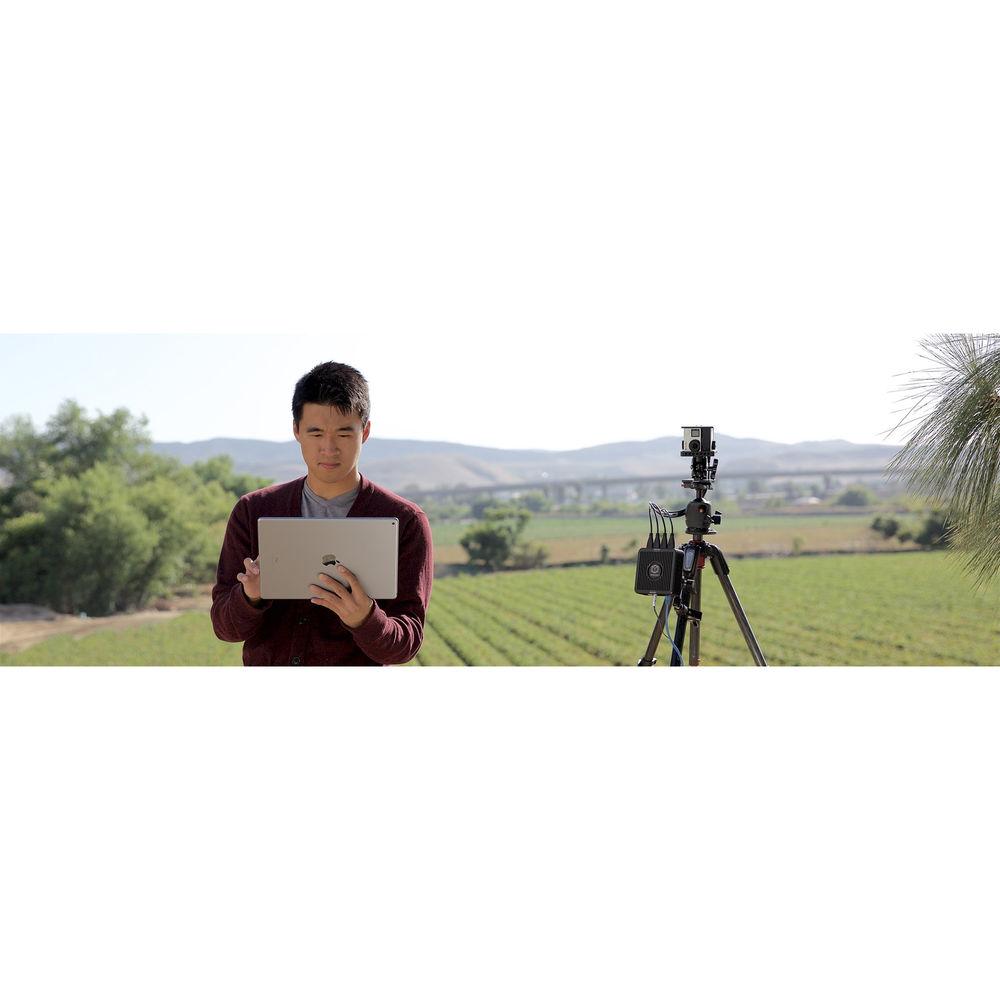

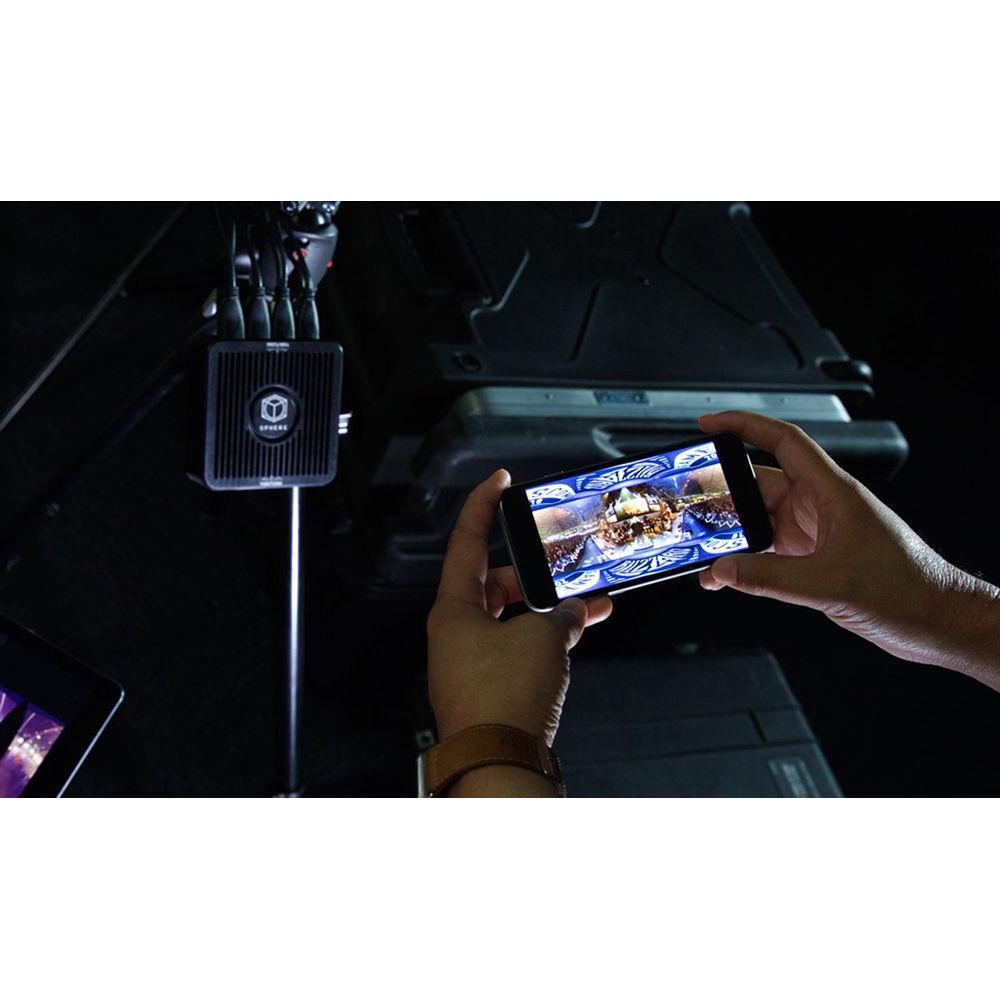

Product description Teradek's Sphere is a real-time monitoring solution for multicamera 360° productions. Compatible with nearly any SDI camera, Sphere accepts up to four camera output signals up to 1080p at 30 fps, and stitches the video files together for live viewing on an iPad. Utilizing an iOS-based stitching engine, no separate PC is required to stitch together your footage, allowing for real-time monitoring in your choice of viewing modes—including rectilinear and panoramic—all while keeping your production mobile. With a separately available streaming license, the stitched video can then be simultaneously streamed directly to the web to any compatible 360° online video platform, including Wowza and YouTube. In addition to its four SDI inputs, Sphere also features four USB ports that offer an integrated power solution for GoPro cameras. Audio can be input from each camera, or a separate feed from an audio board can be brought in via a 3.5mm stereo analog audio input. To connect to the internet, Sphere has a 10/100 Ethernet port. Should you need more than four cameras for your 360° productions, a second 10/100 Ethernet port is provided, allowing you to daisy-chain a second Sphere to support up to eight cameras. For power, Sphere features redundant two-pin LEMO inputs, offering protection against power supply failures to keep your live stream active. To get your 360° productions up and running, Sphere comes with a mounting bracket, 10" SDI cable, Ethernet cable, and an AC power adapter. A hardshell case is also provided to protect your Sphere when not in use. Hardware - Live Monitoring Solution for SDI Cameras
- Sphere is a four-camera 360° rig monitoring solution that features four SDI inputs. Its four USB ports offer an integrated power solution for GoPro rigs, and its stereo analog audio input allows you to embed the output of your soundboard right into the live feed.
- Wireless and Internet Connectivity
- Sphere connects to wireless access points and the Internet via a 10/100 Ethernet jack. To enhance the wireless range of your Sphere, Teradek recommends connecting the device to an Ubiquiti access point for a robust Wi-Fi signal up to several thousand feet.
- Support for up to 8 Cameras
- Should you need more than four cameras for your 360° production, a second Sphere can be daisy-chained using the device's 10/100 Ethernet port, extending the number of supported cameras to eight.
- Redundant Power Inputs
- Dual two-pin LEMO power inputs are provided, offering redundancy in case one supply should fail.

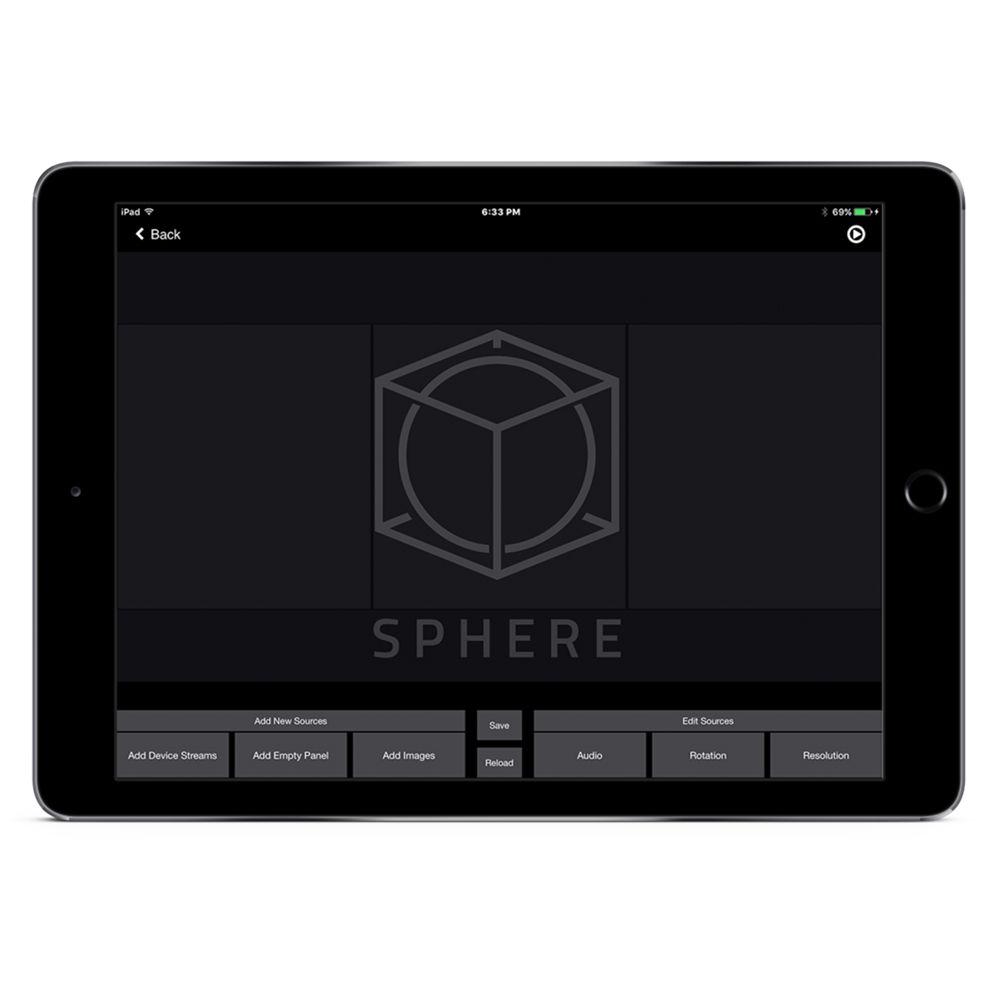

Sphere iOS App - Stitching Engine
- Sphere's stitching engine is iOS-based and offers real-time compositing of up to eight 1080p camera feeds, allowing you and your crew to be more mobile than ever before.

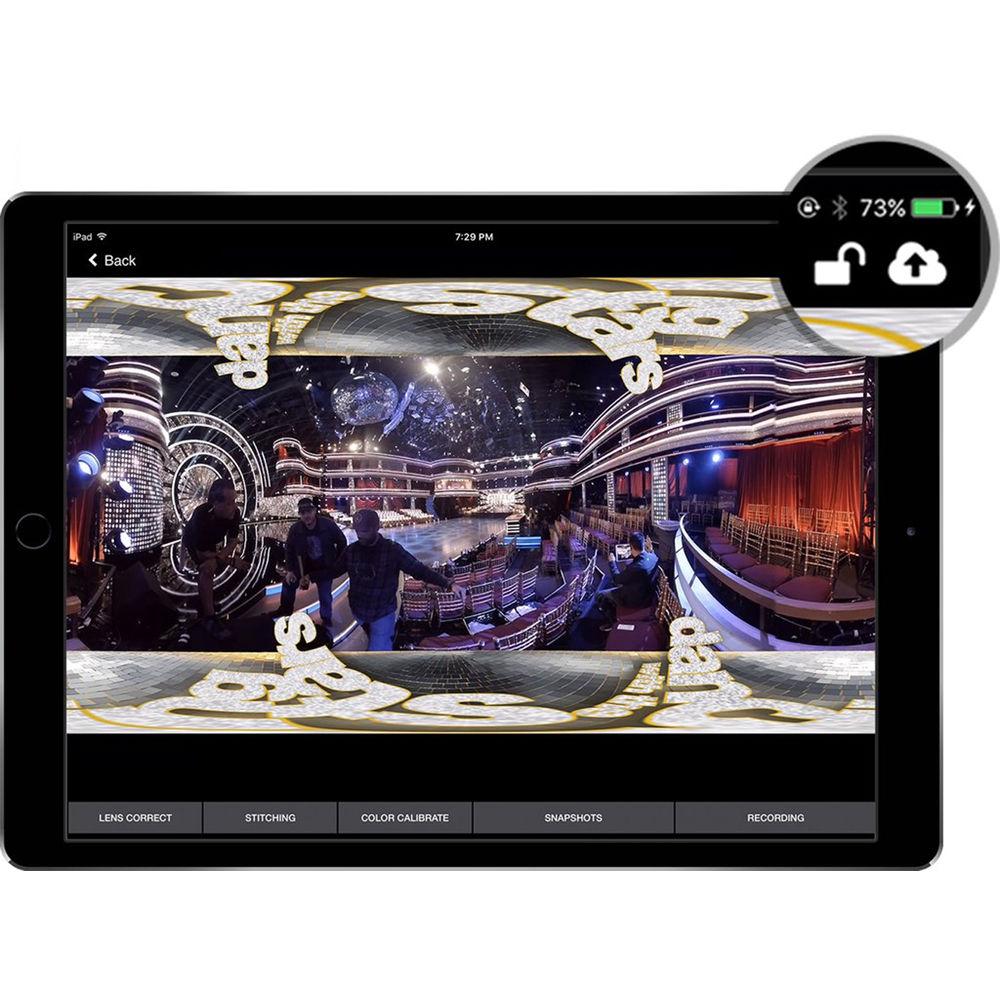

- Real-Time 360° Monitoring Modes

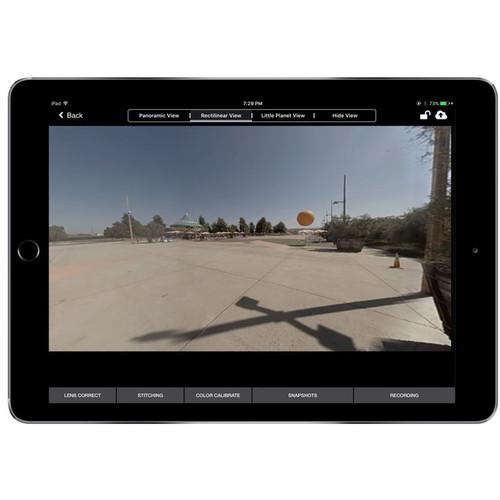

- Rectilinear
Allows you to explore your live 360° content as if you were wearing a VR headset. Move the iPad around you to visualize the experience you are creating for your audience.

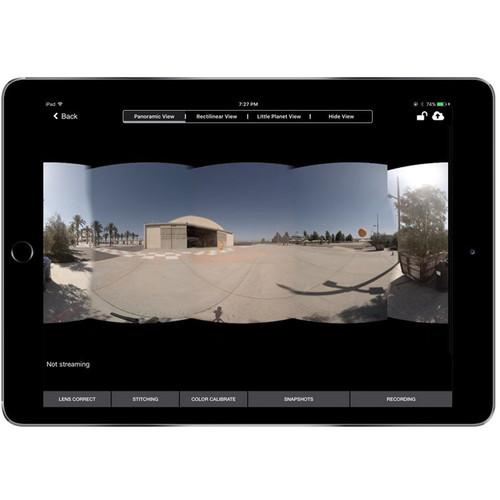

Panoramic
Displays your 360° live footage as a single panoramic image.

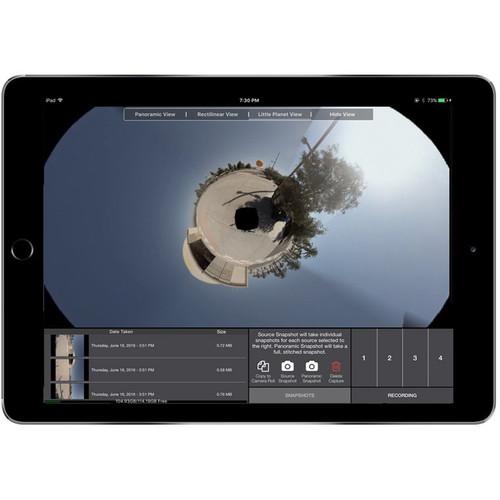

Little Planet
Little Planet mode turns your 360° video into a stereographic projection, allowing you to view it as if it were a 360° orb, or a "little planet." - Live Streaming
- Once you've connected your cameras to Sphere, the device compresses each feed using the H.264 codec and outputs the stream over its 10/100 Ethernet jack to a wireless access point of your choice. With a separately available streaming license, the Sphere can stream to any 360° compatible online video platform, including YouTube and Wowza, at bit rates up to 15 Mbps.

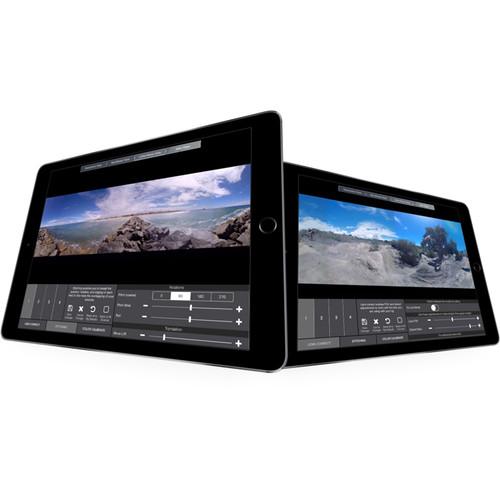

- Stitching Configuration Options
- The Sphere iOS application offers numerous parameters for tweaking your 360° footage to your liking. In addition to multiple lens correction options, you can adjust the image rotation and edge alignment of your stitch from the app's intuitive UI.
- Color Calibration Settings
- Users can calibrate each camera's white balance, tint, and color profile right from the Sphere application. If you need a quick calibration, the application can color match across all video feeds at the same time to provide a balanced image instantly.

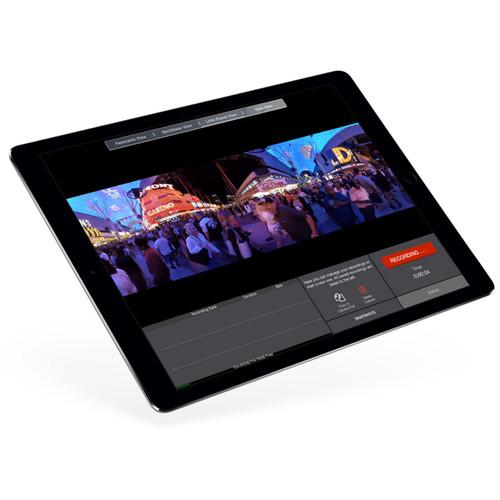

- In-App Recording
- Save individual 360° snapshots and your stitched video footage directly to your iPad's internal storage in MP4 format.
In the Box Teradek Sphere SDI Real-Time 360-Degree Monitoring System 2909 Super Clamp with 2907 Reversible Short Stud Sphere Mounting Bracket Ethernet Cable AC Power Adapter 2 x Screw Socket Head Caps Allen Wrench 4 x SDI Cables (10") Hardshell Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek Sphere SDI Real-Time 360-Degree Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0361 Specs | Video Inputs | 4 x BNC, SDI | | Supported Input Formats | 1080p 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
1080PsF 23.98/24/25 fps
720p 50/59.94/60 fps
480p 59.94 fps
576p 50 fps | | Color Spaces Supported | RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2 | | Video Codec | Compression Algorithm: Baseline, Main, and High Profile H.264
Main and Baseline profiles
Bit Rate: 250 Kbps to 10 Mbps | | Audio Input | 1 x Analog Line or Mic in, adjustable gain
4 x Embedded HDMI audio input | | Audio Compression | Audio Compression: AAC-LC, MPEG Layer 2 | | Network Ports | 2 x Ethernet 10/100 | | Protocol Support | Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Transport Protocols: TDS (supported by iOS app only for now) | | Power Input Connector | 2 x 2-pin LEMO | | Power Consumption | 12 W (up to 20 W for USB; up to 15 W for PoE) | | Auxiliary Power Input | 12 to 28 VDC | | Power Output | 4 x USB | | Dimensions | 4.33 x 4.33 x 1.36" / 11 x 11 x 3.45 cm | | Weight | Not specified by manufacturer |
