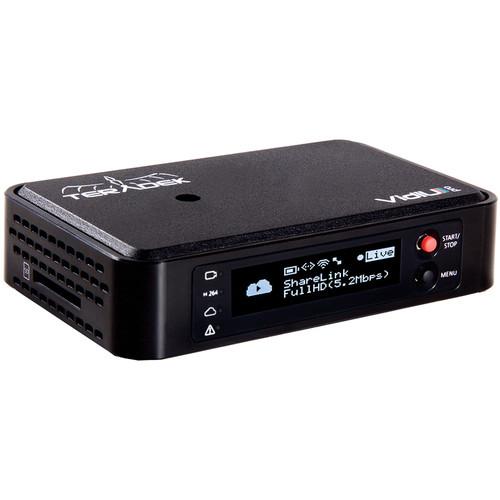

Product description Teradek's VidiU Pro delivers high definition live streaming video with the quality and reliability expected in traditional HD broadcast. Broadcast your events on the most popular, natively integrated, streaming platforms like Ustream, Livestream, Twitch, and YouTube Live, or as manual RTMP address to services like Wowza Streaming Server. VidiU Pro is compatible with virtually every streaming platform, so you can choose when and where you go live.
VidiU Pro accepts any HDMI camera source and is configurable via Bluetooth using your tablet or smartphone. Download the free VidiU App on your iOS or Android device for complete control. Roam cable-free for up to two hours of internal Li-ion rechargeable battery life. You can also record your stream to an SD card via VidiU Pro's built-in SD port for archive, quick edits, and redistribution. (Recorded video file bit rate and resolution match encoded stream quality.)
Additionally, get the bandwidth needed to stream your HD content from anywhere to everywhere using Teradek's ShareLink cloud services (subscription sold separately). ShareLink allows you to achieve maximum bandwidth and ultimate reliability by bonding multiple Internet connections from different sources. You can use any combination of interfaces: Ethernet, Wi-Fi, USB Modem, or even up to 4 iPhone cellular connections. - Key Features
-
- Deliver broadcast quality HD live streaming video to streaming platforms and manual RTMP addresses
- Accepts any HDMI camera source
- Configurable via Bluetooth using a tablet or smartphone
- Two-hour internal lithium-ion rechargeable battery life
- Record your stream to an SD card via VidiU Pro's built-in SD port
- Get maximum bandwidth using Teradek's ShareLink cloud services (subscription sold separately)
UPC: 854980006091 In the Box Teradek VidiU Pro AC Power Supply Hot Shoe Adapter with Thumbscrew Ethernet Cable Full-to-Mini HDMI Cable Quick Start Guide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Teradek VidiU Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTeradek 10-0219 Specs | Video Input | 1 x HDMI | | Supported Input Resolutions | 1080i 50/59.94/60
1080p 23.98/24/25/30
720p 23.98/24/50/59.94/60
576i/p
480i/p
When set to 16:9:
Full HD: 1920 x 1080
HD: 1280 x 720
High: 960 x 540
Medium: 736 x 414
Low: 480 x 270
Mobile: 360 x 200
When set to 4:3:
Full HD: 1440 x 1080
HD: 960 x 720
High: 720 x 540
Medium: 560 x 414
Low: 368 x 270
Mobile: 272 x 200 | | Supported Video Bit Rates | Full HD: 5.2 Mb/s
HD: 2.2 Mb/s
High: 1.4 Mb/s
Medium: 796 kb/s
Low: 446 kb/s
Mobile: 273 kb/s | | Supported Audio Bit Rates | High: 192 kb/s
Medium: 128 kb/s
Low: 96 kb/s
Mobile: 48 kb/s | | Video Codec | Compression: Base/Main H.264
Bit Rate: 250 kb/s to 5 Mb/s
Built-in Video Scaler and Deinterlacer | | Streaming | Transport protocol: RTMP
API level integration: Ustream, YouTube Live, and new Livestream | | Audio | Audio compression: AAC-LC
Embedded audio input, 2 channel
Analog line or mic-in, 2 channel

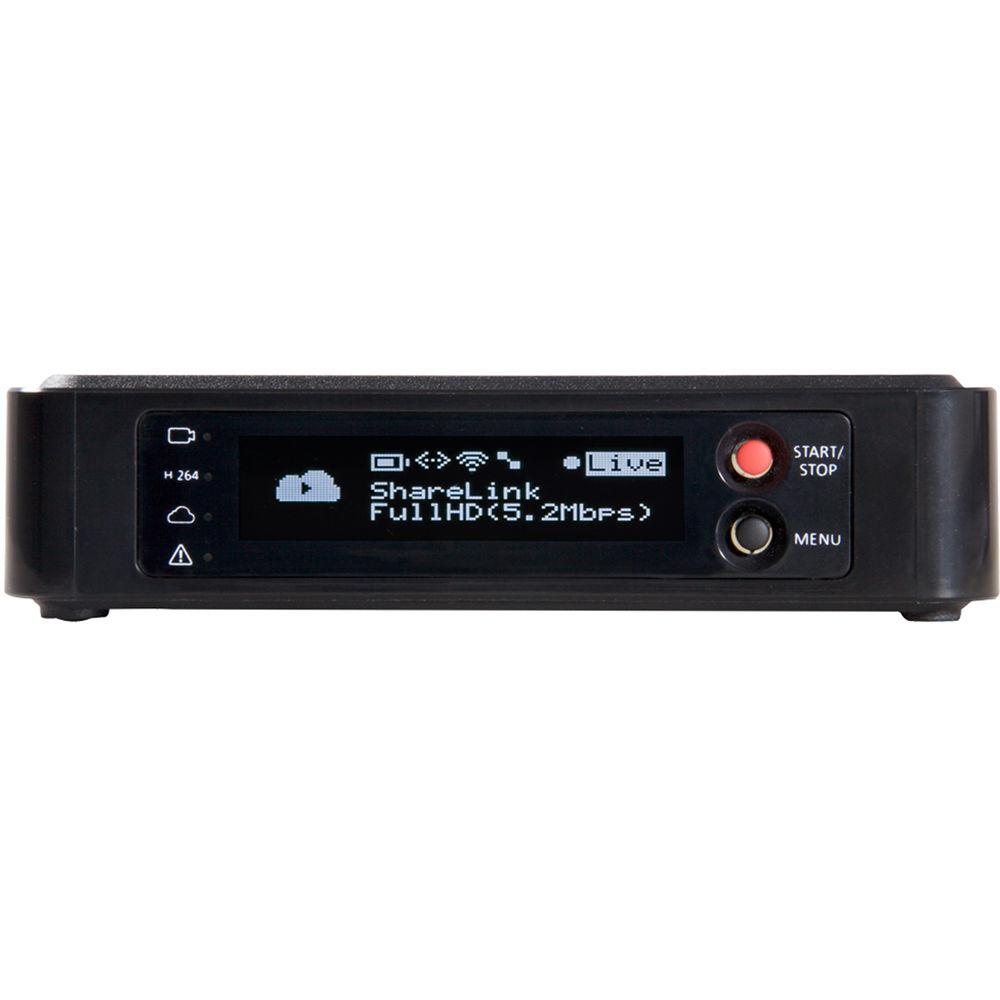

Headphone output | | Interfaces | OLED display with joystick navigation buttons
WebUI
VidiU App for iOS and Android devices
Powered USB 2.0 host port | | Bluetooth | On/Off and reset switch | | Network | Ethernet: 10/100BASE-T
Wi-Fi: Dual Band MIMO 802.11 a/b/g/n
USB 3G/4G/LTE modem support | | Power | DC Power Input: 6-12 V
Internal rechargeable lithium-ion battery
Nominal Power Consumption: 4.5 W
Nominal Power Consumption while Charging: up to 10 W | | Dimensions | 4.7 x 3 x 1.2" (12 x 7.6 x 3 cm) | | Weight | 0.4 lb (190 g) | | | | Package Weight | 1.665 lb | | Box Dimensions (LxWxH) | 6.8 x 6.6 x 4.7" |
