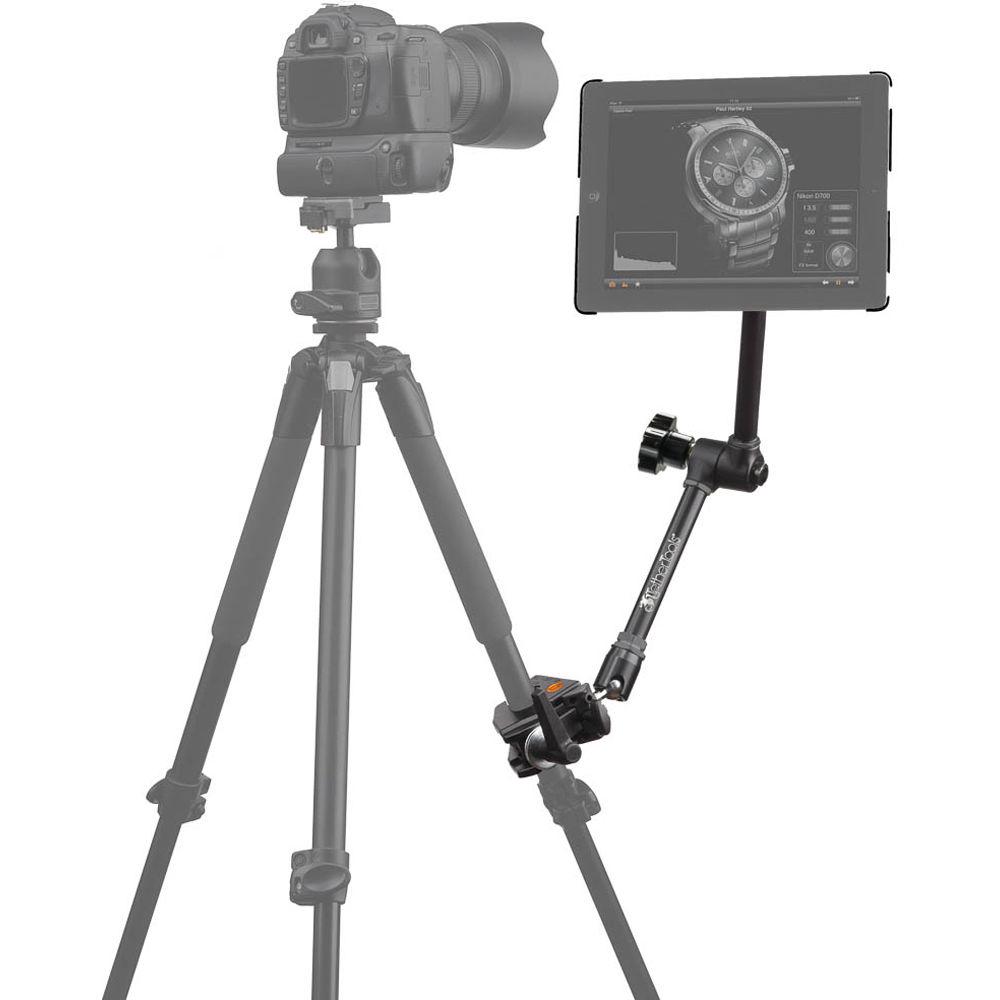

Product description The Rock Solid Master Connect Arm, Clamp and Case Kit from Tether Tools includes the Rock Solid Master Articulating Arm & Clamp Kit and the Wallee Connect Kit for iPad Air 2.
The Rock Solid Master Articulating Arm & Clamp Kit is designed to hold the iPad Air 2 securely in place and allows you to mount it to a tripod leg, light stand, or any other support attachments used in the photography or film industry. It includes the Rock Solid Master Articulating Arm and Rock Solid Master Clamp. The Rock Solid Master Articulating Arm features three articulating joints and is used to position your device to a desired angle and location. When the center knob is loosened, all three articulation points loosen for easy maneuverability. When the desired position is achieved, you simply have to tighten the knob and it locks securely. The 5/8" stud at one end of the arm attaches to the Master Clamp and the 5/8" stud at the other end attaches to the included Wallee Connect Bracket. The Master Clamp is made of lightweight cast alloy and can be securely mounted to most tubes or flat surfaces measuring 0.5 to 2.1" thick.
The Wallee Connect Kit for iPad Air 2 includes the black Wallee iPad Air 2 Case and Wallee Connect Bracket. The Wallee Connect Bracket is constructed of lightweight aerospace aluminum. The case and bracket use the patented X locking mechanism. You simply have to insert the bracket's X attachment into the case's receptor and rotate the case slightly to lock the device into position. The case can be rotated 90° to switch between portrait and landscape orientations. A 45° rotation releases the tablet along with the protective Wallee case. - Rock Solid Master Articulating Arm and Clamp Kit This is the Rock Solid Master Articulating Arm and Clamp Kit from Tether Tools. It is designed to hold fixtures and devices securely in place in a variety of situations. The Kit includes the Rock Solid Master Articulating Arm and the Rock Solid Master Clamp. This kit enables mounting on any round or flat surface from 0.5" - 2.1" in diameter or thickness.The Clamp features Baby 5/8" socket for use with of a wide variety of attachments including the Rock Solid Double Articulating Arm, Camera Platform, Rock Solid Aero Elbow, Baby Ball head Adapter and more. The clamp has built-in 1/4"-20 threads for mounting smaller Rock Solid Articulating Arms (sold separately). The black finish reduces reflection, and a metal lift-ratchet style handle is provided for tightening in confined spaces.
- Compatibility
-
- Coupled with the Wallee iPad Connect Kit, the Rock Solid Master Articulating and Clamp Kit allows for mounting an iPad or Galaxy to a tripod leg, light stand or other flat or round surface
- Mount a video or DSLR camera virtually anywhere using a camera platform
- Secure a strobe or flash at any angle to just about anything round or flat
- The collective system will work in many additional uses such as mounting to an automobile, wheelchair, or exercise equipment to name a few
- Arm is compatible with Baby 5/8" receptor

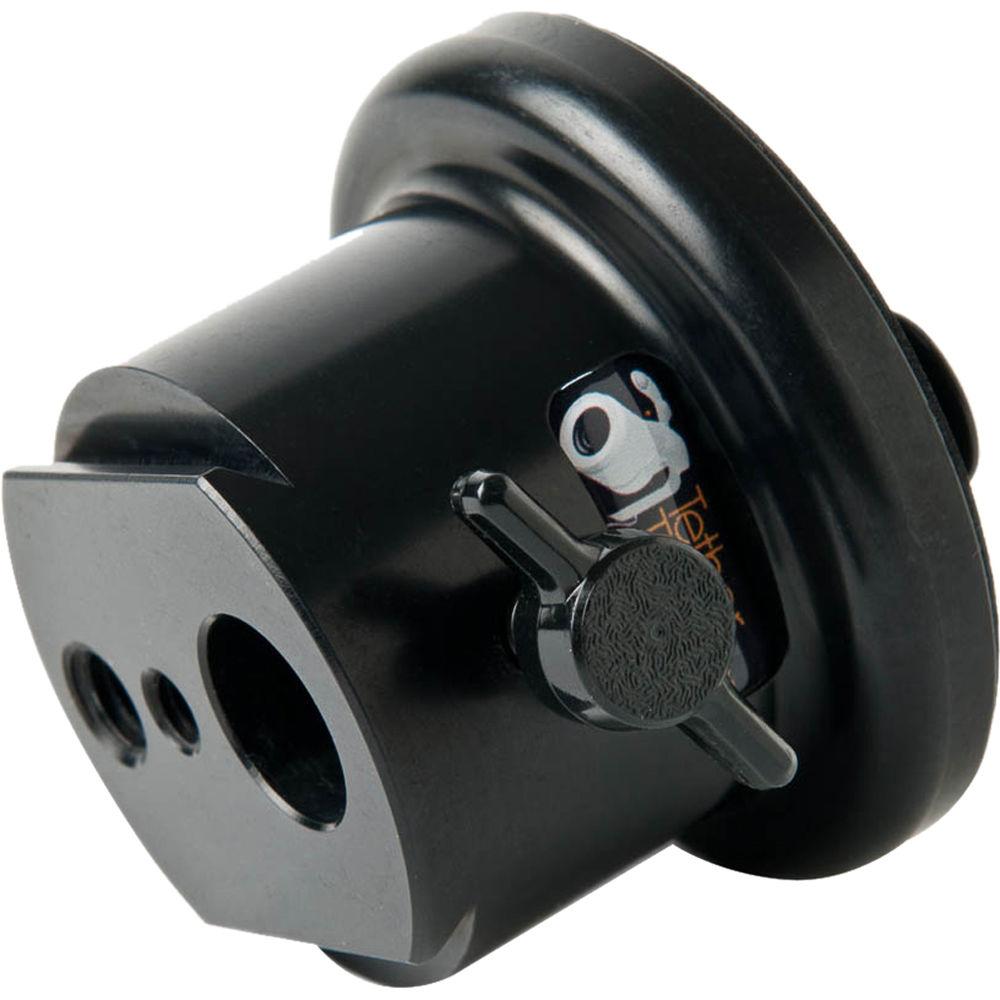

- Connect for X Lock Systems The Tether Tools Connect is a bracket designed to be used with the Tether Tools X Lock Systems to allow for unlimited mounting options of an Apple iPad or iPad 2. The tablet can be mounted to any tripod, light stand, SuperClamp, arm or any other versatile support attachments used in the photography or film industry. Once installed, apps and software solutions can be easily accessed in the studio or on location.
The bracket has a locking mechanism on one side to securely connect the iPad when paired with the X Lock Case. On the other end of the bracket, it has the versatility and functionality of the LAJO-4 Pro Bracket which seamlessly attaches to any 1/4-20" tripod head, 3/8" tripod mount, 5/8" pin for light stands and clamps and Arca-style connectivity for an Arca-style mounting system. - Designed to be used with the X Lock modular system
- Secure an Apple iPad to 1/4-20" or 3/8" thread, 5/8" pin or Arca style mount
- Compatible with Apple iPad and iPad 2 (works with Smart Cover)
- Constructed of lightweight Aerospace aluminum
- Quickly and easily rotate from vertical to horizontal positioning
UPC: 858977002745 - Wallee X-Lock Case for iPad Air 2 (Gray) Make your iPad Air 2 part of your digital capture work flow with the gray Wallee X-Lock Case from Tether Tools. A lightweight, super thin design, you might forget your Wallee case is even on. The case features easy snap-in installation, and cutouts for camera, microphone, and all controls. Included with your case is a locking X attachment. The X serves the dual purpose of locking your iPad Air 2 in the portrait or landscape position, and as an attachment point for mounting accessories.
The Wallee X-Lock case is part of the Wallee system. This system features a minimum of 9 ways to use and connect your iPad with optional accessories. With the system you can use your iPad for tethered shooting, as a teleprompter, clock, clapboard, recording device, typing desk, monitor, and sheet music display. The X attachment mounts to an arm, clamp, tripod plate, light stand, bracket, shoulder strap and more. In the Box Bundle Items Rock Solid Master Articulating Arm and Clamp Kit ufrbaaubewuetzdyvrwdutwufqeqvsdtztzt - Rock Solid Master Articulating Arm
- 5/8" Baby Stud with 1/4-20 Male Thread
- Wedge Insert for Securing Clamp to Flat Surfaces
- Limited Lifetime Warranty
Connect for X Lock Systems Wallee X-Lock Case for iPad Air 2 (Gray) Table of Contents
|
Upload User Manual
Have you got an user manual for the Tether Tools Rock Solid Master Connect Arm, Clamp & Case Kit for iPad Air 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rock Solid Master Articulating Arm and Clamp Kit
| Material | Steel | | Load Capacity | Up to 9.75 lb (4.4 kg) | | Maximum Extension | 21" (53.3 cm) | | Threads | 3/8"-16 and 1/4"-20 threads on each end | | | | Box Dimensions (LxWxH) | 14.0 x 6.5 x 5.0" | - Connect for X Lock Systems
| Material | Lightweight Aerospace aluminum | | Finish | Non-reflective black | | Weight | Less than .75 lb (.34 kg) | | | | Box Dimensions (LxWxH) | 3.2 x 3.1 x 3.1" | - Wallee X-Lock Case for iPad Air 2 (Gray)
| Compatibility | iPad Air 2 | | Materials | Plastic resin shell | | Weight | 2.4 oz / 68.0 g | | | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 0.8" |
