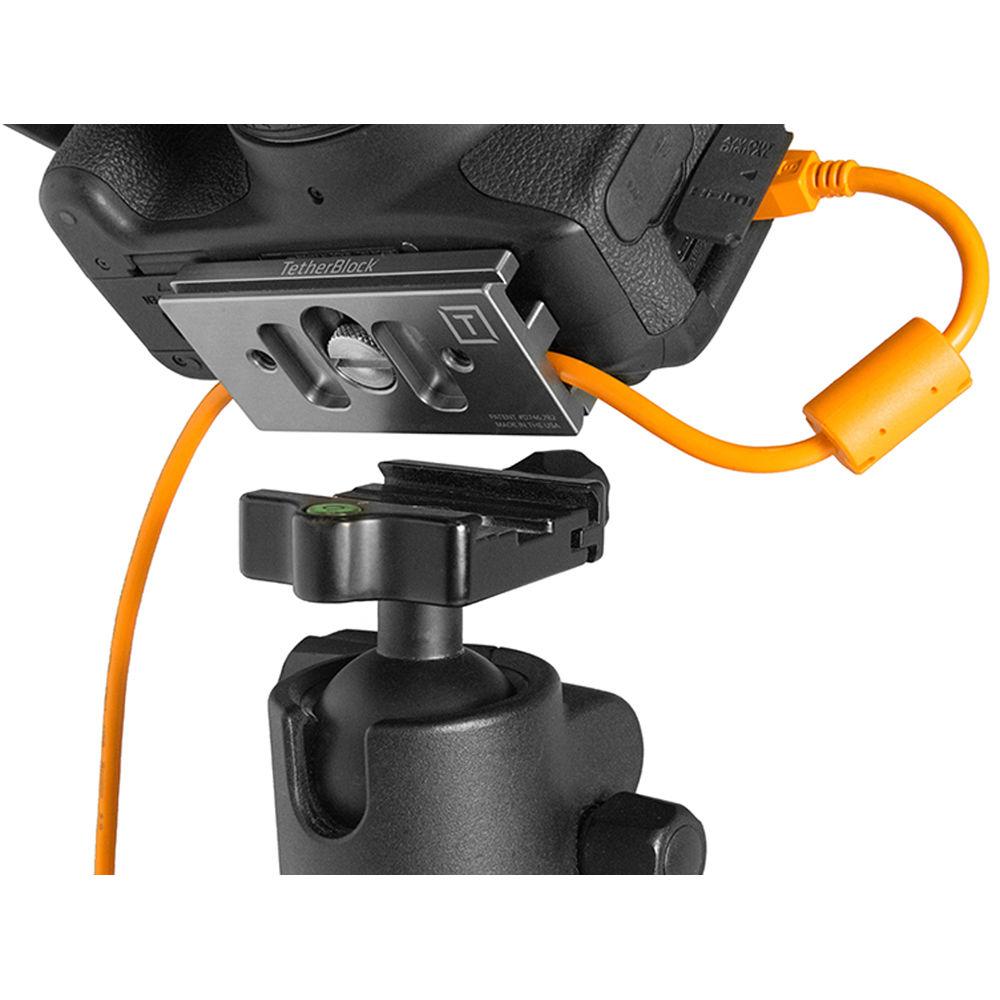

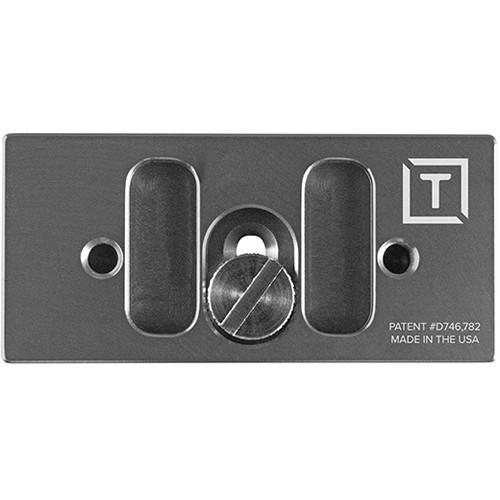

Product description The thunder gray TetherBlock QR Plus Quick Release Plate is designed to adapt a camera to an Arca-type compatible quick release clamp and prevent damage to the camera's data port while tethered to a computer or hard drive.

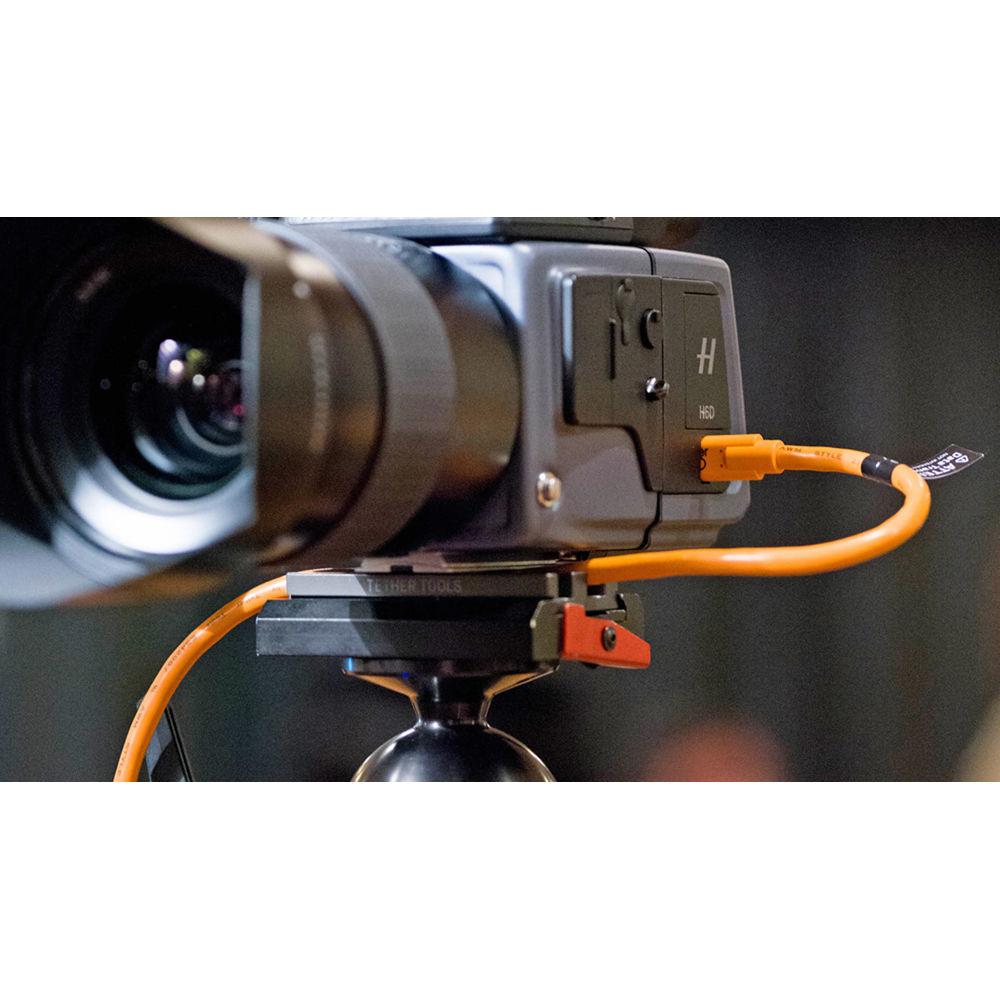

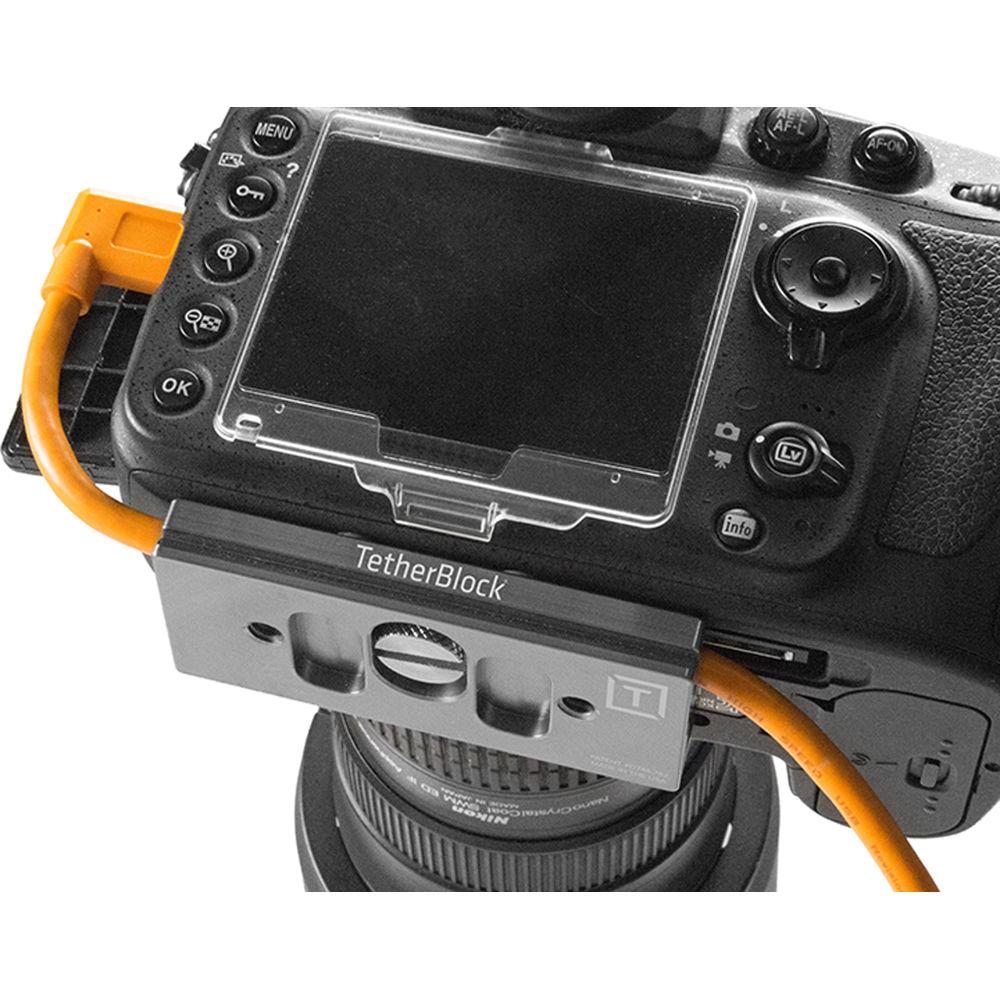

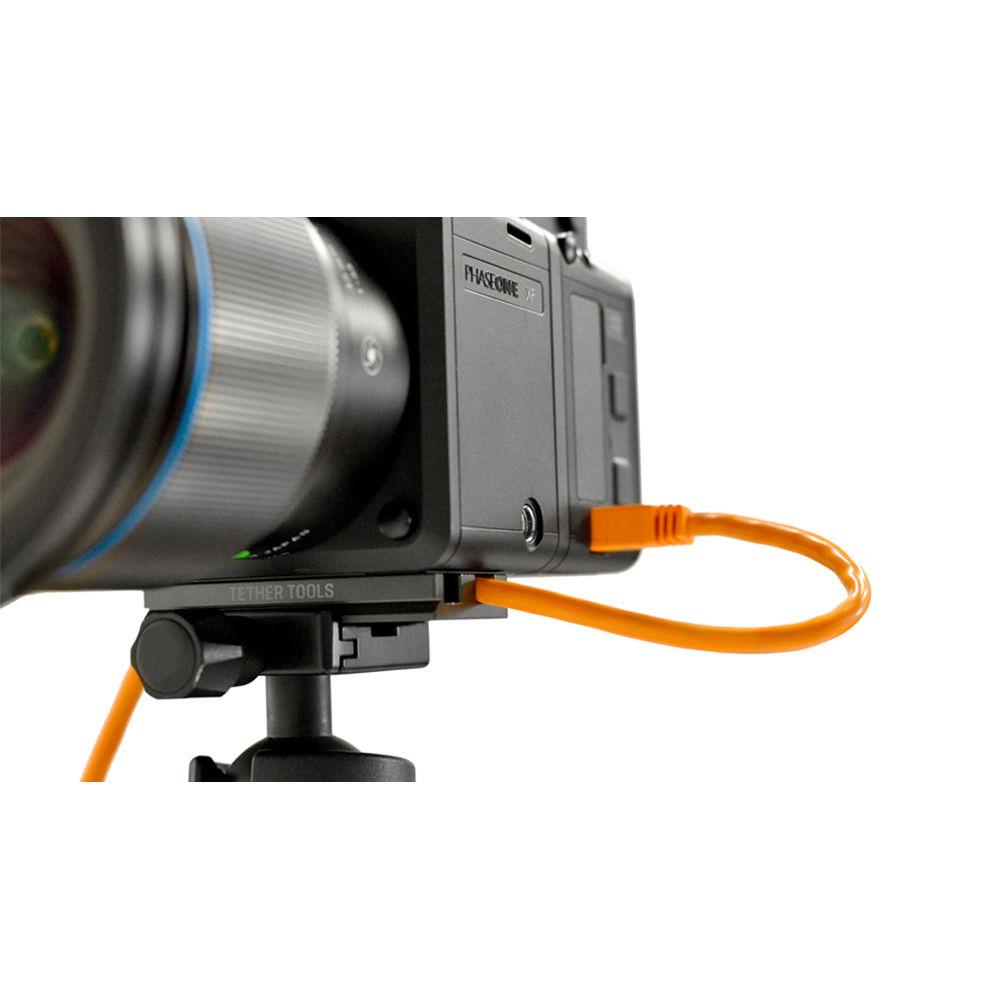

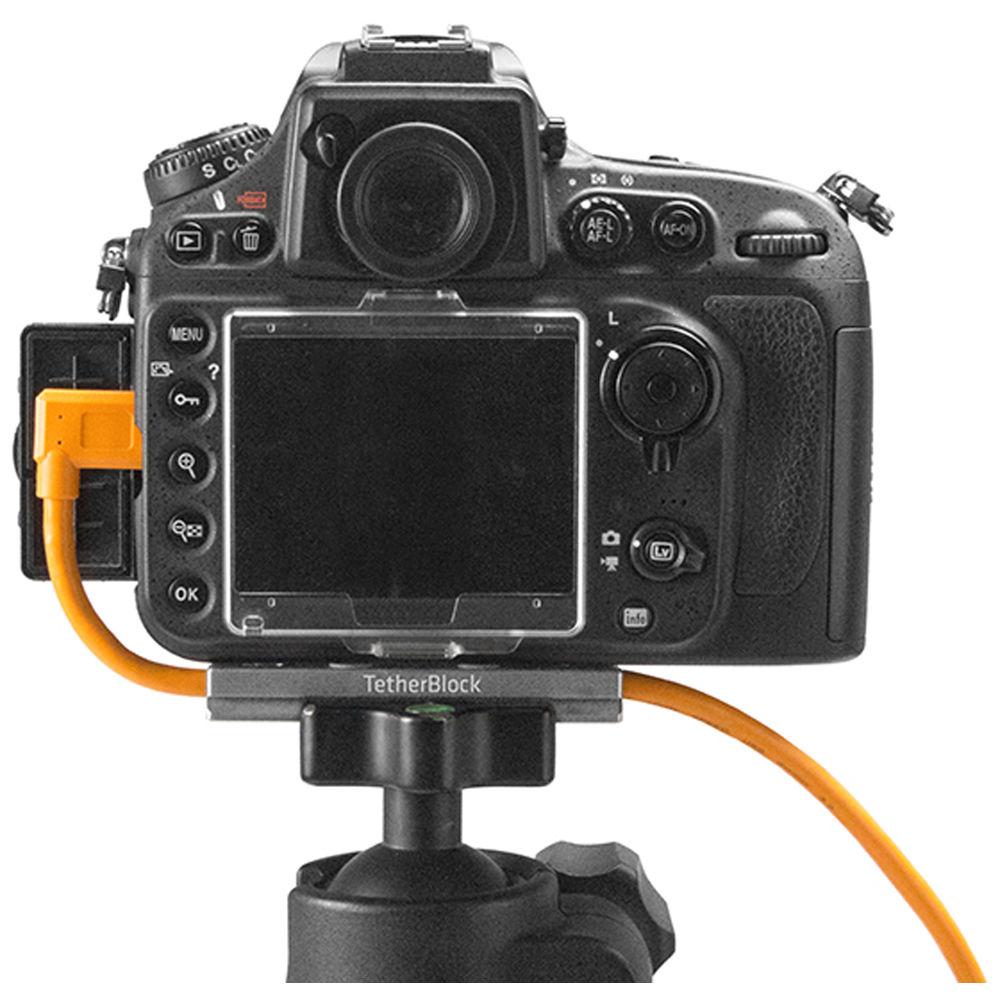

Along the 1/4"-20 mount and anti-slip pads on the QR Plus's top surface are grooves that can channel a section of data cable into one end of the plate's length and out the other before the plate is attached to a compatible camera. This allows a USB or FireWire cable that is connected to a camera's data port for tethered photography to be secured under the camera and within the QR Plus. Before being able to reach the point at which a data cable and a camera connect, tension along the cable which could then occur from accidentally tugging or tripping on it is interrupted by the plate's grooves. Strain from abrupt and incorrectly angled detachment of a data cable that could otherwise dislodge a camera's data port or cause it to function improperly is avoided.
For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 mounts, the underside of the plate is tapped with two 1/4"-20 female accessory threads. -
- Quick release plate for tethered photography
- Compatible with Arca-type clamps
- 1/4"-20 mount allows connection to a compatible camera
- Rubberized, anti-slip pads for connected camera

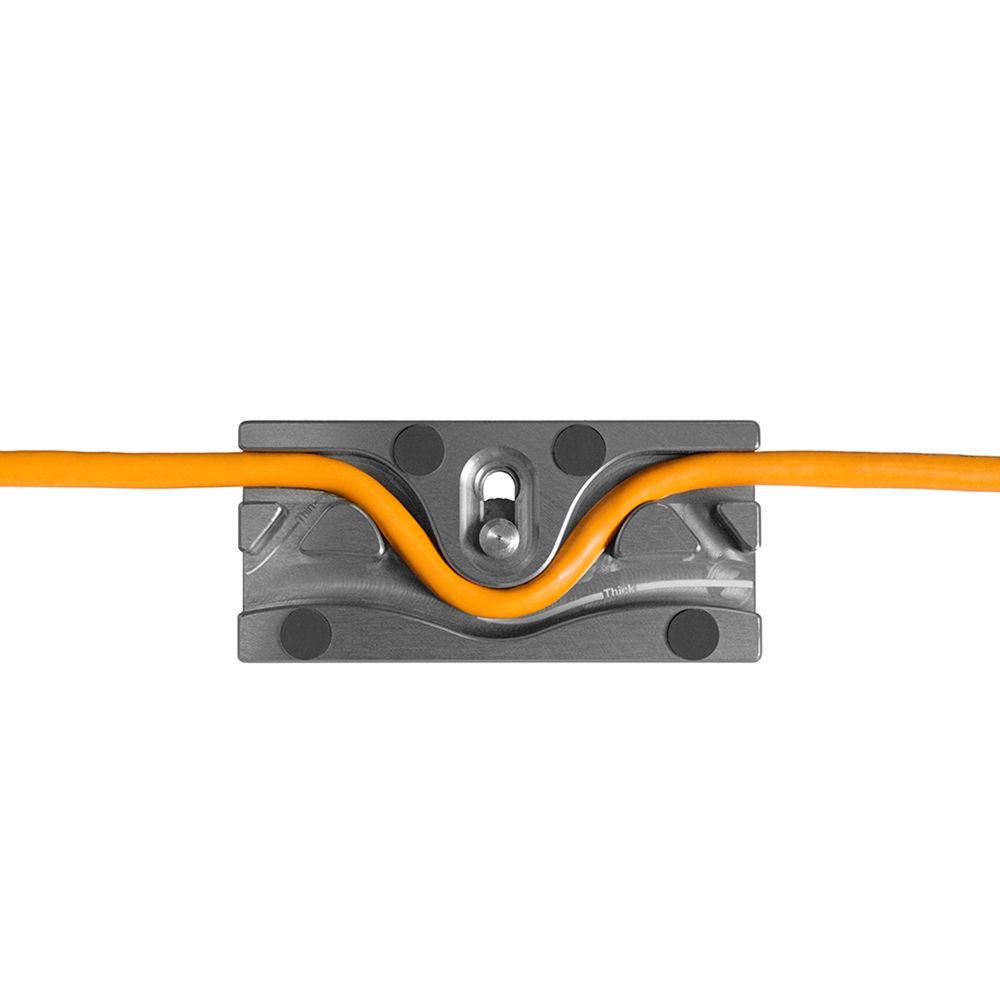

- Grooves along plate's top surface channel a section of data cable into one end of the plate's length and out the other
- USB or FireWire cable that is connected to a camera's data port for the purpose of tethered photography can be secured under the camera and within the surface of the QR Plus
- Prevents tension due to accidental tugging or tripping on data cable from causing abrupt and incorrectly-angled detachment of cable from camera data port
- Helps avoid damage to data port
- Two 1/4"-20 female accessory threads for direct connection to a 1/4"-20 mount
UPC: 862612000041 In the Box TetherBLOCK QR Plus Quick Release Plate (Thunder Gray) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TetherBLOCK QR Plus Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTetherBLOCK TB-QR-004G Specs | Mounting Screw | 1 x 1/4"-20 Male | | Accessory Mounting Thread | 2 x 1/4"-20 Female | | Quick Release Plate Type | Arca-Type | | Material of Construction | Aluminum | | Length | 3.3" / 8.38 cm | | Width | 1.75" / 4.45 cm | | Height | 0.42" / 1.07 cm | | Weight | 2.0 oz / 57.0 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.4 x 2.8 x 0.6" |
