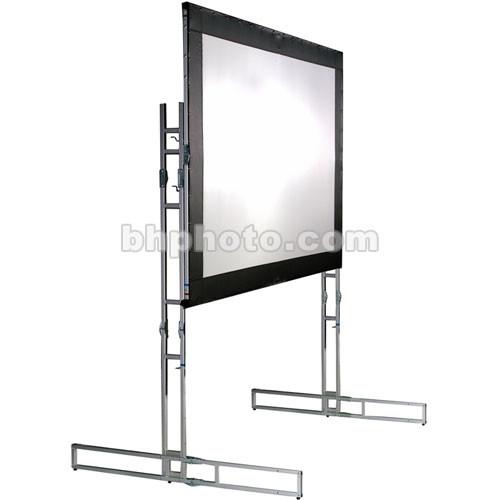

User Manual for The Screen Works E-Z Fold Truss Style Rear Projection Screen - 10x28' - Multi-Image Format - Rear Projection Click to enlarge the picture
Contents of the user manual for the The Screen Works E-Z Fold Truss
- Product category: Folding Screens The Screen Works
- Brand: The Screen Works
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for The Screen Works Folding Screens
|
User manual for the The Screen Works E-Z Fold Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any The Screen Works product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official The Screen Works user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a The Screen Works product will considerably shorten its lifespan!
|
Product description The Screen Works E-Z Fold 10x28' Truss Portable Rear Projection Screen - Rear Projection is a free-standing, portable projection screen that can be set up and taken down with the greatest of ease. Whether for point-of purchase displays, lectures, classrooms, libraries, professional or amateur use, this screen is lightweight and user-friendly. Rugged aluminum T-shaped legs support a variety of screen surfaces for all needs. E-Z Fold screens are available with a projection surface for either front or rear projection. With the optional E-Z Fold Truss Dress Kit, your presentation can take on a more professional and finished appearance. Side drapery helps eliminate distracting lights and background and is held up by sturdy aluminum braces. In 1959, The Screen Works, then known as Wilcox-Lange, began as an equipment and labor support company to the fledgling new industry of Audio Visual. Identifying a need for portable projection screens for the "traveling shows", the company began manufacturing their E-Z Fold brand of screens. Since each show was unique, custom screen designs, shapes and new format sizes became a necessity. As the industry quickly grew, so did Wilcox-Lange, which became The Screen Works, a worldwide supplier of lightweight, portable, affordable projection screens and trim kits. Note: Truss Style Screens are heavier-duty than standard E-Z Fold frames. The legs are stronger and have reinforced hinges - 6" welded Truss Frames are available in all standard sizes and formats including HDTV
- Heavy-duty construction with light-weight portability
- Truss frames feature no tools assembly
- Frame braces provide reinforced horizontal hinge points and attach with crank-bolts
- Truss frames over 25' feature 6" horizontal support truss for extra strength
- Truss Frames are height-adjustable in 6" increments
- Flexible, snap-on screen surfaces with 6" binding are available in your choice of: Matte White, Matte Brite, Matte Brite Plus, Hi-Contrast, Rear Projection, 2-Vu
- Molded case with wheels provided with Truss Frame sizes to 12x16'
- Optional Dress Kits available (Drapery, Valance, Skirt, Hardware, and Case)
In the Box The Screen Works E-Z Fold Truss Style Rear Projection Screen - 10x28' - Multi-Image Format - Rear Projection Brace Legs Hardware Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the The Screen Works E-Z Fold Truss Style Rear Projection Screen - 10x28' - Multi-Image Format - Rear Projection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersThe Screen Works EZFT1028RP Specs | | | Style | E-Z Fold Truss Style | | Front/Rear Projection | Rear | | Mount | Free-standing | | Finish | Rear Projection | | Tension Control | Permanently tensioned | | Keystone Control | None | | | | Overall Size | 10x28' (3x8.5m) | | Image Size | 9x27' (2.7x8.2m) | | Diagonal | Not specified | | Format | Multi-Image | | Aspect Ratio | Not specified | | Masking Options | Black borders | | | | Voltage | Not applicable | | Integrated Control | Not applicable | | Control Options | Not applicable | | | | Color | Black | | Material | 6" Aluminum frame | | Length | Not specified | | | | Shipping Weight | 248 lb (112 kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
